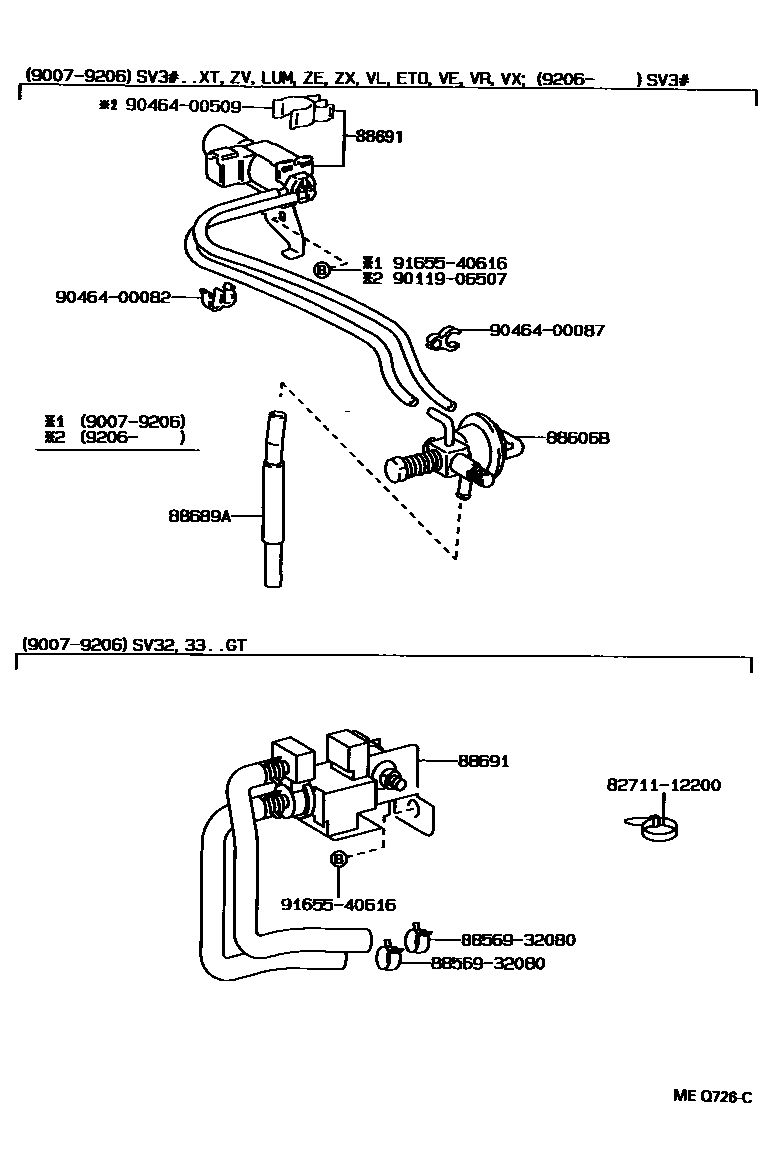

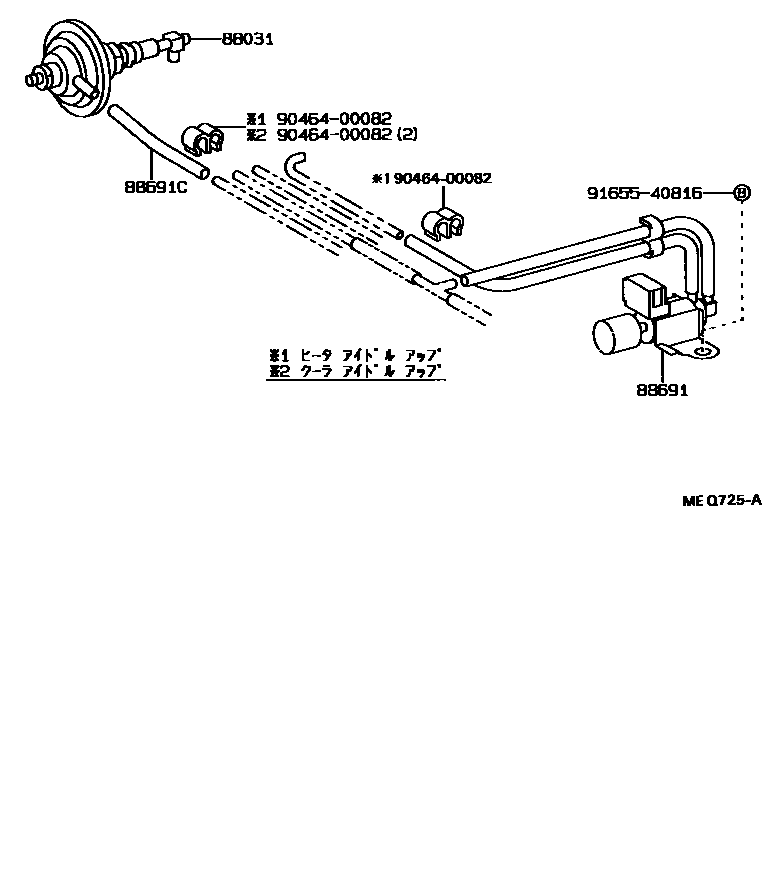

Toyota CAMRY 暖风和空调系统 - 真空管 — Figure 8717
Toyota CAMRY EPC diagram 8717, 暖风和空调系统 - 真空管, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88031 | Idle speed lift actuator assembly | 88031-12120 · 88031-12150 |
| 88606B | Cooler diaphragm sub-assembly | 88606-20310 · 88606-32020 |
| 88689A | Cooler Vacuum Hose No. 1 | 88689-20890 · 88689-32060 · 88689-32080 |
| 88691 | Solenoid valve (for idle speed lifting device) | 17600-74170 · 88690-32350 · 88690-32360 · 88690-32370 |
| 88691C | Vacuum hose No. 1 (for idle lift) | 90999-92002 |
