Toyota CAMRY 暖风和空调系统 - 水管 — Figure 8716

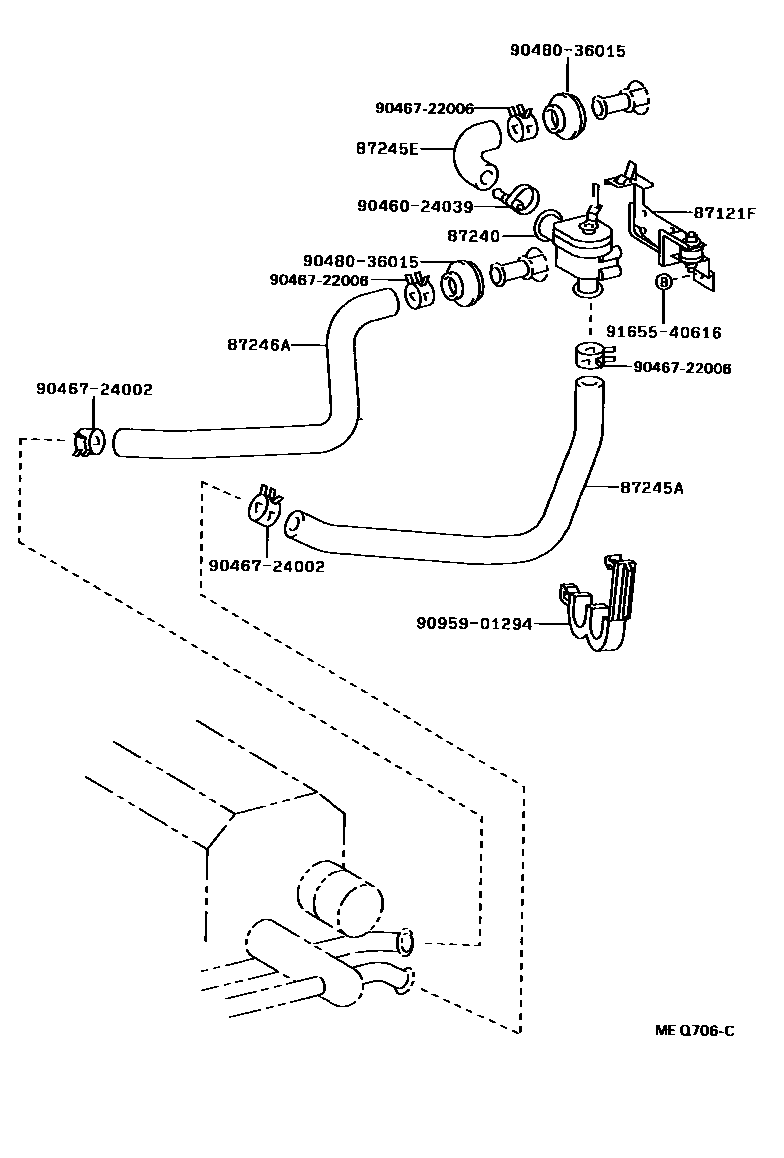

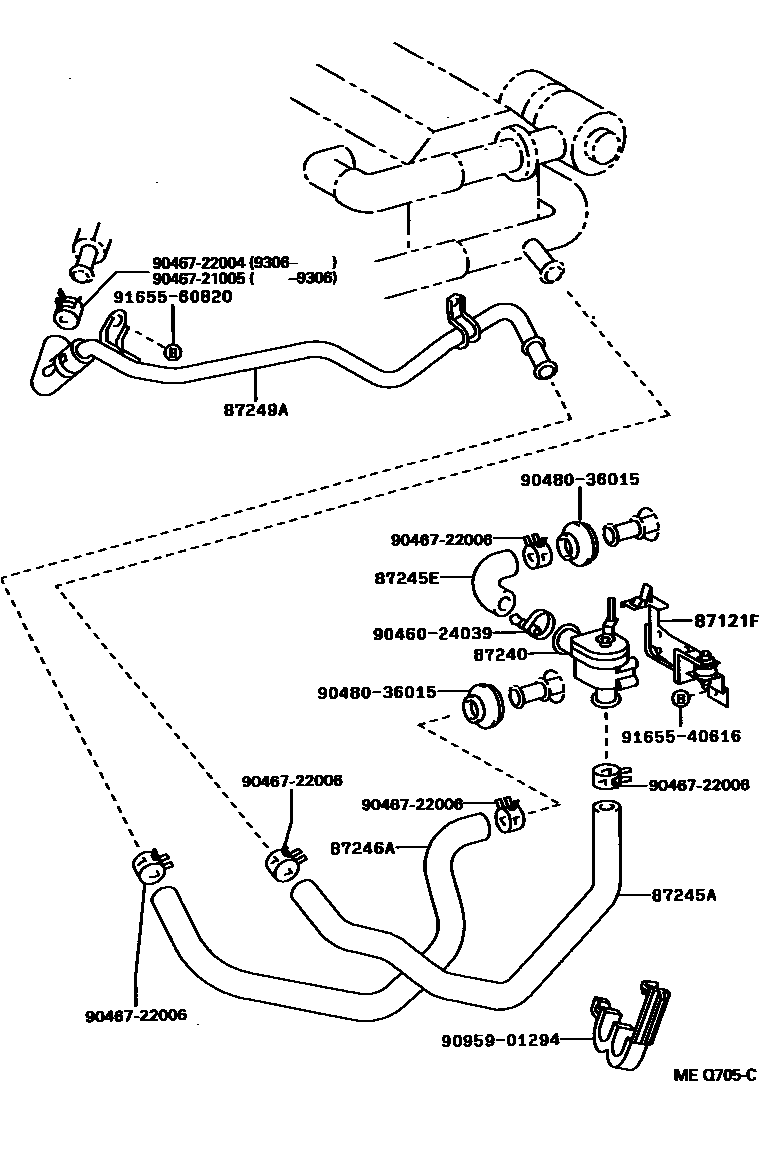

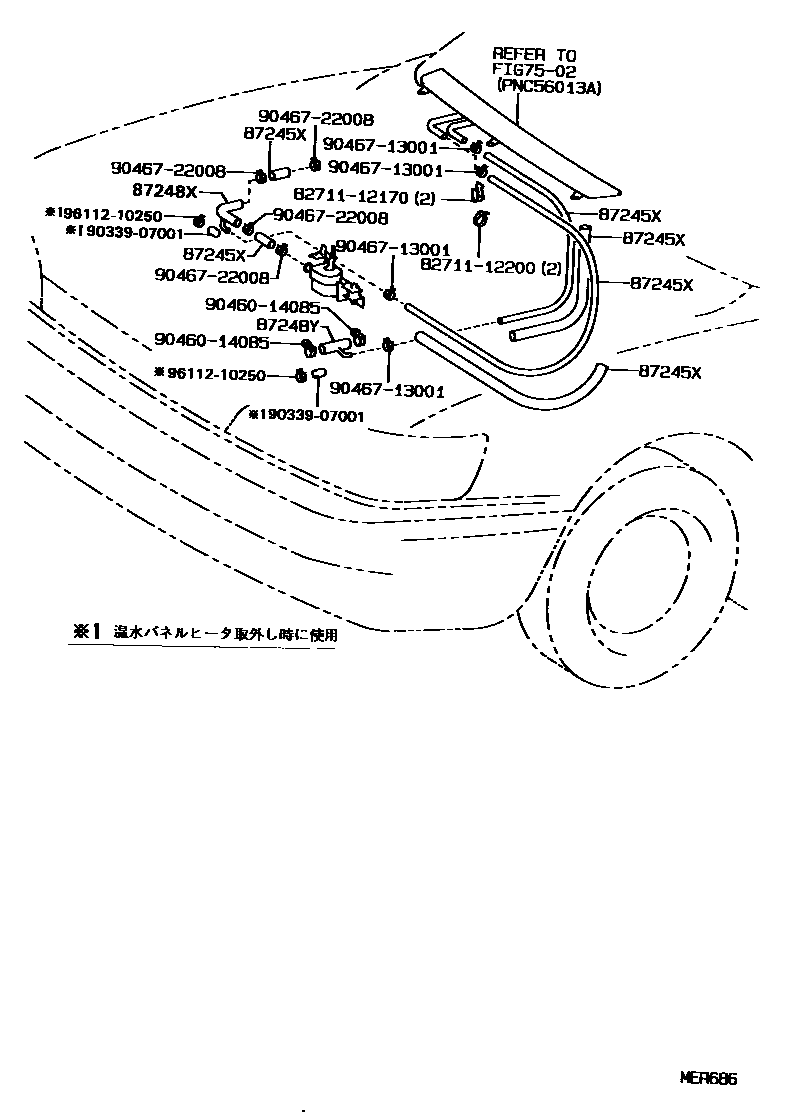

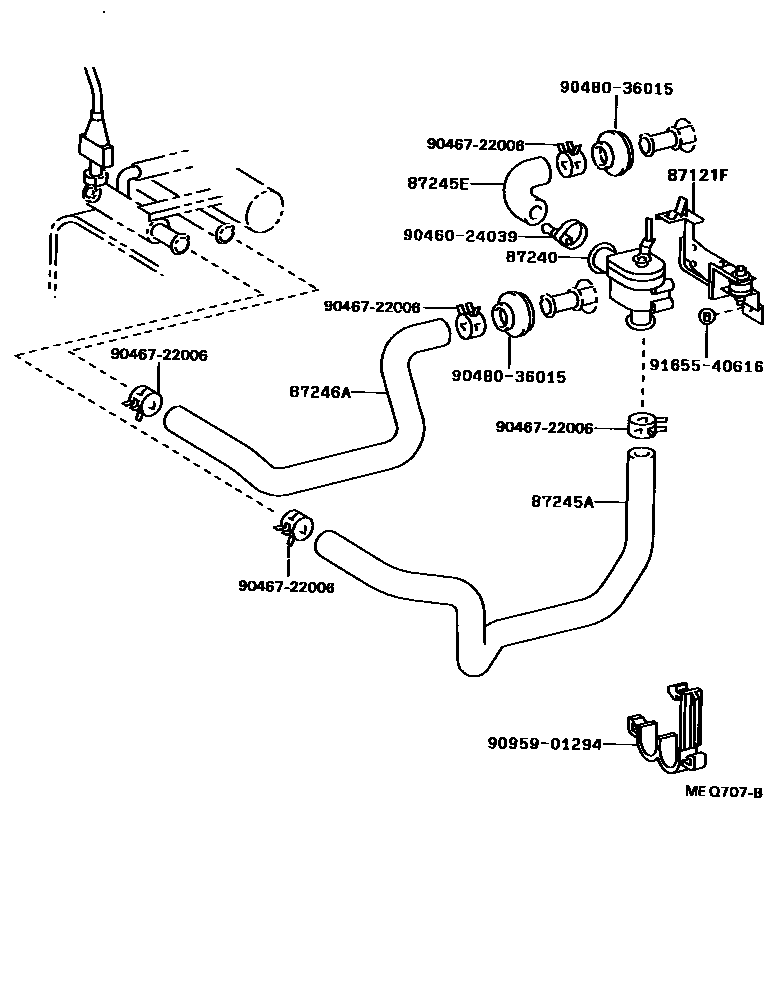

Toyota CAMRY EPC diagram 8716, 暖风和空调系统 - 水管, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87121F | heater bracket | 87121-32010 |
| 87240 | Heater water valve assembly | 87240-32040 |
| 87245A | Heater water inlet hose A | 87245-32220 · 87245-32240 · 87245-32260 · 87245-32290 · 87245-32300 |
| 87245E | Heater water inlet hose E | 87245-32210 |
| 87245X | heater water hose | 90445-23006 · 99556-11000 · 99556-30210 |
| 87246A | Heater outlet hose A | 87245-32230 · 87245-32250 · 87245-32270 · 87245-32280 · 87245-32310 · 87245-32320 |
| 87248X | heater water pipe | 87248-32050 |
| 87248Y | No. 2 heater water pipe | 87248-30260 |
| 87249A | Heater outlet pipe A | 87209-32030 |
