Toyota CAMRY 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota CAMRY EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 5 images and 19 PNC and OE references.
PNC and OE references

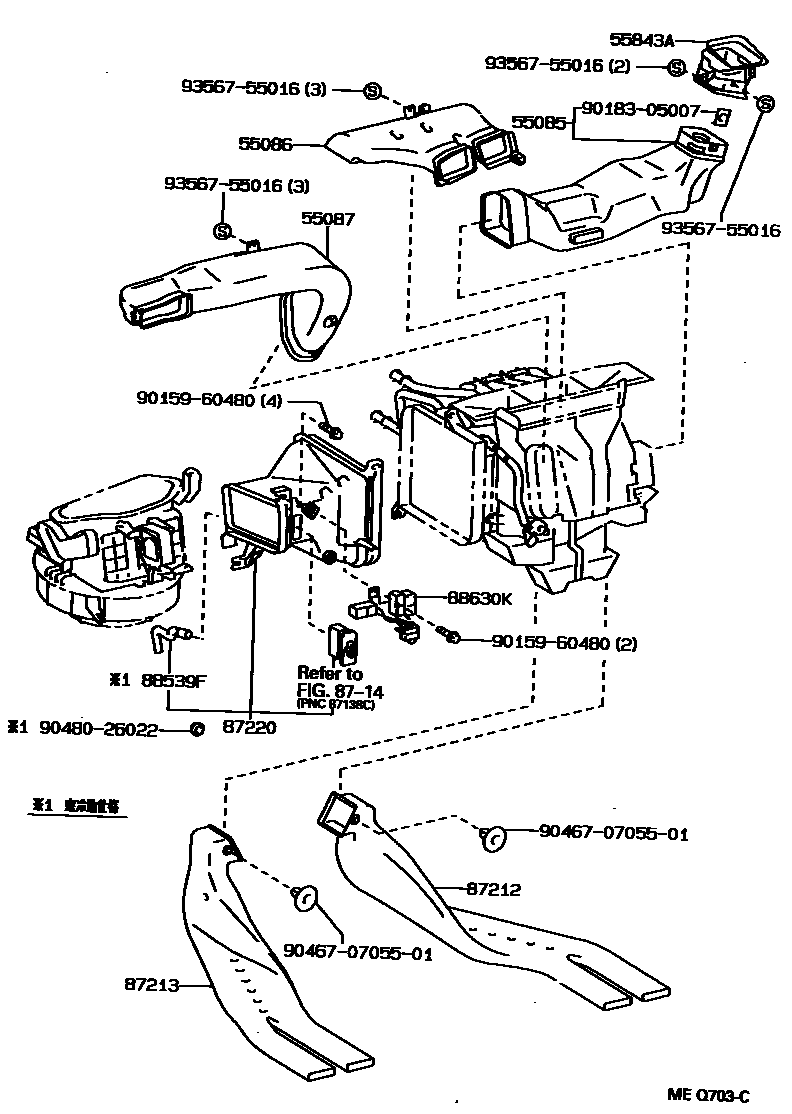

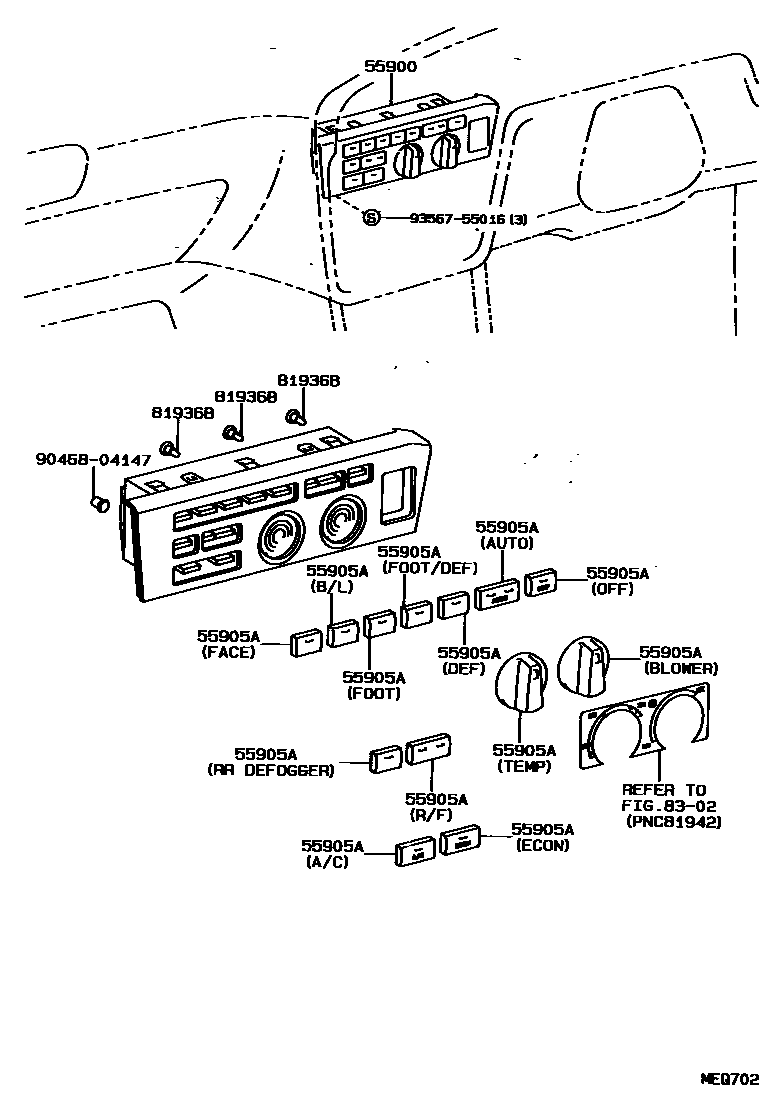

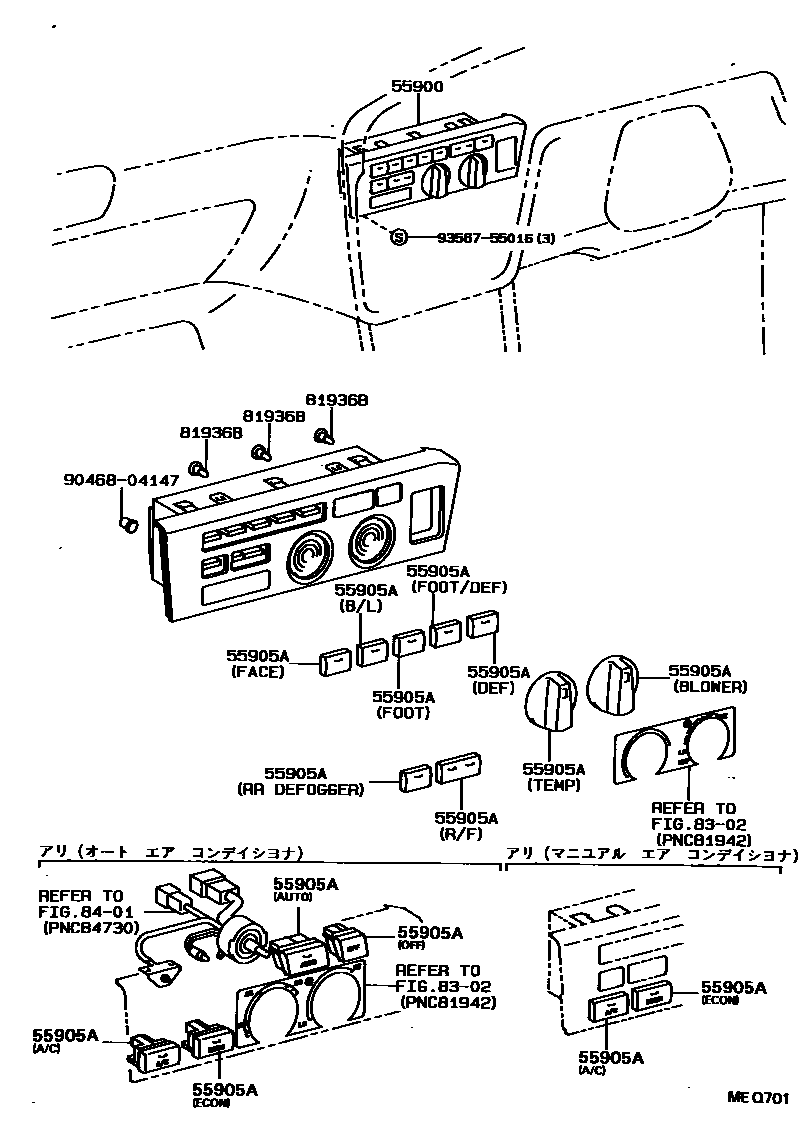

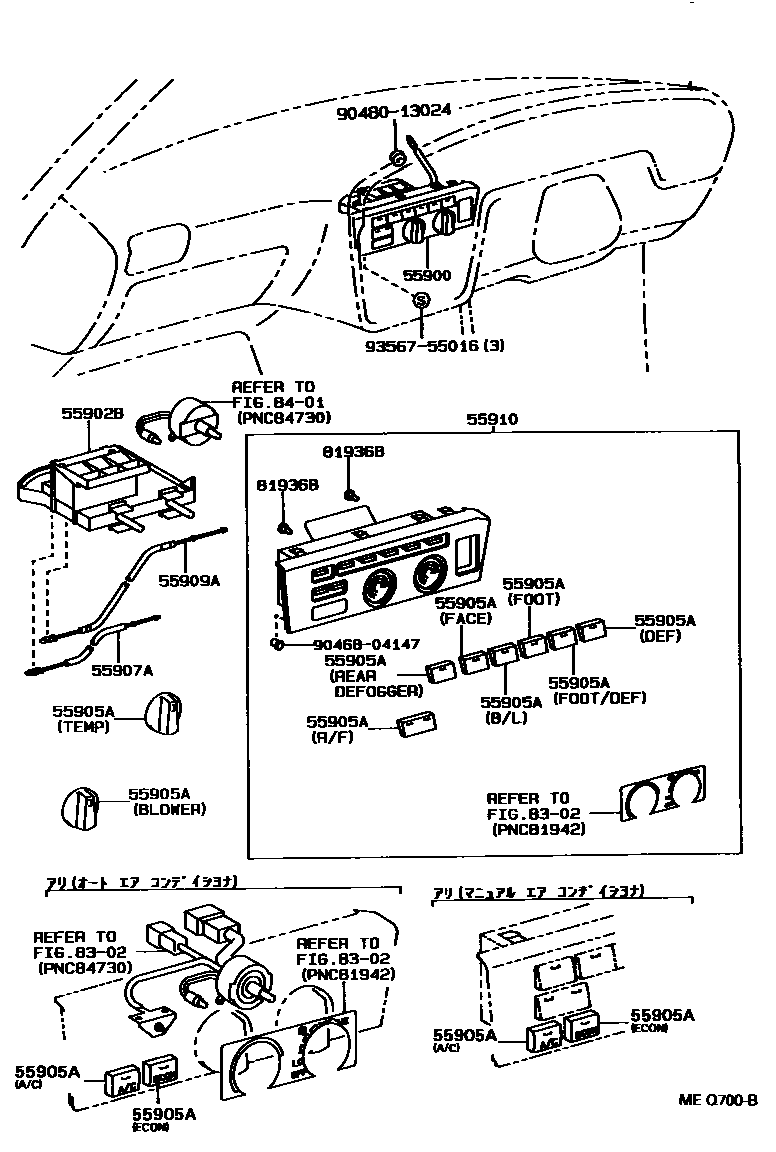

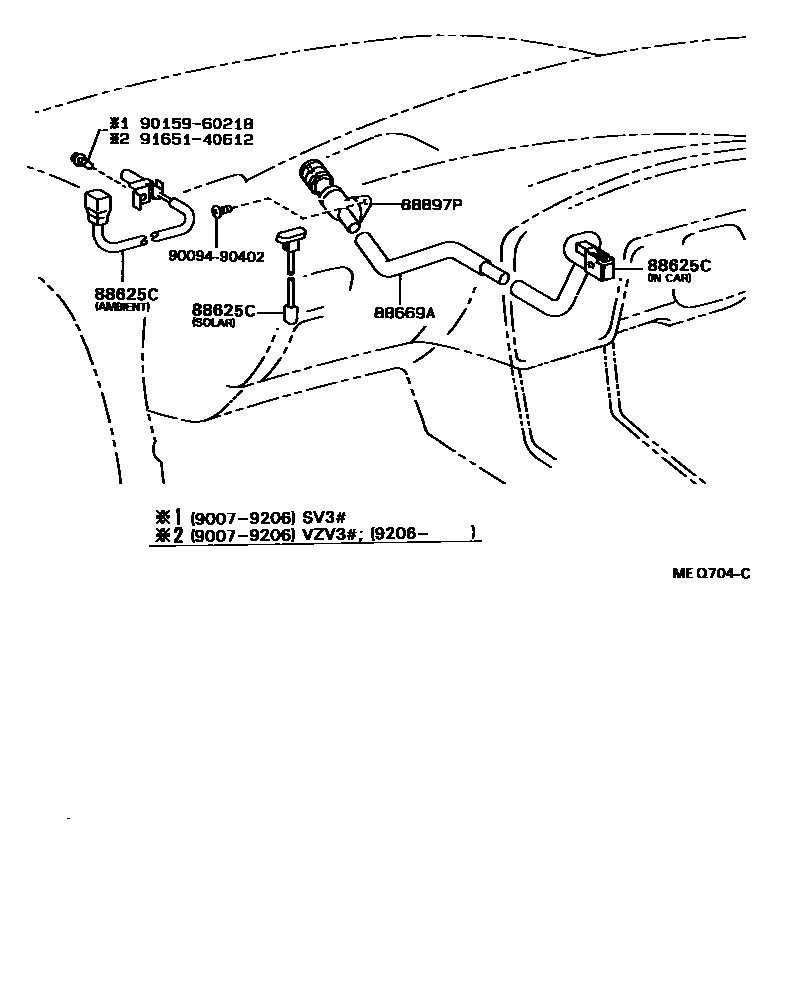

| PNC | Part name | OE numbers |
|---|---|---|
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55085-32110 · 55085-32120 |
| 55086 | Heater to air regulator No. 3 air duct sub-assembly | 55086-32070 |
| 55087 | Heater to air regulator No. 4 air duct sub-assembly | 55087-32030 |
| 55843A | Air duct No. 1 from heater to air register | 55843-32060 |
| 55900 | Air conditioning control assembly | 55900-32220 · 55900-32230 · 55900-32240 · 55900-32250 · 55900-32260 · 55900-32270 · 55900-32280 · 55900-32290 · 55900-32300 |
| 55902B | Heater control sub-assembly | 55902-32010 |
| 55905A | Heater control button | 55905-32410 · 55905-32420 · 55905-32430 · 55905-32440 · 55905-32450 · 55905-32460 · 55905-32470 · 55905-32480 · 55905-32490 · 55905-32500 · 55905-32510 · 55905-32520 · 55905-32530 · 55905-32540 · 55905-32550 · 55905-32560 · 55905-32570 · 55905-32580 · 55905-32590 · 55905-32600 · 55905-32610 · 55905-32620 · 55905-32630 · 55905-32640 · 55905-32650 · 55905-32660 · 55905-32670 · 55905-32680 · 55905-32690 |
| 55907A | Water valve control cable sub-assembly | 55907-32060 |
| 55909A | Air mix damper control cable sub-assembly | 55909-32150 |
| 55910 | Heater or auxiliary ventilation control assembly | 55910-32050 · 55910-32080 · 55910-32090 |
| 81936B | Cooler controller bulb assembly | 81936-32010 · 81936-32020 |
| 87212 | No. 1 rear air duct | 87212-32030 |
| 87213 | No. 2 rear air duct | 87213-32020 |
| 87220 | Air duct assembly | 87220-32030 · 87220-32060 |
| 88539F | discharge hose | 88539-32050 |
| 88625C | Cooler thermistor | 88625-32100 · 88625-32110 · 88625-32120 · 88625-32130 · 88625-32140 · 88790-24040 · 88790-32020 |
| 88630K | Relay assembly | 88630-32100 |
| 88669A | Hoses (for cooler thermistor) | 88669-32040 |
| 88897P | aspirator | 88566-22040 |
