Toyota CAMRY 暖风和空调系统 - 冷却器组件 — Figure 8714

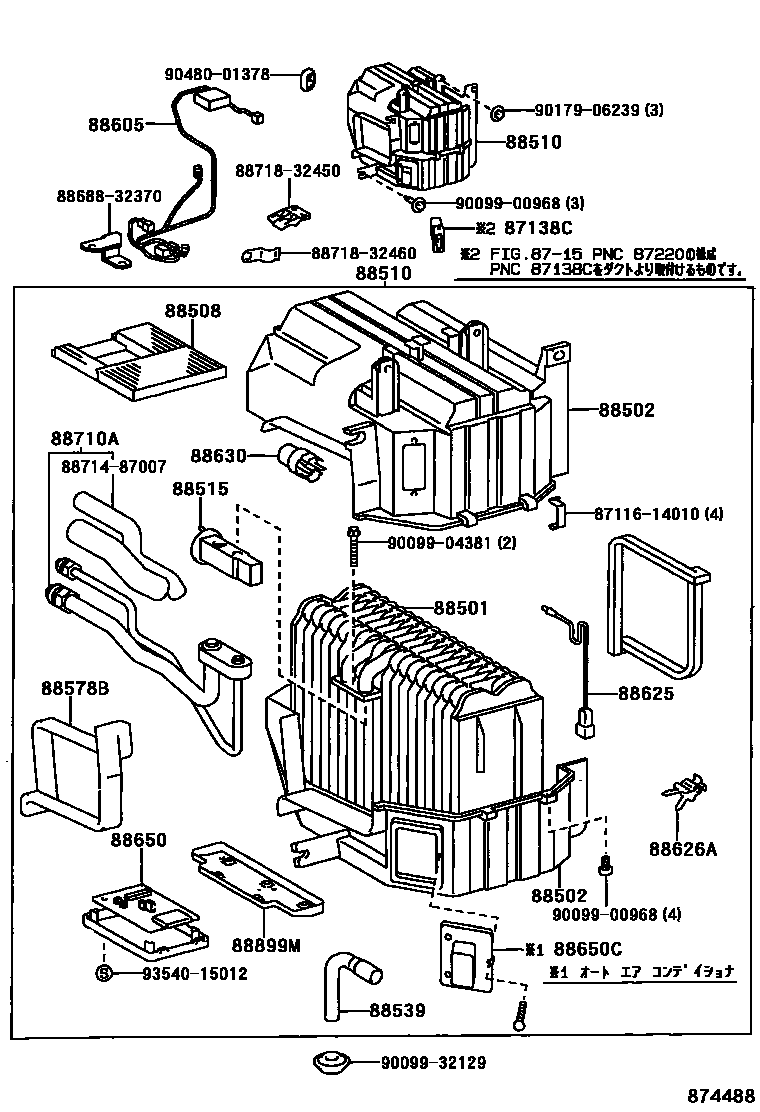

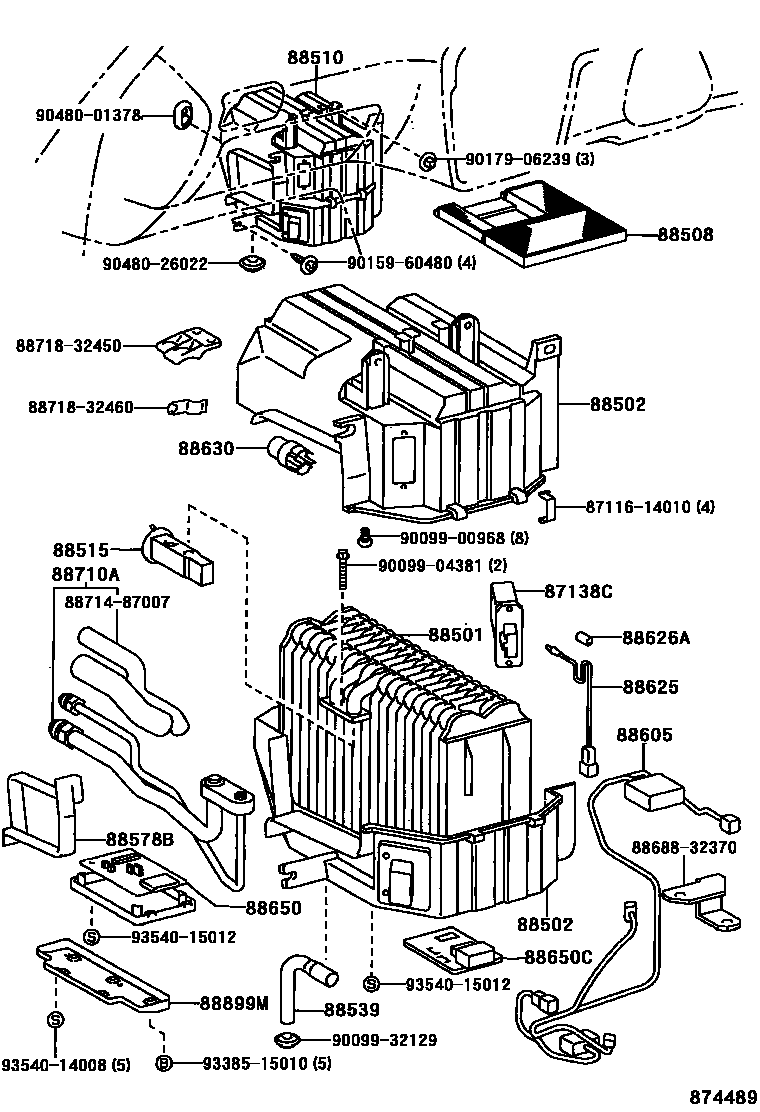

Toyota CAMRY EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87138C | Blower resistor | 87138-32050 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-32060 · 88501-32070 · 88501-32080 · 88501-32090 |
| 88502 | Cooling device shell sub-assembly | 88502-32070 · 88502-32080 · 88502-32090 · 88502-32110 · 88502-32120 · 88502-32130 |
| 88508 | Air purification filter sub-assembly | 88508-32010 |
| 88510 | Cooler device assembly | 88510-32410 · 88510-32420 · 88510-32430 · 88510-32440 · 88510-32450 · 88510-32490 · 88510-32500 · 88510-32510 · 88510-32520 · 88510-32530 · 88510-32550 · 88510-32560 · 88510-32570 · 88510-32580 · 88510-32590 · 88510-32600 · 88510-32610 · 88510-32620 · 88510-32630 · 88510-32640 · 88510-32650 · 88510-32660 · 88510-32670 · 88510-32680 |
| 88515 | Cooler expansion valve | 88515-14060 · 88515-14061 · 88515-14062 · 88515-20100 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-32040 |
| 88578B | Cooling unit seal No. 1 | 88578-20460 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-32540 · 88605-32560 · 88605-32580 · 88605-32600 · 88605-32620 · 88605-32650 · 88605-32680 |
| 88625 | Cooler No. 1 Thermistor | 88625-20270 · 88625-20280 |
| 88626A | Thermistor mount | 88626-28010 |
| 88630 | Cooler relay assembly | 90987-02004 |
| 88650 | Cooler stabilized amplifier assembly | 88650-32280 · 88650-32290 · 88650-32300 · 88650-32350 |
| 88650C | Air conditioning amplifier sub-assembly | 88650-20590 · 88650-32340 |
| 88710A | Air conditioning pipe assembly | 88710-32100 · 88710-32130 · 88710-32150 · 88710-32160 |
| 88899M | cover (for air cleaner) | 88899-20250 |
