Toyota CAMRY 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712

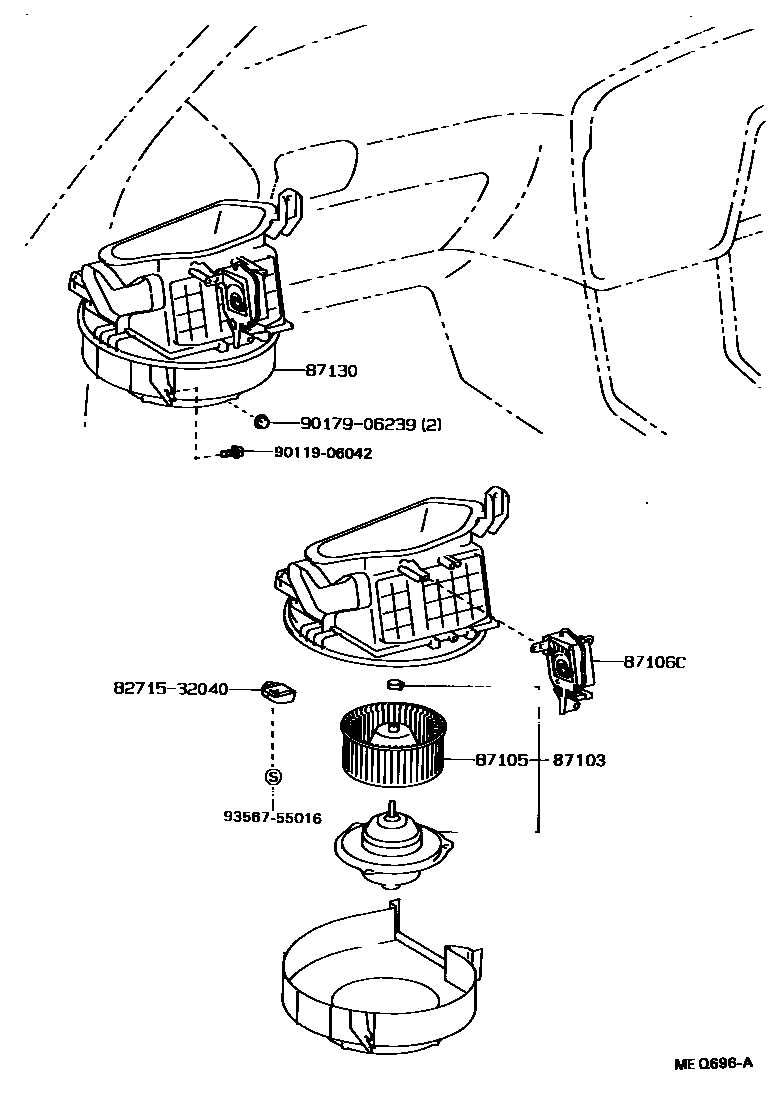

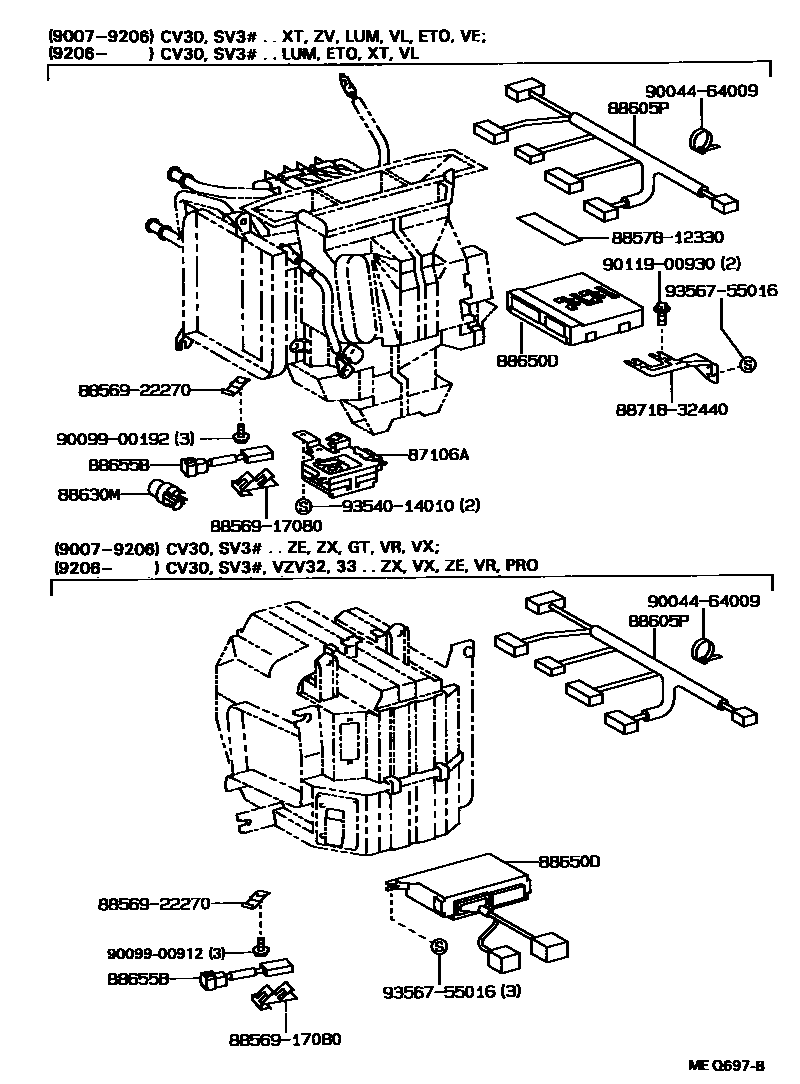

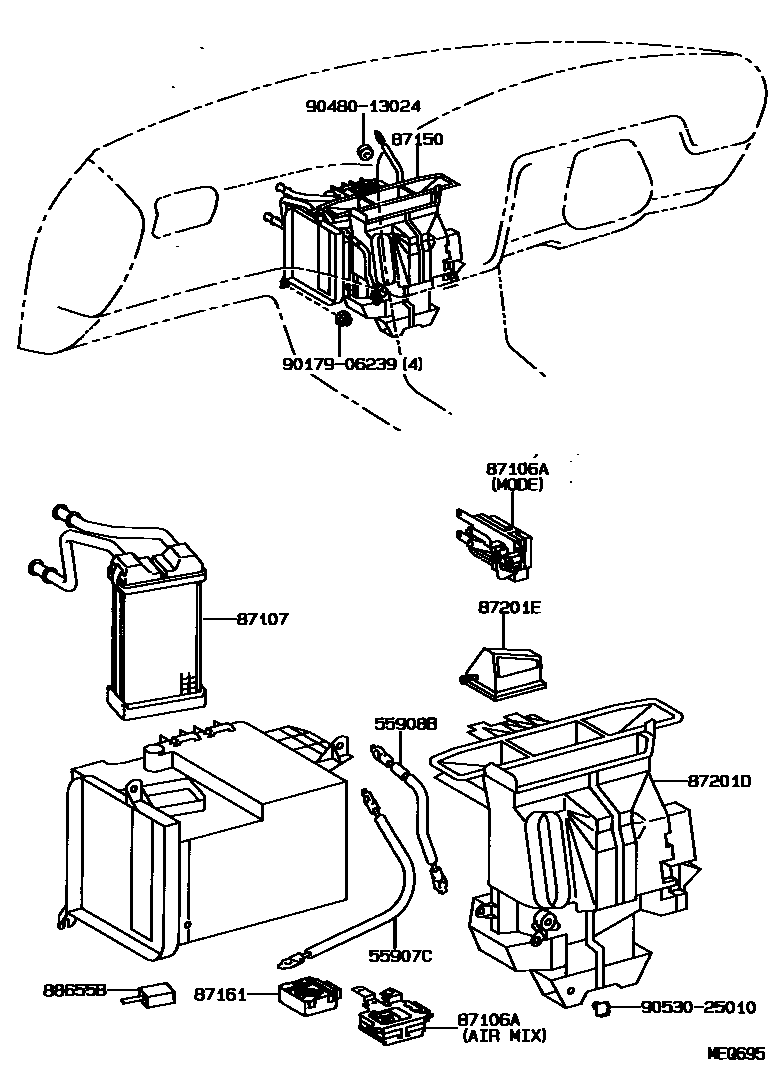

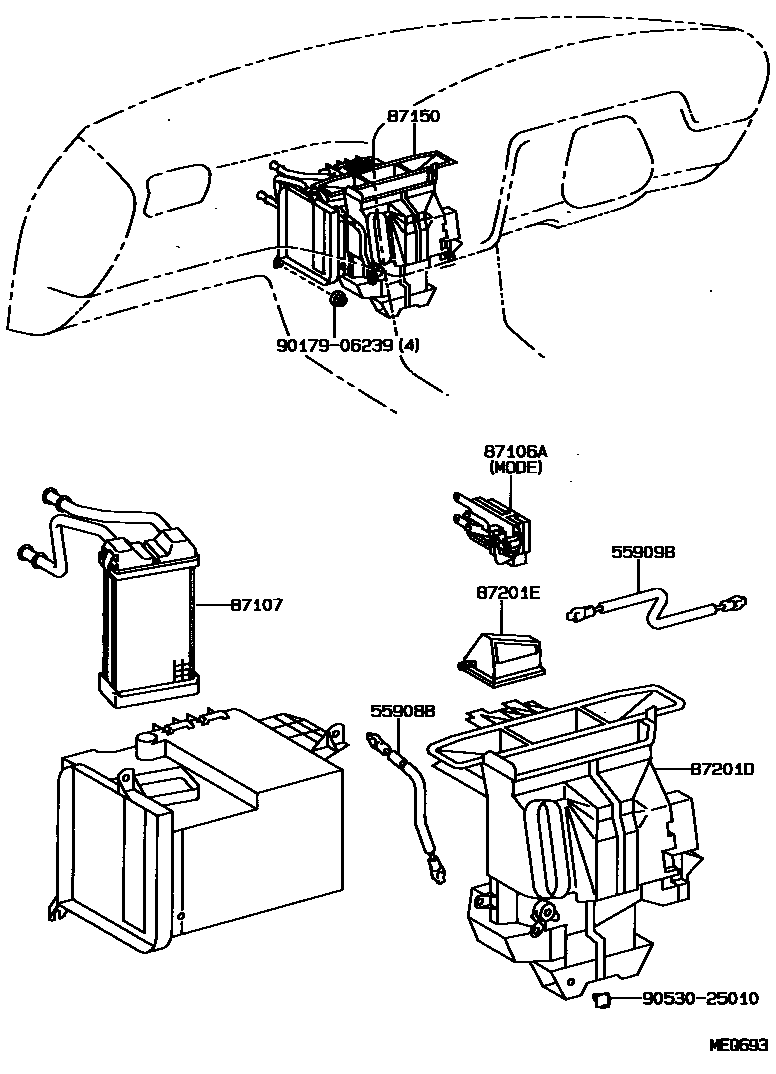

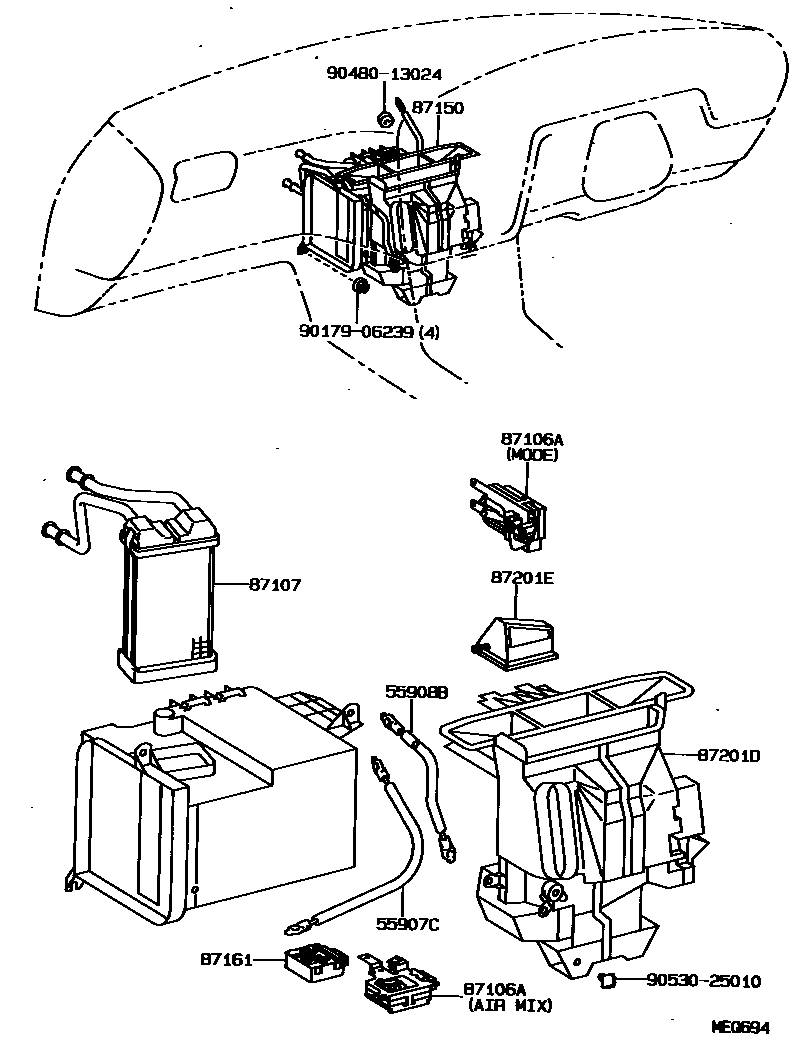

Toyota CAMRY EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 5 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55907C | Water valve control cable sub-assembly | 87286-32050 |
| 55908B | Intake air valve control cable sub-assembly | 87286-32020 |
| 55909B | Air mix damper control cable sub-assembly | 55909-32130 |
| 87103 | Heater blower motor sub-assembly with fan | 87103-20050 |
| 87105 | Heater blower fan sub-assembly | 87105-20100 |
| 87106A | Damper servo mechanism sub-assembly | 87106-32070 · 87106-32080 · 87106-32100 · 87106-32110 |
| 87106C | Damper servo mechanism sub-assembly (for blower) | 87106-32090 |
| 87107 | Heater radiator device sub-assembly | 87107-32080 · 87107-32090 |
| 87130 | Front heater blower assembly | 87130-32140 |
| 87150 | Heater radiator assembly | 87150-32170 · 87150-32180 · 87150-32190 · 87150-32200 · 87150-32210 · 87150-32220 · 87150-32230 · 87150-32240 · 87150-32250 · 87150-32260 · 87150-32270 · 87150-32280 |
| 87161 | Heater servo motor amplifier | 87161-20030 |
| 87201D | Air duct sub-assembly | 87201-32220 |
| 87201E | No. 2 air duct sub-assembly | 87201-32230 |
| 88605P | Air conditioning wiring harness sub-assembly | 88605-32630 · 88605-32640 |
| 88630M | Cooler relay assembly | 90987-02004 |
| 88650D | amplifier assembly | 88650-32310 · 88650-32320 · 88650-32360 |
| 88655B | Water temperature switch | 88655-22020 · 88790-24040 |
