Toyota CAMRY 后视镜 — Figure 8701

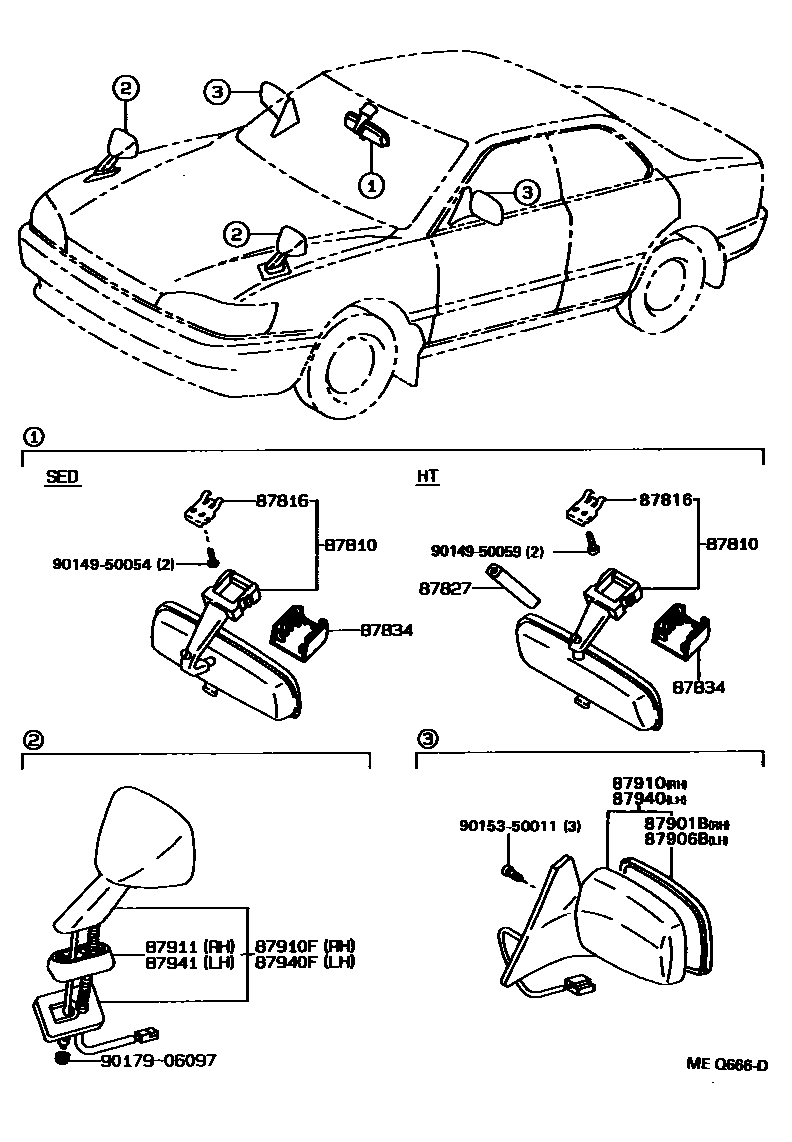

Toyota CAMRY EPC diagram 8701, 后视镜, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87816 | Interior rearview mirror spring | 74372-30030 |
| 87827 | Interior rearview mirror shock absorber | 87828-22050 · 87828-23010 |
| 87901B | Right exterior rearview mirror sub-assembly | 87931-32510 · 87931-32520 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-32540 · 87961-32550 |
| 87910 | Right exterior rearview mirror assembly | 87910-32490 |
| 87910F | Right fender rearview mirror assembly | 87910-32480 · 87910-32530 |
| 87911 | Right exterior mirror pad | 87911-32040 · 87911-32050 |
| 87940 | Left exterior rearview mirror assembly | 87940-32520 |
| 87940F | Left fender rearview mirror assembly | 87940-32510 · 87940-32560 |
| 87941 | Left exterior mirror pad | 87941-32040 · 87941-32050 |
