Toyota CAMRY 扬声器 — Figure 8602

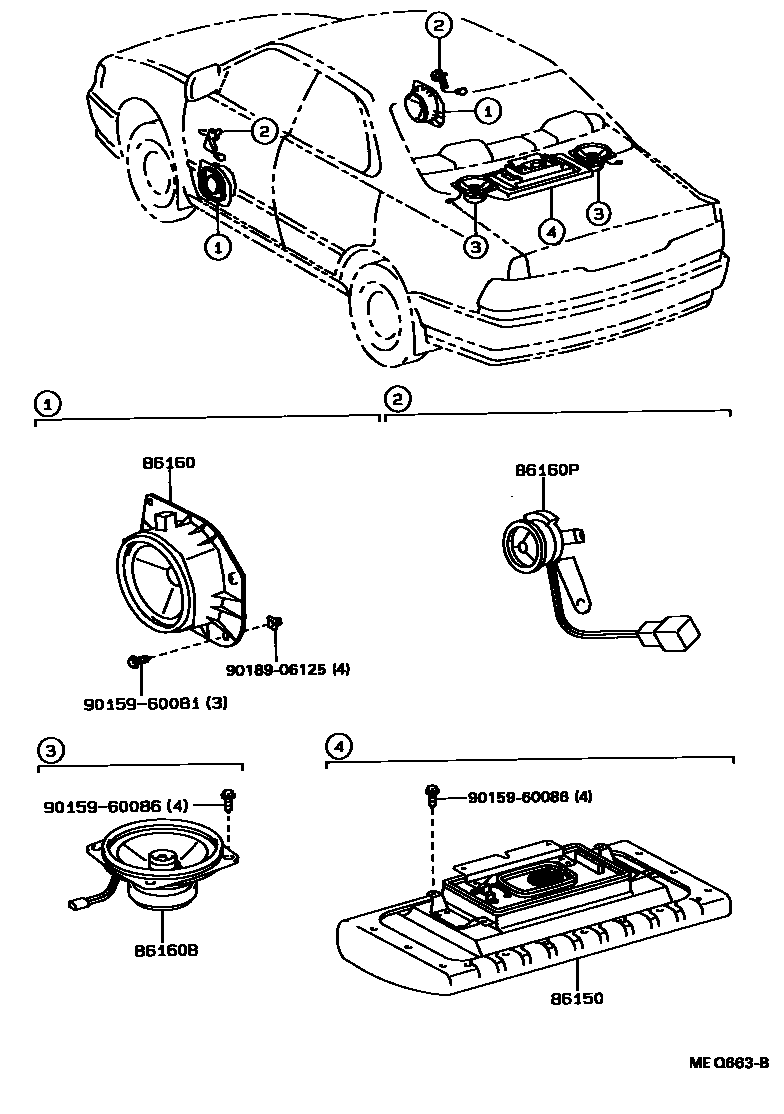

Toyota CAMRY EPC diagram 8602, 扬声器, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86150 | No. 1 loudspeaker assembly with box | 86150-32200 |
| 86160 | No. 1 front speaker assembly | 86160-32280 · 86160-32290 · 86160-32300 · 86160-32310 · 86160-32340 · 86160-32350 · 86160-32380 · 86160-32390 · 86160-32420 · 86160-32430 |
| 86160B | Rear speaker assembly | 86160-32260 · 86160-32270 |
| 86160P | No. 2 front speaker assembly | 86160-32240 · 86160-32250 |
