Toyota CAMRY 后清洗器 — Figure 8504

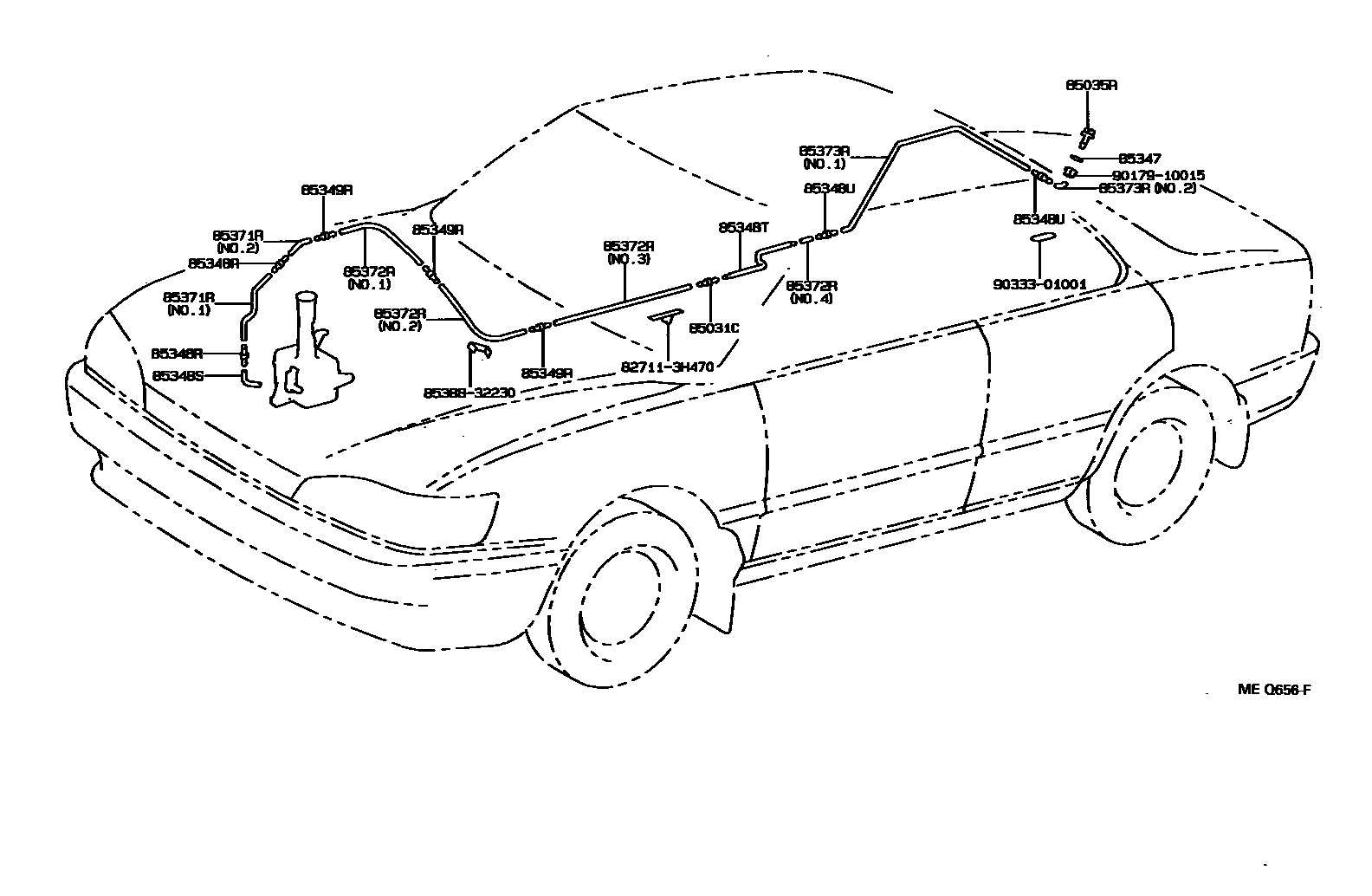

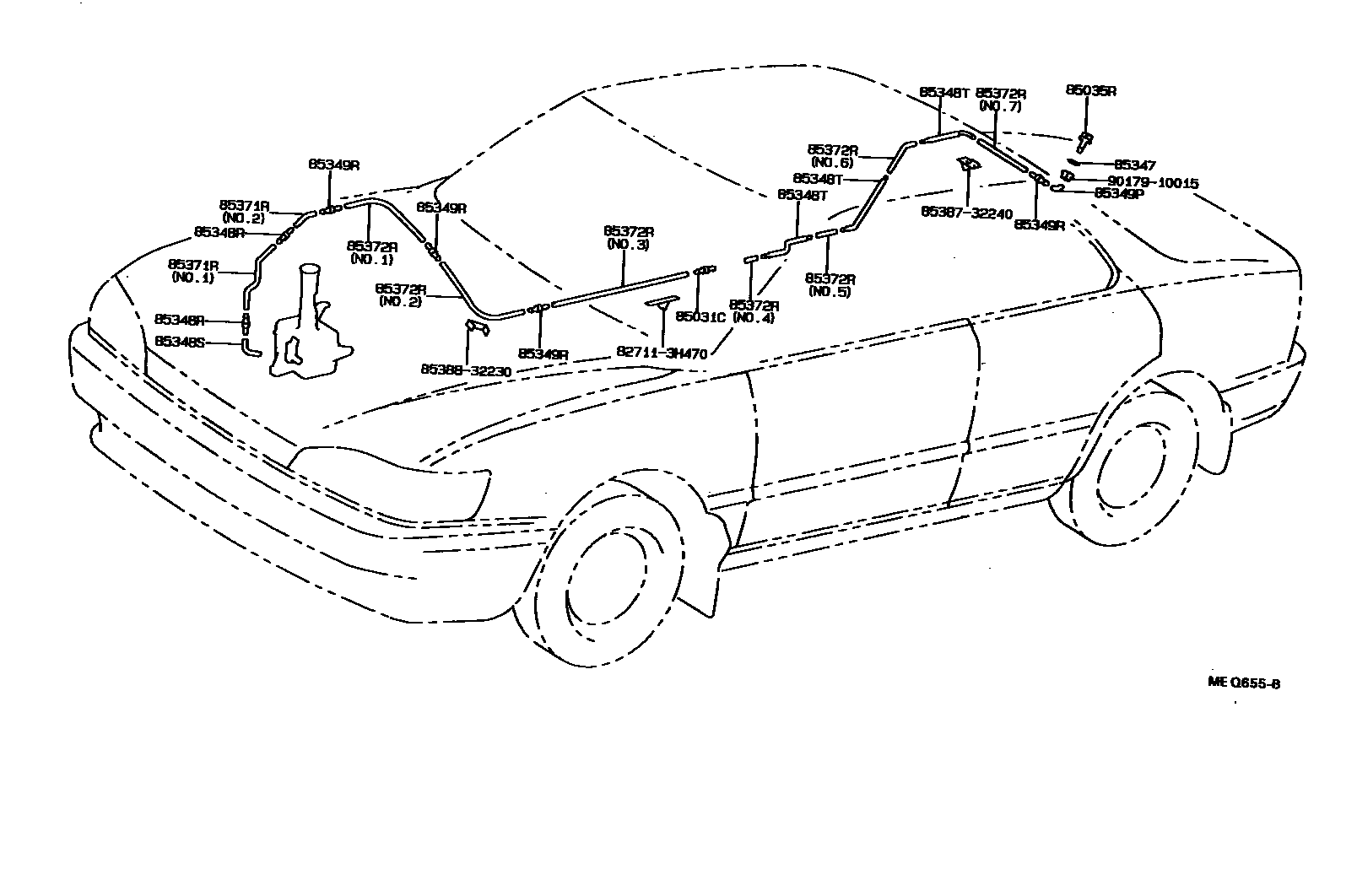

Toyota CAMRY EPC diagram 8504, 后清洗器, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031C | Cleaner valve sub-assembly | 85031-90A00 |
| 85035R | Rear washer nozzle sub-assembly | 85391-32010 · 85391-32020 |
| 85347 | Rear washer seal | 85347-12010 |
| 85348R | No. 1 rear washer hose connector | 85349-89122 |
| 85348S | No. 1 rear cleaner elbow joint | 85355-14481 |
| 85348T | No. 2 rear washer hose connector | 85375-32230 · 85375-32240 · 85375-32260 · 85376-32240 |
| 85348U | No. 3 rear washer hose connector | 85349-89122 |
| 85349P | No. 3 rear cleaner elbow joint | 85355-14481 |
| 85349R | No. 5 rear washer hose connector | 85349-89122 |
| 85371R | Rear washer hose (from motor to connector) | 90099-33299 · 90446-07001 |
| 85372R | Rear washer hose (from fitting to fitting or nozzle) | 85379-32240 · 90099-33299 · 90099-33423 · 90446-07001 |
| 85373R | Rear washer hose (from connector to nozzle) | 90099-33080 · 90446-07001 |
