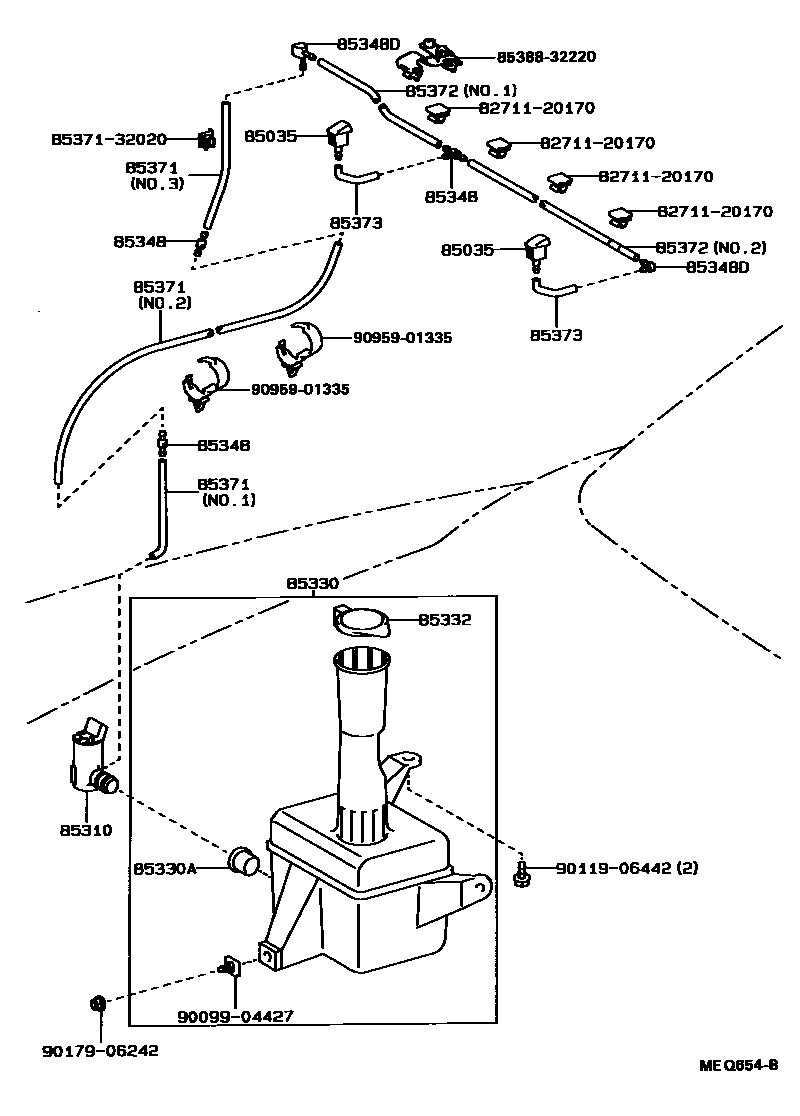

Toyota CAMRY 挡风玻璃清洗器 — Figure 8503
Toyota CAMRY EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-32030 · 85381-32040 |
| 85310 | Windshield washer motor and pump assembly | 85310-20170 · 85310-20200 · 85310-20210 · 85330-10220 · 85330-12280 |
| 85330 | Windshield washer fluid tank assembly | 85315-32040 · 85315-32050 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85316-33120 · 85332-22031 |
| 85348 | Windshield washer hose connector No. 1 | 85349-89122 · 85378-32220 |
| 85348D | No. 1 windshield washer elbow joint | 85355-20200 · 85377-32220 |
| 85371 | Windshield washer hose (from motor to connector) | 90099-33382 · 90446-06013 · 90446-07001 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90099-33299 |
| 85373 | Windshield washer hose (from connector to nozzle) | 85379-32220 |
