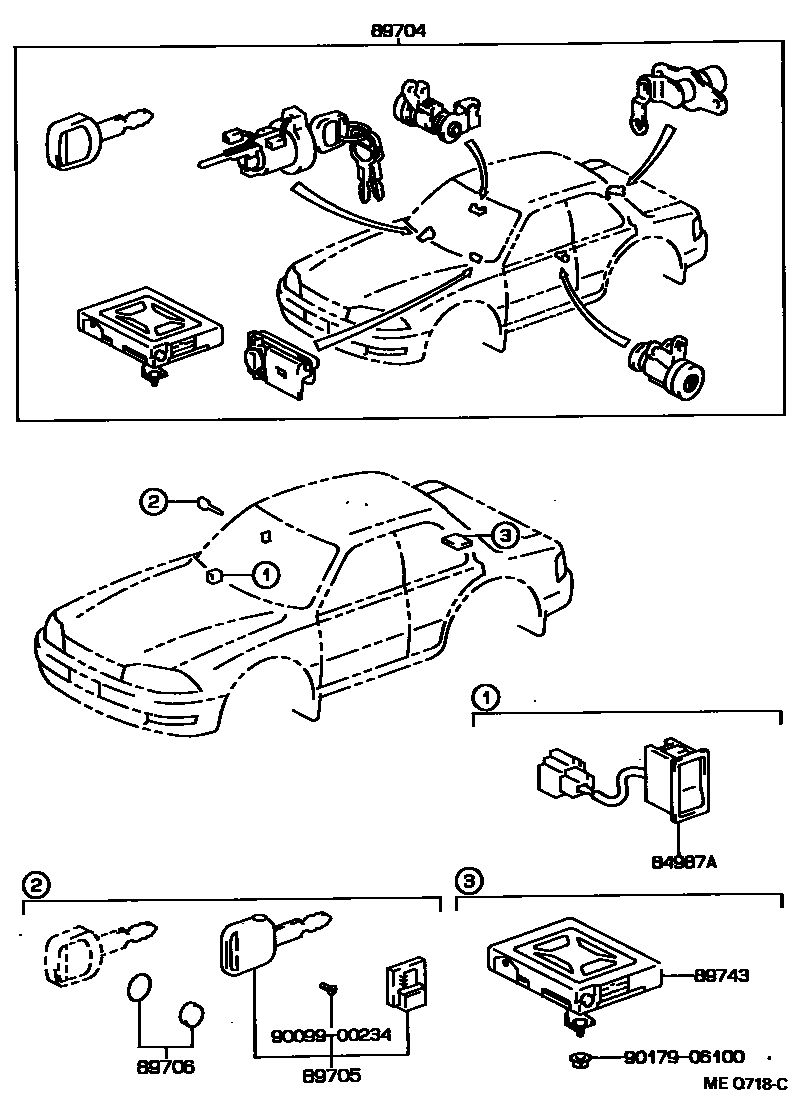

Toyota CAMRY 遥控门锁 — Figure 8420
Toyota CAMRY EPC diagram 8420, 遥控门锁, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84987A | Wireless remote control door lock cancel switch | 84987-32020 |
| 89704 | Remote door lock control components | 89704-32070 · 89704-32080 · 89704-32090 · 89704-32100 · 89704-32121 · 89704-32130 |
| 89705 | remote key | 89705-32030 · 89705-32040 · 89705-32050 · 89705-32060 · 89705-32070 · 89705-32080 |
| 89706 | Transmitter battery pack | 89706-30010 · 89706-50010 |
| 89743 | door control receiver | 89743-32030 · 89743-32040 |
