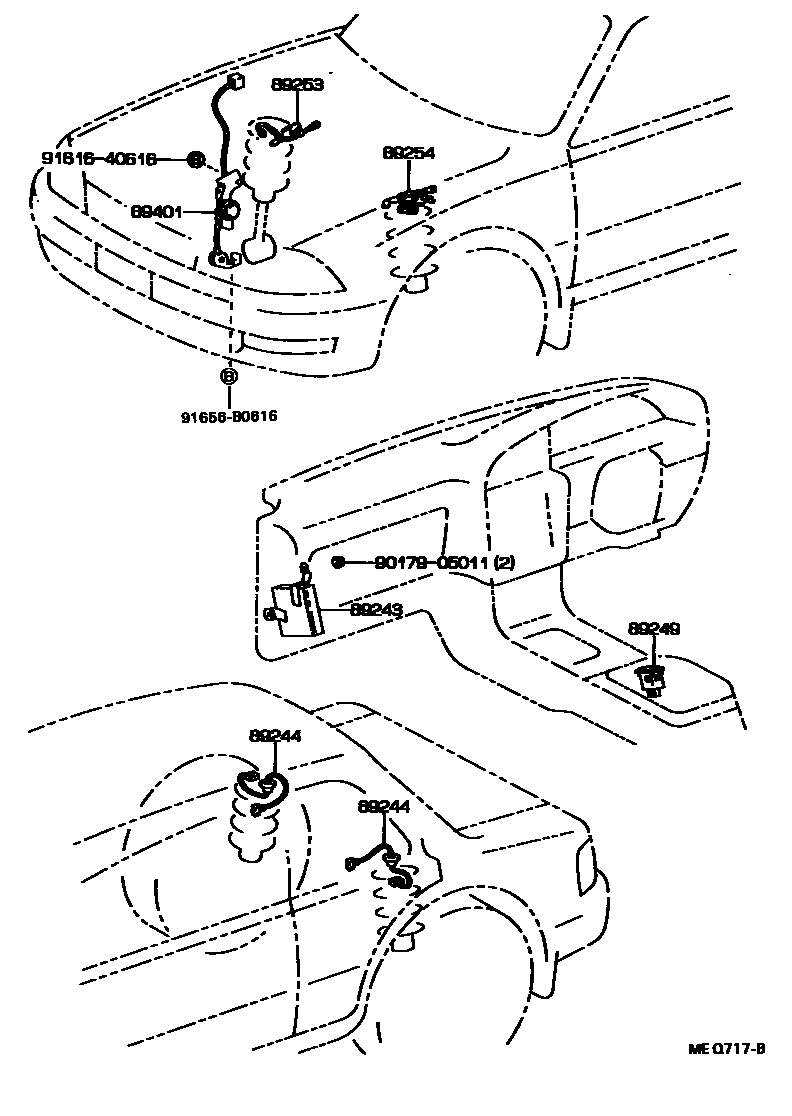

Toyota CAMRY 电子调节悬架 — Figure 8419
Toyota CAMRY EPC diagram 8419, 电子调节悬架, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89243 | Damper control ECU | 89243-32050 |
| 89244 | Rear shock absorber control harness | 89244-32010 · 89244-33020 |
| 89249 | Damper control switch | 89249-16030 · 89249-32030 |
| 89253 | Right front damper control harness | 89253-32020 |
| 89254 | Left front shock absorber control harness | 89254-32020 |
| 89401 | Front suspension travel sensor sub-assembly | 89401-32010 |
