Toyota CAMRY 测距雷达和倒车雷达 — Figure 8417

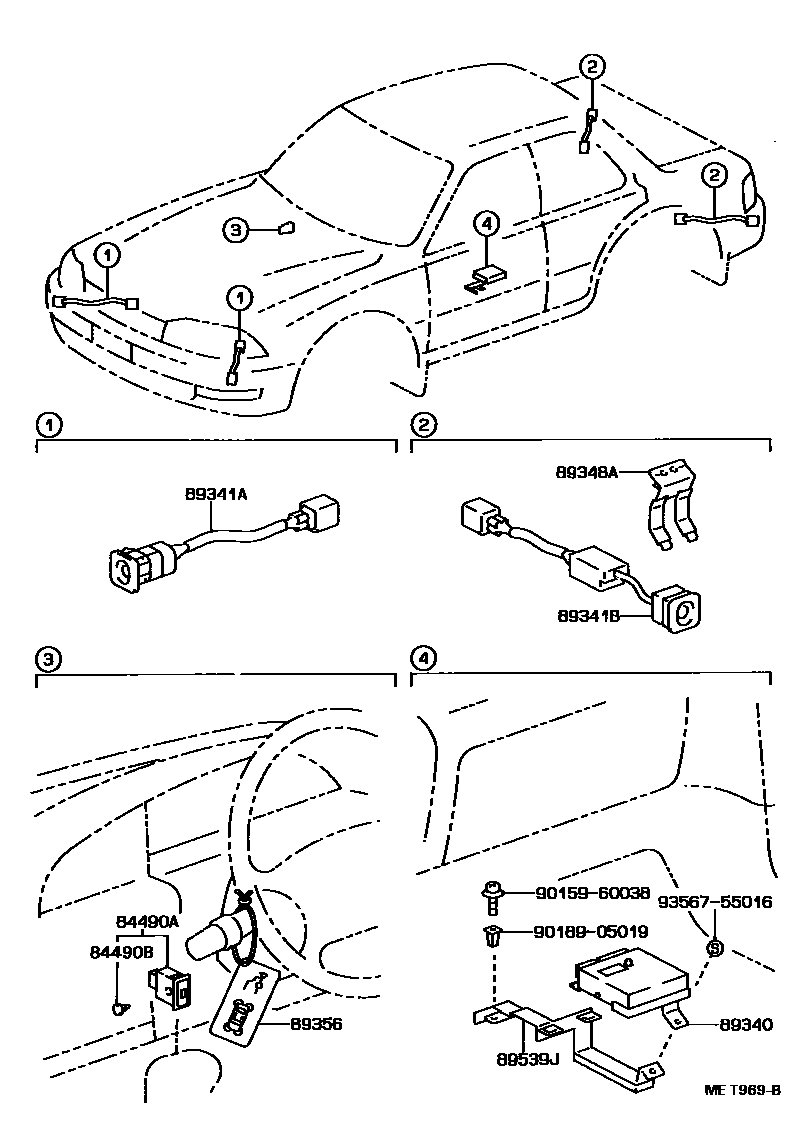

Toyota CAMRY EPC diagram 8417, 测距雷达和倒车雷达, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84490A | Reversing radar or ranging radar switch assembly | 84490-32010 |
| 84490B | Light bulb (for reversing radar switch) | 84999-10320 |
| 89340 | Rear distance warning ECU assembly | 89340-32010 |
| 89348A | Ultrasonic sensor holder No. 2 | 89348-32010 |
| 89356 | distance warning information label | 89356-32010 |
| 89539J | ECU bracket | 89539-32060 |
