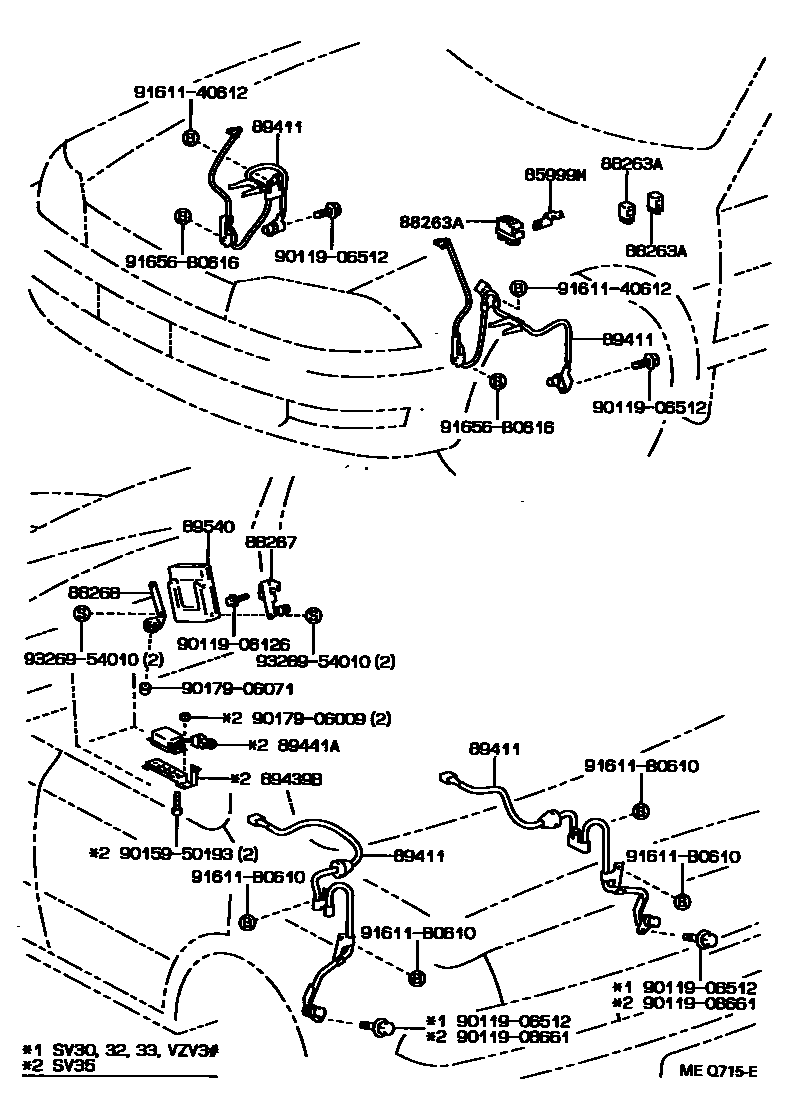

Toyota CAMRY ABS 和 VSC — Figure 8414
Toyota CAMRY EPC diagram 8414, ABS 和 VSC, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85999M | Relay bracket | 85999-32250 |
| 88263A | Anti-skid control relay | 88263-12070 · 88263-14110 · 88263-14120 |
| 88267 | No. 1 anti-skid control ECU bracket | 88267-32090 · 88267-32100 |
| 88268 | No. 2 anti-skid control ECU bracket | 88268-32080 · 88268-32090 |
| 89411 | Speed sensor | 89542-32020 · 89542-32021 · 89543-32020 · 89543-32021 · 89545-32030 · 89545-32040 · 89546-32030 · 89546-32040 |
| 89439B | Sensor holder | 89439-32020 |
| 89441A | deceleration sensor | 89441-28010 · 89441-32020 |
| 89540 | Anti-skid control ECU assembly | 89541-32040 · 89541-32050 · 89541-32060 · 89541-32070 |
