Toyota CAMRY 开关和继电器和ECU — Figure 8401

Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 11 images and 119 PNC and OE references.

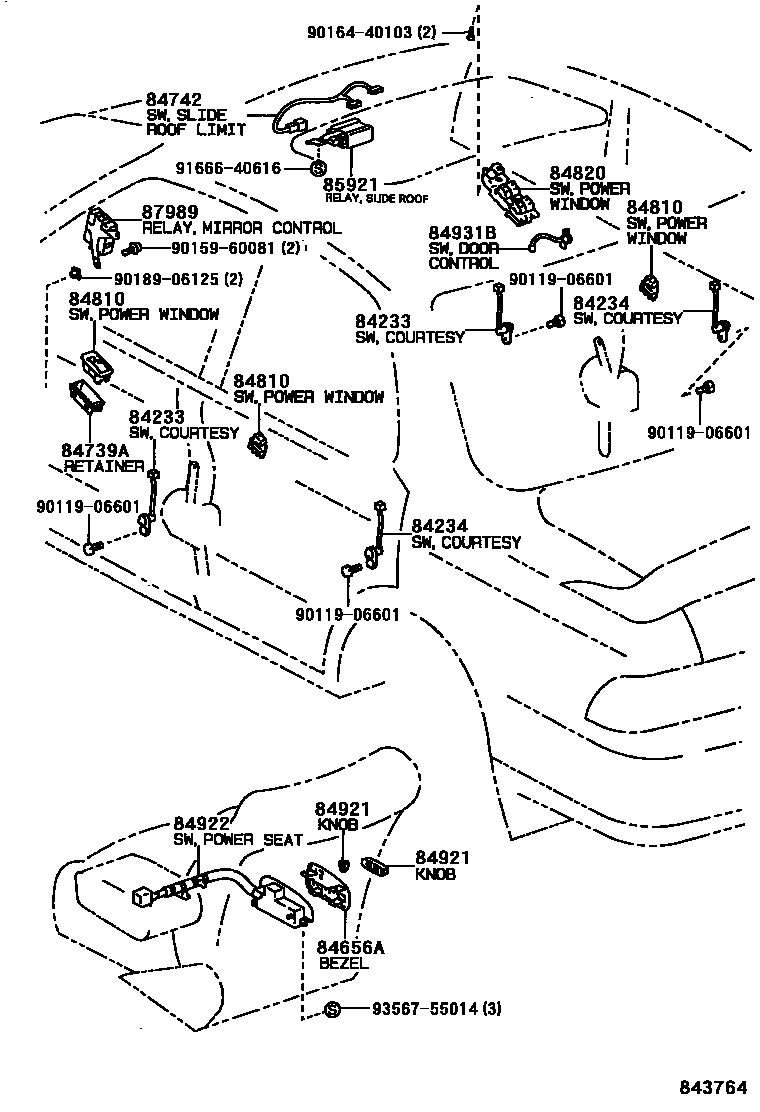

Toyota CAMRY 开关和继电器和ECU EPC diagram — 843764
开关和继电器和ECU — 843764 (199007 – 199406)

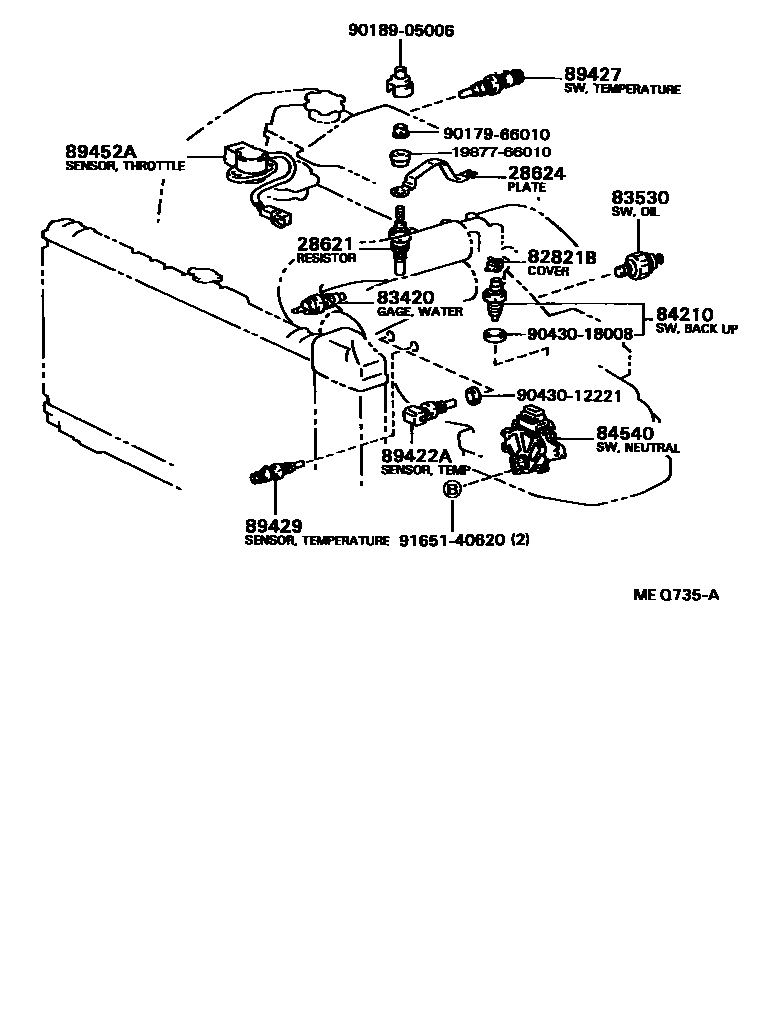

Toyota CAMRY 开关和继电器和ECU EPC diagram — MEQ735A
开关和继电器和ECU — MEQ735A (199007 – 199406)

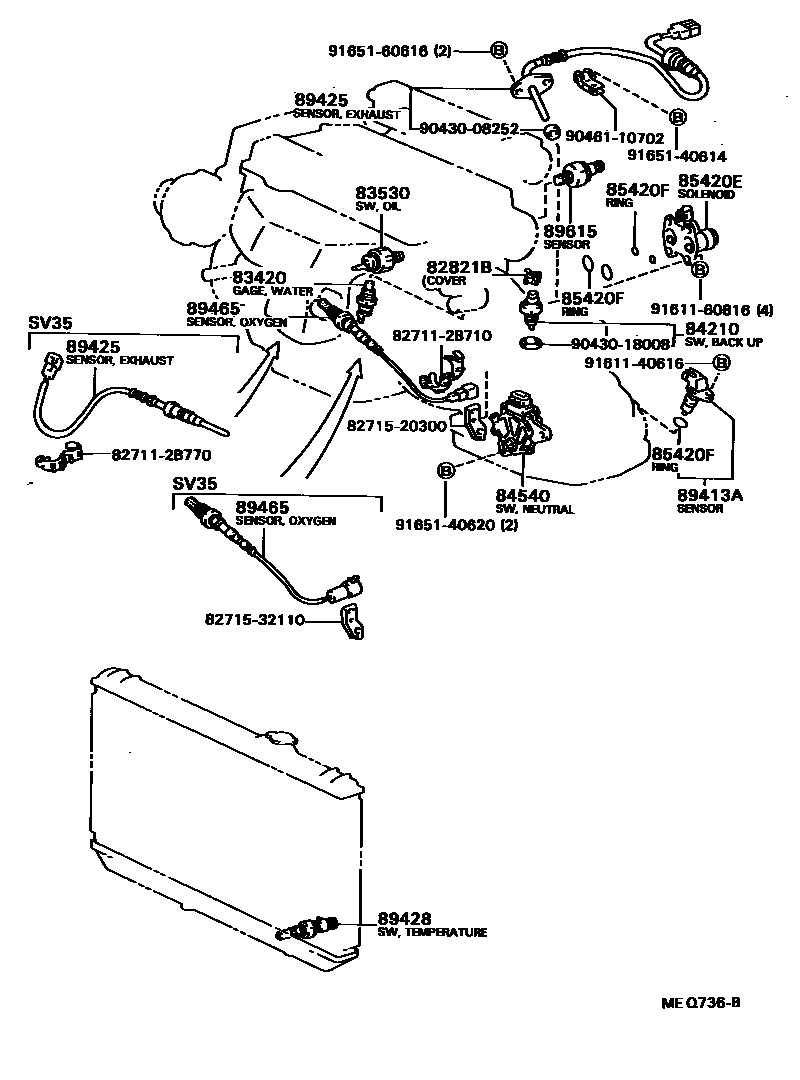

Toyota CAMRY 开关和继电器和ECU EPC diagram — MEQ736B
开关和继电器和ECU — MEQ736B (199007 – 199406)

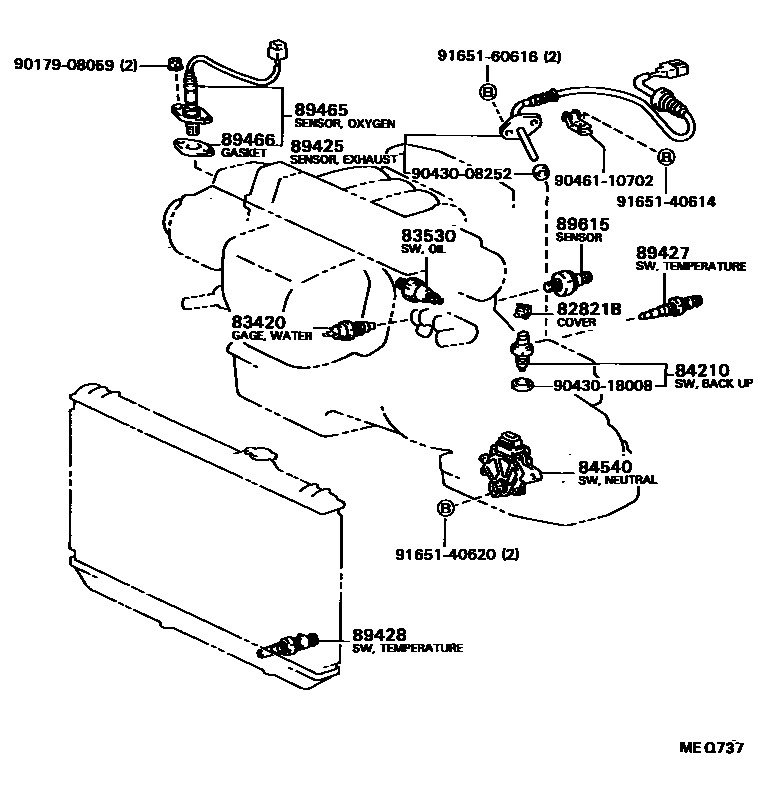

Toyota CAMRY 开关和继电器和ECU EPC diagram — MEQ737
开关和继电器和ECU — MEQ737 (199007 – 199206)

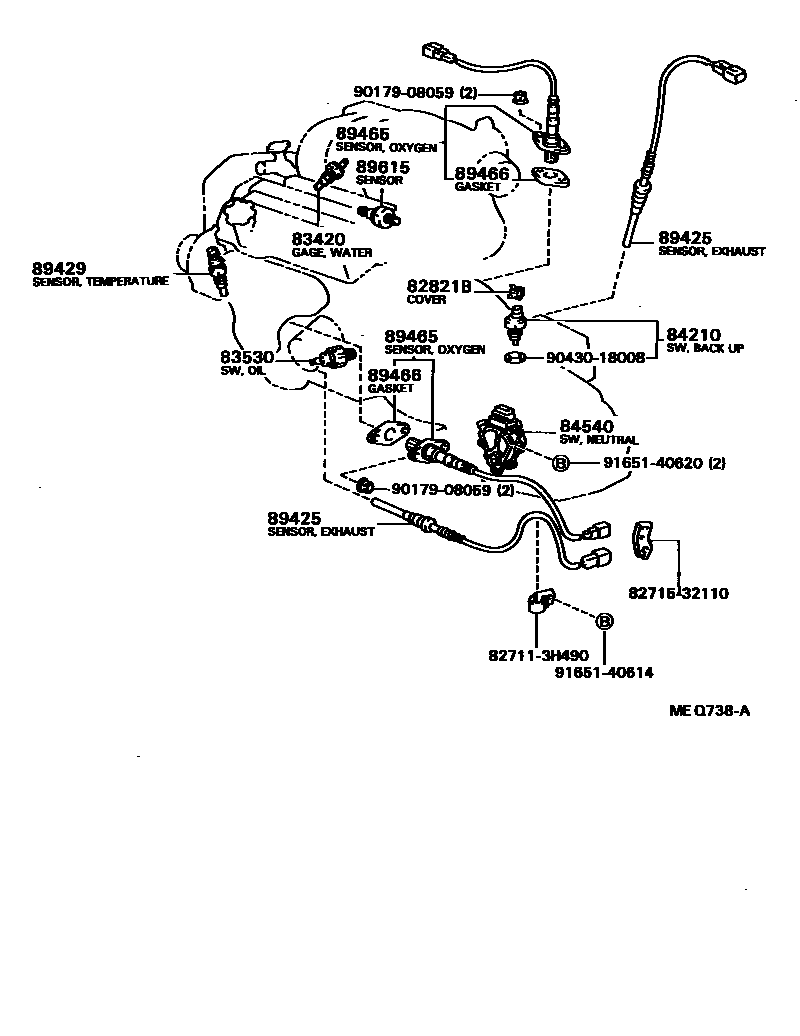

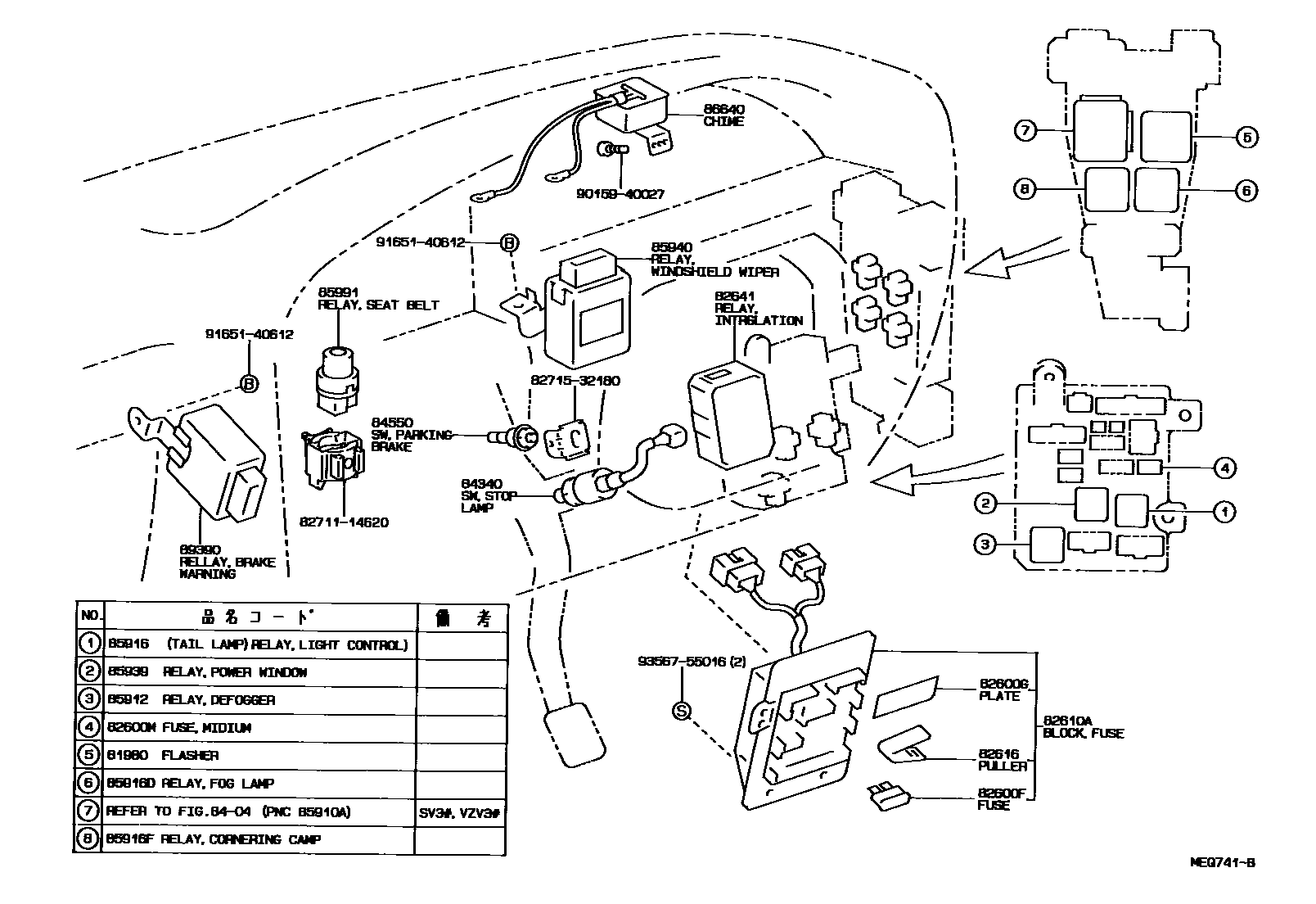

Toyota CAMRY 开关和继电器和ECU EPC diagram — MEQ738A
开关和继电器和ECU — MEQ738A (199007 – 199406)

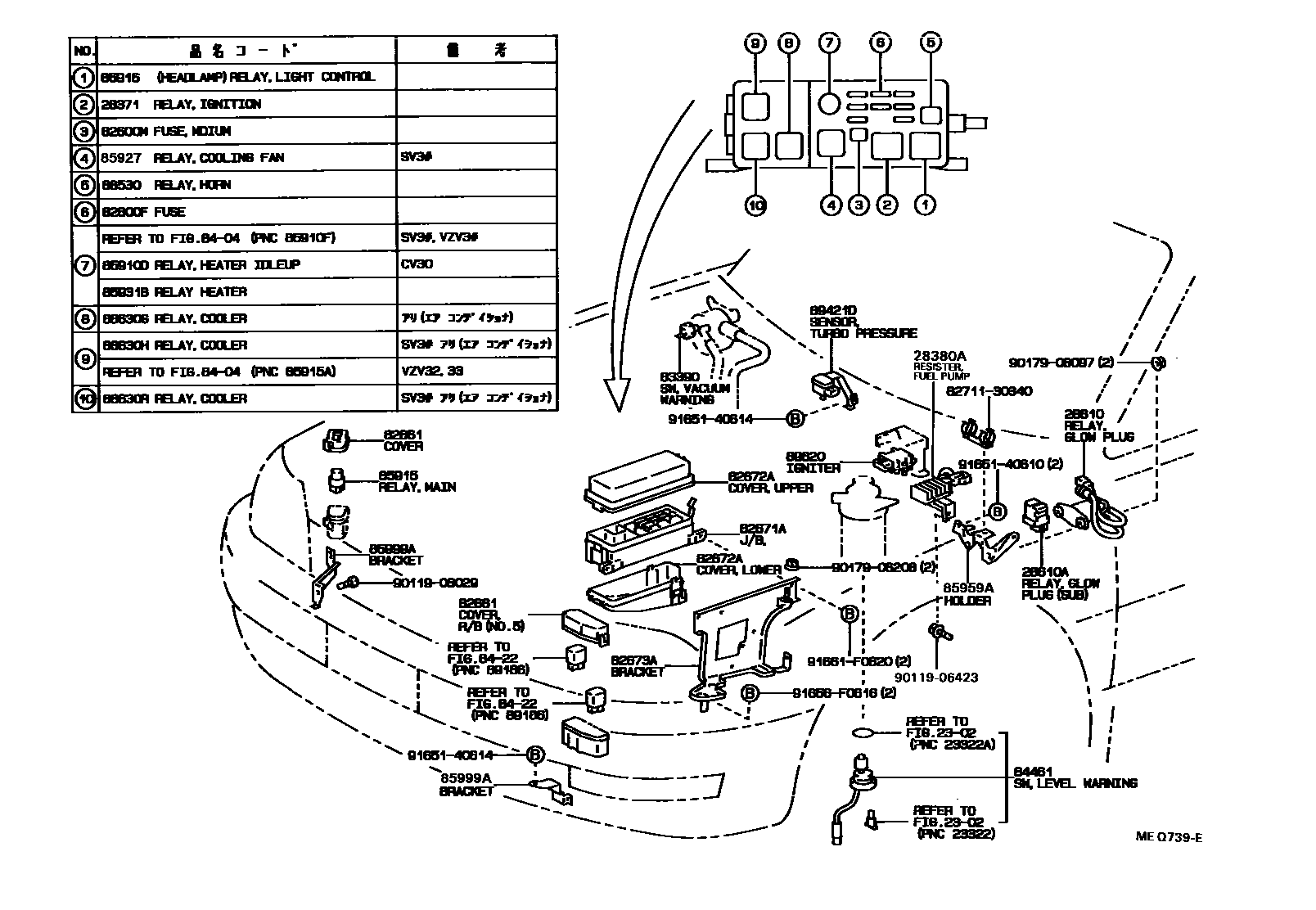

Toyota CAMRY 开关和继电器和ECU EPC diagram — MEQ739E
开关和继电器和ECU — MEQ739E (199007 – 199406)

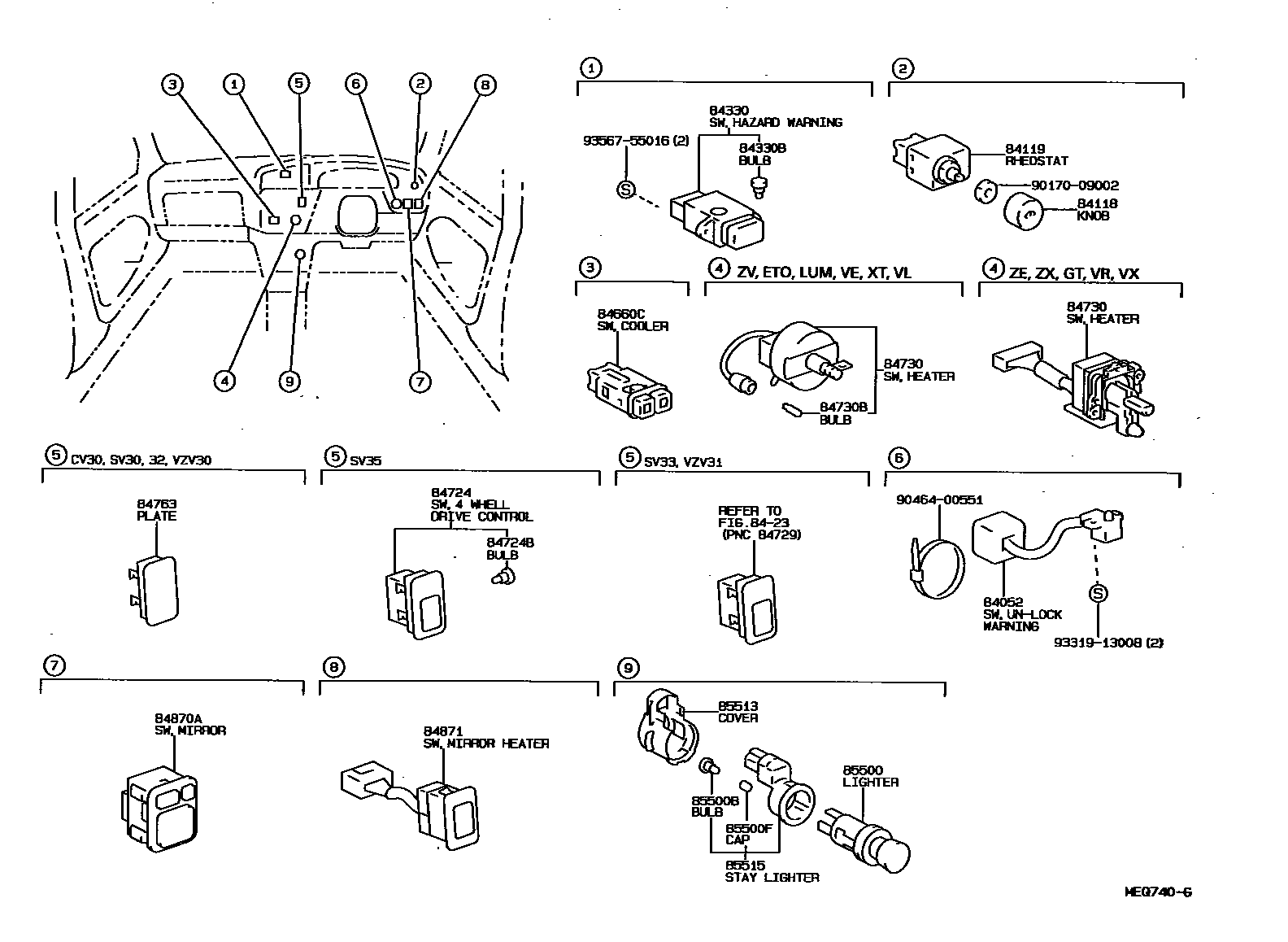

Toyota CAMRY 开关和继电器和ECU EPC diagram — MEQ740G
开关和继电器和ECU — MEQ740G (199007 – 199406)
Toyota CAMRY 开关和继电器和ECU EPC diagram — MEQ741B
开关和继电器和ECU — MEQ741B (199007 – 199406)

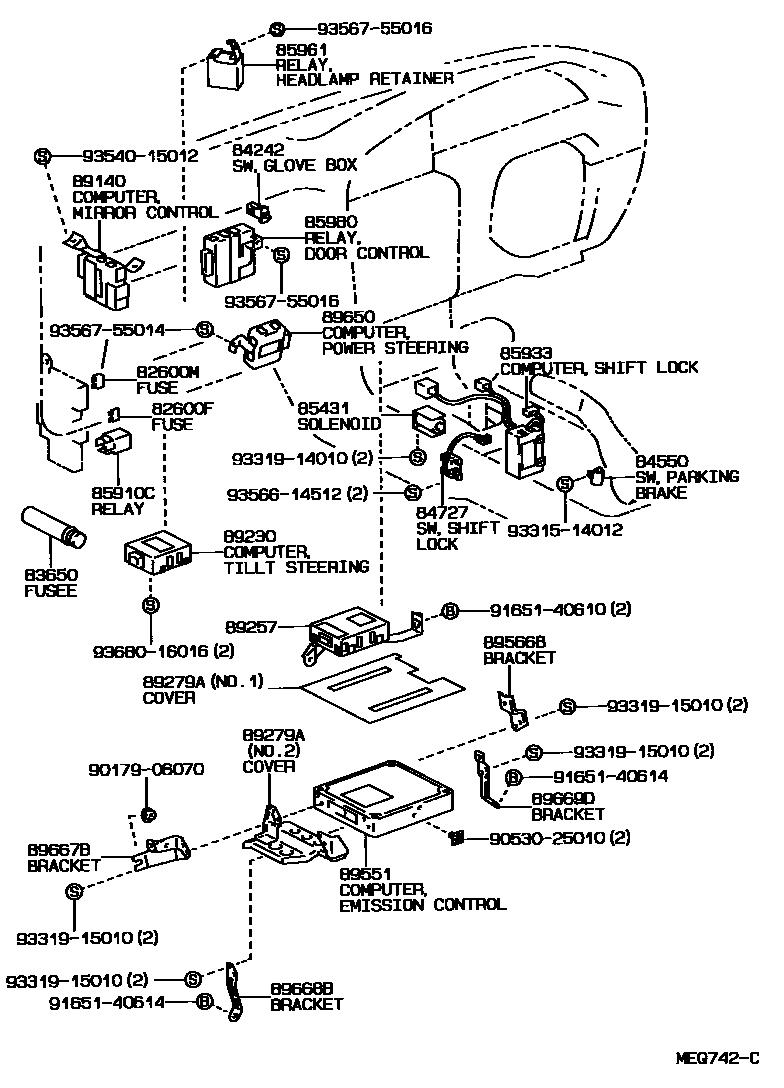

Toyota CAMRY 开关和继电器和ECU EPC diagram — MEQ742C
开关和继电器和ECU — MEQ742C (199007 – 199406)

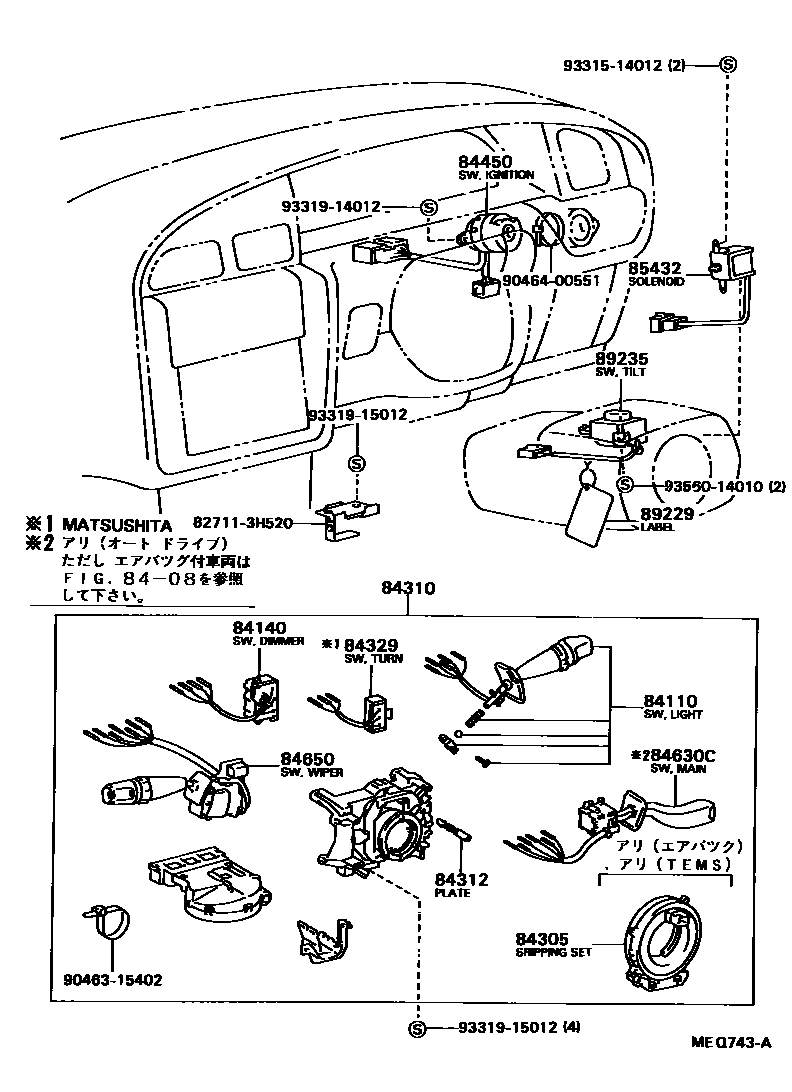

Toyota CAMRY 开关和继电器和ECU EPC diagram — MEQ743A
开关和继电器和ECU — MEQ743A (199007 – 199406)

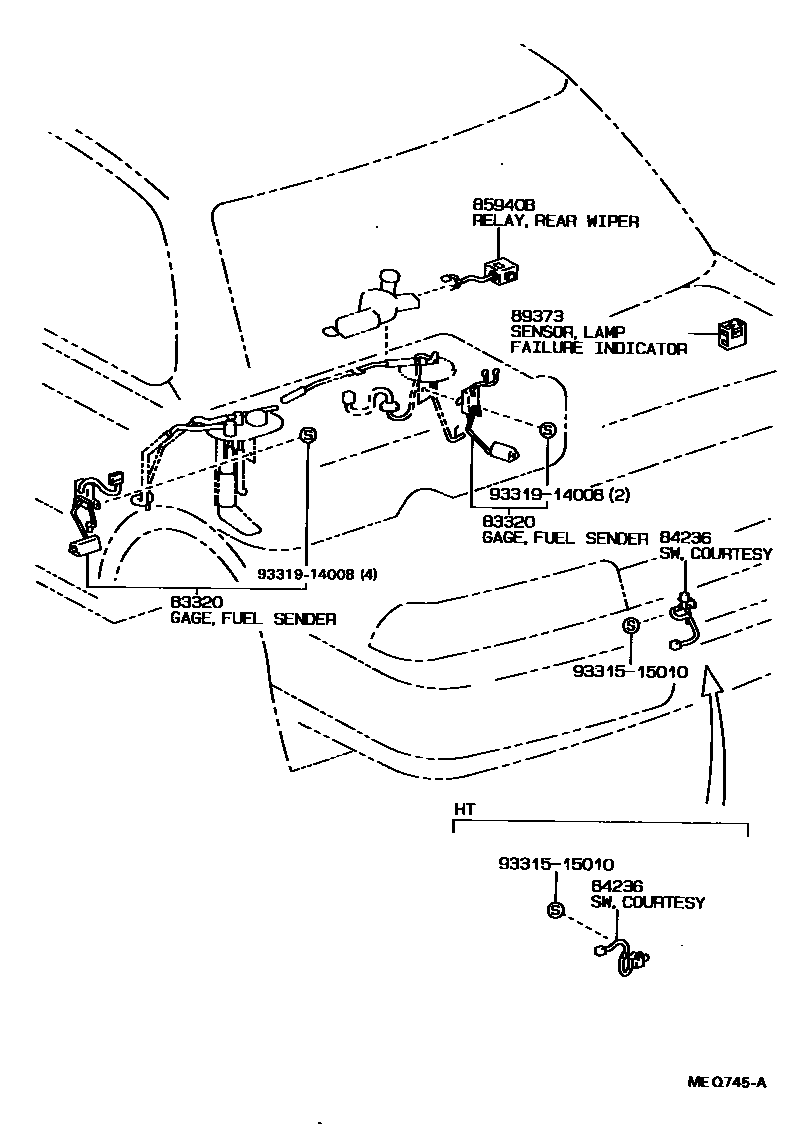

Toyota CAMRY 开关和继电器和ECU EPC diagram — MEQ745A
开关和继电器和ECU — MEQ745A (199007 – 199406)

PNC and OE references

PNCPart nameOE numbers
28371No. 1 ignition relay85925-17010
28380Afuel pump resistor23080-62020
28610Glow plug relay assembly28610-64080 · 28610-64180
28610ASub glow plug relay assembly28610-64110
28621glow plug resistor28621-64011
28624Current sensor chip28624-64050
81980Turn signal flasher relay assembly81980-12070 · 81980-30100
82600FSpare fuse90982-07011 · 90982-09002 · 90982-09003 · 90982-09004 · 90982-09005
82600GWarning nameplate (for fuses)82683-32060
82600Mmedium current fuse90982-10001 · 90982-10002
82610AFuse box assembly82610-32020 · 82610-32030
82616fuse puller82616-12020
82641Integrated relay No. 182641-20190 · 82641-32040 · 82641-32041 · 82641-32051 · 82641-32052
82661No. 1 relay box cover82662-32010 · 82662-32020
82671Ajunction box82671-32040
82672AJunction box cover82672-32310 · 82672-32311 · 82672-32320 · 82672-32330 · 82672-32332 · 82672-32370 · 82672-32371 · 82674-32010
82673AJunction box bracket82673-32010 · 82673-32020 · 82673-32021 · 82673-32030
82821BConnector cover82821-12250 · 82821-12251
83320Fuel gauge sensor assembly83320-80167 · 83320-80168 · 83320-80169 · 83320-80170 · 83320-80171 · 83320-80172 · 83320-80173 · 83320-80246 · 83320-80247 · 83320-80248 · 83320-80249 · 83320-80250 · 83320-80251 · 83320-80252 · 83320-80265
83390Vacuum warning switch assembly83390-30020 · 83390-32100
83420Water temperature sensor assembly83420-16020 · 83420-16030 · 83420-16040 · 83420-20020 · 83420-20030
83530Oil pressure switch assembly (for engine)83530-14060 · 83530-30050 · 83530-30051 · 83530-30060 · 83530-30080 · 83530-30090 · 83530-30100
83650fuse90986-01005
84052Unlock warning switch assembly84052-32020
84110No. 1 light control switch assembly84112-39755 · 84112-39756 · 84112-39757 · 84112-39765 · 84112-39766 · 84112-39767 · 84112-39775 · 84112-39776 · 84112-39777 · 84112-39785 · 84112-39786 · 84112-39795 · 84112-39796 · 84112-80066 · 84112-80067
84118Light control rheostat button84118-20030
84119Light control rheostat84119-32110
84140Headlight dimmer switch assembly84140-20380 · 84140-20410 · 84140-32160 · 84140-32200
84210Reversing light switch assembly84210-12040
84233Door control light switch assembly (for front door)84231-32040
84234Door control light switch assembly (for rear door)84231-32050
84236Door control light switch assembly (for trunk)84231-20200 · 84231-32060
84242Glove box light switch84242-20030
84305Steering sensor slip ring84305-32010 · 84305-32020 · 84305-32030
84310Turn signal switch assembly84310-3H010 · 84310-3H120 · 84310-3H130 · 84310-3H140 · 84310-3H150 · 84310-3H160 · 84310-3H170 · 84310-3H180 · 84310-3H190 · 84310-3H200 · 84310-3H201 · 84310-3H210 · 84310-3H220 · 84310-3H221 · 84310-3H230 · 84310-3H240 · 84310-3H250 · 84310-3H260 · 84310-3H270 · 84310-3H280 · 84310-3H290 · 84310-3H300 · 84310-3H310 · 84310-3H320 · 84310-3H330 · 84310-3H340 · 84310-3H350 · 84310-3H360 · 84310-3H370 · 84310-3H400 · 84310-3H401 · 84310-3H410 · 84310-3H411 · 84310-3H420 · 84310-3H421 · 84310-3H430 · 84310-3H431 · 84310-3H440 · 84310-3H441 · 84310-3H450 · 84310-3H451 · 84310-3H460 · 84310-3H461 · 84310-3H470 · 84310-3H471 · 84310-3H480 · 84310-3H481 · 84310-3H490 · 84310-3H491 · 84310-3H500 · 84310-3H501 · 84310-3H510 · 84310-3H511 · 84310-3H520 · 84310-3H521 · 84310-3H530 · 84310-3H531 · 84310-3H540
84312Speaker contact piece84312-12040 · 84312-12050
84329turn signal switch84329-20090 · 84329-32050
84330Hazard warning signal switch assembly84332-32220
84330BHazard warning signal switch light bulb84999-10320
84340brake light switch assembly84340-32090 · 84340-32110
84450Ignition or starter switch assembly84450-32070
84461Liquid level warning switch84461-36030
84540Neutral start switch assembly84540-20200 · 84540-20220 · 84540-32070 · 84540-32090
84550Parking brake switch assembly84550-32030 · 84550-32060 · 84550-33010
84630CSpeed control main switch assembly84630-32100 · 84630-32110 · 84630-32120 · 84630-33030 · 84630-33050 · 84630-33051
84650Windshield wiper switch assembly84652-32790 · 84652-32800 · 84652-32801 · 84652-32850 · 84652-32860 · 84652-32861 · 84652-32870 · 84652-32880 · 84652-3H010 · 84652-3H011 · 84652-3H020 · 84652-3H021 · 84652-3H030 · 84652-3H040 · 84652-3H041 · 84652-3H050 · 84652-3H060 · 84652-3H061 · 84652-3H070 · 84652-3H080 · 84652-3H081 · 84652-3H090 · 84652-3H100 · 84652-3H110 · 84652-3H120 · 84652-3H130 · 84652-3H140 · 84652-3H150 · 84652-3H160 · 84652-3H170 · 84652-3H180 · 84652-3H190 · 84652-3H200 · 84652-3H210 · 84652-3H211 · 84652-3H220 · 84652-3H221 · 84652-3H230 · 84652-3H231 · 84652-3H240
84660CCooler switch84660-32060
84724four wheel drive control switch84724-32020
84724BFour wheel drive control switch light bulb84999-10320
84727Shift lock control switch84727-17020
84730Heater blower switch assembly84732-32100 · 84732-32110 · 84732-32120 · 84732-32130
84730Bheater blower switch light bulb84999-70014
84739Aswitch fixture84739-32040
84742Sliding sunroof limit switch84742-32030 · 84742-32031
84763switch board84763-32010
84810Electric window lift switch assembly84810-32070
84820Electric window lift main switch assembly84820-22310
84870AExterior rearview mirror switch assembly84870-32090 · 84870-32100
84871Exterior rearview mirror heater switch assembly84871-32010
84931Bdoor control switch84931-20130 · 84931-32070
85420ETransmission solenoid valve assembly85420-32150
85420FO-ring (for transmission solenoid valve)90301-11001 · 90301-11008 · 90301-23001
85431Shift lock solenoid valve85431-60030
85432Key interlock solenoid valve85432-32030
85500Cigarette lighter assembly85500-17050
85500BCigarette lighter bulb84999-10250
85500FCigarette lighter bulb cover84998-10550
85513Cigarette lighter cover85513-12020
85515Cigarette lighter frame bracket85515-32010
85910CRelay assembly (for heater blower motor)90987-04002
85910DRelay (for heater idle speed boost)90987-02009
85912defogger relay90987-02009 · 90987-02010
85915main relay90987-03001
85916Light control relay90987-02006 · 90987-02009 · 90987-02010
85916Dfog light relay90987-02009 · 90987-02010
85916Fturn indicator relay90987-02009 · 90987-02010
85921Sliding sunroof control relay85921-32040
85927cooling fan relay90987-03003
85931BFuel heater relay90987-02004
85933Shift lock control ECU85933-32030
85939Power window relay90987-02009 · 90987-02010
85940Windshield wiper relay assembly85940-32110 · 85940-32140
85940BRear wiper relay assembly85940-32120 · 85940-32130
85959ARelay mounting parts85959-32050 · 85959-32060
85961Headlight fixture relay85961-32010
85980Door control relay assembly85980-32120
85991Seat belt warning relay85991-32040 · 90987-03001
85999ANo. 2 relay bracket85999-32210 · 85999-32220
86530Speaker relay assembly86530-20070
86640Warning bell assembly86640-32040 · 86640-32050
87989Rearview mirror control relay87989-32020 · 87989-32030 · 87989-32040 · 87989-32050
88630GCooler relay assembly90987-02009 · 90987-02010
88630HCooler relay assembly90987-04003
88630RNo. 3 cooler relay assembly90987-02009
89140Rearview mirror vibration control ECU assembly89140-32010
89229Electric tilt steering information label89229-20010
89230Tilt-adjustable steering ECU assembly89230-32010
89257Cooling fan ECU89257-32010 · 89257-32020
89279AECU cover89279-32170 · 89279-32190
89373Malfunction indicator light sensor89373-22230 · 89373-22270 · 89373-28020 · 89373-32240
89390brake warning relay89390-32010
89413ATransmission speed sensor89413-32010
89421Dturbo pressure sensor89420-32040
89422Awater temperature sensor89422-20010
89425Exhaust gas temperature sensor89425-20220 · 89425-32060 · 89425-32070 · 89425-32080 · 89425-32100 · 89425-32110 · 89425-39295 · 89425-39305 · 89425-39415
89427Temperature detection switch89427-32030 · 89428-10050
89428No. 2 temperature detection switch89428-15030 · 89428-33010
89429oil temperature sensor89429-16010 · 89429-33010
89452AThrottle position sensor89452-32070
89465oxygen sensor89465-10020 · 89465-20270 · 89465-20280 · 89465-29375 · 89465-32140 · 89465-39395
89466Oxygen sensor pad89466-20020 · 89466-30030
89551Emission control ECU89551-32080
89566BNo. 4 engine control ECU bracket89566-32050
89615knock control sensor89615-20010 · 89615-20030 · 89615-30020 · 89615-33010 · 89615-33020 · 89615-50010
89620Ignition assembly89621-20040 · 89621-26010 · 89621-30010
89650Power steering ECU assembly89650-32060 · 89650-32061 · 89650-32070 · 89650-32071 · 89650-32080 · 89650-32090
89667BNo. 1 engine control ECU bracket89667-32040
89668BNo. 2 engine control ECU bracket89668-32040
89669DNo. 3 engine control ECU bracket89669-32050
