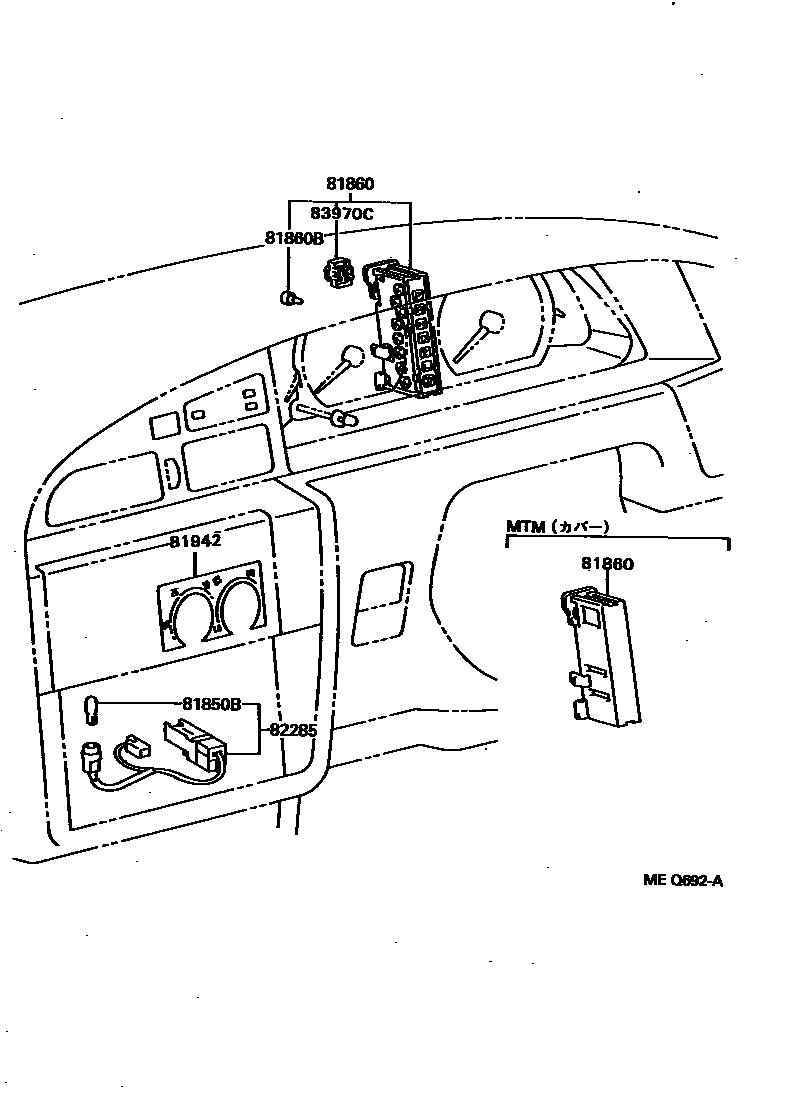

Toyota CAMRY indicator light — Figure 8302
Toyota CAMRY EPC diagram 8302, indicator light, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81850B | pilot light bulb | 90981-11014 |
| 81860 | Transmission indicator light assembly | 81860-22020 · 81860-22050 · 81860-32040 |
| 81860B | Transmission indicator light bulb | 84999-50180 · 84999-50190 |
| 81942 | Heater control nameplate | 81942-32080 · 81942-32090 · 81942-32100 · 81942-32110 |
| 82285 | lighting harness | 82285-32010 |
| 83970C | Reversing warning buzzer assembly | 83970-20010 |
