Toyota CAMRY 蓄电池和蓄电池电缆 — Figure 8201

Toyota CAMRY EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 2 PNC and OE references.

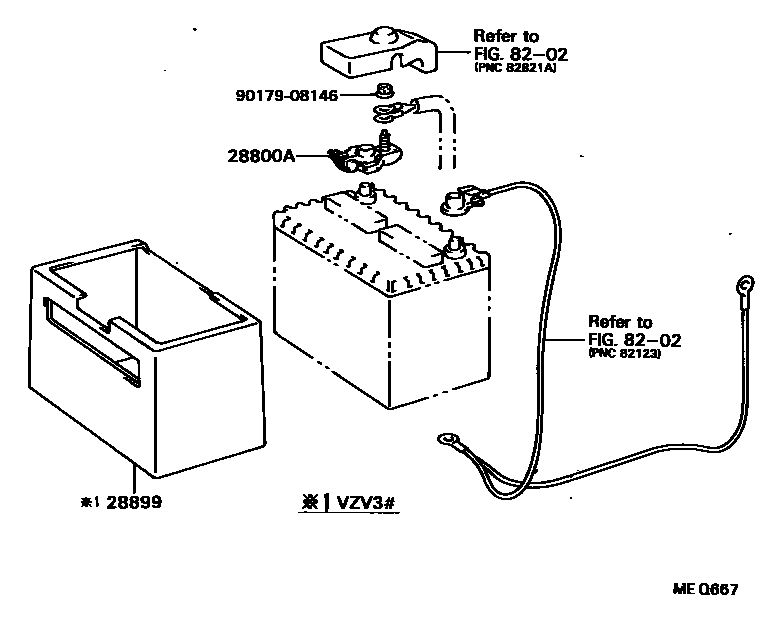

Toyota CAMRY 蓄电池和蓄电池电缆 EPC diagram — MEQ667
蓄电池和蓄电池电缆 — MEQ667 (199007 – 199406)

PNC and OE references

PNCPart nameOE numbers
28800Abattery positive terminal90982-05028 · 90982-05030 · 90982-05034 · 90982-05035
28899Battery insulation cover28899-62010 · 28899-62020 · 28899-62030 · 28899-62050 · 28899-62051
