Toyota CAMRY 倒车灯 — Figure 8112

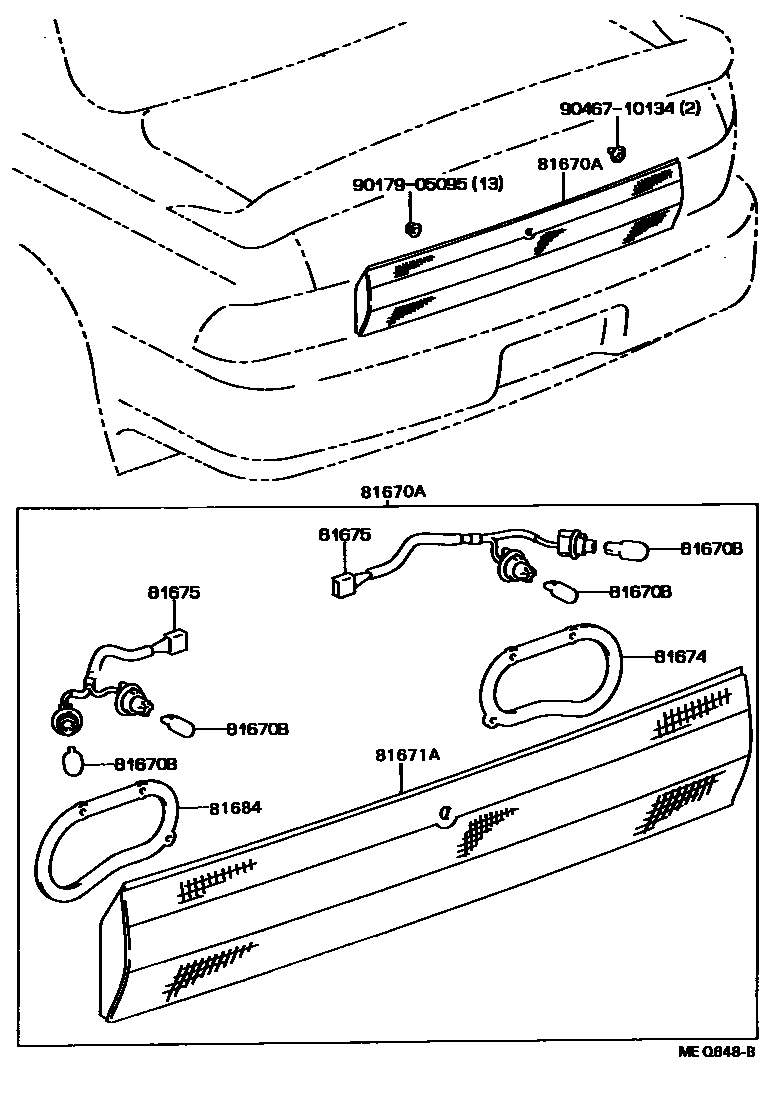

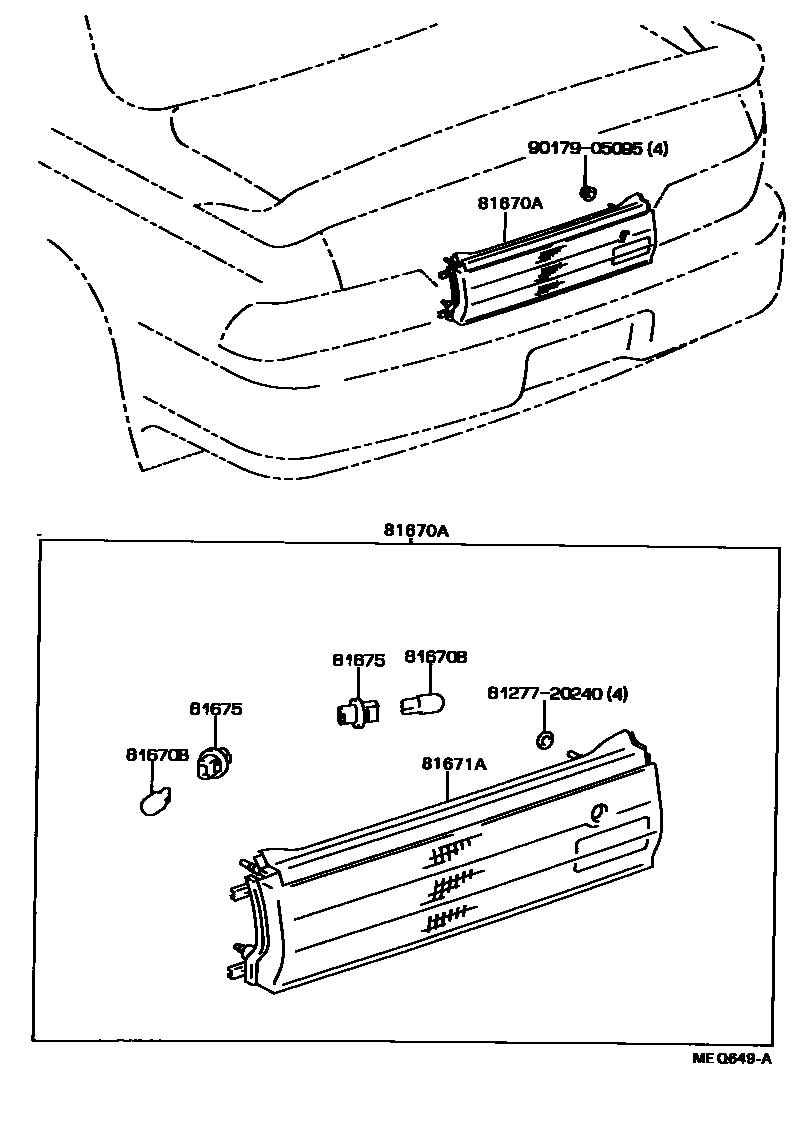

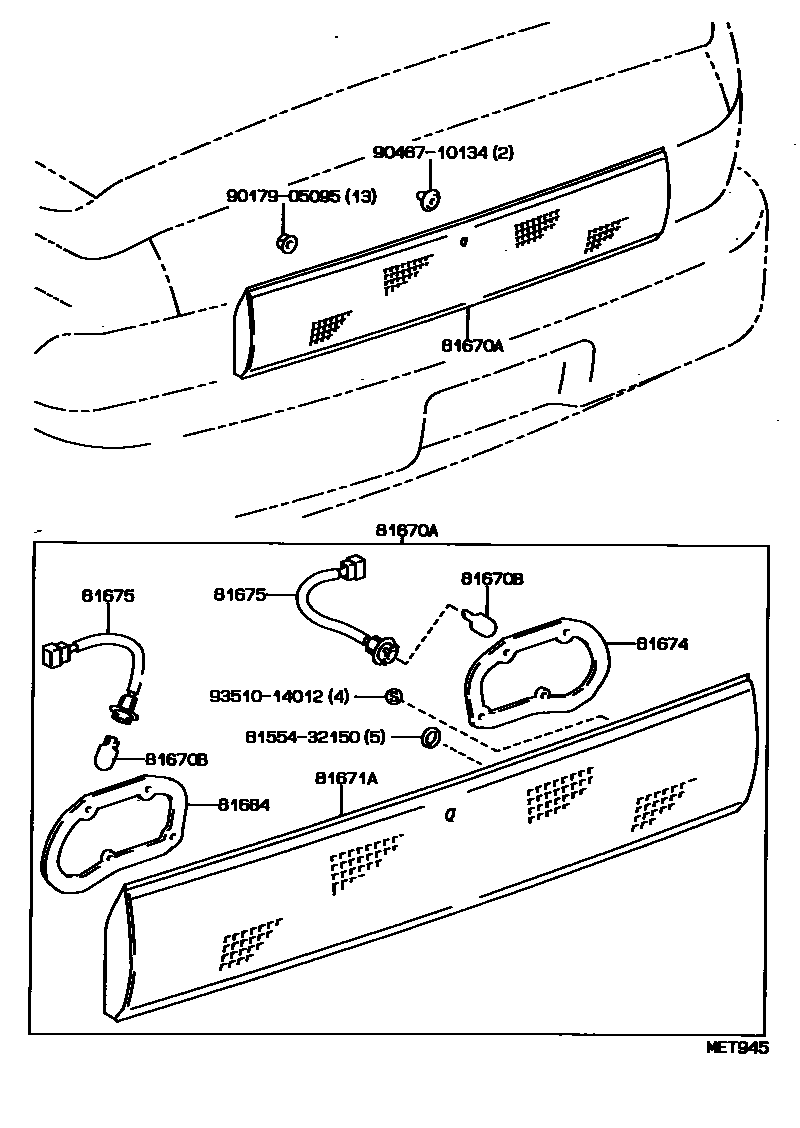

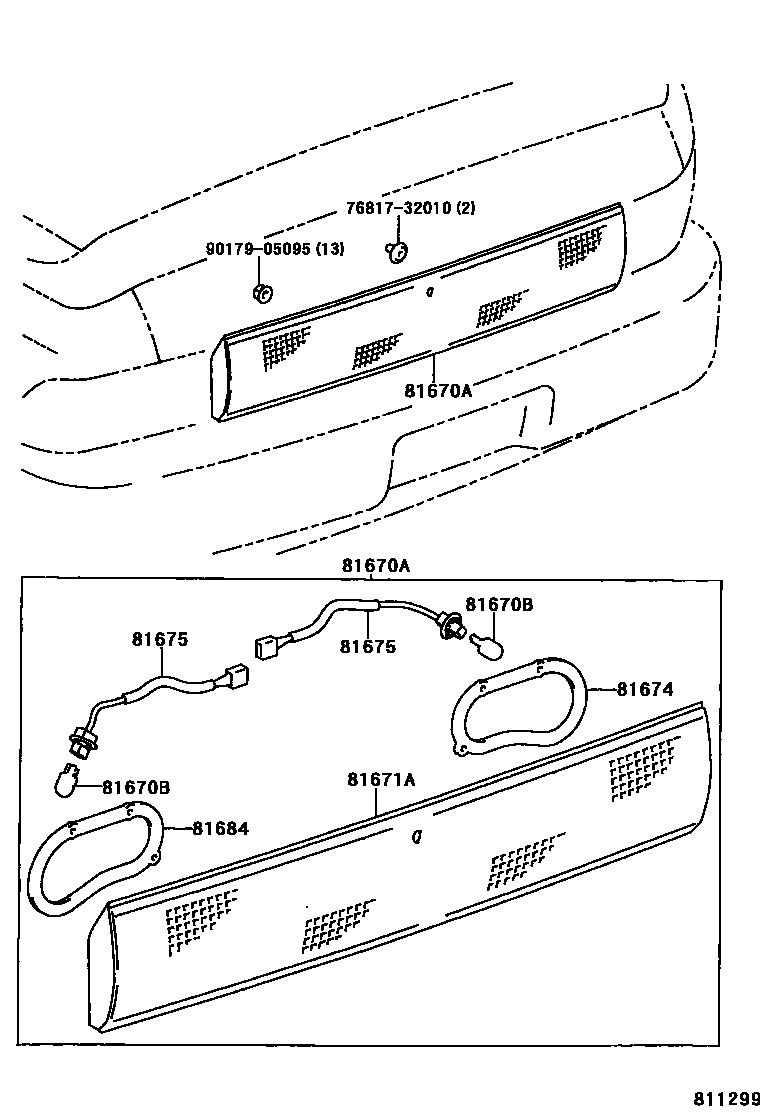

Toyota CAMRY EPC diagram 8112, 倒车灯, with 4 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81670A | Reversing light assembly | 81580-32010 · 81670-32060 · 81670-32070 · 81670-32080 |
| 81670B | Bulb (for reversing lights) | 90981-11039 · 90981-13044 · 90981-13050 · 90981-13051 |
| 81671A | Reversing light shade and body | 81581-32010 · 81671-32060 · 81671-32070 · 81671-32080 |
| 81674 | Right reversing light body gasket | 81672-32070 · 81674-32060 |
| 81675 | Reversing light holder and wiring harness | 81585-32010 · 81675-32060 · 81675-32070 · 90075-99032 |
| 81684 | Left reversing light body gasket | 81672-32070 · 81674-32060 |
