Toyota CAMRY 前转向灯 — Figure 8103

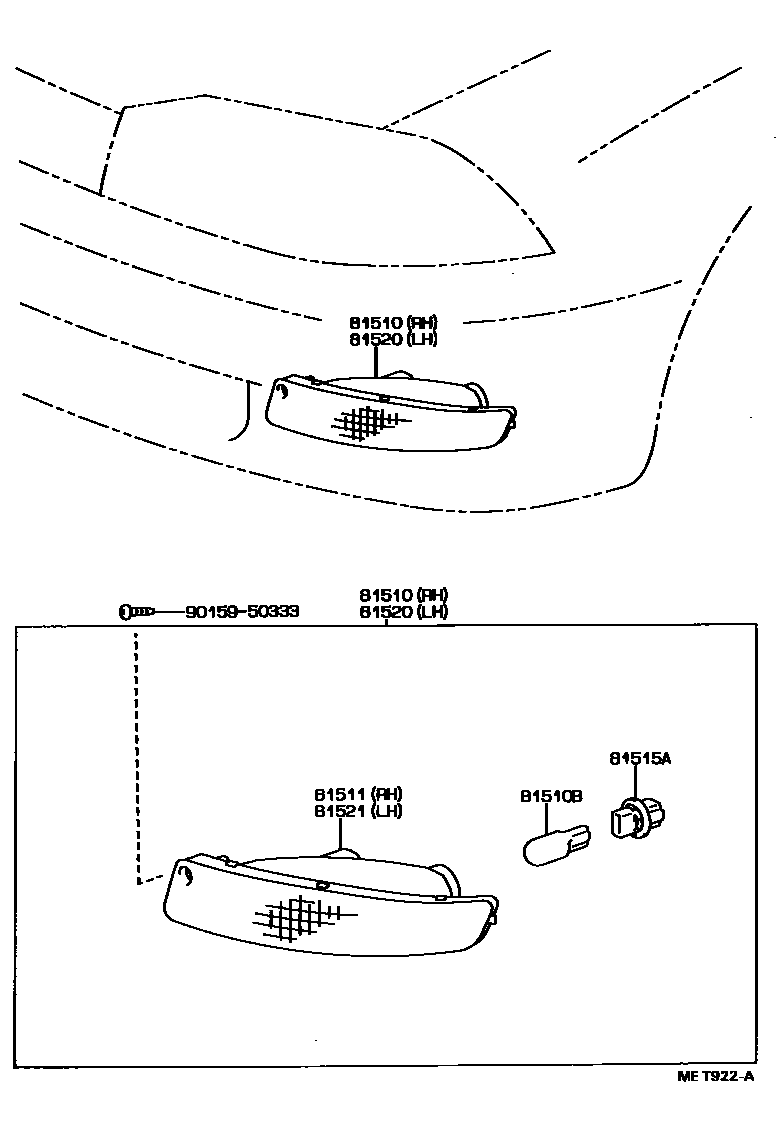

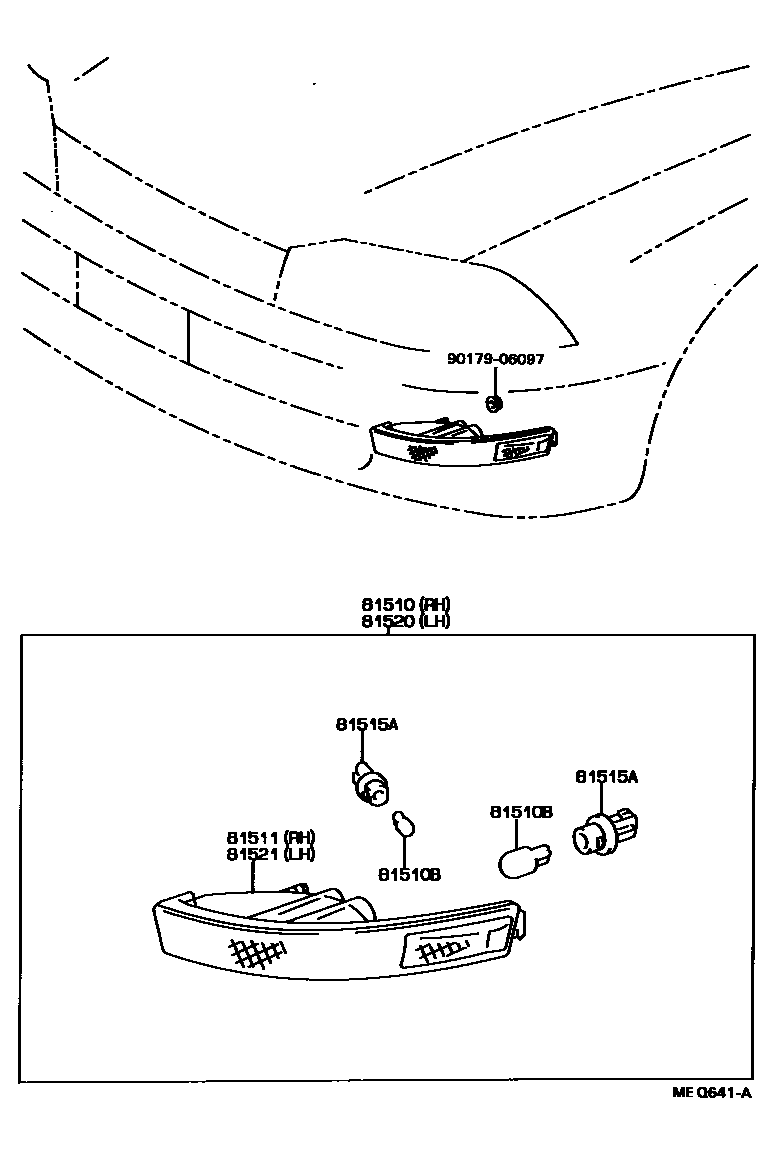

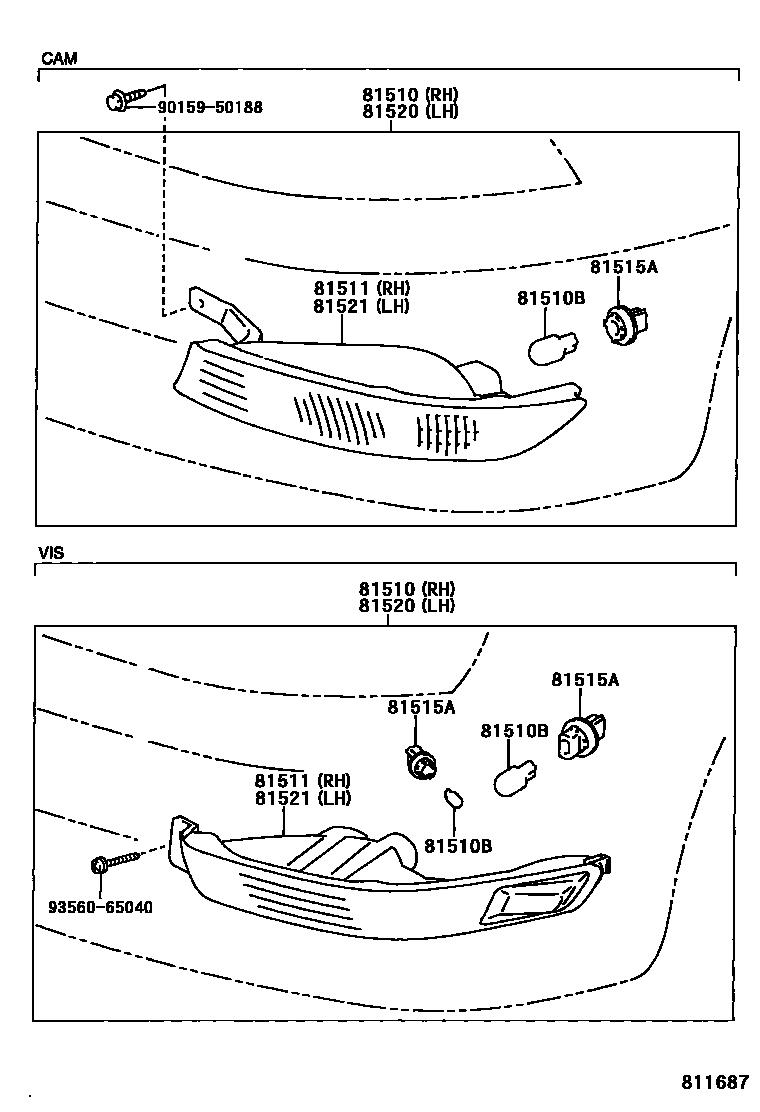

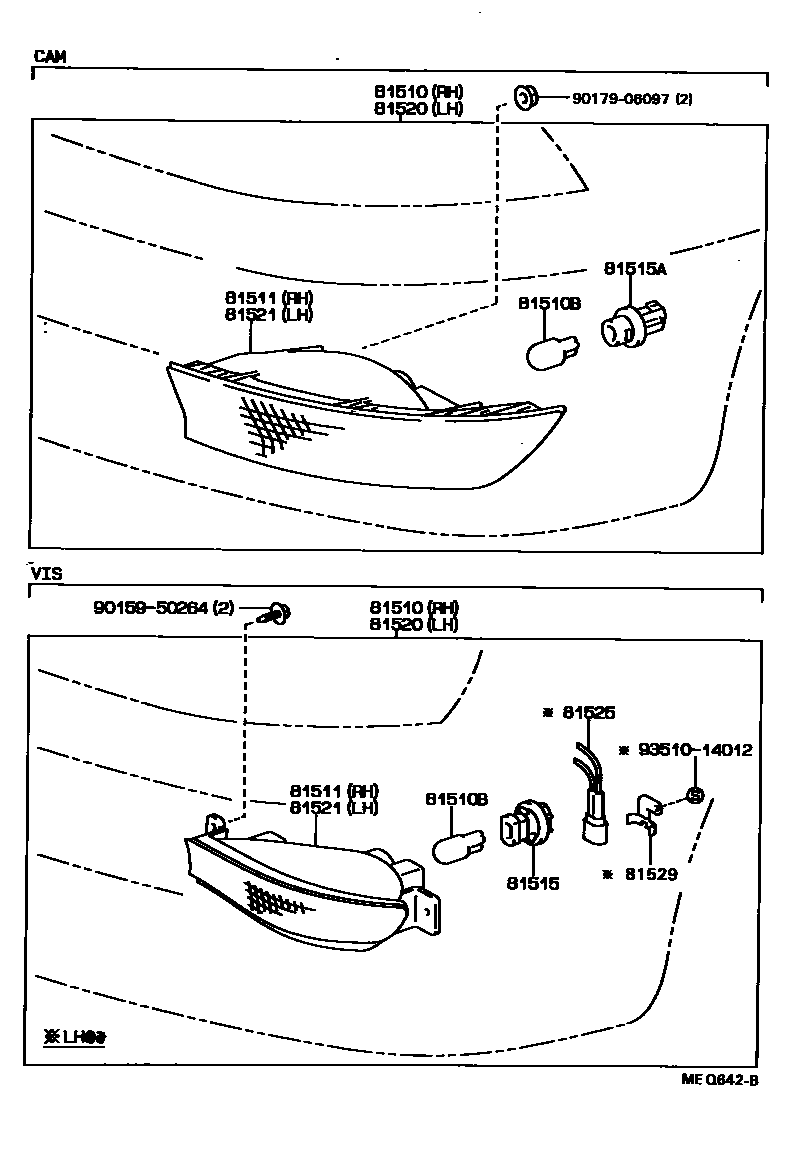

Toyota CAMRY EPC diagram 8103, 前转向灯, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81510 | Right front turn signal lamp assembly | 81510-32150 · 81510-32160 · 81510-32170 · 81510-32180 · 81510-32190 · 81510-32200 |
| 81510B | Bulb (for front turn signal lamp) | 90981-13043 · 90981-13050 · 99132-11210 · 99132-12050 |
| 81511 | Right front turn signal lamp cover | 81511-32150 · 81511-32160 · 81511-32170 · 81511-32180 · 81511-32190 · 81511-32200 |
| 81515 | Front turn signal light body wiring harness sub-assembly | 81515-32180 |
| 81515A | Front turn signal light plug assembly | 81615-87705 · 81735-12180 · 90075-99032 · 90075-99079 · 90075-99080 |
| 81520 | Left front turn signal lamp assembly | 81520-32150 · 81520-32160 · 81520-32170 · 81520-32180 · 81520-32190 · 81520-32200 |
| 81521 | Left front turn signal lamp cover | 81521-32150 · 81521-32160 · 81521-32170 · 81521-32180 · 81521-32190 · 81521-32200 |
| 81525 | Left front turn signal light wire | 81525-32180 |
| 81529 | Left front turn signal light side bracket | 81529-32180 |
