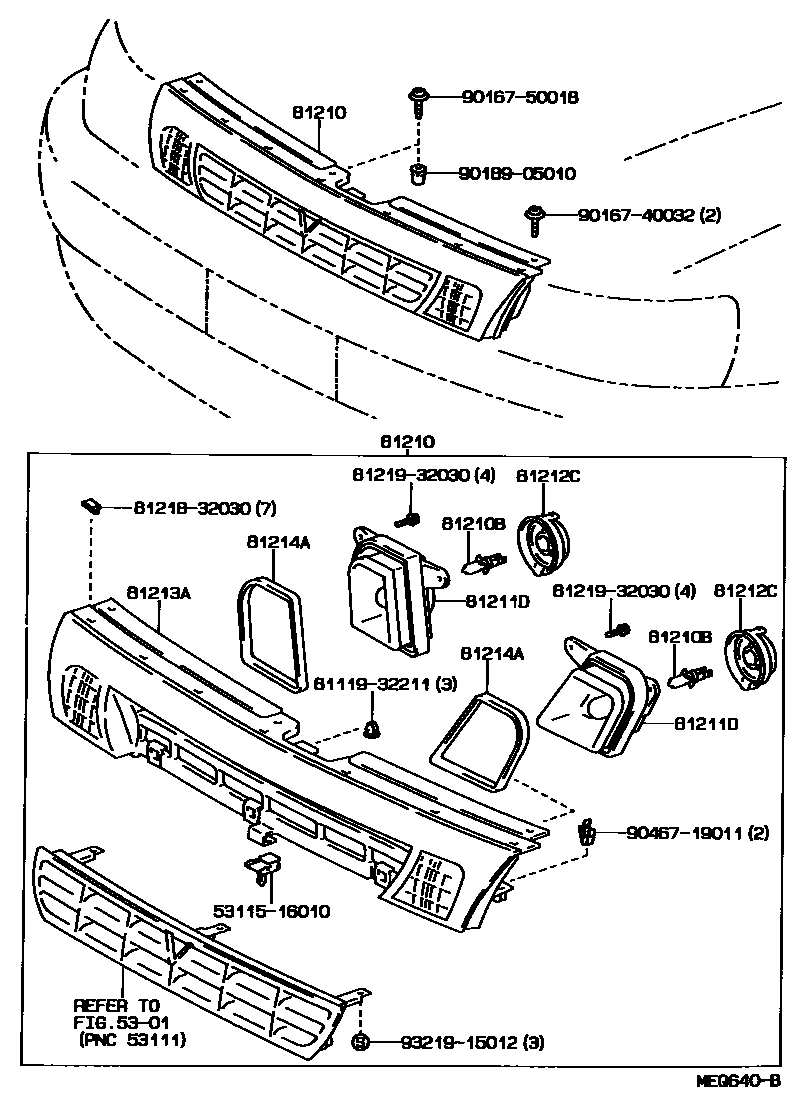

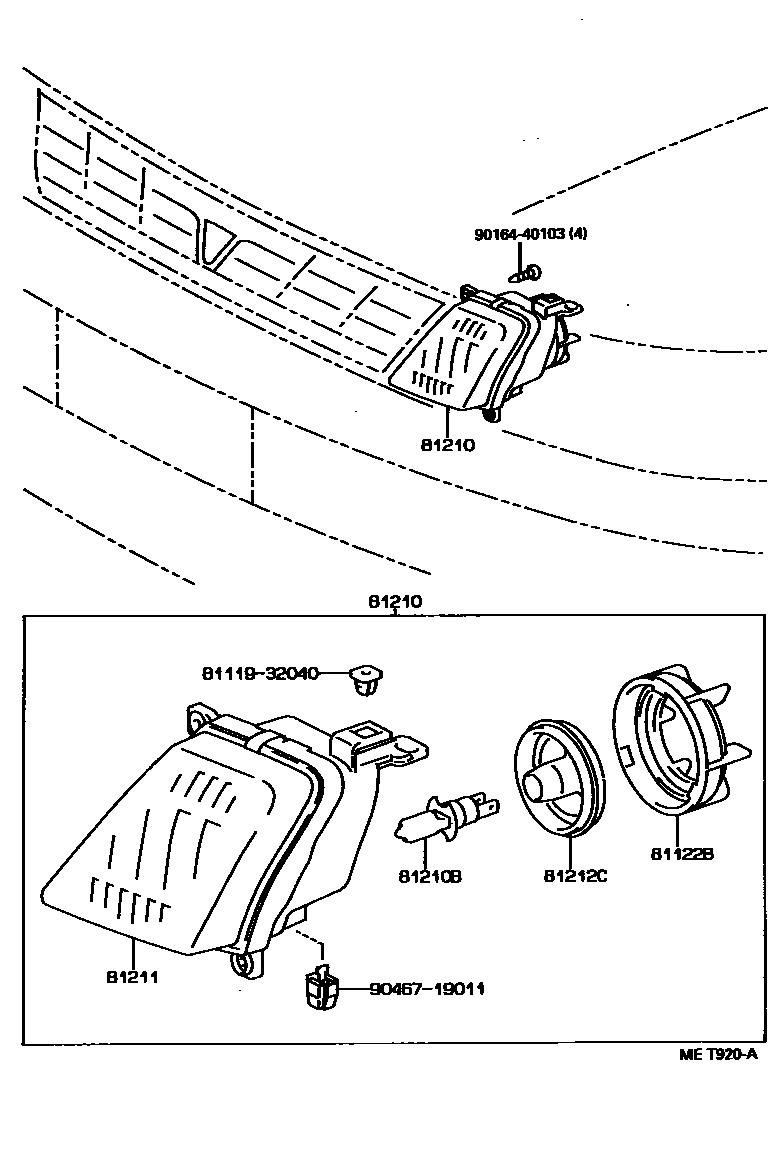

Toyota CAMRY Fog Lamp — Figure 8102
Toyota CAMRY EPC diagram 8102, Fog Lamp, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81122B | fog lamp holder | 81122-32040 |
| 81210 | Fog light assembly | 81210-32030 · 81210-32040 · 81210-32041 · 81220-32040 · 81220-32041 |
| 81210B | fog light bulb | 90981-13039 |
| 81211 | fog lamp shade | 81211-32040 · 81221-32040 |
| 81211D | fog light assembly | 81211-32030 · 81221-32030 |
| 81212C | fog light cover | 81139-32040 · 81212-32030 |
| 81213A | Fog light body | 81213-32030 |
| 81214A | Fog light body seal | 81214-32030 · 81224-32030 |
