Toyota CAMRY 燃油箱和燃油管 — Figure 7701

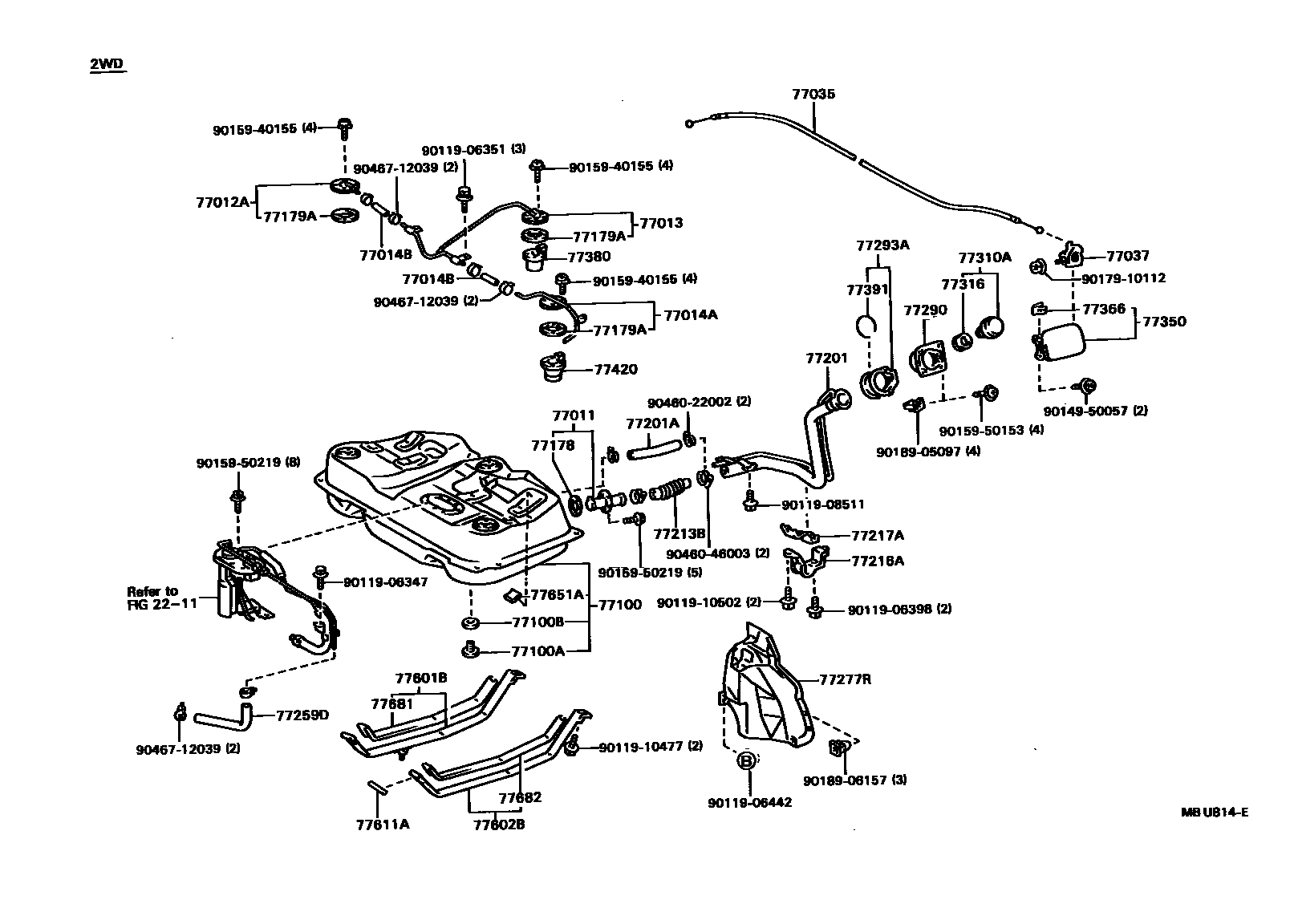

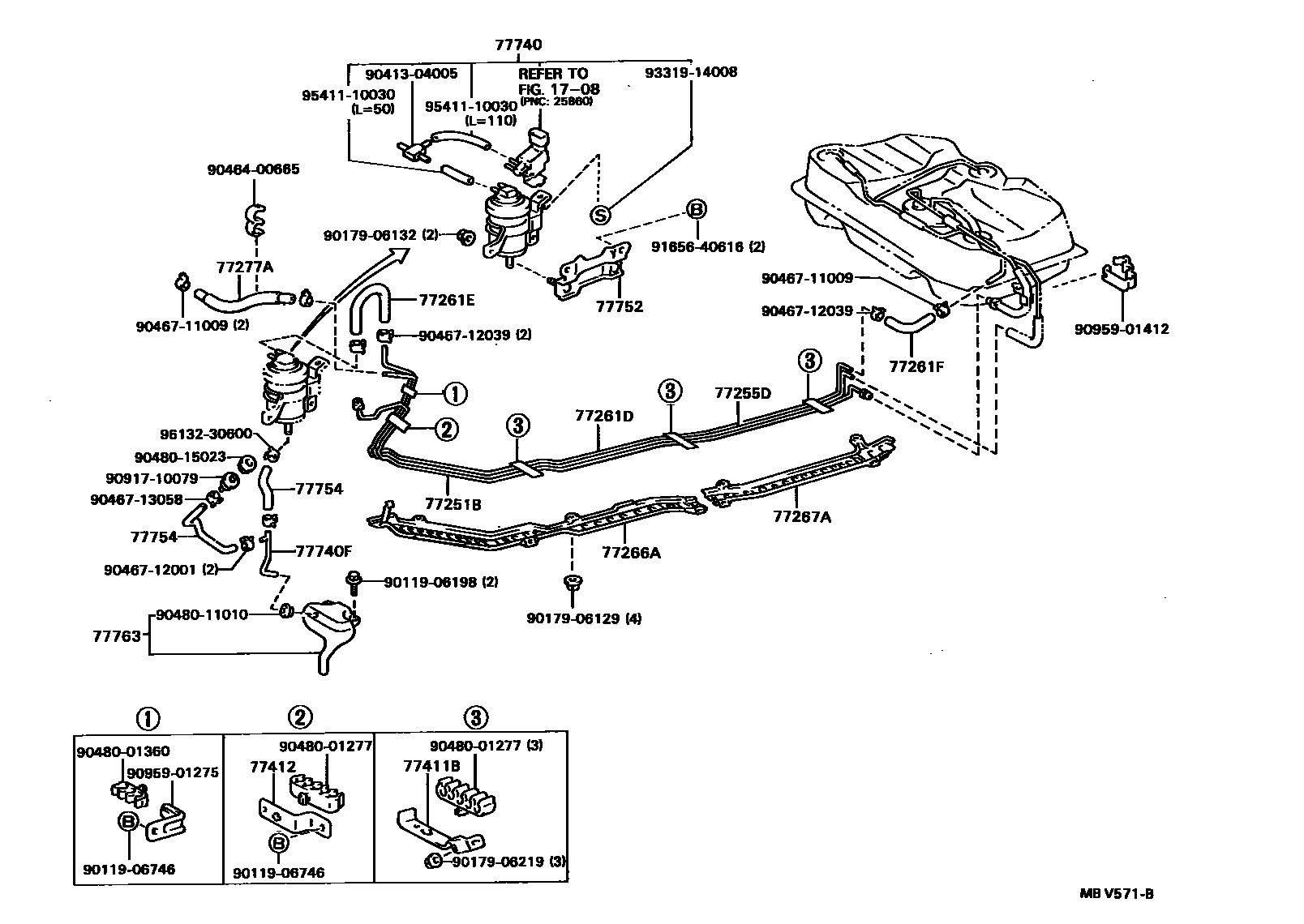

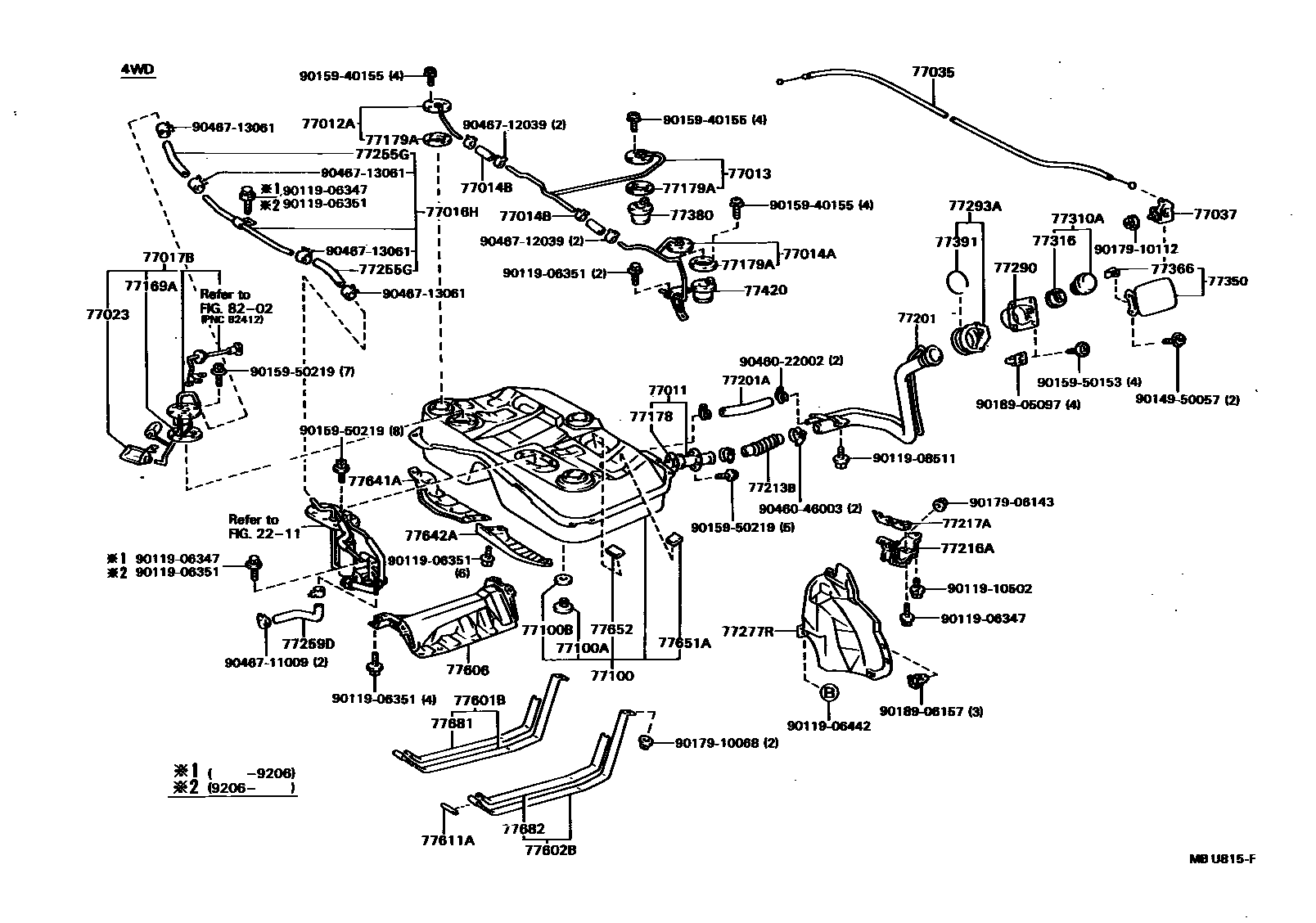

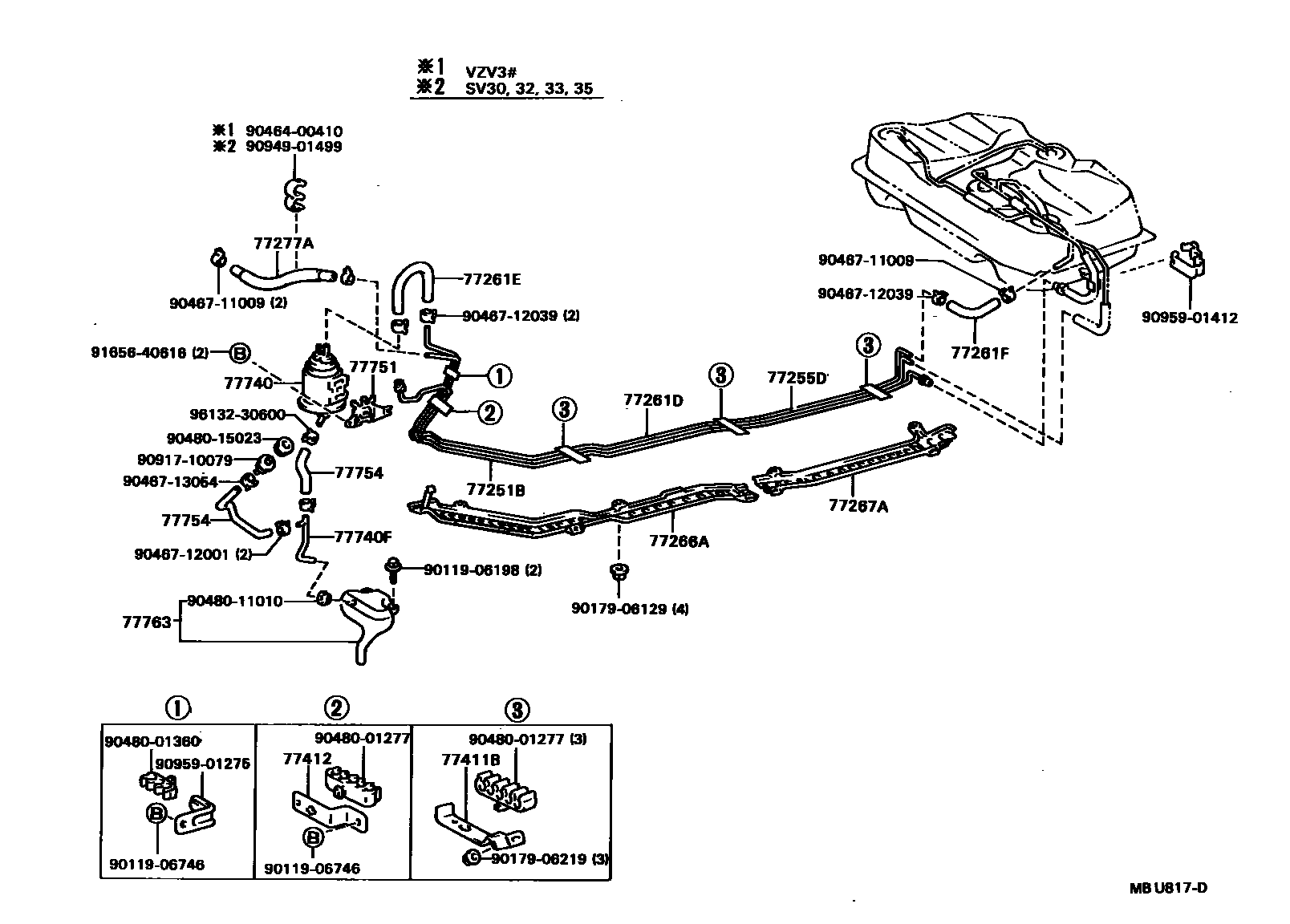

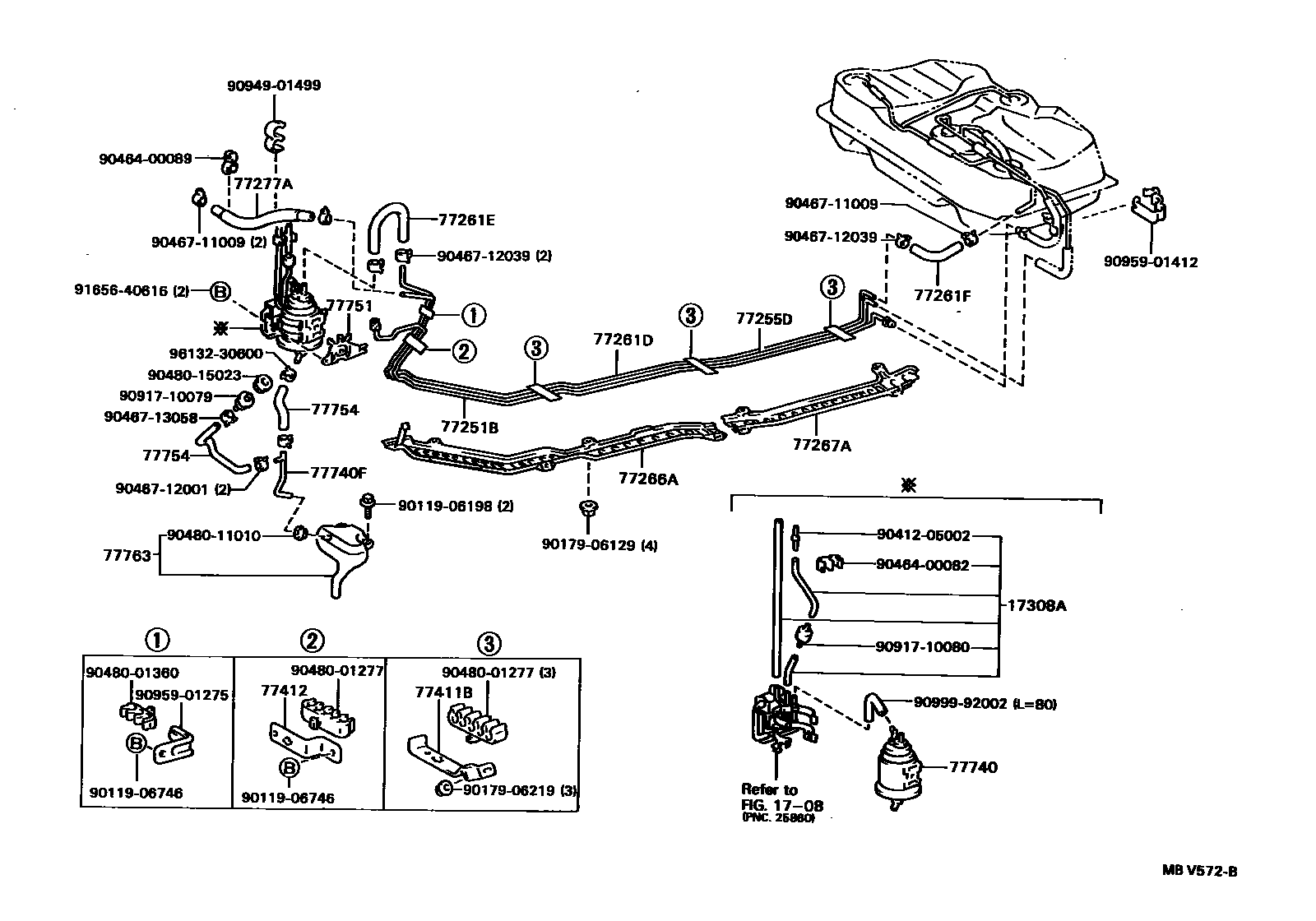

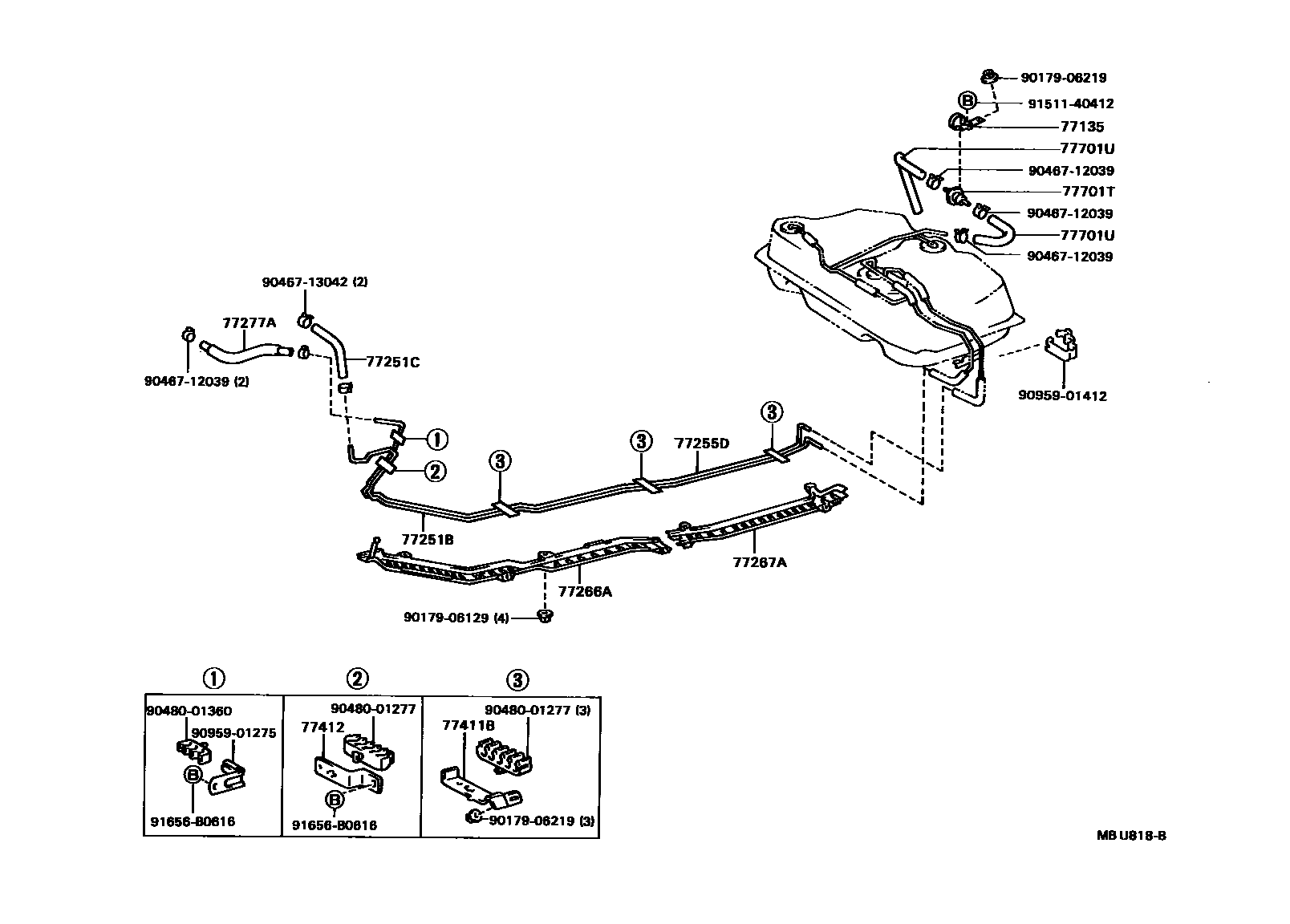

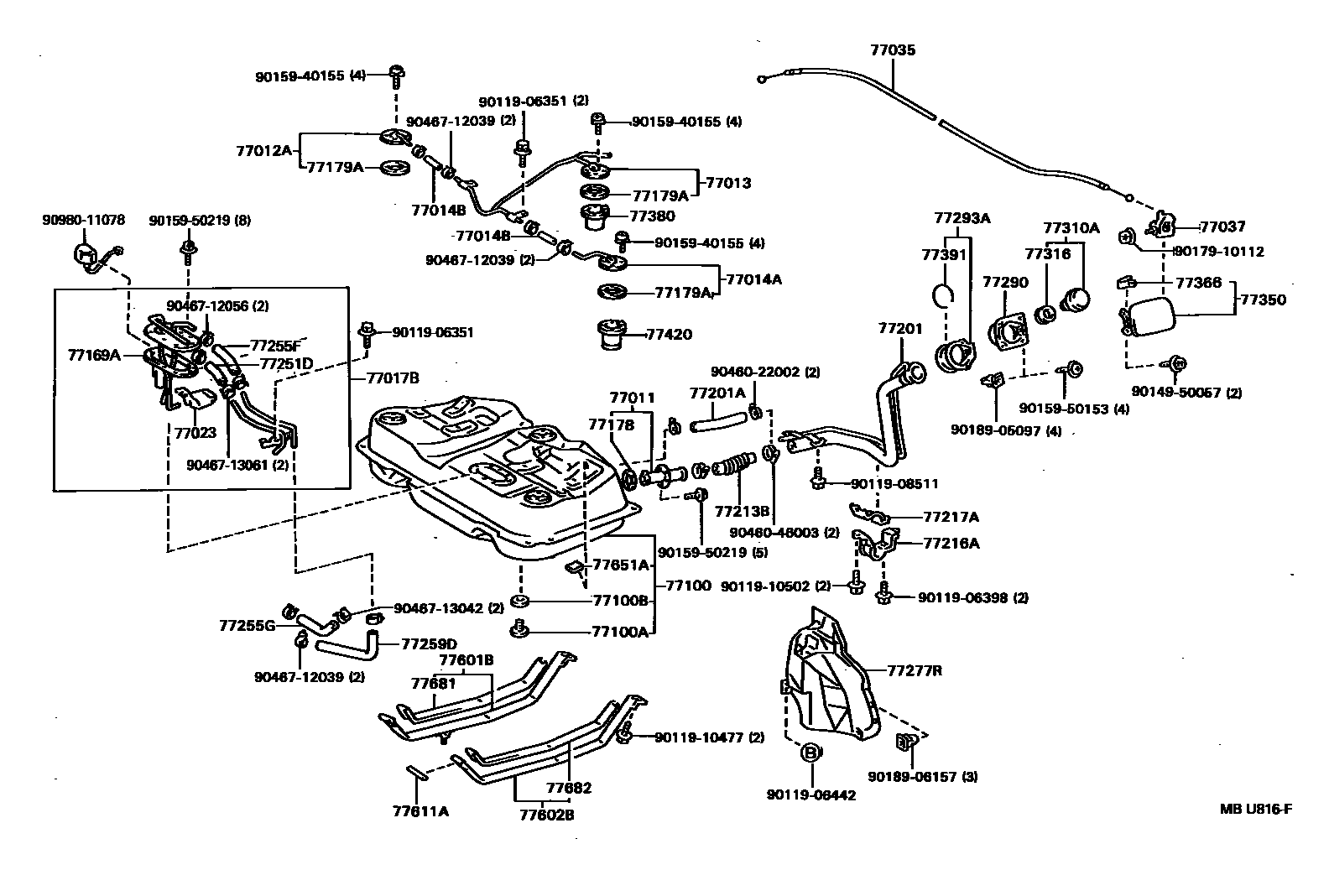

Toyota CAMRY EPC diagram 7701, 燃油箱和燃油管, with 7 images and 66 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17308A | Vacuum hose sub-assembly | 17308-74190 |
| 77011 | Filling pipe sub-assembly under fuel tank | 77011-10050 |
| 77012A | No. 1 fuel tank breather pipe sub-assembly | 77012-32050 · 77012-32070 |
| 77013 | No. 2 fuel tank breather pipe sub-assembly | 77013-32030 · 77013-32050 · 77013-32060 |
| 77014A | No. 3 fuel tank breather pipe sub-assembly | 77014-32040 · 77014-32060 · 77014-32070 |
| 77014B | Fuel hose (for fuel tank breather pipe) | 95333-06010 |
| 77016H | Fuel return ventilation pipe sub-assembly | 77016-32010 |
| 77017B | Fuel tank vent pipe sub-assembly | 77017-32070 · 77017-32071 · 77017-32080 · 77017-32081 · 77017-32090 · 77017-32091 |
| 77023 | Fuel suction pipe filter sub-assembly | 77023-16020 · 77023-32030 · 77023-32040 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-32130 · 77035-32150 |
| 77037 | Fuel filler cap lock sub-assembly | 77037-12050 · 77037-14020 · 77037-32020 |
| 77100 | fuel tank assembly | 77001-32907 · 77001-32909 · 77001-39305 · 77001-39306 |
| 77100A | Screw plug (for fuel tank) | 90341-20004 |
| 77100B | Gasket (for fuel tank) | 90430-20007 |
| 77135 | One-way valve bracket | 77135-32020 |
| 77169A | Fuel suction pipe fixed gasket | 77169-14010 · 77169-60010 |
| 77178 | Fuel tank filler pipe lower gasket | 77178-20030 |
| 77179A | fuel tank breather gasket | 77179-26010 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-32130 |
| 77201A | No. 1 fuel hose (for fuel tank inlet pipe) | 77019-32120 · 90445-22013 · 90445-22024 |
| 77213B | Fuel tank to filler pipe hose | 77213-32030 · 77213-32040 · 77213-33010 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77104-32010 · 77216-32050 · 77216-33010 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-32030 · 77217-32040 · 77217-33010 |
| 77251B | main fuel pipe | 77251-32160 · 77251-32170 · 77251-32180 |
| 77251C | No. 1 fuel hose (for main fuel line) | 77259-32060 · 95333-08020 |
| 77251D | No. 2 fuel hose (for main fuel line) | 95333-08020 |
| 77255D | fuel return pipe | 77255-32120 |
| 77255F | No. 2 fuel hose (for fuel return pipe) | 95333-06020 |
| 77255G | No. 1 fuel return hose (for fuel return pipe) | 77259-32050 · 95333-08011 · 95333-08020 |
| 77259D | No. 1 fuel hose | 77259-32030 · 77259-32040 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-32100 |
| 77261E | No. 1 fuel hose (for fuel tank to canister pipe) | 95333-06030 |
| 77261F | No. 2 fuel hose (for fuel tank to canister pipe) | 95333-06020 |
| 77266A | No. 1 fuel line protection device | 77266-32030 |
| 77267A | No. 2 fuel pipe protection device | 77267-32040 |
| 77277A | No. 1 fuel hose (for No. 1 return pipe) | 23271-62010 · 23271-74340 · 90447-12063 · 90447-12081 · 90447-12085 · 90447-12121 · 90447-12131 · 90447-12141 |
| 77277R | Fuel tank filler pipe protection device | 77277-32040 · 77277-32050 |
| 77290 | Fuel tank filler pipe cover assembly | 77290-32030 |
| 77293A | No. 3 fuel tank filler pipe cover | 77293-32020 |
| 77310A | Fuel tank cap assembly | 77310-16011 · 77310-32011 |
| 77316 | fuel tank cap gasket | 77316-16010 |
| 77350 | Fuel filler cap assembly | 77350-32070 · 77350-32080 · 77350-33150 |
| 77366 | Fuel filler cap hinge spring | 77366-12030 |
| 77380 | Fuel shut-off valve assembly | 77380-26010 |
| 77391 | fuel inlet ring | 77391-16011 |
| 77411B | No. 1 fuel pipe retaining ring bracket | 77411-32010 |
| 77412 | No. 2 fuel pipe retaining ring bracket | 77412-32010 |
| 77420 | No. 2 fuel shut-off valve assembly | 77420-26010 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-32070 · 77601-32080 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-32060 · 77602-32070 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-32030 · 77606-32031 |
| 77611A | Pin (for fuel tank strap) | 90250-08019 |
| 77641A | No. 1 fuel tank protective shell | 77641-32050 |
| 77642A | No. 2 fuel tank protective shell | 77642-32010 |
| 77651A | No. 1 fuel tank liner | 77651-32050 |
| 77652 | No. 1 fuel tank liner | 77651-20090 |
| 77681 | Fuel tank right side strap seat | 77681-32040 · 77681-32070 |
| 77682 | Fuel tank left side strap seat | 77681-32040 · 77681-32060 |
| 77701T | Check valve (for main fuel tank) | 90917-10069 |
| 77701U | Fuel hose (for check valve) | 95333-06030 |
| 77740 | Carbon canister assembly | 77704-32020 · 77704-32060 · 77740-32070 |
| 77740F | No. 1 fuel pipe (for charcoal canister) | 77264-32070 · 77264-32090 |
| 77751 | Carbon canister base bracket | 77751-32080 · 77751-32081 |
| 77752 | Carbon canister base bracket | 77752-32010 |
| 77754 | No. 1 carbon canister outlet hose | 77754-32090 · 77754-32120 · 77754-32130 |
| 77763 | Carbon canister discharge housing | 77763-32010 |
