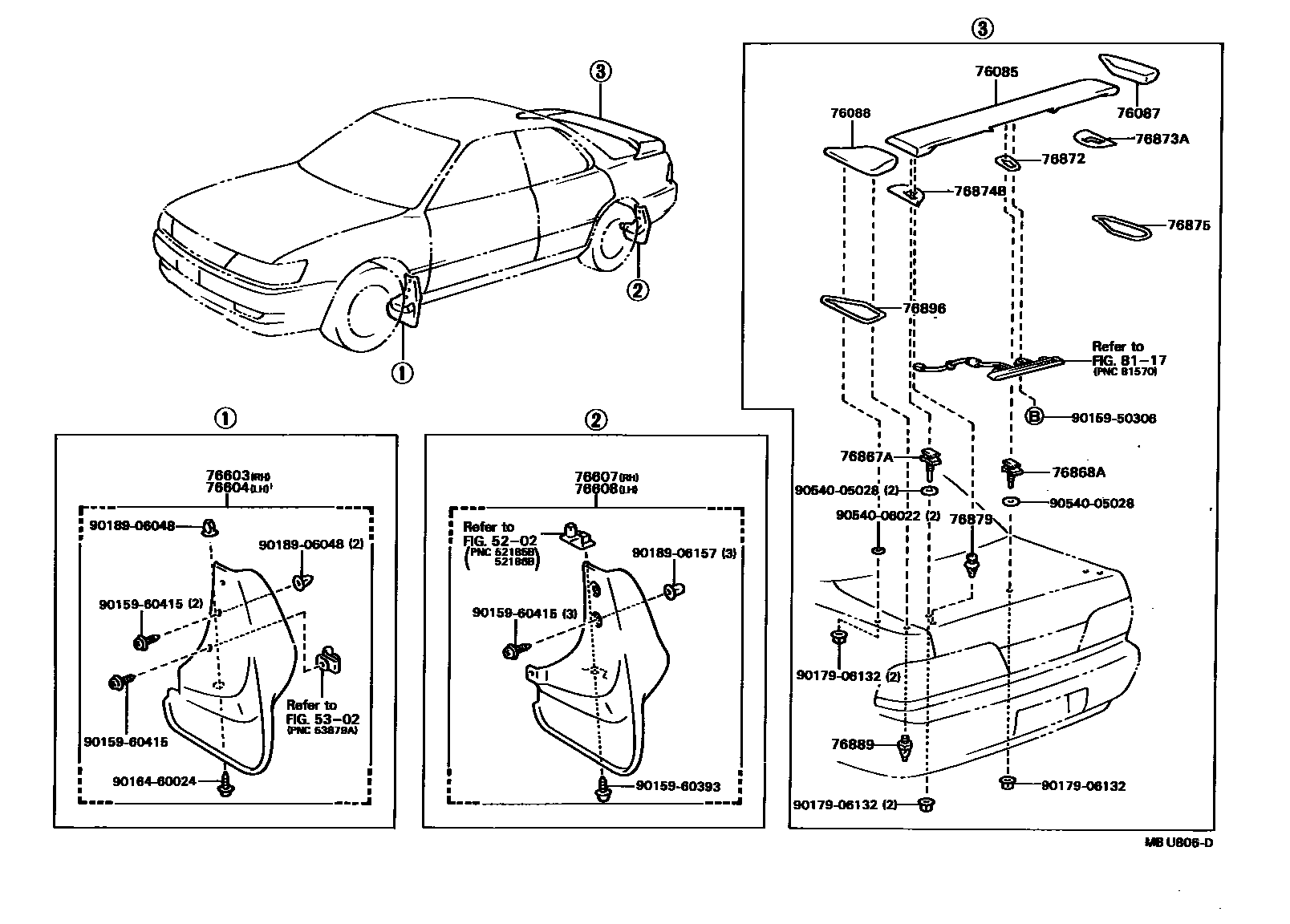

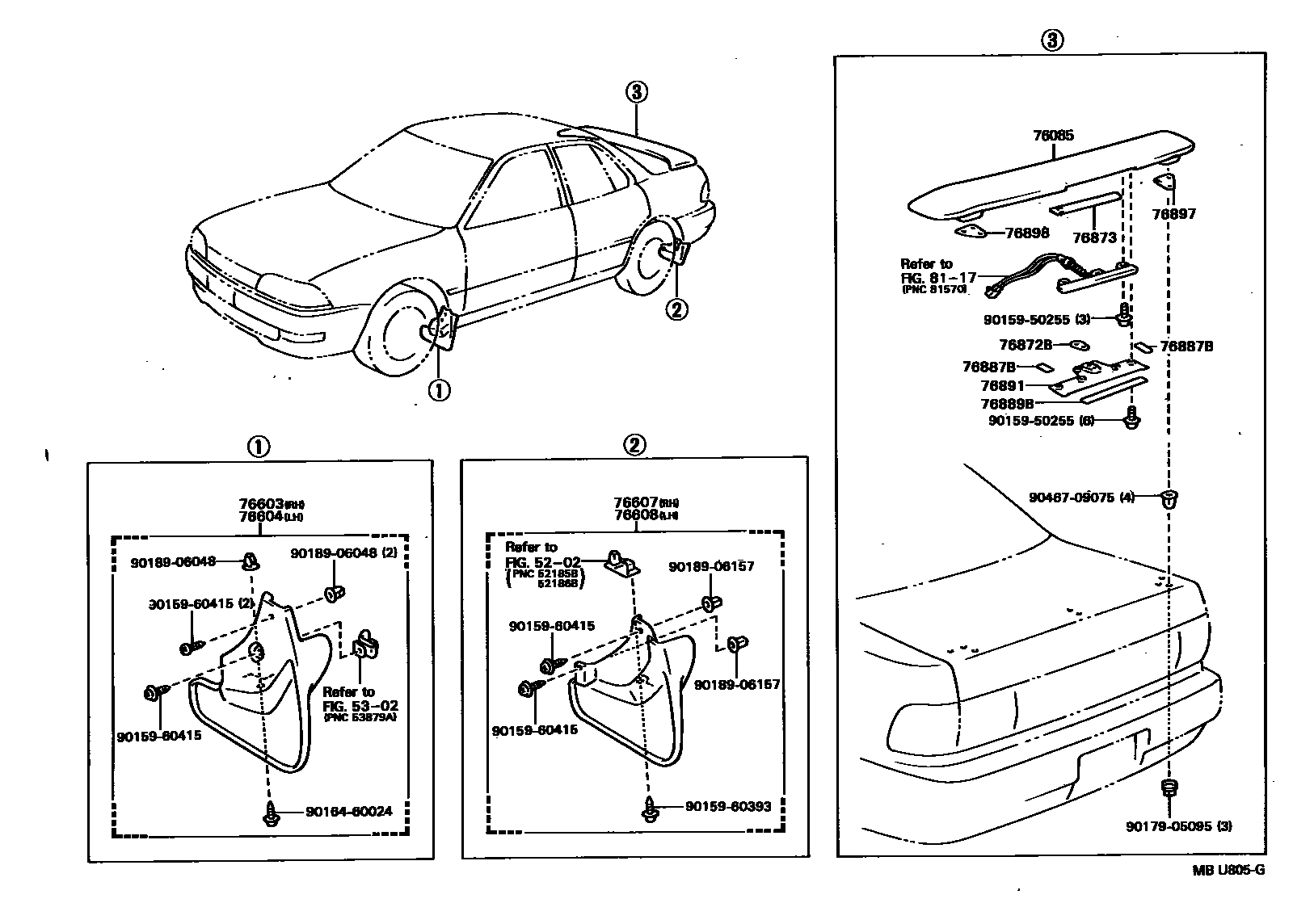

Toyota CAMRY 挡泥板和扰流板 — Figure 7601
Toyota CAMRY EPC diagram 7601, 挡泥板和扰流板, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75392D | External protective strip fixings | 75392-32080 |
| 76085 | Rear spoiler sub-assembly | 76085-32901 · 76871-32903 |
| 76087 | No. 1 rear spoiler sub-assembly | 76891-32900 |
| 76088 | No. 2 rear spoiler sub-assembly | 76892-32900 |
| 76603 | Right front fender fender sub-assembly | 76621-39215 · 76621-39285 |
| 76604 | Left front fender fender sub-assembly | 76622-39215 · 76622-39285 |
| 76607 | Right rear side fender sub-assembly | 76625-39265 · 76625-39375 |
| 76608 | Left rear side fender sub-assembly | 76626-39265 · 76626-39375 |
| 76867A | No. 3 rear spoiler fixing piece | 76867-32050 |
| 76868A | No. 4 rear spoiler fixing piece | 76868-32050 |
| 76872 | No. 1 rear spoiler protective strip | 76872-32010 |
| 76872B | Rear center spoiler protective strip | 76872-32020 |
| 76873 | No. 2 rear spoiler protective strip | 76873-32020 |
| 76873A | Right rear spoiler protective strip | 76873-32010 |
| 76874B | Left rear spoiler protective strip | 76874-32010 |
| 76875 | No. 4 rear spoiler protective strip | 76875-32010 |
| 76879 | No. 1 rear spoiler clip | 76879-32010 |
| 76887B | No. 2 rear spoiler protection strip | 76887-32010 |
| 76889 | No. 2 rear spoiler clip | 76889-32010 |
| 76889B | No. 1 rear spoiler seal | 76889-22010 · 76889-32020 |
| 76891 | No. 1 rear spoiler | 76891-32010 |
| 76896 | No. 6 rear spoiler protective strip | 76896-32010 |
| 76897 | Right rear spoiler protection strip | 76897-32020 |
| 76898 | Left rear spoiler protection strip | 76898-32020 |
