Toyota CAMRY 侧防护条 — Figure 7503

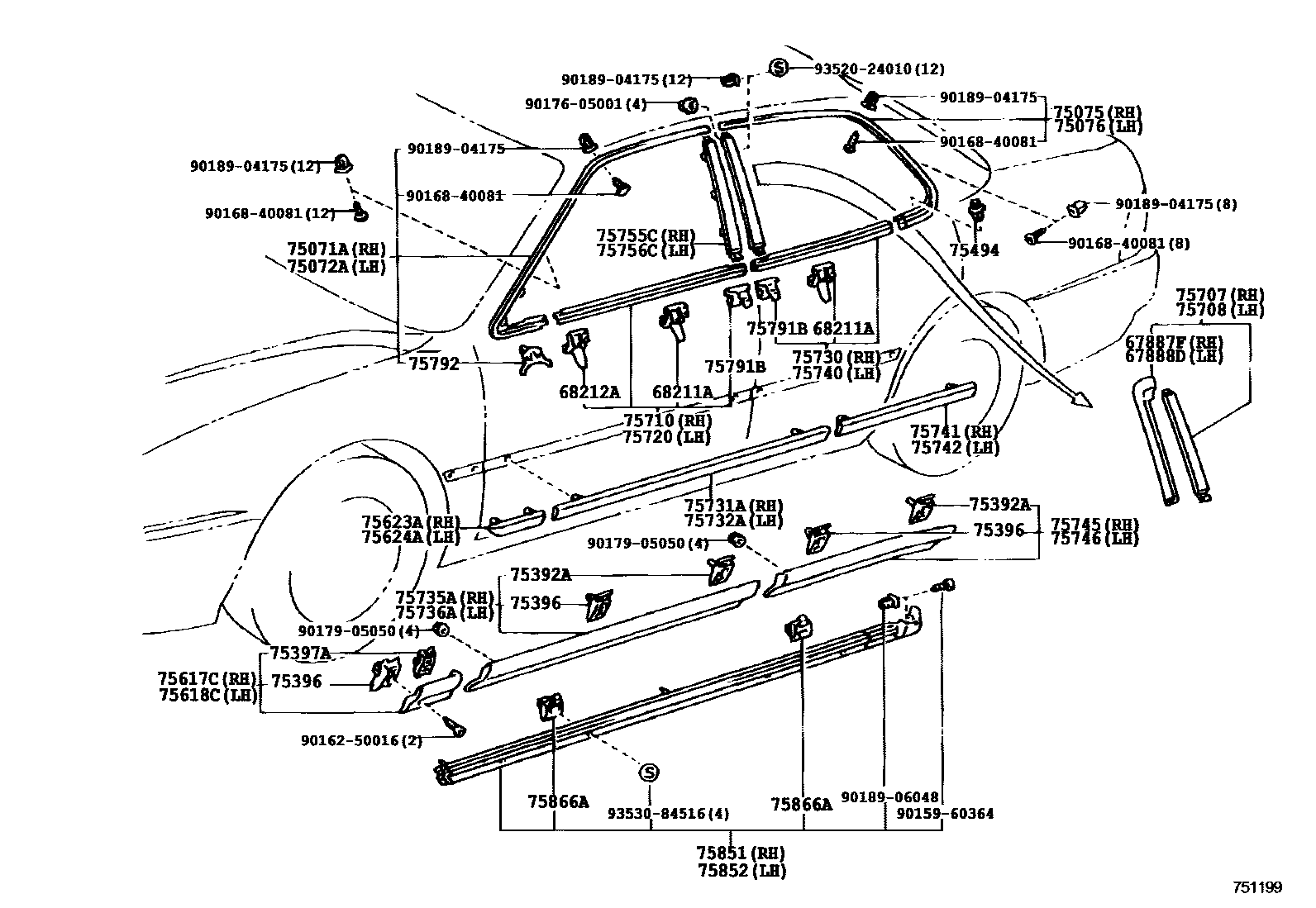

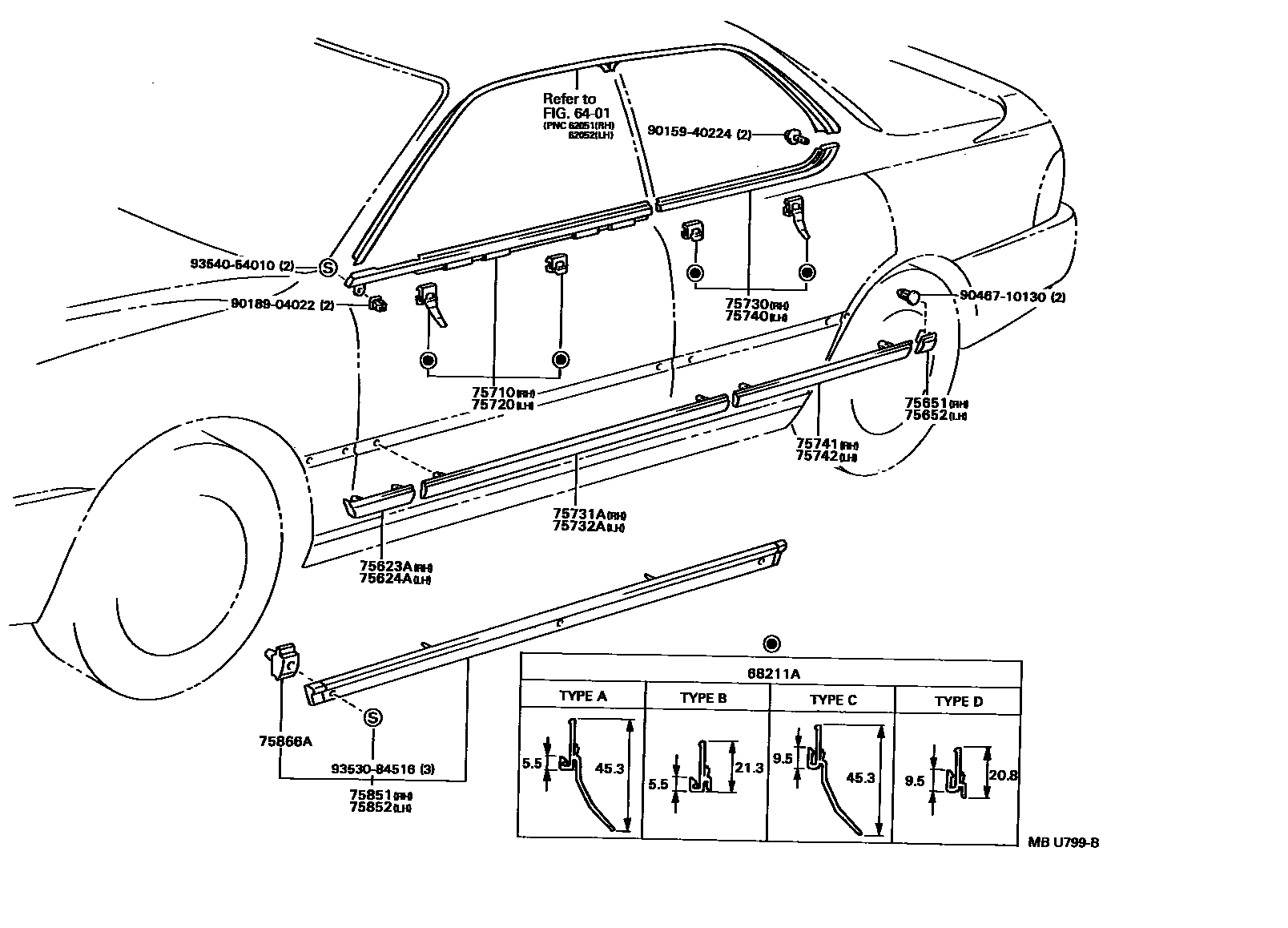

Toyota CAMRY EPC diagram 7503, 侧防护条, with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67887F | Right rear door seal No. 2 | 67887-32040 |
| 67888D | Left rear door seal No. 2 | 67888-32040 |
| 68211A | Door belt line protection strip clip | 68211-32040 · 68211-32050 · 68211-32080 · 68211-32090 · 68211-32100 |
| 68212A | Car door glass outer seal strip clip | 68212-32010 |
| 75071A | Right front door outer protective strip sub-assembly | 75071-32020 · 75071-32030 |
| 75072A | Left front door outer protective strip sub-assembly | 75072-32020 · 75072-32030 |
| 75075 | Right rear door outer protective strip sub-assembly | 75075-32020 · 75075-32030 |
| 75076 | Left rear door outer protective strip sub-assembly | 75076-32020 · 75076-32030 |
| 75392A | No. 1 outer protective strip fixings | 75392-32050 |
| 75396 | No. 2 outer protective strip clip | 75396-32030 · 75396-32120 |
| 75397A | No. 3 outer protective strip clip | 75395-32100 |
| 75494 | No. 3 outer protective strip clip | 75494-32030 |
| 75617C | Right front fender rear lower protective strip | 75617-32010 · 75617-32020 |
| 75618C | Left front fender rear lower protective strip | 75618-32010 · 75618-32020 |
| 75707 | Right rear door window frame protective strip sub-assembly | 75707-32010 · 75707-32011 |
| 75708 | Left rear door window frame protective strip sub-assembly | 75708-32010 · 75708-32011 |
| 75710 | Right front door waistline protection strip assembly | 75710-32090 · 75710-32120 · 75710-32121 · 75710-32130 · 75710-32140 · 75710-32141 |
| 75720 | Left front door waistline protection strip assembly | 75720-32090 · 75720-32120 · 75720-32121 · 75720-32130 · 75720-32140 · 75720-32141 |
| 75730 | Right rear door waistline protection strip assembly | 75730-32100 · 75730-32110 · 75730-32111 · 75730-32120 · 75730-32130 · 75730-32131 |
| 75735A | Right front door outer lower protective strip | 75735-32010 · 75735-32030 |
| 75736A | Left front door outer lower protective strip | 75736-32010 · 75736-32030 |
| 75740 | Left rear door waistline protection strip assembly | 75740-32100 · 75740-32110 · 75740-32111 · 75740-32120 · 75740-32130 · 75740-32131 |
| 75745 | Right rear door outer lower protective strip | 75745-32010 · 75745-32030 |
| 75746 | Left rear door outer lower protective strip | 75746-32010 · 75746-32030 |
| 75755C | Right front door window frame rear protective strip | 75755-32030 |
| 75756C | Left front door window frame rear protective strip | 75756-32030 |
| 75791B | Waistline side protective strip clip | 75791-32020 |
| 75792 | Car door window frame protective strip clip | 75792-32010 |
| 75851 | Right side door sill panel protective strip | 75850-39105 · 75850-39125 · 75851-39045 |
| 75852 | Left side door sill panel protective strip | 75852-39045 · 75860-39035 · 75860-39055 |
| 75866A | Door sill panel protective strip fixings | 75866-32010 · 75866-32020 · 75866-32040 |
