Toyota CAMRY 前防护条 — Figure 7502

Toyota CAMRY EPC diagram 7502, 前防护条, with 2 images and 10 PNC and OE references.

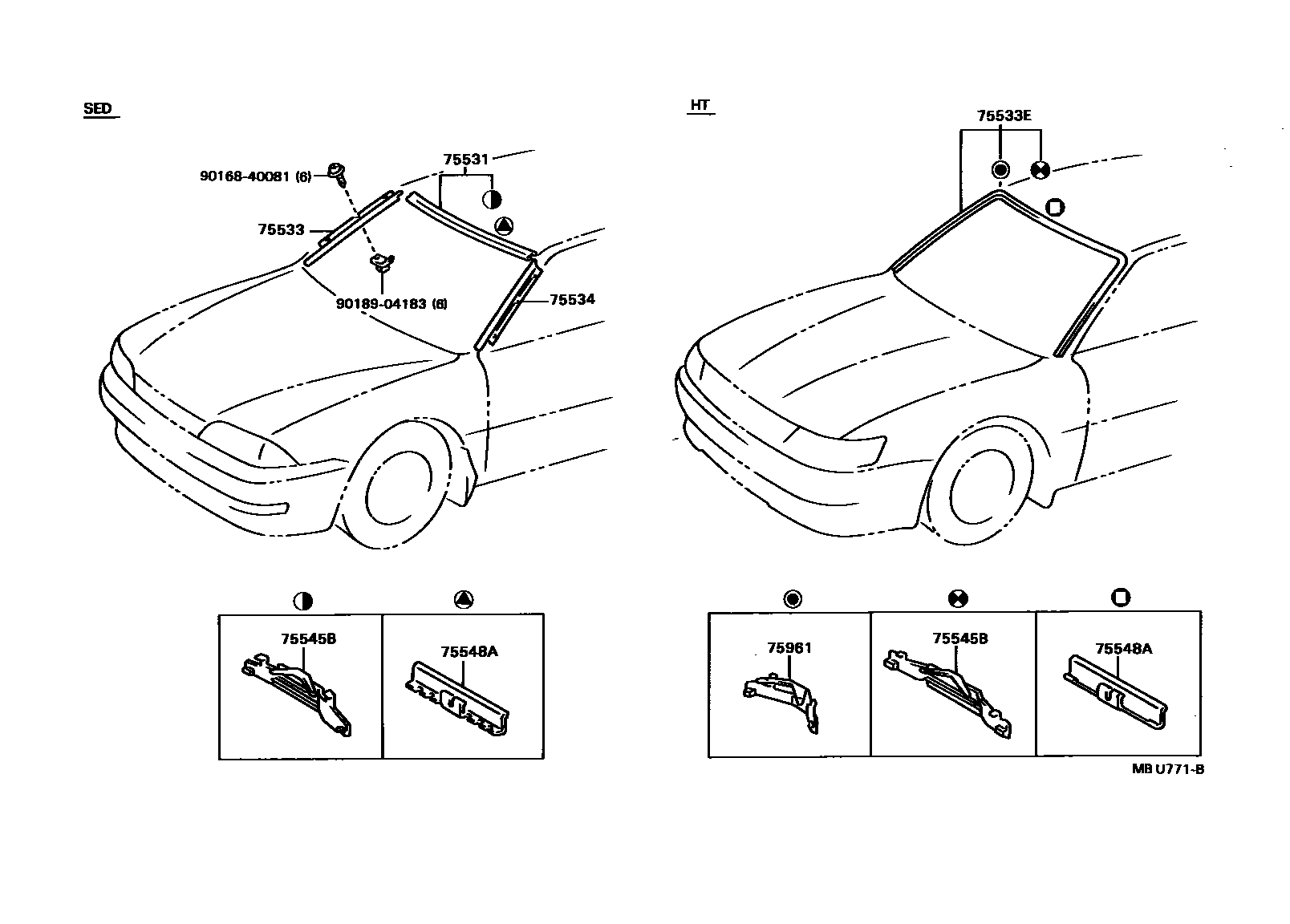

Toyota CAMRY 前防护条 EPC diagram — MBU771B
前防护条 — MBU771B (199007 – 999999)
Toyota CAMRY 前防护条 EPC diagram — MBV187
前防护条 — MBV187 (199009 – 199206)

PNC and OE references

PNCPart nameOE numbers
64165ANo. 1 upper back panel hole cover64165-24010
75395ENo. 3 left outer protective strip fixing piece75395-32140
75504Windshield outer lower protective strip sub-assembly75504-32020
75531Windshield outer protective strip75531-32130 · 75531-32140
75533Windshield right outer protective strip75533-32100 · 75533-32130
75533EWindshield outer protective strip75533-32110 · 75533-32120
75534Windshield left outer protective strip75534-32100 · 75534-32110
75545BNo. 1 windshield outer protective strip clip75545-32030 · 75545-32040
75548ANo. 1 windshield outer protective strip fasteners75548-20110
75961No. 4 windshield outer protective strip clip75961-32050
