Toyota CAMRY 警示铭牌(车外和车内) — Figure 7403

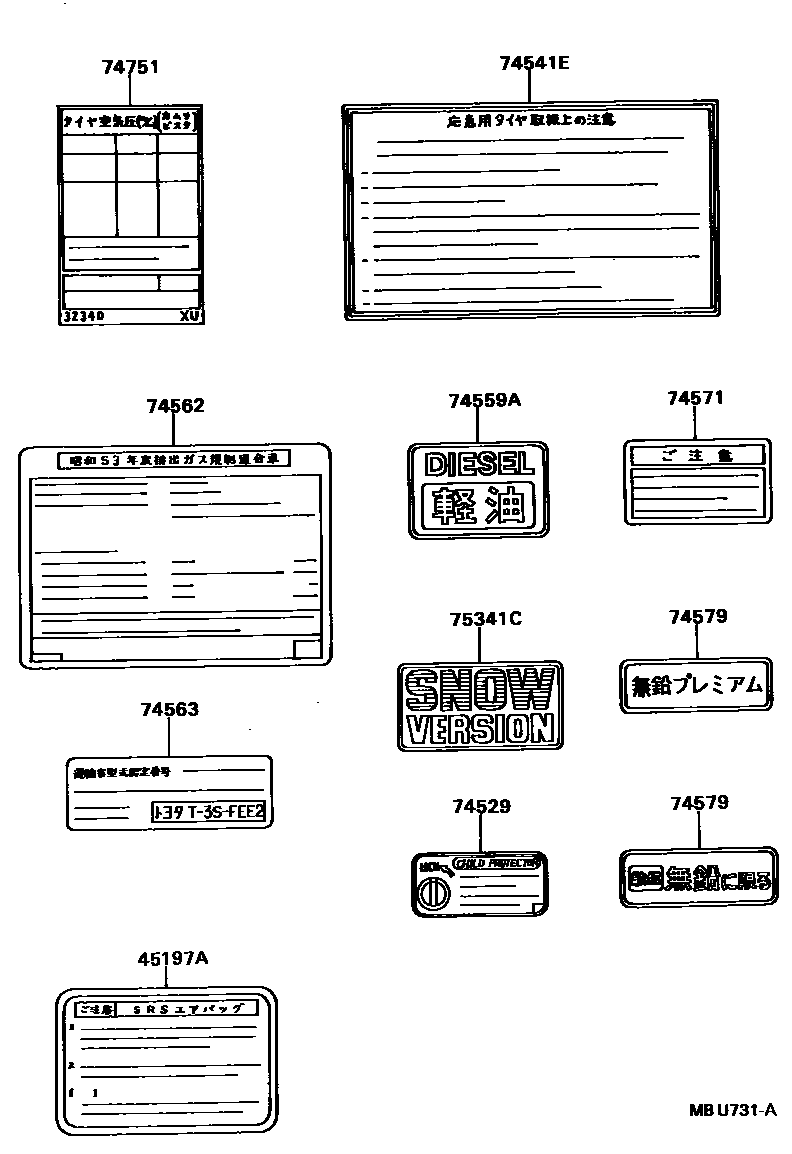

Toyota CAMRY EPC diagram 7403, 警示铭牌(车外和车内), with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45197A | air bag warning label | 45197-20050 |
| 74529 | Child safety or child restraint lock warning nameplate | 69339-32010 · 69349-32010 |
| 74541E | Small spare tire warning plate | 42668-32010 |
| 74559A | Fuel warning plate | 74559-14030 |
| 74562 | Emission control system information plate | 74562-20530 · 74562-20550 · 74562-20560 · 74562-20580 · 74562-32081 · 74562-32090 · 74562-32110 · 74562-32120 · 74562-32130 |
| 74563 | Emission control equipment identification plate | 74563-32030 · 74563-32040 |
| 74571 | Brake fluid warning plate | 47288-32010 |
| 74579 | Unleaded fuel warning nameplate | 74579-24010 · 74579-30011 |
| 74751 | tire pressure information label | 42661-32340 · 42661-32350 · 42661-32351 · 42661-32360 · 42661-32370 · 42661-32380 · 42661-32390 · 42661-32420 · 42661-32421 · 42661-32430 · 42661-32431 · 42661-32440 · 42661-32441 · 42661-32450 · 42661-32451 · 42661-32460 · 42661-32461 · 42661-32470 |
| 75341C | engine cover plate | 75341-20060 |
