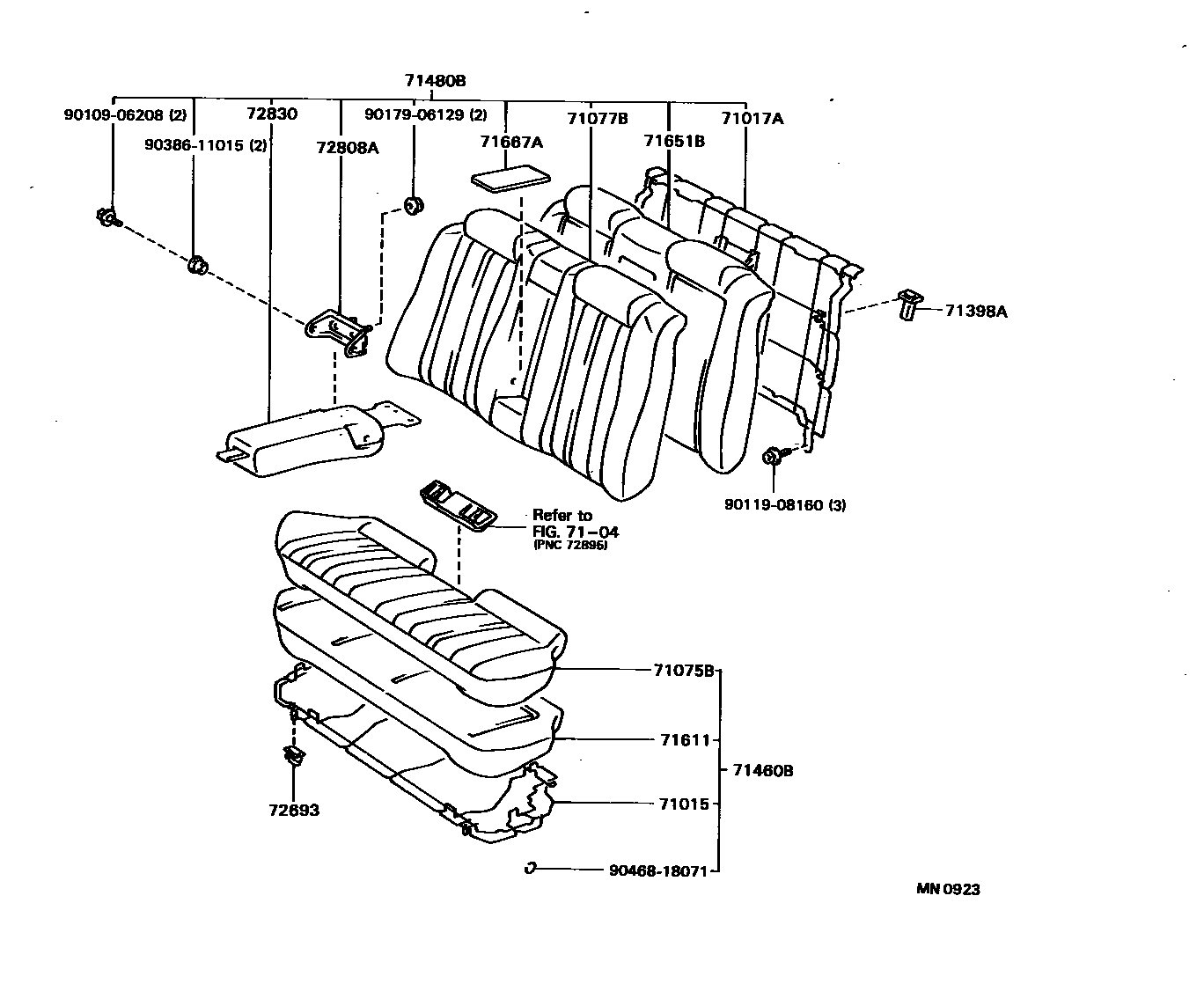

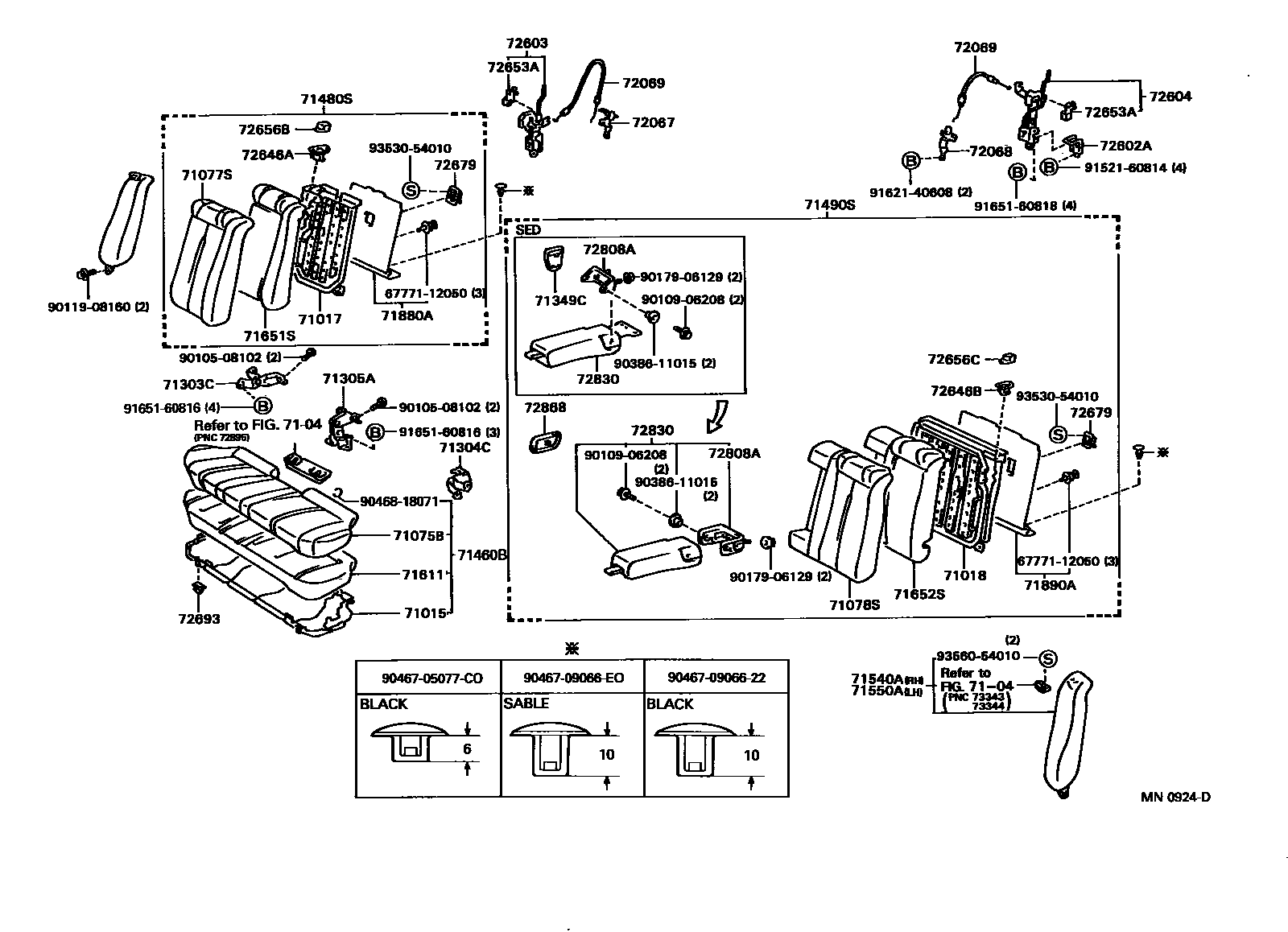

Toyota CAMRY 后排座椅和座椅滑轨 — Figure 7102
Toyota CAMRY EPC diagram 7102, 后排座椅和座椅滑轨, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015 | Rear seat cushion frame sub-assembly | 71015-32090 |
| 71017 | Right rear seat back frame sub-assembly | 71017-32120 |
| 71017A | Rear seat back frame sub-assembly | 71017-32130 · 71017-32140 |
| 71018 | Rear left seat back frame sub-assembly | 71018-32060 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-32050 · 71303-32060 |
| 71304C | Rear left seat back hinge sub-assembly | 71304-32050 · 71304-32060 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-32050 · 71305-32060 |
| 71398A | Rear seat back retainer | 71398-32010 · 71398-32020 |
| 71611 | Rear seat cushion cushion | 71611-32180 · 71611-32190 · 71611-32200 |
| 71651B | Rear seat back cushions (for bench seats) | 71651-32090 · 71651-32140 · 71651-32160 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-32150 · 71651-32170 · 71651-32180 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-32060 · 71652-32100 · 71652-32110 |
| 71667A | Rear center A seat back cushion | 71667-32040 |
| 72067 | Rear right seat back lock control lever sub-assembly | 72067-20010 · 72067-20011 |
| 72068 | Rear left seat back lock control lever sub-assembly | 72068-20010 · 72068-20011 |
| 72069 | Rear seat back lock control cable sub-assembly | 72069-32020 |
| 72602A | Rear left seat back lock sub-assembly | 72601-12080 |
| 72603 | Rear right seat back lock sub-assembly | 72603-32020 |
| 72604 | Rear left seat back lock sub-assembly | 72604-32020 |
| 72653A | Rear seat back lock lever buckle | 69759-24010 · 69759-24020 |
| 72693 | Rear seat cushion hook | 72693-32020 |
| 72808A | Seat center armrest bracket sub-assembly | 72808-32020 · 72883-32010 · 72883-32020 |
