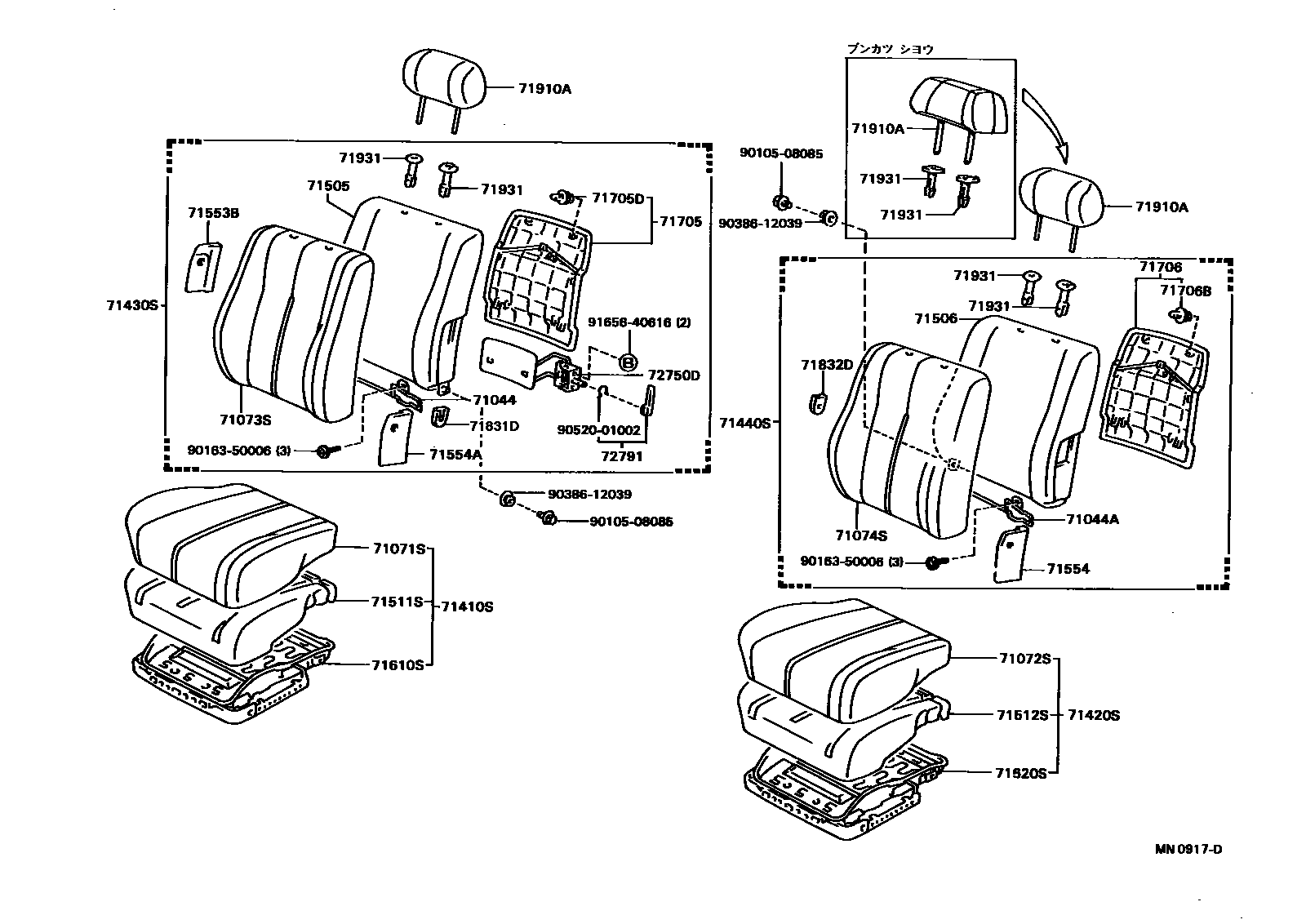

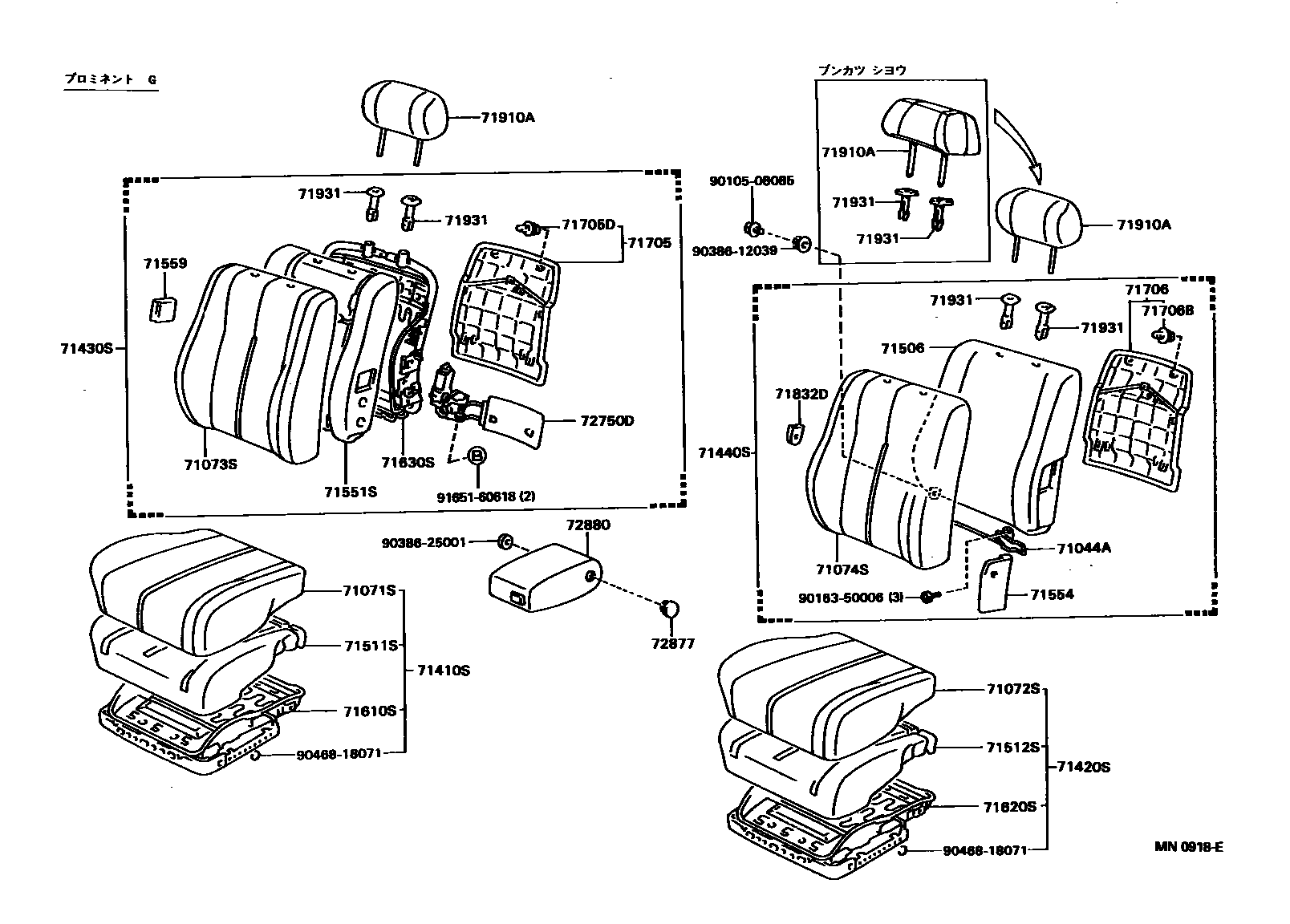

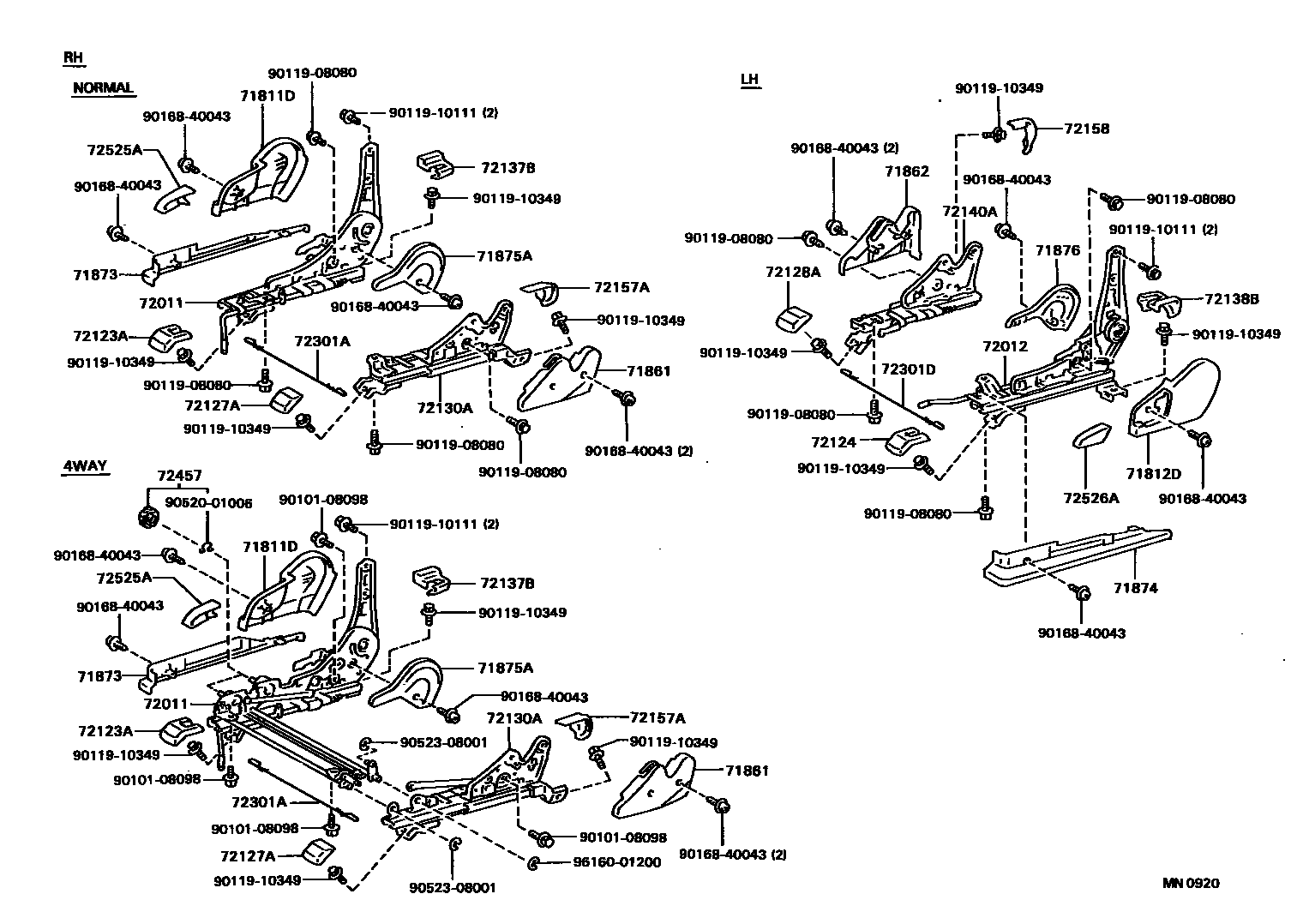

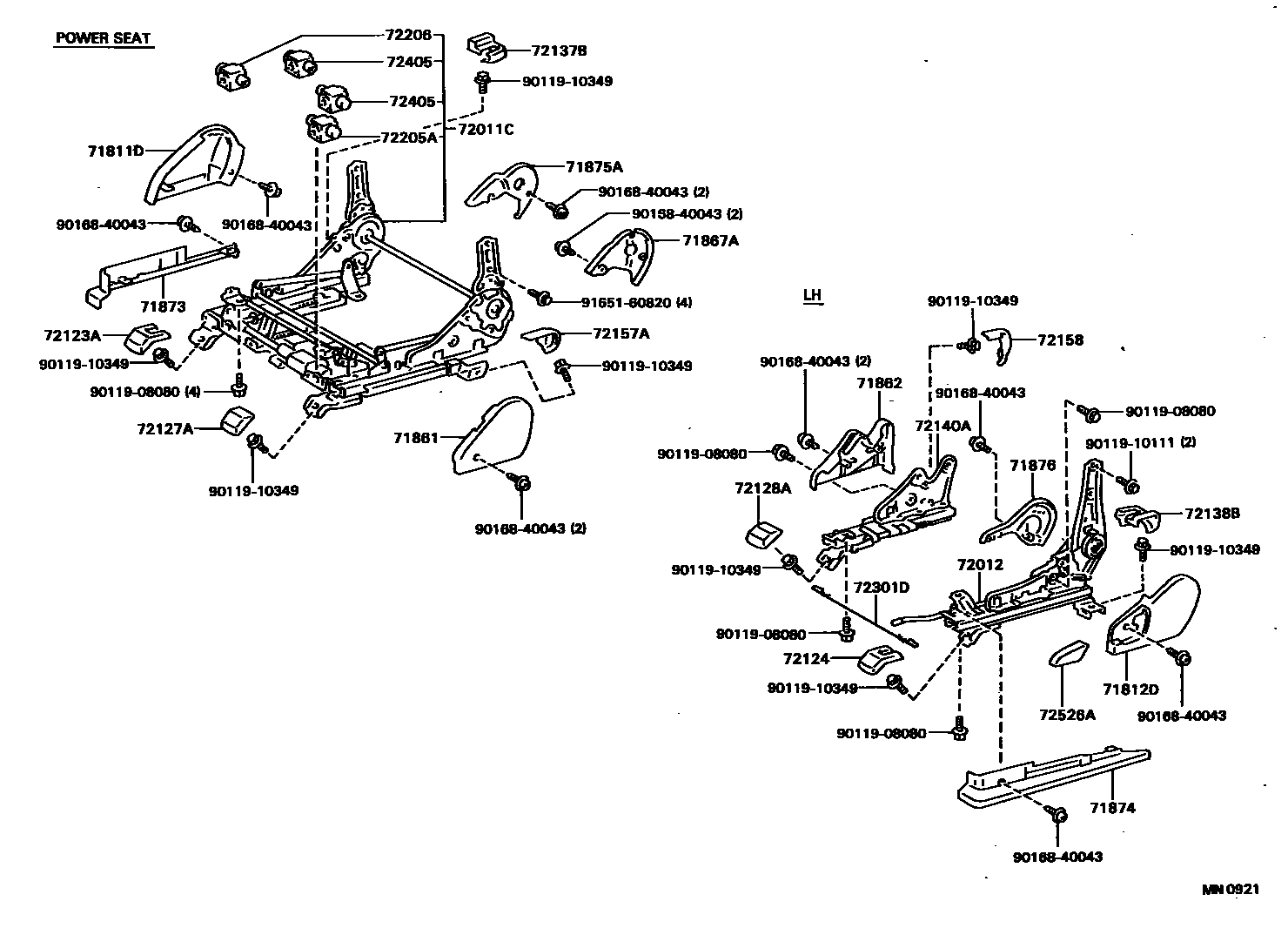

Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101
Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 4 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71044 | Steel wire sub-assembly under the front right seat backrest | 71044-32010 |
| 71044A | Steel wire sub-assembly under the front left seat backrest | 71044-32010 |
| 71505 | Front right seat back cushion sub-assembly with frame | 71505-32010 · 71505-32020 · 71505-32030 |
| 71506 | Front left seat back cushion sub-assembly with frame | 71506-32010 · 71506-32020 · 71506-32030 · 71506-32040 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-32140 · 71511-32150 · 71511-32160 · 71511-32170 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-32140 · 71511-32150 · 71511-33030 |
| 71551S | Front right seat back cushion (for split seats) | 71551-32130 · 71551-32140 |
| 71553B | Front B seat back cushion | 71553-32020 |
| 71554 | Front C seat back cushion | 71554-32020 · 71554-32050 |
| 71554A | Front center seat back cushion | 71553-32020 · 71554-32030 |
| 71559 | Front seat backrest side cushions | 71559-32010 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-32090 · 71610-32100 · 71610-32110 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-32030 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-32180 · 71630-32190 |
| 71705D | Front seat back panel clip | 71769-32011 · 71769-33010 |
| 71706B | Front seat back panel clip | 71769-32011 · 71769-33010 |
| 71831D | Front right seat hinge cover | 71831-16010 |
| 71832D | Front left seat hinge cover | 71831-16010 |
| 72011 | Front right seat outer adjuster sub-assembly | 72010-32040 · 72010-32050 |
| 72011C | Front right seat adjuster sub-assembly | 72010-32060 |
| 72012 | Front left seat outer adjuster sub-assembly | 72020-32040 |
| 72130A | Front right seat inner slide rail assembly | 72130-32030 · 72130-32040 |
| 72140A | Front left seat inner slide rail assembly | 72140-32020 |
| 72205A | No. 1 electric seat shell sub-assembly | 72205-50020 |
| 72206 | No. 2 electric seat shell sub-assembly | 72206-22020 |
| 72301A | Right seat slide rail balance harness sub-assembly | 72301-32030 |
| 72301D | Left seat slide rail balance harness sub-assembly | 72301-32030 |
| 72405 | Front vertical seat shell sub-assembly | 72405-24020 |
| 72750D | Right lumbar support adjuster assembly | 72750-32040 · 72750-32050 |
