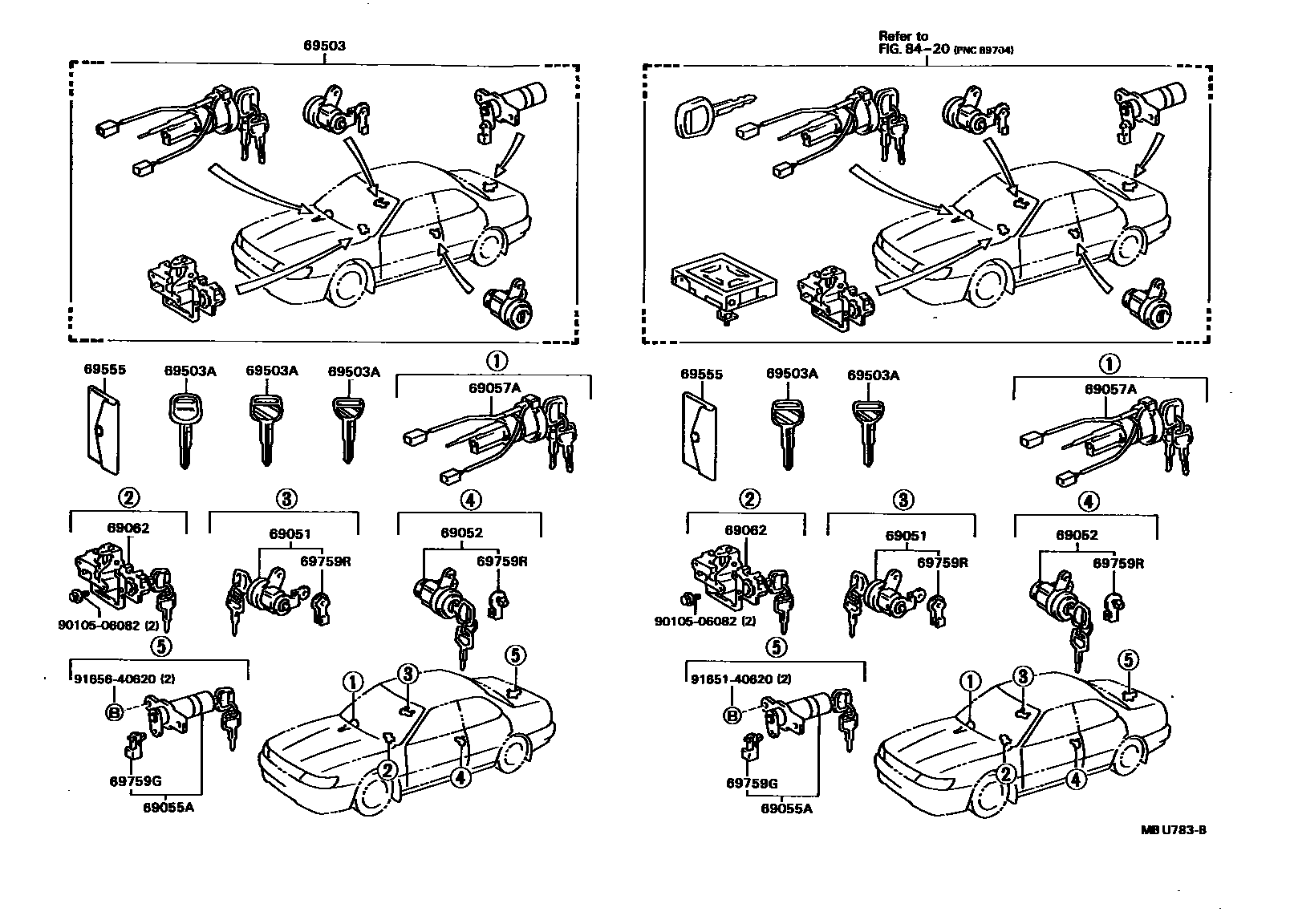

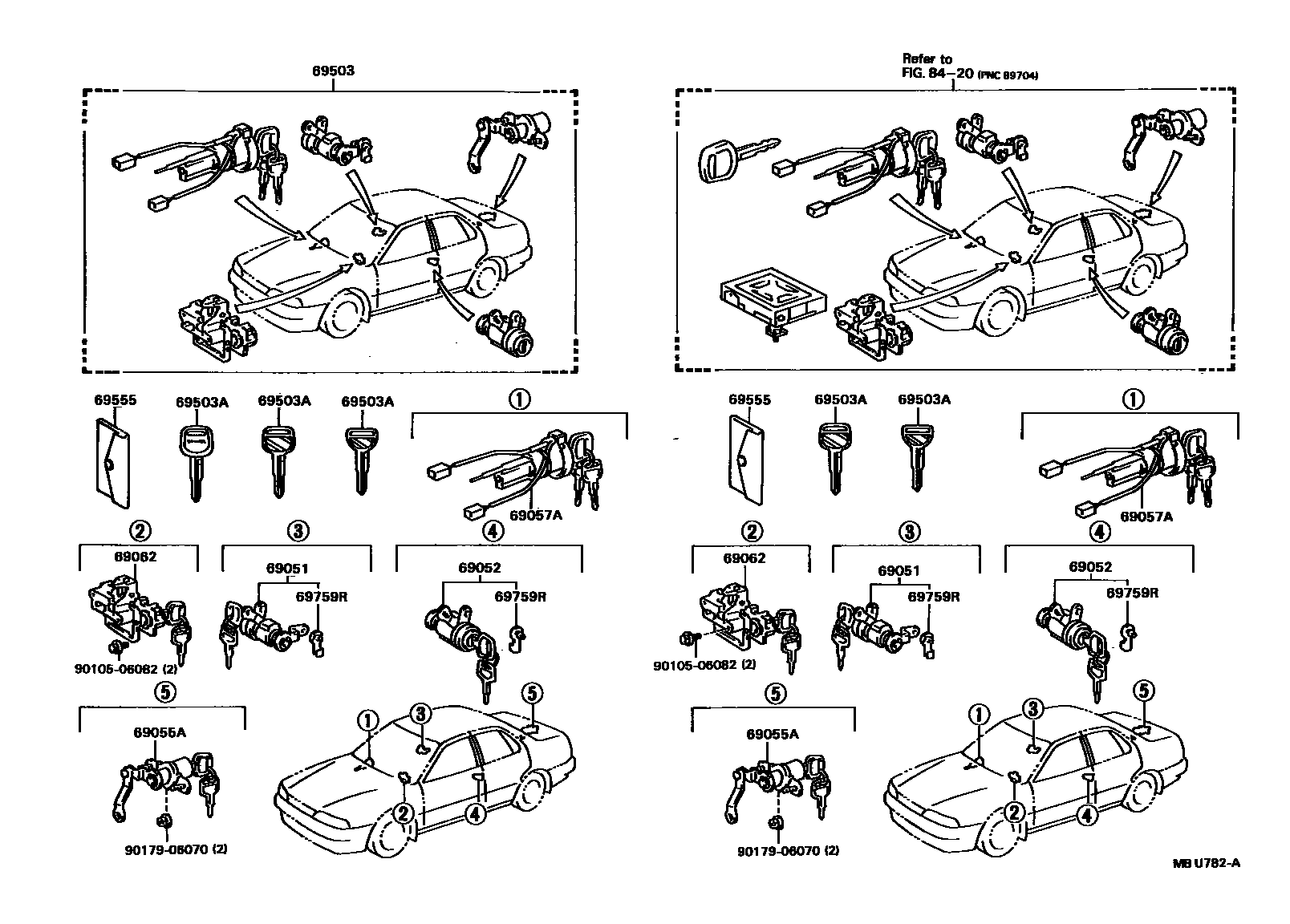

Toyota CAMRY 锁芯组件 — Figure 6712
Toyota CAMRY EPC diagram 6712, 锁芯组件, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-32140 · 69051-32150 |
| 69052 | Left door lock cylinder and key assembly | 69052-32130 · 69052-32140 |
| 69055A | Luggage lock cylinder and key assembly | 69055-32280 · 69055-32290 · 69055-32300 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-32140 · 69057-32141 · 69057-32150 · 69057-32160 · 69057-32170 · 69057-32180 |
| 69062 | Glove box lock cylinder and key assembly | 69056-32110 · 69056-32120 |
| 69503 | Door lock cylinder components | 69005-32611 · 69005-32630 · 69005-32631 · 69005-32640 · 69005-32670 · 69005-32690 · 69005-32740 |
| 69503A | external tooth key | 90999-00163 · 90999-00164 · 90999-00165 · 90999-00166 · 90999-00167 · 90999-00168 |
| 69555 | key cover | 69555-17020 · 69555-20030 |
| 69759G | Trunk door lock core buckle | 69759-24090 |
| 69759R | Front door lock cylinder buckle | 69759-22080 · 69759-32090 · 69759-32100 · 69759-32110 |
