Toyota CAMRY 后门车窗升降器和合页 — Figure 6707

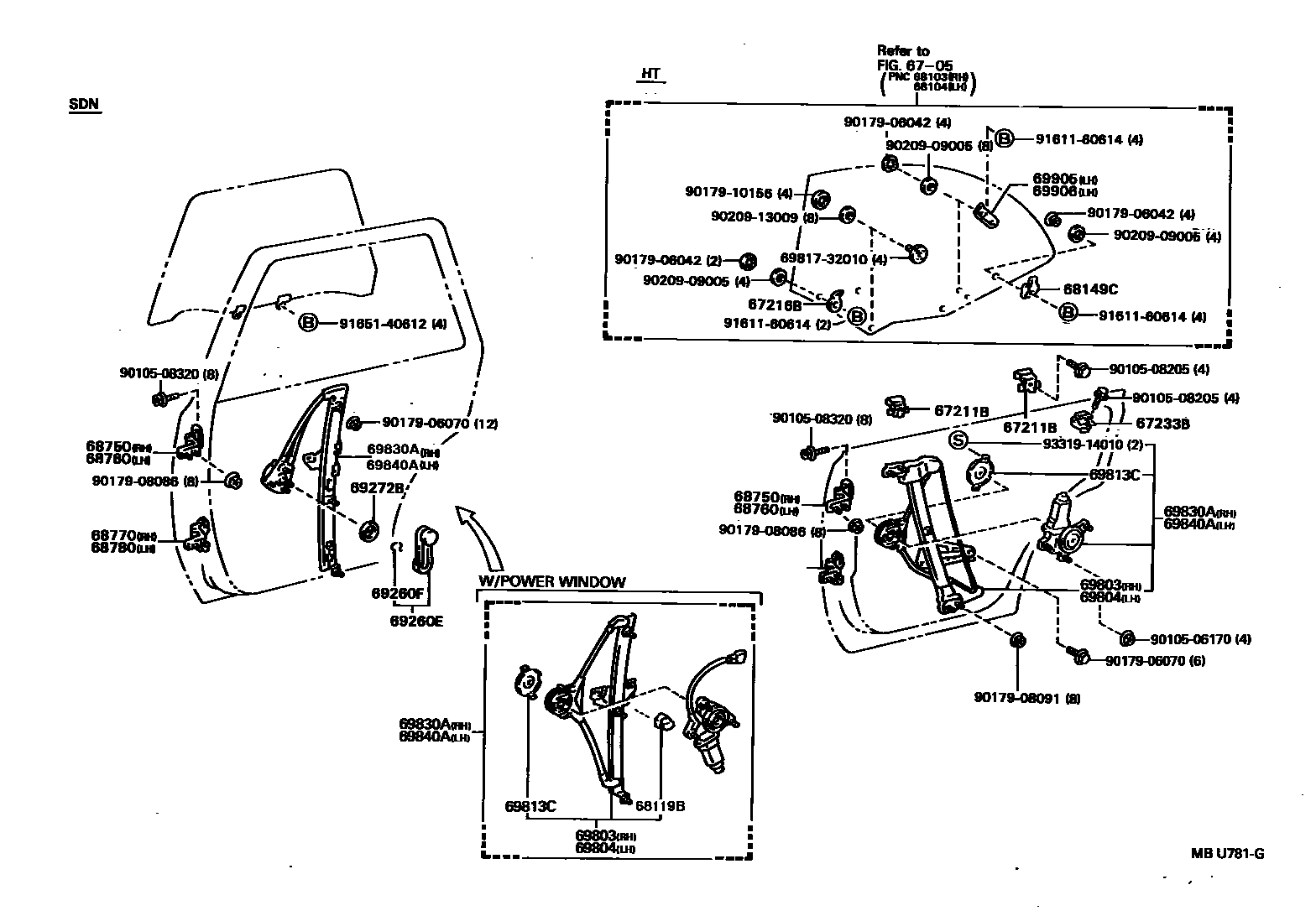

Toyota CAMRY EPC diagram 6707, 后门车窗升降器和合页, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67211B | Rear door window upper block | 67211-32040 |
| 67216B | No. 2 rear door glass upper stop | 67216-32020 |
| 67233B | Rear door trim panel bracket | 67233-32010 · 67233-32020 · 67233-32030 · 67233-32040 · 67233-32050 · 67233-32060 |
| 68119B | No. 2 window lift glass bracket cushion pad | 69888-33011 |
| 68149C | Rear door glass protruding stabilizer | 68149-20010 |
| 68750 | Right rear door upper hinge assembly | 68750-32040 · 68750-32041 |
| 68760 | Left rear door upper hinge assembly | 68760-32040 · 68760-32041 |
| 68770 | Right rear door lower hinge assembly | 68770-32040 · 68770-32041 · 68770-32050 · 68770-32051 |
| 68780 | Left rear door lower hinge assembly | 68770-32050 · 68770-32051 · 68780-32040 · 68780-32041 |
| 69260F | Shaft snap ring (for rear door window regulator handle) | 90520-01002 |
| 69803 | Right rear door window lifter sub-assembly | 69803-32050 · 69803-32060 |
| 69804 | Left rear door window lifter sub-assembly | 69804-32050 · 69804-32060 |
| 69813C | Rear door power window lift base plate | 69813-32010 · 69813-32030 |
| 69830A | Right rear door window lift assembly | 69830-32080 · 69830-32090 · 69830-32100 |
| 69840A | Left rear door window lift assembly | 69840-32080 · 69840-32090 · 69840-32100 |
| 69905 | Right rear door glass bracket sub-assembly | 69905-32040 |
| 69906 | Left rear door glass bracket sub-assembly | 69906-32030 |
