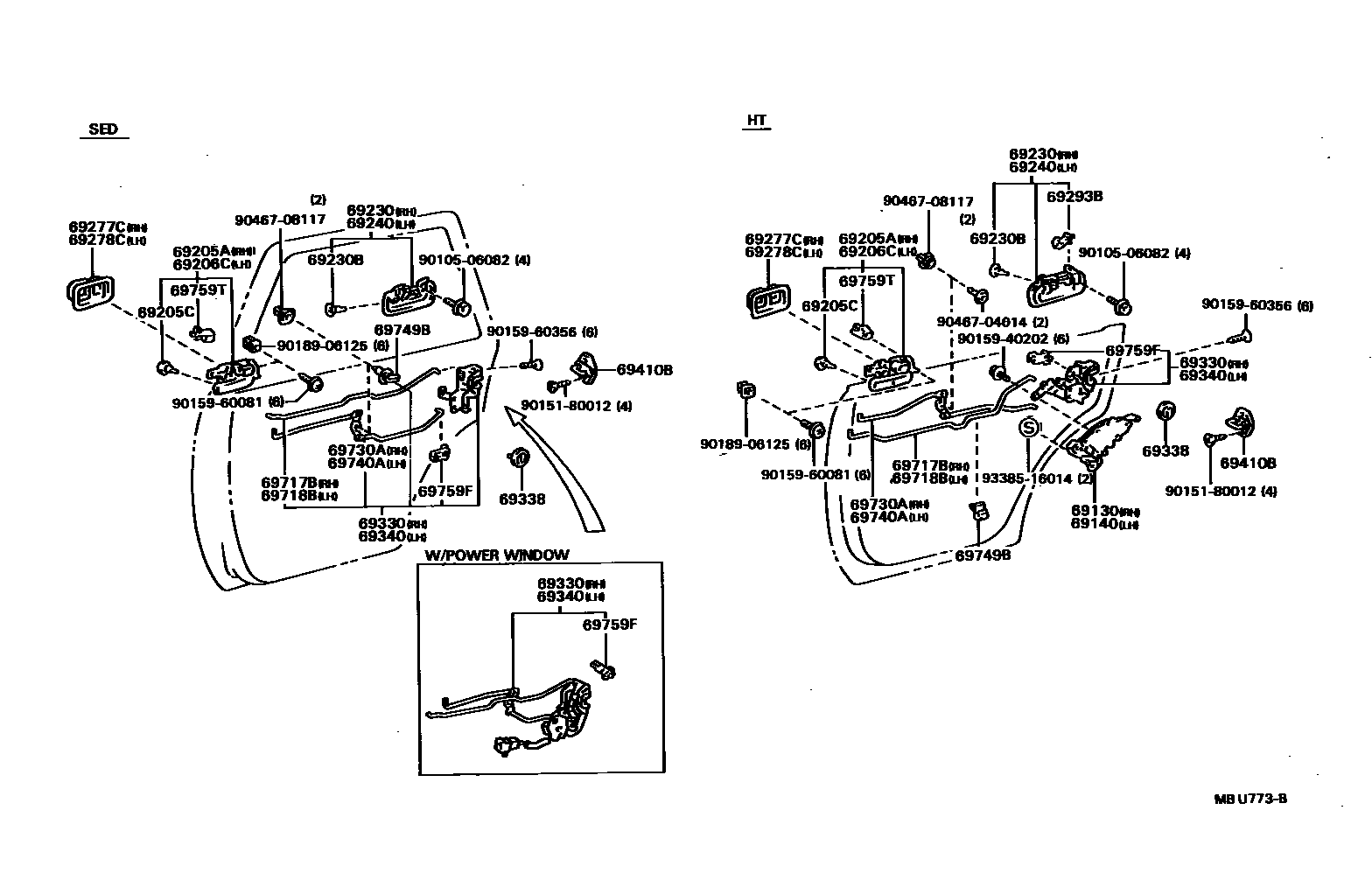

Toyota CAMRY 后门锁和后门把手 — Figure 6706
Toyota CAMRY EPC diagram 6706, 后门锁和后门把手, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69130 | Right rear door lock actuator assembly | 69130-32030 · 69130-32050 |
| 69140 | Left rear door lock actuator assembly | 69140-32030 · 69140-32050 |
| 69205C | Cushion pad (for rear door inner handle) | 90541-04014 |
| 69206C | Left rear door inner handle sub-assembly | 69206-32071 |
| 69230B | Cushion pad (for rear door outer handle) | 90541-04014 · 90541-04018 |
| 69293B | Rear door outer handle buckle | 69293-12050 |
| 69330 | Right rear door door lock assembly | 69050-32170 · 69050-33040 · 69330-32280 · 69330-32290 · 69330-32300 · 69330-32310 |
| 69338 | Child restraint lock lever knob | 69338-32010 |
| 69340 | Left rear door lock assembly | 69060-32170 · 69060-33040 · 69340-32280 · 69340-32290 · 69340-32300 · 69340-32310 |
| 69410B | Rear door lock plate assembly | 69410-87001 |
| 69717B | Right rear door lock remote control lever | 69713-32060 · 69713-32070 |
| 69718B | Left rear door lock remote control lever | 69714-32060 · 69714-32070 |
| 69730A | Right rear door door lock control link assembly | 69730-32010 · 69730-32020 |
| 69740A | Left rear door lock control link assembly | 69740-32010 · 69740-32020 |
| 69749B | Rear door lock link clamp | 69749-32030 · 69749-50010 |
| 69759F | Rear door lock control link buckle | 69759-24010 · 69759-24020 · 69759-24050 · 69759-24060 |
| 69759T | Rear door inner handle buckle | 69759-14050 · 69759-24070 |
