Toyota CAMRY 前门车窗升降器和合页 — Figure 6704

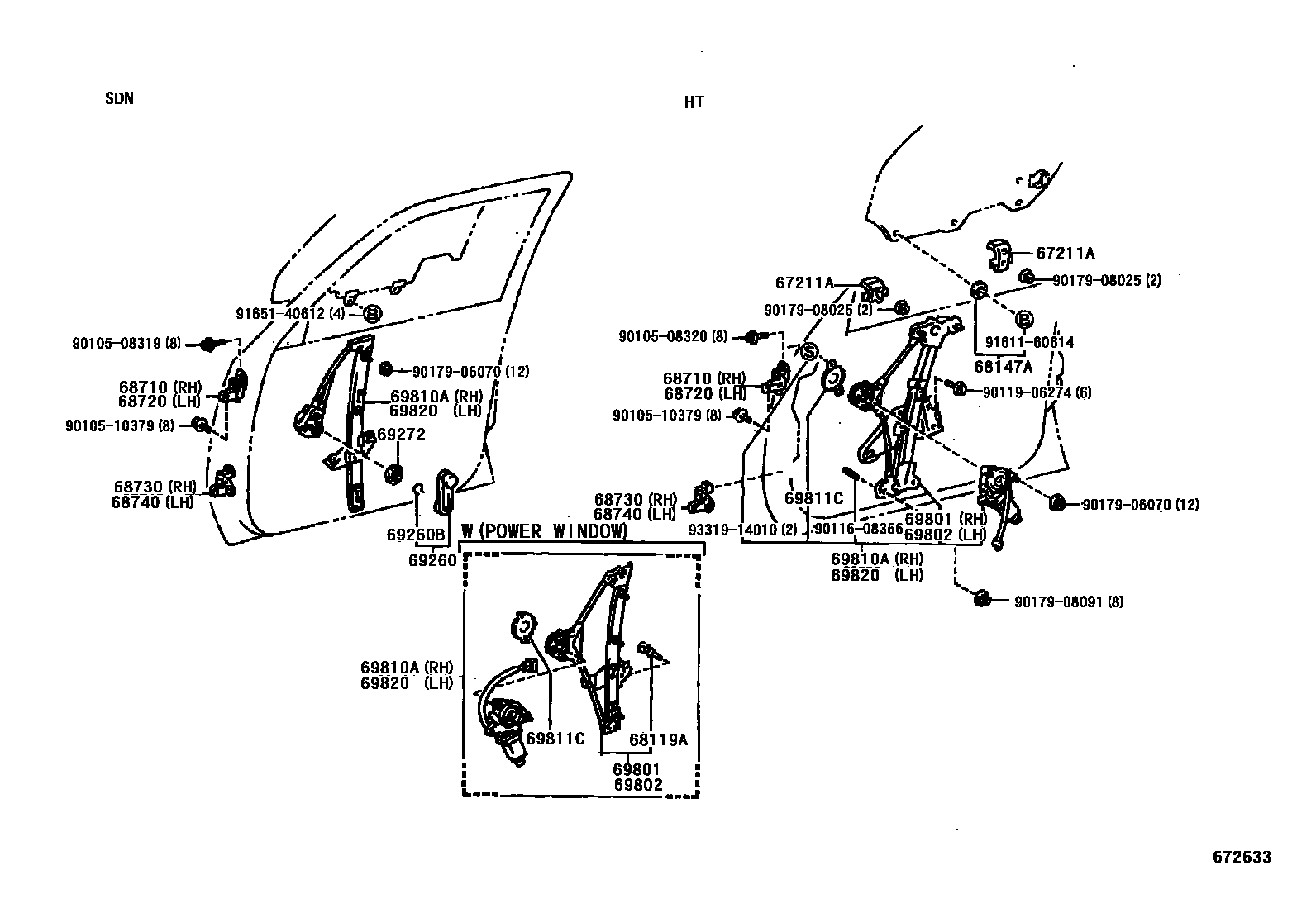

Toyota CAMRY EPC diagram 6704, 前门车窗升降器和合页, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67211A | Front door window upper block | 67211-32051 · 67211-32071 |
| 68119A | No. 1 window lift glass bracket cushion | 69887-33010 · 69888-33011 |
| 68147A | Front door glass upper stopper | 67205-32010 |
| 68710 | Right front door upper hinge assembly | 68710-32040 · 68710-32050 |
| 68720 | Left front door upper hinge assembly | 68720-32040 · 68720-32050 |
| 68730 | Right front door lower hinge assembly | 68730-32030 · 68730-32040 |
| 68740 | Left front door lower hinge assembly | 68730-32030 · 68730-32040 |
| 69260B | Shaft snap ring (for front door window regulator handle) | 90520-01002 |
| 69801 | Right front door window lifter sub-assembly | 69801-32060 · 69801-32070 |
| 69802 | Left front door window lifter sub-assembly | 69802-32050 · 69802-32070 |
| 69810A | Right front door window lift assembly | 69810-32100 · 69810-32110 · 69810-32120 |
| 69811C | Front door power window lift base plate | 69811-32040 · 69811-32050 |
| 69820 | Left front door window lift assembly | 69820-32090 · 69820-32110 · 69820-32120 |
