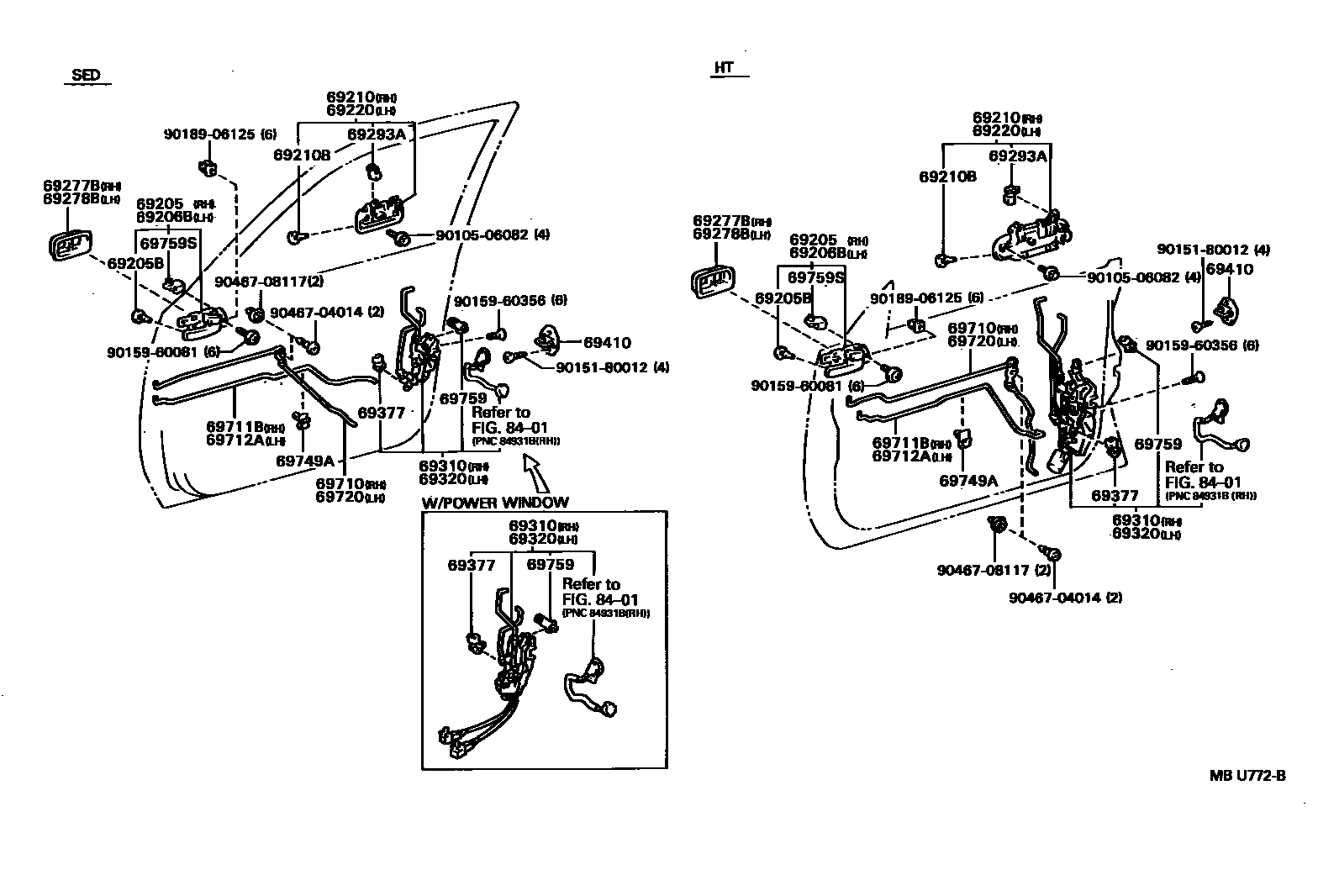

Toyota CAMRY 前门锁和车门把手 — Figure 6703
Toyota CAMRY EPC diagram 6703, 前门锁和车门把手, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69205B | Cushion pad (for inner front door handle) | 90541-04014 |
| 69210B | Cushion pad (for front door outer handle) | 90541-04014 · 90541-04018 |
| 69293A | Front door outer handle buckle | 69293-12050 · 69293-12060 |
| 69310 | Right front door lock assembly | 69030-32230 · 69030-32240 · 69030-32250 · 69030-32260 · 69310-32390 · 69310-32400 |
| 69320 | Left front door lock assembly | 69040-32210 · 69040-32230 · 69040-32240 · 69040-32250 · 69320-32380 · 69320-32390 |
| 69377 | Front door lock control link buckle | 69759-24010 · 69759-24020 · 69759-50030 |
| 69410 | Front door lock plate assembly | 69410-87001 |
| 69710 | Right front door opening control linkage assembly | 69710-32010 · 69710-32020 |
| 69711B | Right front door lock remote control lever | 69711-32060 · 69711-32070 |
| 69712A | Left front door lock remote control lever | 69712-32050 · 69712-32060 |
| 69720 | Left front door opening control linkage assembly | 69720-32010 · 69720-32020 |
| 69749A | Front door lock No. 1 link clamp | 69749-50010 |
| 69759 | Rear door lock No. 1 control link buckle | 69759-24050 · 69759-24060 |
| 69759S | Front door inner handle buckle | 69759-14050 · 69759-24070 |
