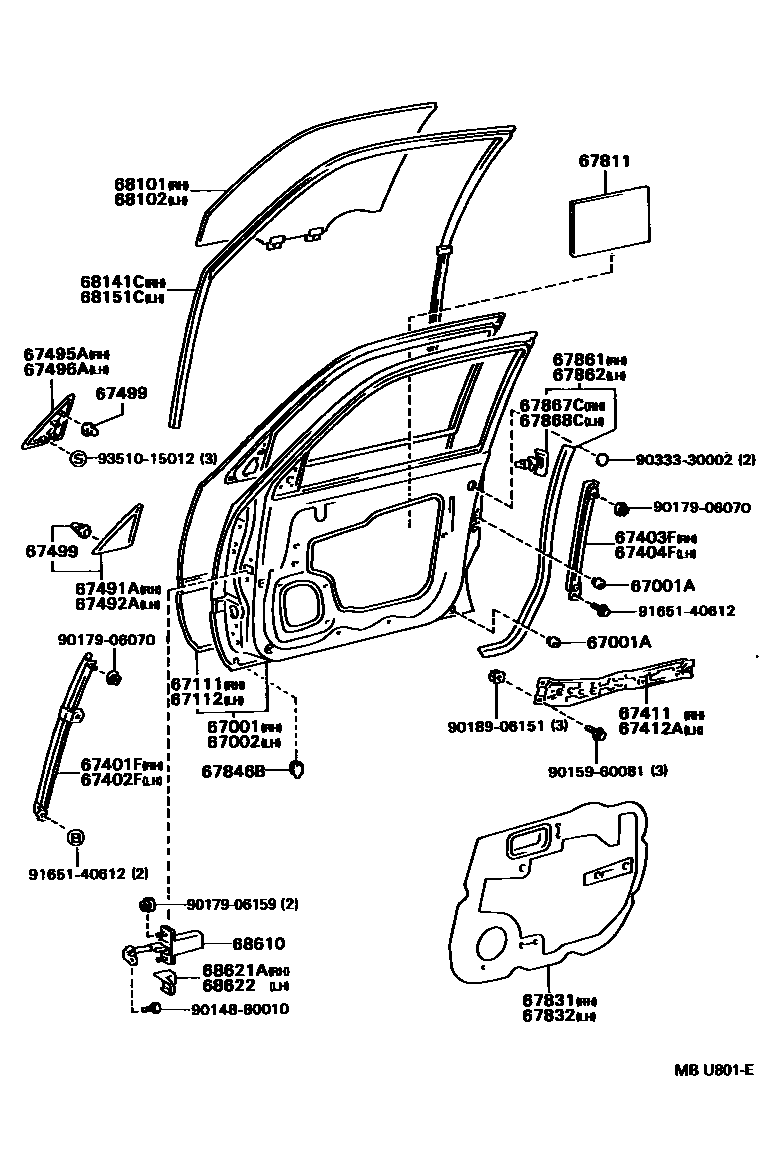

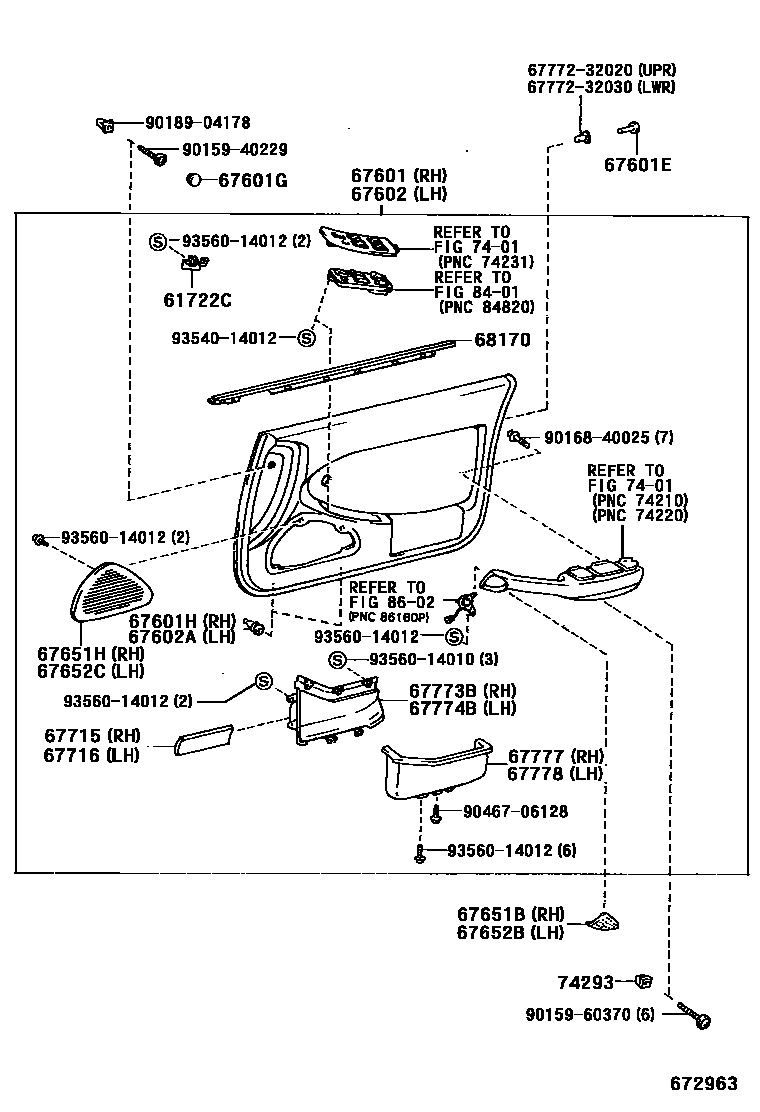

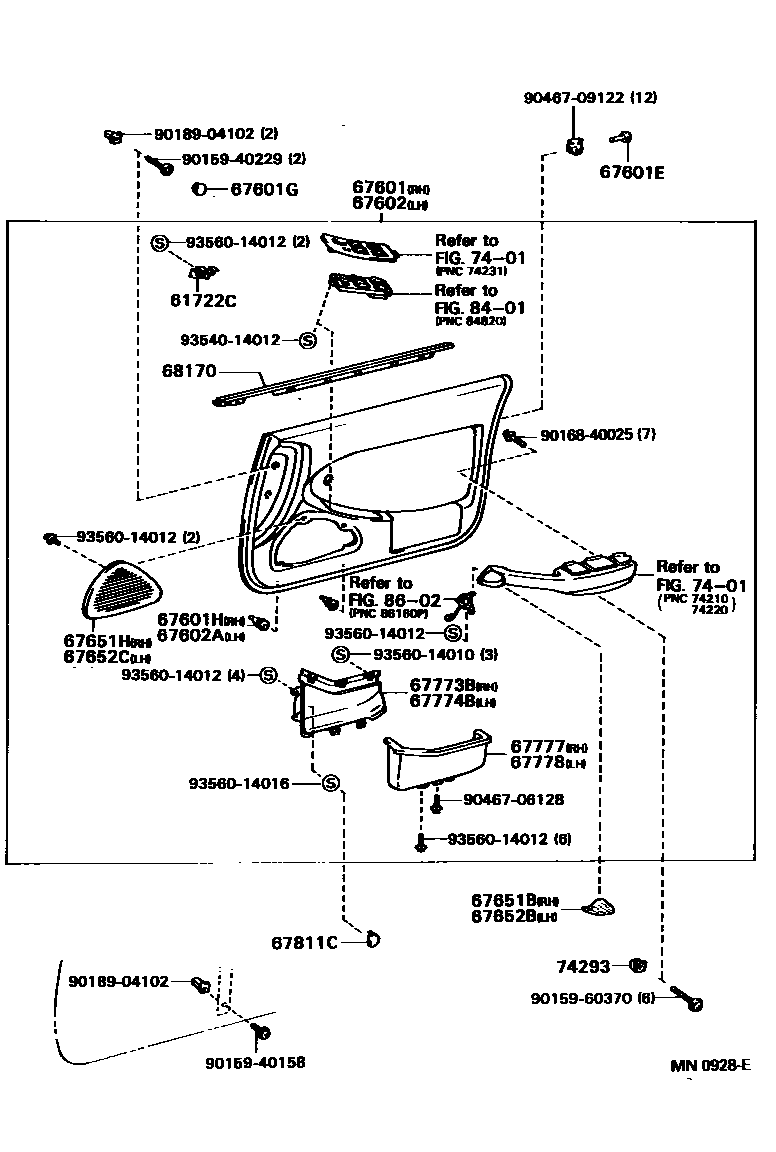

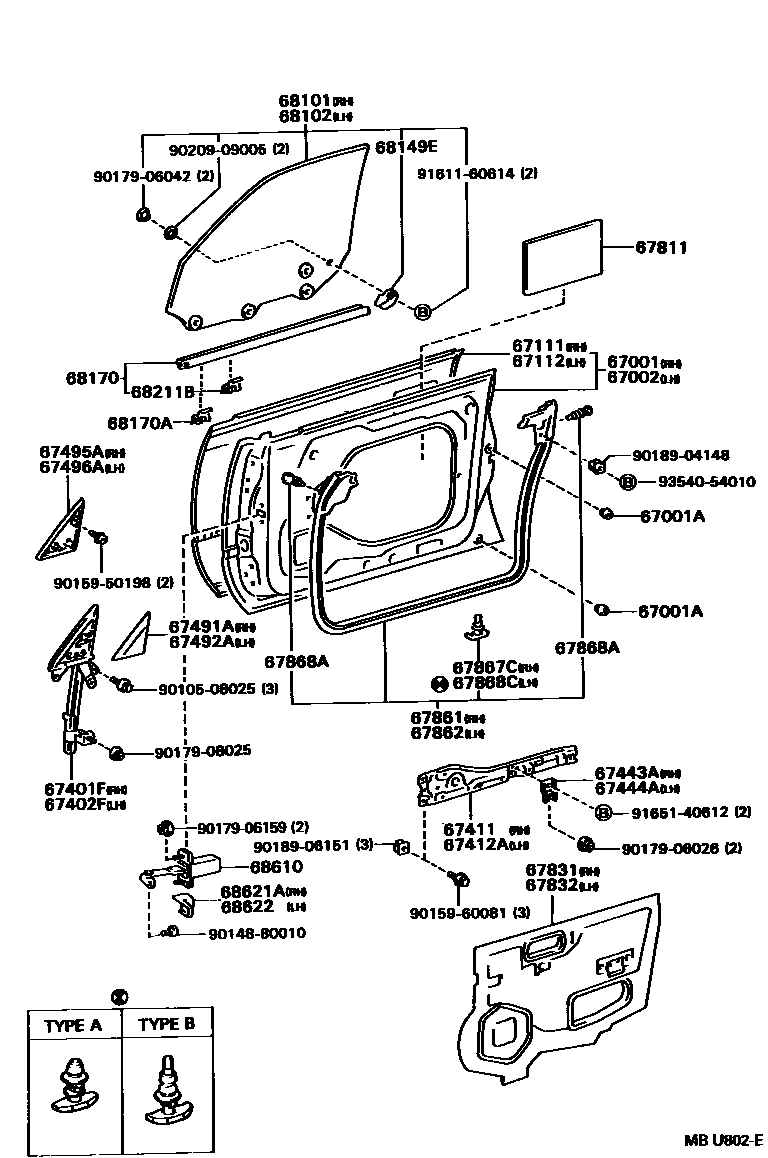

Toyota CAMRY 前门板和前门玻璃 — Figure 6701
Toyota CAMRY EPC diagram 6701, 前门板和前门玻璃, with 4 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61722C | switch board bracket | 61722-32010 |
| 67001 | Right front door panel sub-assembly | 67001-32300 · 67001-32301 · 67001-32310 · 67001-32320 · 67001-33011 |
| 67001A | Front door panel cushion | 90541-09006 · 90541-09080 · 90541-09081 |
| 67002 | Left front door panel sub-assembly | 67002-32260 · 67002-32261 · 67002-32270 · 67002-32280 · 67002-33011 |
| 67111 | Outer right front door panel | 67111-32090 · 67111-32100 |
| 67112 | Outer left front door panel | 67112-32090 · 67112-32100 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-32110 · 67503-32010 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-32110 · 67504-32010 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-32060 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-32060 |
| 67411 | Right front door window upper frame | 67411-32040 · 67411-32050 |
| 67412A | Left front door upper window frame | 67412-32040 · 67412-32050 |
| 67443A | Right front door window opening outer panel | 67443-32030 |
| 67444A | Left front door window opening outer panel | 67443-32030 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-32100 · 67491-32110 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-32100 · 67492-32110 |
| 67495A | Right front door front lower door frame upper cover | 67495-32070 · 67495-32080 |
| 67496A | Left front door front lower door frame upper cover | 67496-32060 · 67496-32070 |
| 67499 | Front door lower door frame bracket trim strip fixing | 67499-30020 · 67499-32020 |
| 67601H | Right door trim panel fixing | 67771-12050 · 67771-30090 · 67771-32140 · 90467-10156 |
| 67602A | Left door trim panel fixing | 67771-12050 · 67771-30090 · 67771-32140 · 90467-10156 |
| 67715 | Door decorative mat No. 1 | 67715-32070 |
| 67716 | Door decorative mat No. 2 | 67715-32070 |
| 67811 | Front door silencer pad | 67811-33010 · 67812-12010 |
| 67831 | Right front door access hole cover | 67831-32080 · 67831-32090 · 67831-32100 · 67831-32110 · 67831-32130 |
| 67832 | Left front door access hole cover | 67832-32060 · 67832-32070 · 67832-32080 · 67832-32090 · 67832-32110 |
| 67846B | Rear door access hole auxiliary hole cover | 67845-32010 |
| 67861 | Right front door seal | 67861-32130 · 67861-32140 |
| 67862 | Left front door seal | 67862-32130 · 67862-32140 |
| 67867C | Right front door seal strip fixing | 67867-20160 · 67867-32040 · 67867-32041 · 67868-22020 · 67868-32040 |
| 67868A | Door glass seal strip clip (for front door) | 67869-30020 · 67869-32010 |
| 67868C | Left front door seal strip fixing | 67867-20160 · 67867-22020 · 67868-22020 · 67868-32040 · 67868-32050 · 67868-32051 |
| 68101 | Right front door glass sub-assembly | 68101-32080 · 68101-32090 · 68101-32100 · 68101-32120 · 68101-32130 |
| 68102 | Left front door glass sub-assembly | 68102-32080 · 68102-32090 · 68102-32100 · 68102-32120 · 68102-32130 |
| 68141C | Right front door glass lift channel | 68141-32090 |
| 68149E | Door glass protruding stabilizer | 68149-32010 |
| 68151C | Left front door glass lift channel | 68151-32030 |
| 68170 | Front door glass inner sealing strip assembly | 68170-32070 · 68170-32080 · 68170-32090 · 68170-33020 · 68220-32080 · 68220-32090 · 68220-32100 · 68220-33020 |
| 68170A | Catch (for front door glass inner sealing strip assembly) | 68211-32070 |
| 68211B | Catch (for front door glass seal strip) | 68211-32060 |
| 68610 | Front door opening limiter assembly | 68610-32060 · 68610-32070 · 68610-32080 · 68610-33011 · 68620-32010 · 68620-32030 · 68620-32040 · 68620-33011 |
| 68621A | Right front door opening limiter cover | 68621-32010 |
| 68622 | Left front door opening limiter cover | 68622-32010 |
| 74293 | No. 1 front door armrest panel | 74293-32010 |
