Toyota CAMRY 内饰板和车门防水胶条 — Figure 6401

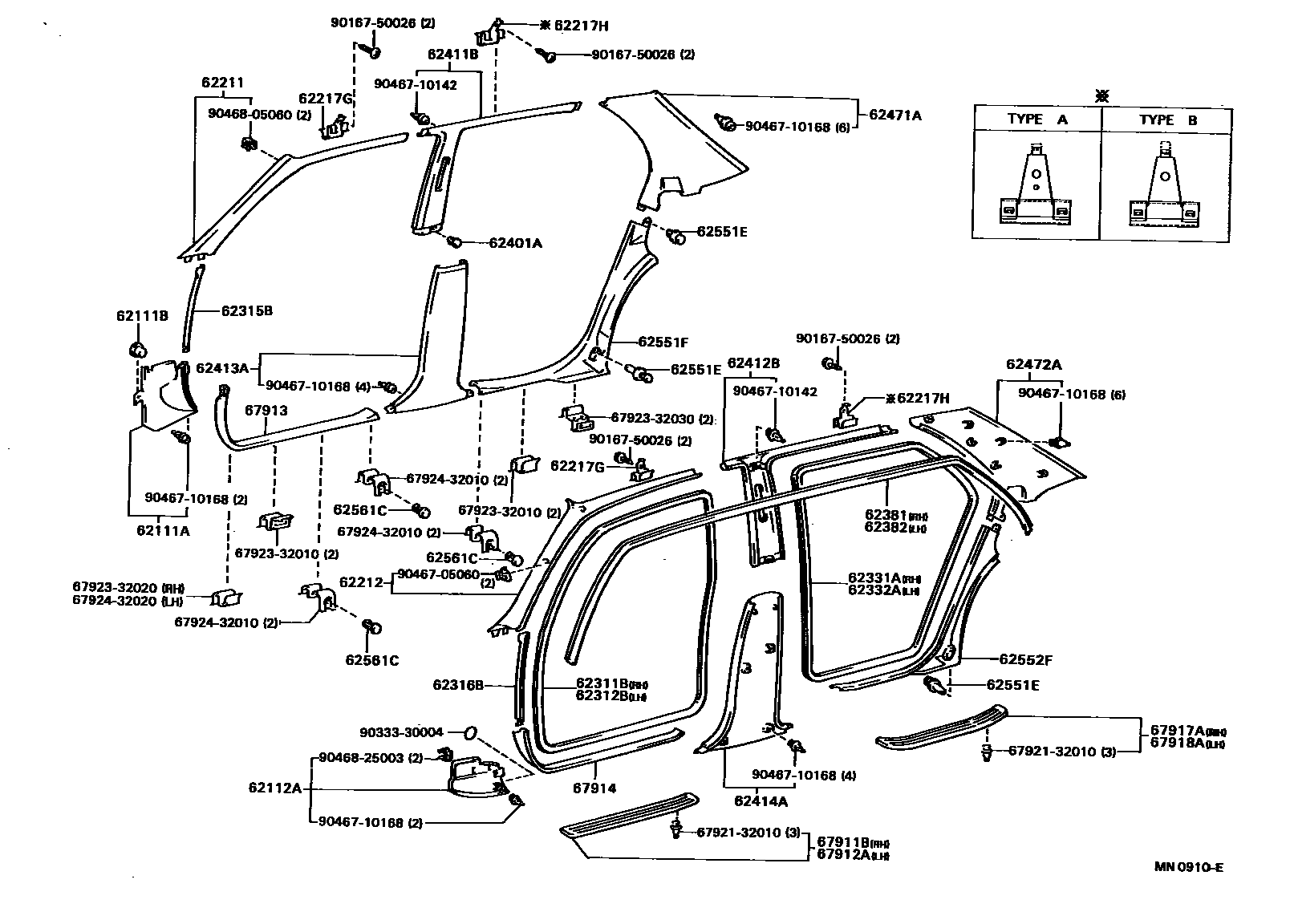

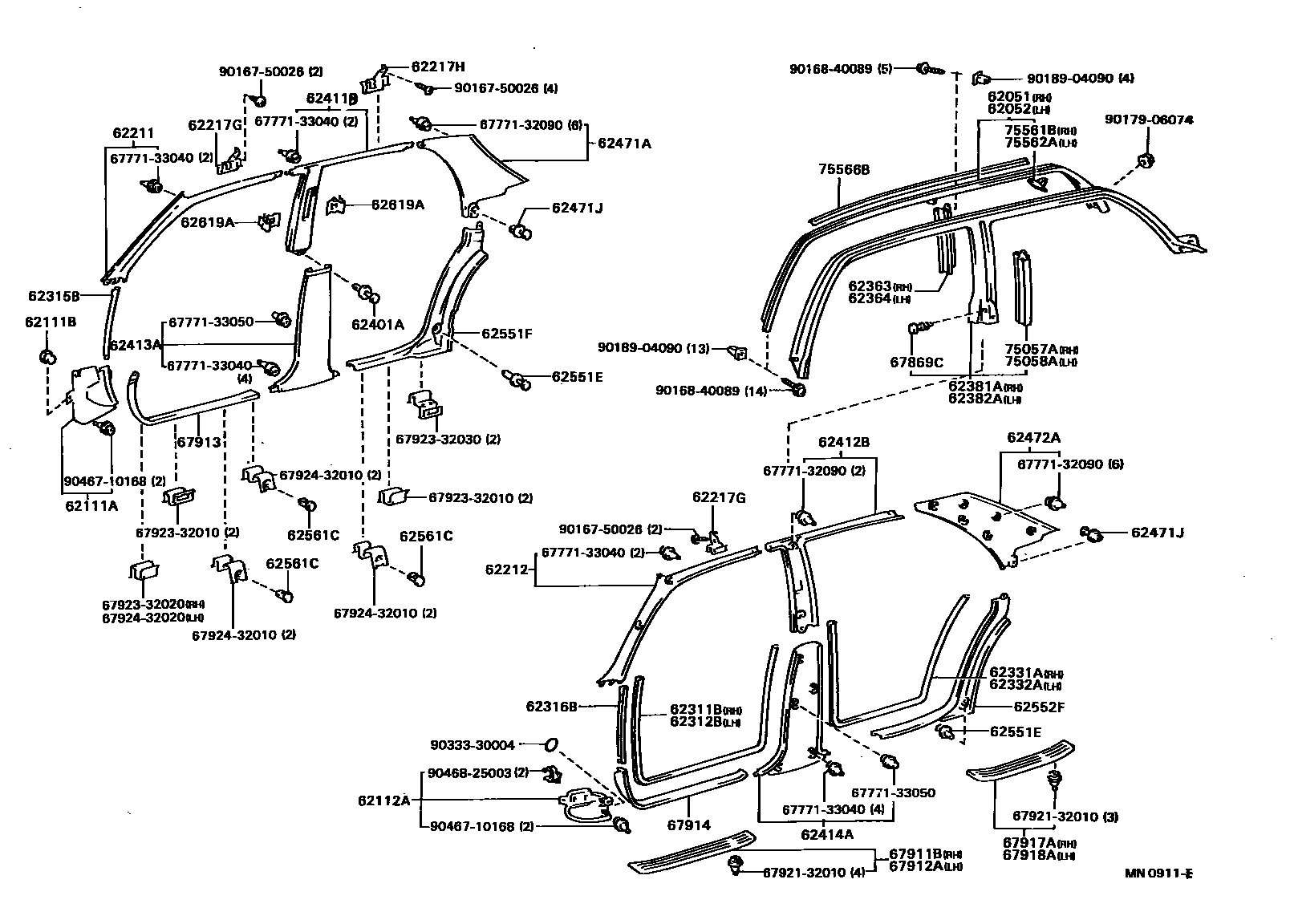

Toyota CAMRY EPC diagram 6401, 内饰板和车门防水胶条, with 2 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62051 | Right front roof side sealing strip fixing sub-assembly | 62051-32030 · 62051-32040 · 62051-33010 · 62051-33020 |
| 62052 | Left front roof side sealing strip fixing sub-assembly | 62052-32030 · 62052-32040 · 62052-33010 · 62052-33020 |
| 62111A | Right front wall side trim sub-assembly | 62101-32070 |
| 62111B | Clip (for cowl side trim panel) | 90467-06074 |
| 62112A | Left front wall side trim sub-assembly | 62102-32110 |
| 62217G | Front pillar decorative plate clip | 62217-32020 · 62217-32030 |
| 62217H | Center pillar decorative plate clip | 62217-32010 · 62217-32020 · 62217-32030 · 62217-33020 |
| 62311B | Right front door opening waterproof tape | 62311-32070 · 62311-32071 · 62311-32080 |
| 62312B | Left front door opening waterproof tape | 62312-32040 · 62312-32041 · 62312-32070 |
| 62331A | Right rear door opening waterproof tape | 62331-32020 · 62331-32030 · 62331-32031 |
| 62332A | Left rear door opening waterproof tape | 62332-32010 · 62332-32020 · 62332-32021 |
| 62363 | Right rear roof rail sealing strip fastener | 62363-32020 |
| 62364 | Left rear roof rail sealing strip fixing | 62364-32020 |
| 62381 | Right front roof rail sealing strip | 62381-32040 |
| 62381A | Roof right side rail seal strip | 62381-32050 · 62381-33010 · 62381-33011 |
| 62382 | Left front roof rail sealing strip | 62382-32040 |
| 62382A | Roof left side rail seal strip | 62382-32050 · 62382-33010 · 62382-33011 |
| 62471J | Clips (for roof side trim panels) | 90467-07108 |
| 62551E | Clips (for rear seat side trim panels) | 90467-07108 |
| 62619A | Side trim fixing plate | 62619-32010 |
| 67869C | Roof rail sealing strip clip | 67869-30020 · 67869-32020 |
| 67911B | Right front door outer wear plate | 67911-32010 · 67911-32020 |
| 67912A | Left front door outer wear plate | 67911-32020 · 67912-32010 |
| 67917A | Right rear door wear plate | 67915-32010 · 67915-32020 |
| 67918A | Left rear door wear plate | 67916-32010 · 67916-32020 |
| 75057A | Right center pillar exterior decorative panel sub-assembly | 75057-32010 |
| 75058A | Left center pillar exterior decorative panel sub-assembly | 75058-32010 |
| 75561B | No. 1 roof drain channel side decorative strip clip | 75561-32010 |
| 75562A | No. 2 roof drain channel side decorative strip clip | 75562-32020 |
| 75566B | Roof front gutter side decorative strip seal | 75566-32010 |
