Toyota CAMRY 行李箱门和行李箱锁 — Figure 6105

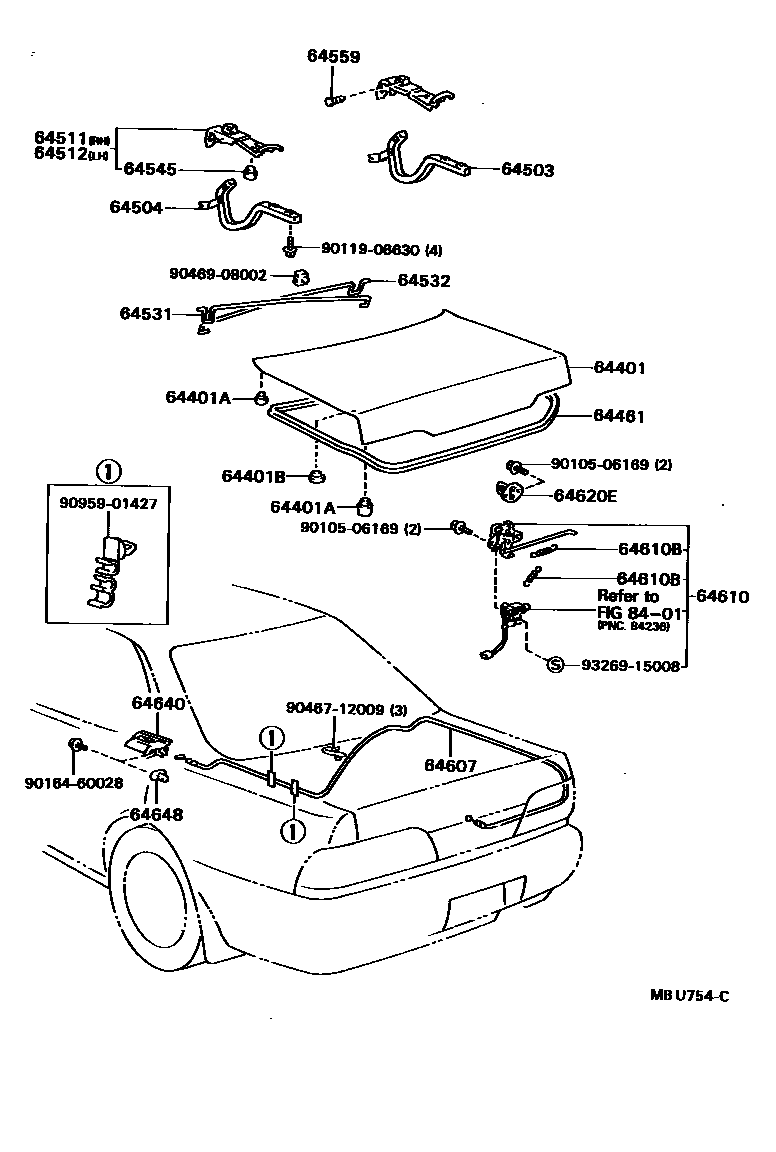

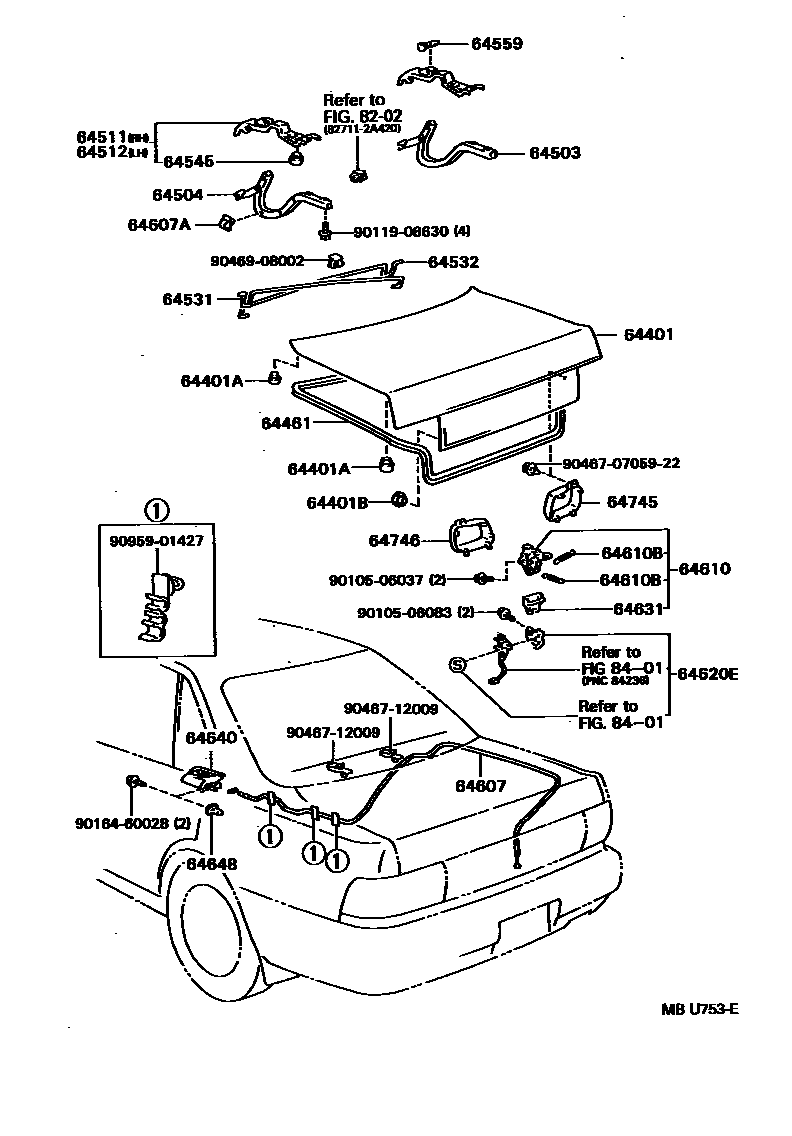

Toyota CAMRY EPC diagram 6105, 行李箱门和行李箱锁, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64401 | Trunk door panel sub-assembly | 64401-32900 · 64401-32901 · 64401-32902 · 64401-32903 |
| 64401A | Cushion pad (for luggage compartment door panel) | 90541-06076 · 90541-07046 · 90541-09082 · 90541-19002 |
| 64401B | Hole plug (for trunk door panel) | 90950-01545 · 90950-01650 |
| 64461 | Trunk door seal | 64461-32030 · 64461-32090 |
| 64503 | Trunk door right hinge arm sub-assembly | 64503-32020 · 64503-32030 |
| 64504 | Trunk door left hinge arm sub-assembly | 64504-32010 · 64504-32020 |
| 64511 | Trunk door right hinge bracket | 64511-32040 · 64511-32060 |
| 64512 | Trunk door left hinge bracket | 64512-32040 · 64512-32060 |
| 64531 | Trunk door right hinge torsion bar | 64531-32050 · 64531-32060 · 64531-32070 · 64531-32080 · 64531-32090 · 64531-32100 · 64531-32110 · 64531-32120 · 64531-32130 · 64531-32140 |
| 64532 | Trunk door left hinge torsion bar | 64532-32050 · 64532-32060 · 64532-32070 · 64532-32080 · 64532-32090 · 64532-32100 · 64532-32110 · 64532-32120 · 64532-32130 · 64532-32140 |
| 64545 | Trunk door hinge cushion | 90541-10144 |
| 64559 | Trunk door hinge pin | 64559-22020 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-32210 · 64607-32230 |
| 64607A | Clip No. 1 (for trunk door lock control cable) | 90959-01369 |
| 64610 | Trunk door lock assembly | 64610-32070 · 64610-32090 |
| 64610B | Tension spring (for trunk door lock) | 90506-05001 · 90506-05002 · 90506-06010 · 90506-06011 |
| 64620E | Trunk door lock assembly | 64620-32030 · 64620-32050 |
| 64631 | Trunk door lock protector | 64631-32020 |
| 64648 | Trunk door lock opener seal | 64648-32010 |
| 64745 | Right rear combination light access hole cover | 64745-32020 |
| 64746 | Left rear combination light access hole cover | 64746-32020 |
