Toyota CAMRY 天窗板和背窗玻璃 — Figure 6104

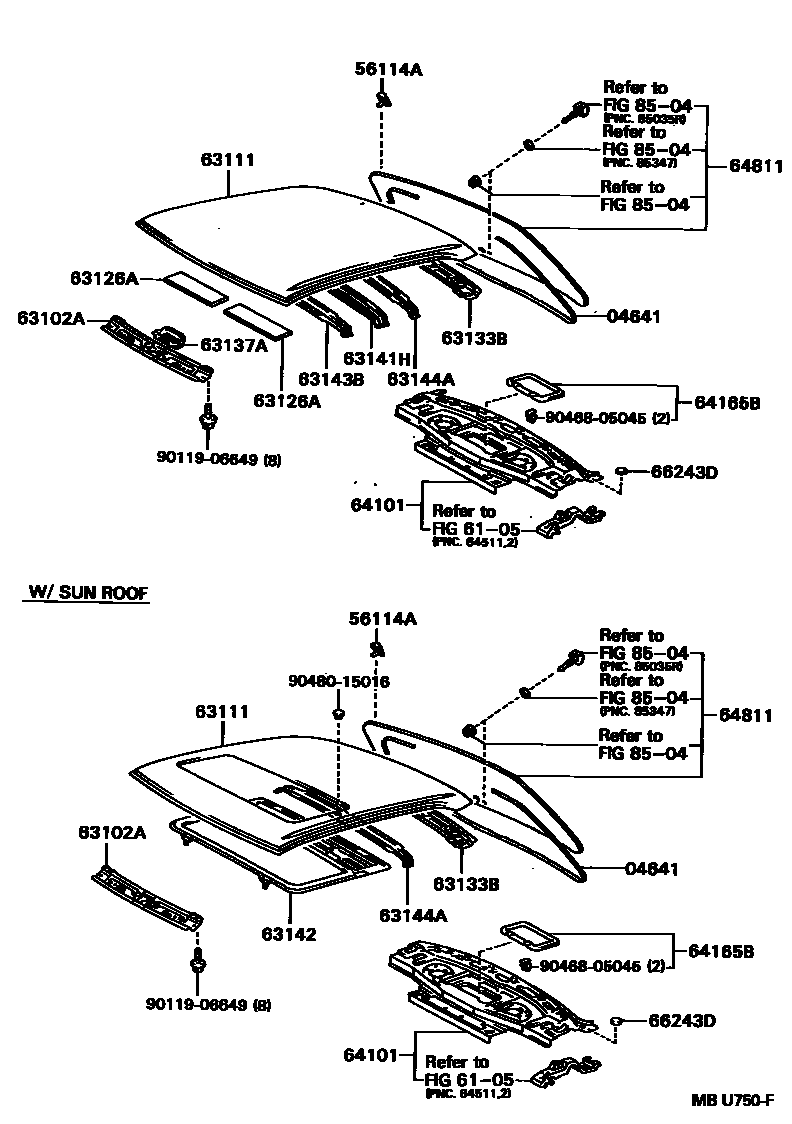

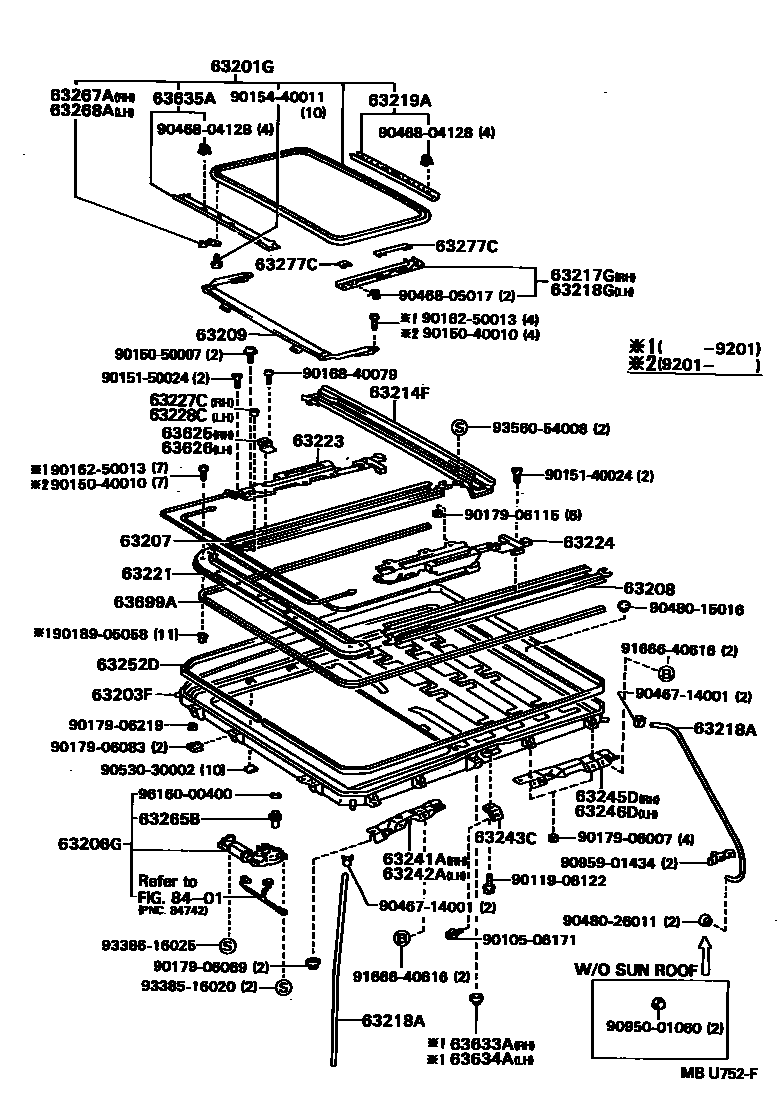

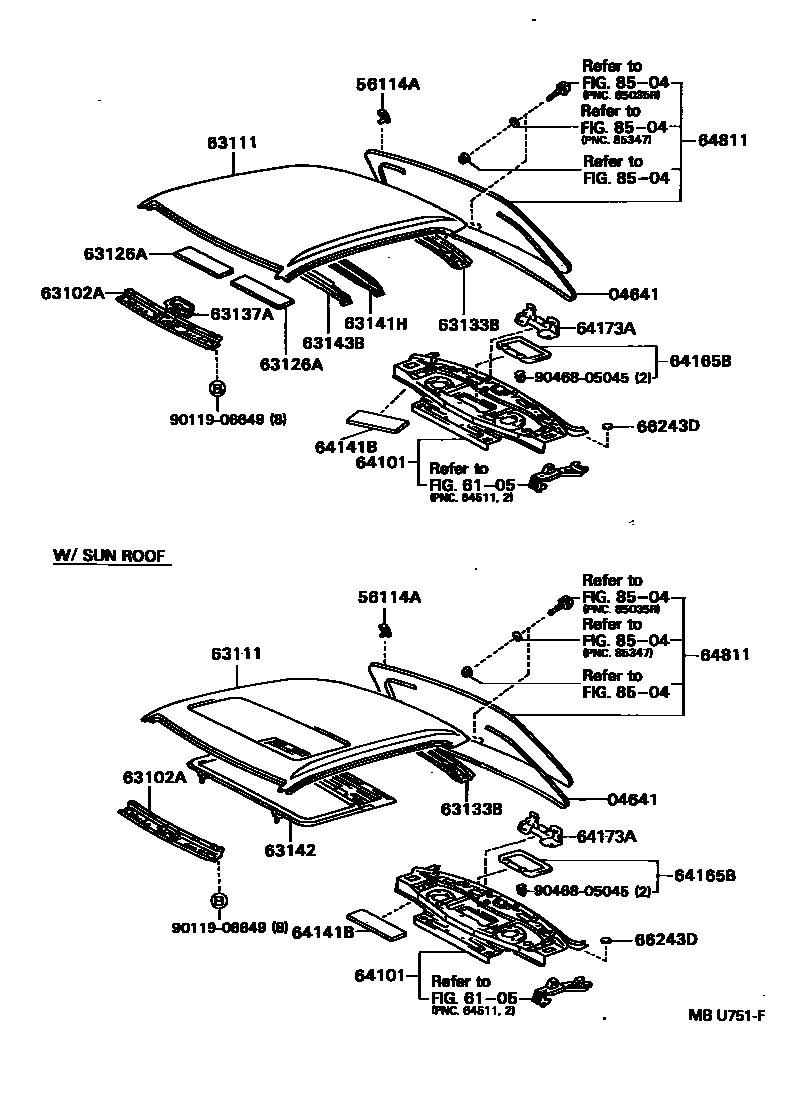

Toyota CAMRY EPC diagram 6104, 天窗板和背窗玻璃, with 3 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04641 | Back window glass sealing strip assembly | 04562-12010 |
| 56114A | Back window glass fixings | 56114-20010 |
| 63102A | Windshield roof sub-assembly | 63102-32100 · 63102-32120 |
| 63111 | roof panel | 63111-32120 · 63111-32130 · 63111-32140 · 63111-32150 · 63111-32900 |
| 63126A | Windshield roof shock absorber | 63126-32010 · 63126-32020 |
| 63133B | back window frame | 63133-32040 · 63133-32050 |
| 63137A | No. 1 ceiling light bracket | 63137-32050 · 63137-32060 |
| 63141H | Center roof panel reinforcement | 63141-32060 · 63141-32070 |
| 63142 | No. 2 roof panel reinforcement | 63142-32900 |
| 63143B | No. 3 roof panel reinforcement | 63143-32030 · 63143-32040 |
| 63144A | No. 4 roof panel reinforcement | 63144-32030 · 63144-32040 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-32070 · 63203-32072 · 63203-33020 |
| 63206G | Sliding sunroof driving gear sub-assembly | 63260-32020 · 63260-32021 · 63260-32022 · 63260-32023 |
| 63207 | Right sliding sunroof guide rail sub-assembly | 63207-22040 · 63207-32030 · 63207-33010 |
| 63208 | Left sliding sunroof guide rail sub-assembly | 63208-22040 · 63208-32030 · 63208-33010 |
| 63209 | Roof deflector sub-assembly | 63209-32030 · 63209-32031 |
| 63214F | Roof rear drain channel | 63214-32040 |
| 63218A | Hoses (for sliding or removable sunroof drainage) | 63249-32100 · 63249-32110 |
| 63221 | Sliding sunroof cable duct | 63221-22040 · 63221-32030 · 63221-33020 |
| 63223 | Right sliding sunroof transmission cable | 63223-22030 · 63223-32030 |
| 63224 | Left sliding sunroof transmission cable | 63224-22030 · 63224-32030 |
| 63227C | Right front sliding sunroof sunshade stop | 63227-20010 · 63227-32020 |
| 63228C | Left front sliding sunroof sunshade stop | 63228-20010 · 63228-32020 |
| 63241A | Sliding sunroof frame right front mounting bracket | 63241-32010 · 63241-32020 |
| 63242A | Sliding sunroof frame left front mounting bracket | 63242-32010 · 63242-32020 |
| 63243C | Sliding sunroof frame right center mounting bracket | 63243-32030 |
| 63245D | Sliding sunroof frame right rear mounting bracket | 63245-32010 |
| 63246D | Sliding sunroof frame left rear mounting bracket | 63246-32010 |
| 63252D | Sliding skylight frame sealing strip | 63252-32020 |
| 63265B | Sliding sunroof driving gear | 63265-20010 |
| 63267A | Right sliding sunroof sealing strip protector | 63267-32020 |
| 63268A | Left sliding sunroof sealing strip protector | 63268-32020 |
| 63277C | Sliding skylight panel gasket | 63277-20020 · 63277-20030 · 63277-20040 · 63277-20050 · 63277-32030 |
| 63625 | Right sliding sunroof guide block | 63625-20010 · 63625-20020 · 63625-33010 |
| 63626 | Left sliding sunroof guide block | 63626-20010 · 63626-20020 · 63626-33010 |
| 63633A | Sliding sunroof frame bushing No. 1 | 63633-50010 |
| 63634A | Sliding sunroof frame bushing No. 2 | 63634-50010 |
| 63699A | Sliding sunroof guide seals | 63699-32030 |
| 64101 | Upper back panel sub-assembly | 64101-32140 · 64101-32141 · 64101-32151 · 64101-32170 · 64101-32180 |
| 64141B | No. 1 back panel silencer | 64141-32010 |
| 64165B | No. 1 upper back panel hole cover | 64165-32020 |
| 64173A | high brake light bracket | 64173-32060 |
| 64811 | back window glass | 64811-32270 · 64811-32280 · 64811-32290 · 64811-32300 · 64811-32301 · 64811-32340 · 64811-32350 · 64811-32360 · 64811-32361 · 64811-32370 · 64811-32400 · 64811-32401 · 64811-32410 · 64811-32411 · 64811-32420 · 64811-32421 · 64811-32430 · 64811-32431 · 64811-32440 · 64811-32441 · 64811-32450 · 64811-32451 · 64811-32500 |
| 66243D | Rear body protection piece No. 1 | 66243-20010 |
