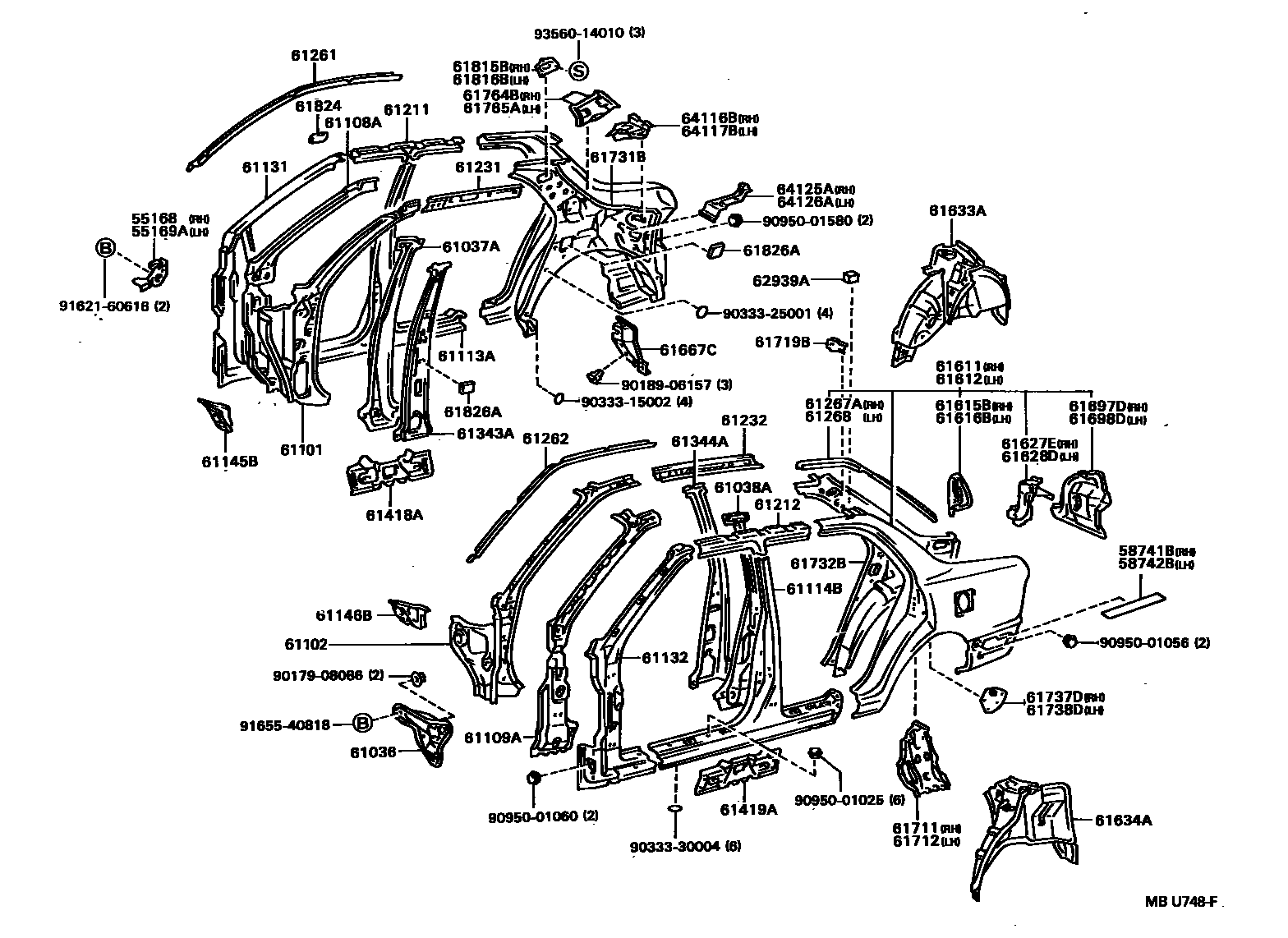

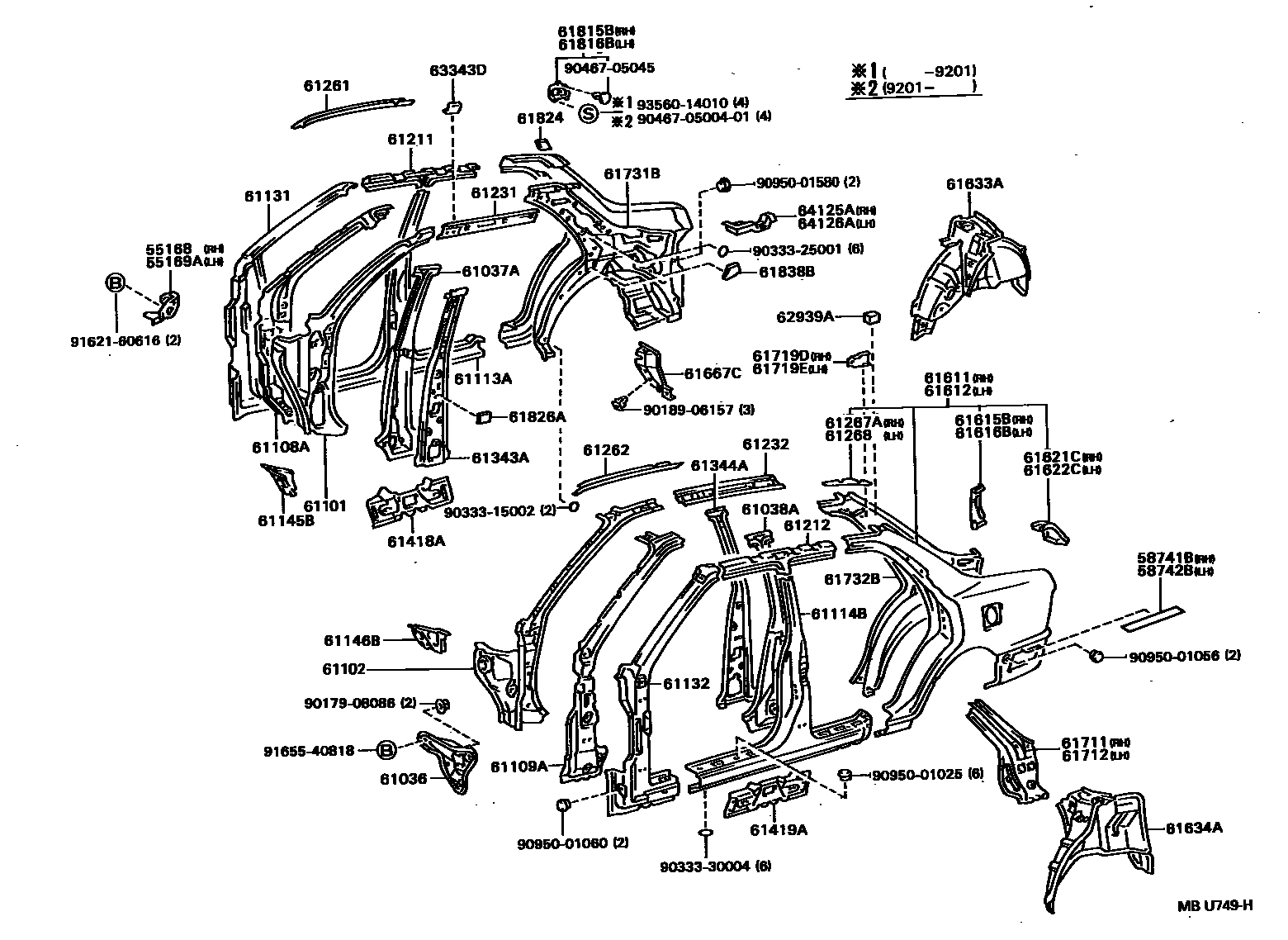

Toyota CAMRY 侧梁 — Figure 6101
Toyota CAMRY EPC diagram 6101, 侧梁, with 2 images and 64 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55168 | Right front fender mounting bracket | 55168-32010 |
| 55169A | Left front fender mounting bracket | 55169-32010 |
| 58741B | Right side enclosure protection panel | 58741-32030 · 58741-32040 |
| 58742B | Left side enclosure protection panel | 58742-32020 · 58742-32030 |
| 61036 | Instrument panel to left front wall side bracket sub-assembly | 61166-32020 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-32020 · 61037-32050 · 61037-32900 · 61037-32901 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-32020 · 61038-32050 · 61038-32900 · 61038-32901 |
| 61101 | Right front wall side panel sub-assembly | 61101-32900 · 61101-32901 |
| 61102 | Left front wall side panel sub-assembly | 61102-32900 · 61102-32901 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-32900 · 61108-32901 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-32900 · 61109-32901 |
| 61113A | No. 2 right outer panel | 61113-32010 · 61113-32011 · 61113-32020 · 61113-32021 |
| 61114B | No. 2 left outer panel | 61114-32010 · 61114-32011 · 61114-32020 · 61114-32021 |
| 61131 | Right body outer front upper pillar | 61131-32110 · 61131-32111 · 61131-32120 |
| 61132 | Left body outer front upper pillar | 61132-32110 · 61132-32111 · 61132-32120 |
| 61145B | Right body front pillar lower corner panel | 61145-32020 |
| 61146B | Left body front pillar lower corner panel | 61146-32020 |
| 61211 | Roof right outer longitudinal beam | 61211-32070 · 61211-32080 |
| 61212 | Roof left outer longitudinal beam | 61212-32070 · 61212-32080 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-32250 · 61231-32260 |
| 61232 | Roof left inner longitudinal beam | 61232-32250 · 61232-32260 |
| 61261 | Drainage channel on the right side of the roof | 61261-32060 · 61261-32070 |
| 61262 | Drainage channel on the left side of the roof | 61262-32060 · 61262-32070 |
| 61267A | Roof right rear gutter | 61267-32020 · 61267-32030 |
| 61268 | Roof left rear gutter | 61267-33010 · 61268-32020 · 61268-32030 · 61268-33010 |
| 61343A | Right body inner center pillar | 61343-32070 · 61343-32080 |
| 61344A | Left body inner center pillar | 61344-32070 · 61344-32080 |
| 61418A | Right side door sill panel reinforcement | 61418-32020 |
| 61419A | Left side rocker panel reinforcement | 61419-32020 |
| 61611 | Right side hoarding | 61601-32280 · 61601-32290 · 61601-32300 · 61601-32928 · 61601-32929 · 61601-32930 |
| 61612 | left side panel | 61602-32450 · 61602-32460 · 61602-32470 · 61602-32947 · 61602-32948 · 61602-32949 · 61602-32951 · 61602-32952 |
| 61615B | Front side panel outer panel reinforcement | 61615-32010 · 61615-32020 |
| 61616B | Rear side panel outer panel reinforcement | 61616-32010 · 61616-32020 |
| 61621C | Luggage right opening slot | 61621-32050 |
| 61622C | Luggage trunk left opening slot | 61622-32050 |
| 61627E | Right rear side panel lower extension | 61627-32020 |
| 61628D | Left rear side panel lower extension | 61628-32020 |
| 61633A | Right wheel housing lining panel | 61603-32280 |
| 61634A | Left side wheel housing lining panel | 61604-32280 |
| 61667C | No. 1 side panel seal | 61667-32010 · 61667-32020 |
| 61697D | Right side enclosure end cover | 61697-32040 · 61697-32041 |
| 61698D | Left side enclosure end cover | 61698-32040 · 61698-32041 |
| 61711 | Roof right side outer panel | 61711-32060 · 61711-32070 |
| 61712 | Roof left outer panel | 61712-32060 · 61712-32070 |
| 61719B | roof inner bracket | 61719-32010 |
| 61719D | Roof right inner bracket | 61719-32020 |
| 61719E | Roof left inner bracket | 61719-32020 |
| 61731B | Roof right inner panel | 61731-32110 · 61731-32111 · 61731-32130 · 61731-33030 |
| 61732B | Roof left inner panel | 61732-32110 · 61732-32130 · 61732-33030 |
| 61737D | Roof right inner reinforcement | 61737-32040 |
| 61738D | Roof left inner reinforcement | 61738-32040 |
| 61764B | Seat belt anchor reinforcement for seat No. 2, right | 61764-32010 |
| 61765A | Seat belt anchor reinforcement for No. 2 left seat | 61765-32020 |
| 61815B | Right inner upper cover of the roof | 61815-32040 · 61815-32041 · 61815-32050 |
| 61816B | Roof left inner upper cover | 61816-32020 · 61816-32030 |
| 61824 | Noise Control Panel No. 1 | 61824-20100 |
| 61826A | Noise Control Panel No. 3 | 61826-30030 · 61826-32050 |
| 61838B | No. 5 Noise Control Panel | 61838-32010 |
| 62939A | Side ventilation silencers | 62939-32020 · 62939-33010 |
| 63343D | No. 3 roof muffler pad | 63343-32050 · 63344-32020 |
| 64116B | Right rear upper reinforcement | 64116-32020 |
| 64117B | Left rear upper reinforcement | 64117-32020 |
| 64125A | Upper right back panel bracket | 61707-32010 · 64125-32040 |
| 64126A | Upper left back panel bracket | 61708-32020 · 64126-32030 |
