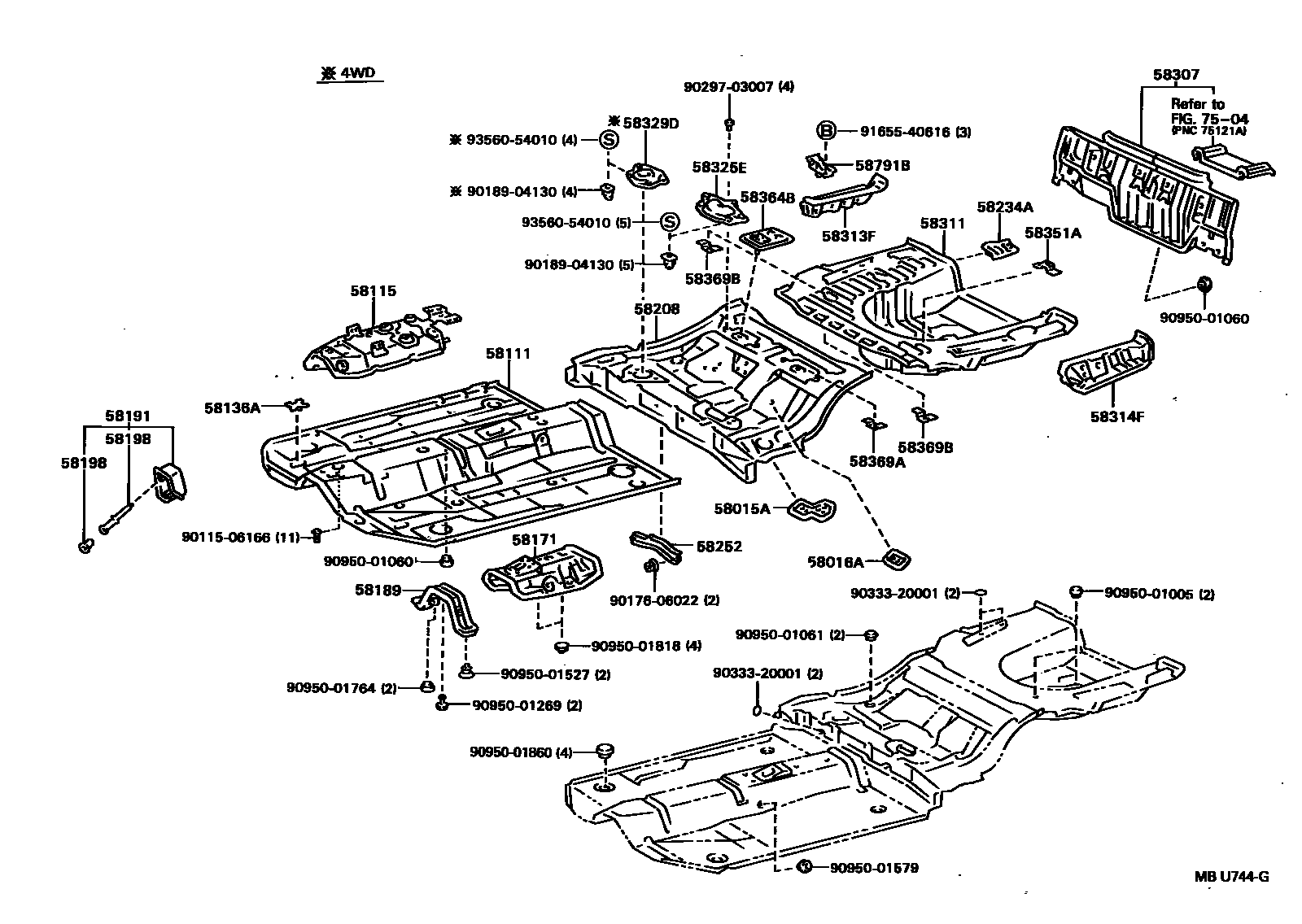

Toyota CAMRY 浅盘形地板和车身下背板 — Figure 5801
Toyota CAMRY EPC diagram 5801, 浅盘形地板和车身下背板, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-32040 |
| 58016A | Left No. 3 seat belt anchor reinforcement sub-assembly | 58016-32030 |
| 58111 | front floor pan | 58111-32060 · 58111-32070 |
| 58115 | Front floor reinforcement | 58103-32050 |
| 58136A | Front floor access hole cover | 58136-12020 |
| 58171 | Parking brake base reinforcement | 58107-32030 · 58107-32040 |
| 58189 | Exhaust pipe clamp bracket reinforcement | 58189-32010 · 58277-32020 |
| 58191 | Front floor footrest | 58191-32040 |
| 58198 | Footrest clip | 58198-32010 · 58198-32020 |
| 58208 | central floor base | 58211-32900 · 58211-32901 |
| 58234A | Exhaust pipe mounting bracket | 58234-32040 |
| 58252 | rear floor bracket | 58252-32010 |
| 58307 | Body lower back panel sub-assembly | 58307-32290 · 58307-32300 · 58307-32310 · 58307-32320 |
| 58311 | rear floor pan | 58311-32140 |
| 58313F | Rear floor pan to right side apron extension | 58305-32010 |
| 58314F | Rear floor pan to left side apron extension | 58314-32080 · 58314-32090 |
| 58325E | Rear floor access hole cover | 58325-32030 |
| 58329D | Spare tire cover corner plate | 58329-32010 |
| 58351A | Spare tire rack bracket | 58351-32010 |
| 58364B | fuel tank bracket | 58365-32020 |
| 58369A | No. 3 fuel pipe bracket | 58369-20010 |
| 58369B | No. 3 fuel pipe bracket | 58369-20010 · 58369-32020 |
| 58791B | jack bracket | 58791-32060 |
