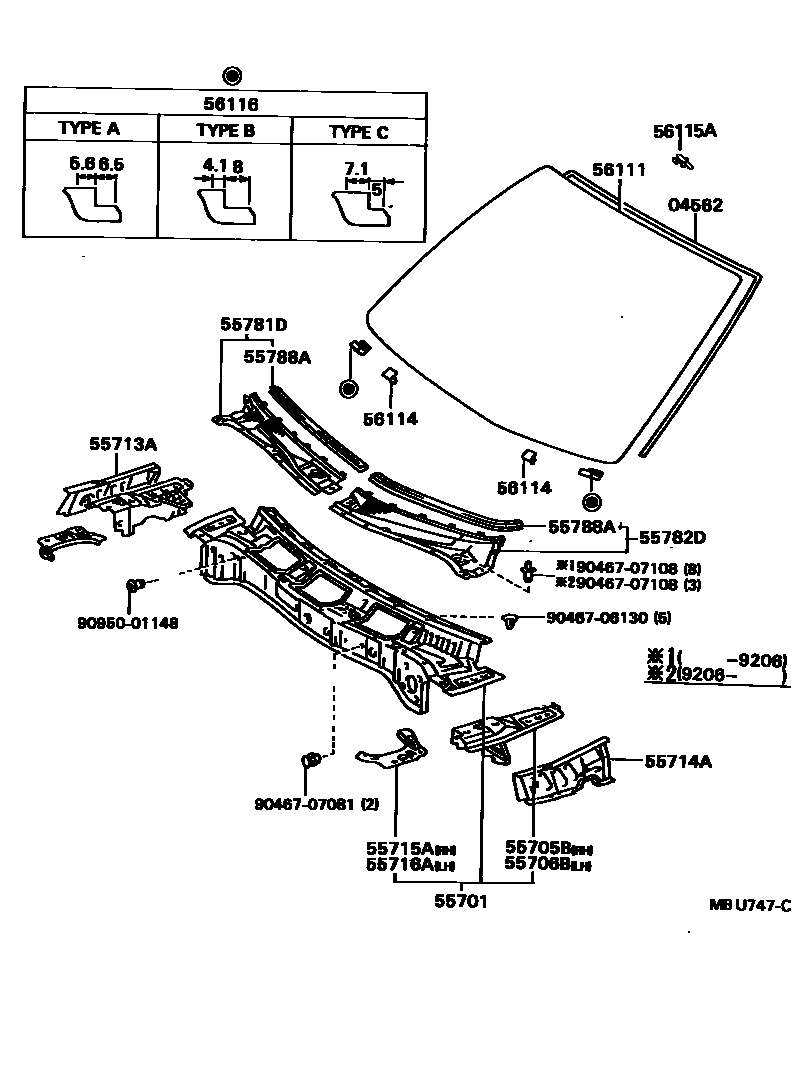

Toyota CAMRY 前围板和挡风玻璃 — Figure 5503
Toyota CAMRY EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04562 | Windshield sealing strip assembly | 04562-12010 |
| 55701 | Front apron sub-assembly | 55700-32250 · 55700-32270 · 55700-32290 · 55700-32300 · 55700-32330 · 55700-32340 · 55700-32350 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-32020 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-32020 |
| 55713A | Right front wall upper side panel | 55713-32030 |
| 55714A | Left front wall upper side panel | 55714-32030 |
| 55715A | From cowl upper cover to fender right stay | 55715-32030 |
| 55716A | From cowl upper cover to fender left stay | 55716-32030 |
| 55781D | Ventilation grille on right front apron | 55781-32050 · 55781-32060 |
| 55782D | Ventilation grille on left front apron | 55782-32050 · 55782-32060 |
| 55788A | Ventilation grille protector on front apron | 55788-32010 · 55789-32010 |
| 56111 | windshield | 56111-32230 · 56111-32300 · 56111-32310 · 56111-32340 · 56111-32350 · 56111-32360 · 56111-32370 · 56111-32380 · 56111-32390 |
| 56114 | windshield stopper | 56114-32030 |
| 56115A | Windshield block No. 1 | 56115-20060 |
| 56116 | windshield spacer | 56116-32070 · 56116-32080 · 56116-32090 |
