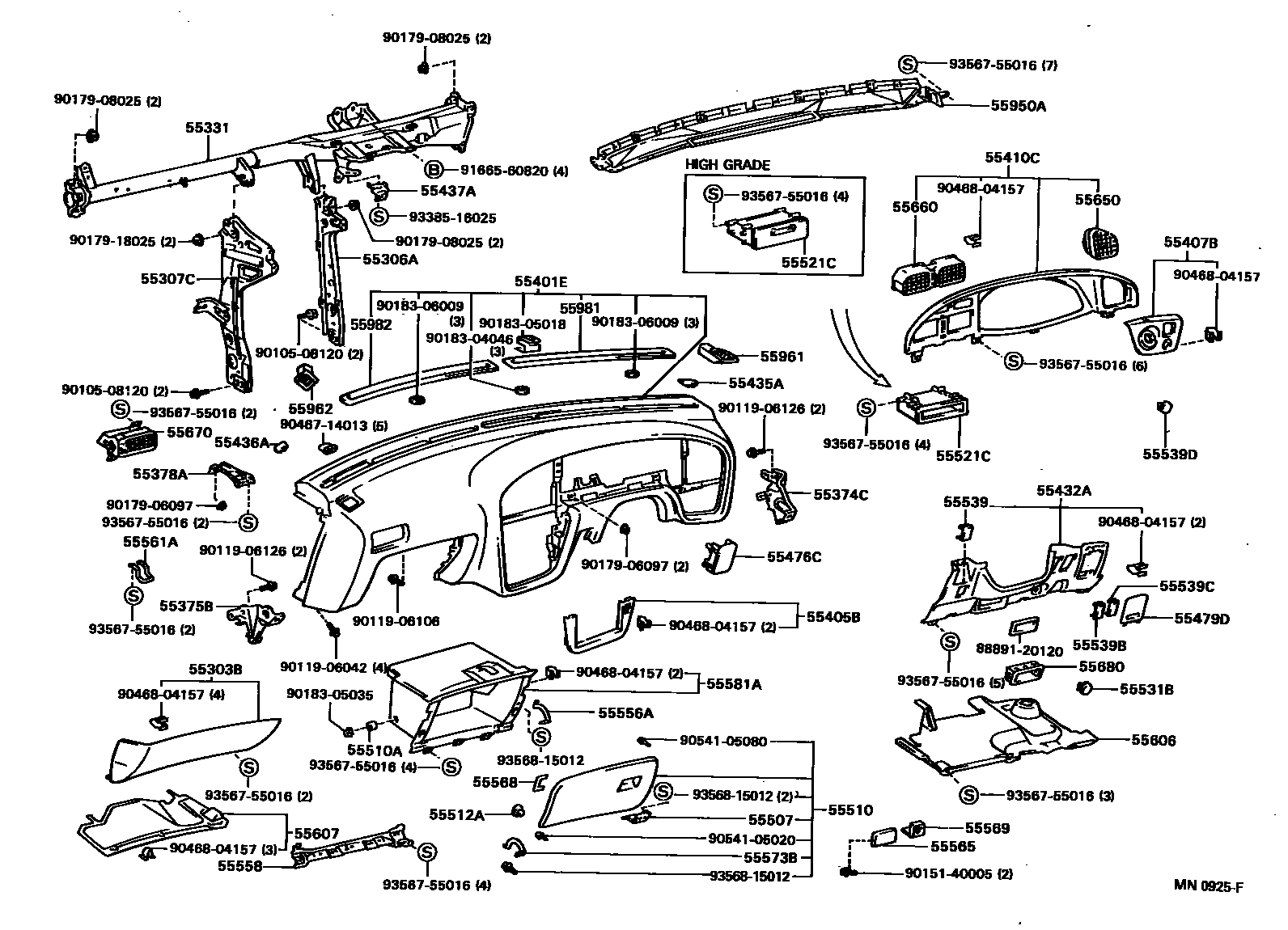

Toyota CAMRY 仪表板和手套箱 — Figure 5501
Toyota CAMRY EPC diagram 5501, 仪表板和手套箱, with 1 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-32100 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-32070 |
| 55331 | Dashboard reinforcement | 55330-32090 |
| 55374C | Instrument panel No. 1 lower mounting bracket | 55374-32030 |
| 55375B | No. 2 lower instrument panel mounting bracket | 55375-32040 |
| 55378A | Glovebox lid lock mounting bracket | 55378-32050 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-32110 |
| 55407B | Switch hole seat sub-assembly | 55407-32030 |
| 55410C | Instrument cluster decorative panel assembly | 55410-32040 |
| 55435A | Dashboard right end decorative panel | 55435-32021 |
| 55436A | Instrument panel left end decorative panel | 55436-32021 |
| 55437A | Instrument panel No. 1 decorative panel fixings | 55437-32010 |
| 55507 | Glove box cover hinge sub-assembly | 55505-32030 |
| 55510A | Cushion (for glovebox lid) | 58871-30020 |
| 55512A | glove box panel | 55512-22070 |
| 55521C | stereo system hole cover | 55521-16030 · 55521-32010 · 55521-32011 |
| 55539D | Spare switch hole cover | 55531-32020 |
| 55556A | Glove box cover right stopper arm | 55556-32010 · 55556-32020 |
| 55558 | Glove box cover reinforcement | 55558-32040 · 55558-32041 |
| 55561A | Glove box lid lock | 55561-32030 |
| 55568 | Glove box cover lining plate | 55568-32010 |
| 55573B | Glove box cover left stopper arm | 55573-32020 |
| 55581A | Glove box | 55581-32030 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-32050 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-32030 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-32100 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55660-32100 |
| 55950A | Defroster nozzle assembly | 55950-32050 |
| 55981 | Defroster No. 1 nozzle decorative strip | 55981-32060 |
| 55982 | Defroster No. 2 nozzle decorative strip | 55982-32060 |
