Toyota CAMRY 前翼子板挡泥板和前围板 — Figure 5304

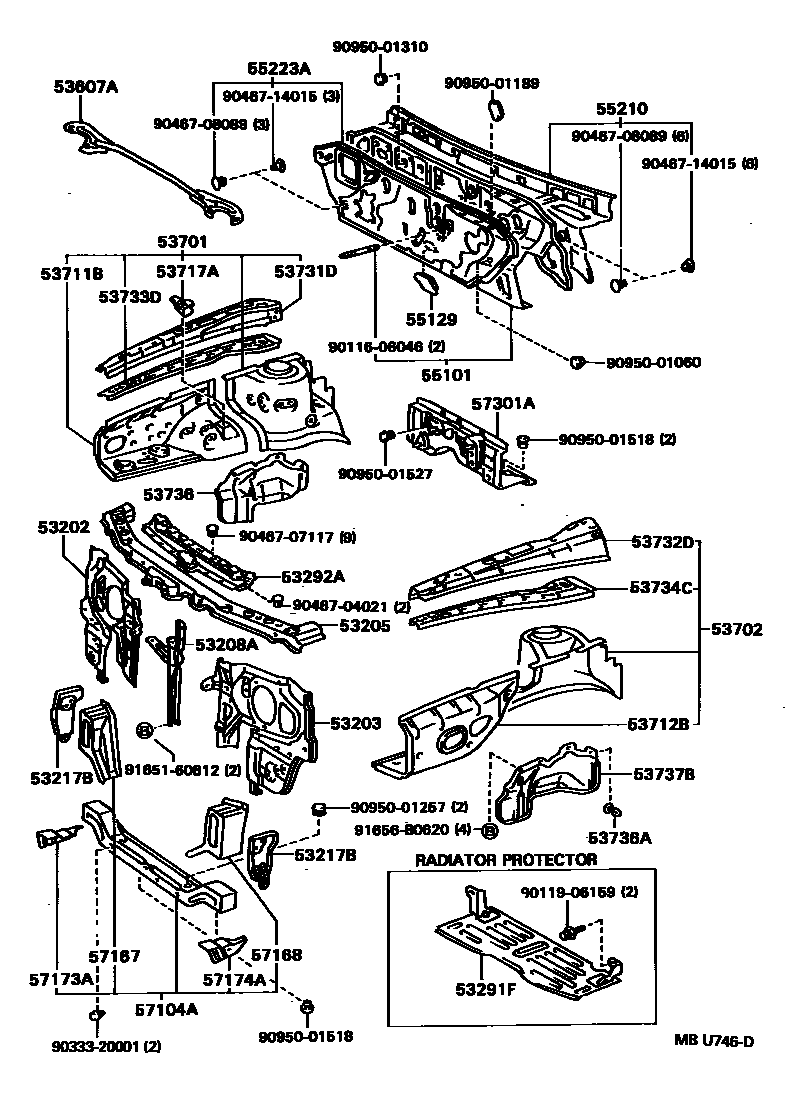

Toyota CAMRY EPC diagram 5304, 前翼子板挡泥板和前围板, with 1 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53202 | Radiator right side bracket sub-assembly | 53202-32020 · 53202-32030 · 53202-32040 · 53202-32050 |
| 53203 | Radiator left bracket sub-assembly | 53203-32030 · 53203-32040 · 53203-32050 · 53203-32060 |
| 53205 | Radiator upper bracket sub-assembly | 53205-32040 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-32120 · 53208-32130 · 53208-32140 · 53208-32150 |
| 53217B | Radiator bracket to cross member bracket | 53217-32040 · 53218-32040 |
| 53291F | Radiator support plate | 53291-32010 |
| 53292A | Radiator upper bracket seal | 53292-32010 · 53292-32020 · 53292-32030 · 53292-32040 · 53292-32050 · 53292-32060 |
| 53607A | Front suspension center upper bracket sub-assembly | 53607-32030 |
| 53701 | Right front fender fender sub-assembly | 53701-32915 |
| 53702 | Left front fender fender sub-assembly | 53702-32912 |
| 53711B | Right front fender front fender | 53711-32120 |
| 53712B | Left front fender front fender | 53712-32050 |
| 53717A | fender fender | 53717-32020 |
| 53731D | Right front fender to cowl side upper beam | 53731-32900 |
| 53732D | Left front fender to cowl side upper beam | 53732-32900 |
| 53733D | Right front fender to cowl side front lower beam | 53733-32030 |
| 53734C | Left front fender to cowl side front lower beam | 53734-32030 |
| 53736 | Right front fender fender seal | 53736-32020 · 53736-32040 |
| 53736A | Clip (for front fender fender seal) | 90467-09063 |
| 53737B | Left front fender fender seal | 53737-32020 |
| 53741A | Right fender fender reinforcement panel | 53741-32020 |
| 55101 | Front apron sub-assembly | 55101-32220 · 55101-32260 · 55101-32340 |
| 55129 | Front panel hole cover | 55129-32020 |
| 55210 | Front wall insulation pad assembly | 55210-32060 |
| 55223A | Front wall outer heat insulation pad | 55223-32070 |
| 57104A | Front cross member sub-assembly | 57104-32906 |
| 57167 | Front cross member upper right corner panel | 57167-32050 |
| 57168 | Front cross member upper left corner panel | 57168-32050 |
| 57173A | No. 3 front cross member right reinforcement | 57173-32030 |
| 57174A | No. 3 front cross member left reinforcement | 57174-32020 |
| 57301A | Steering housing support beam sub-assembly | 57301-32100 · 57301-32110 · 57301-32120 · 57301-32130 |
