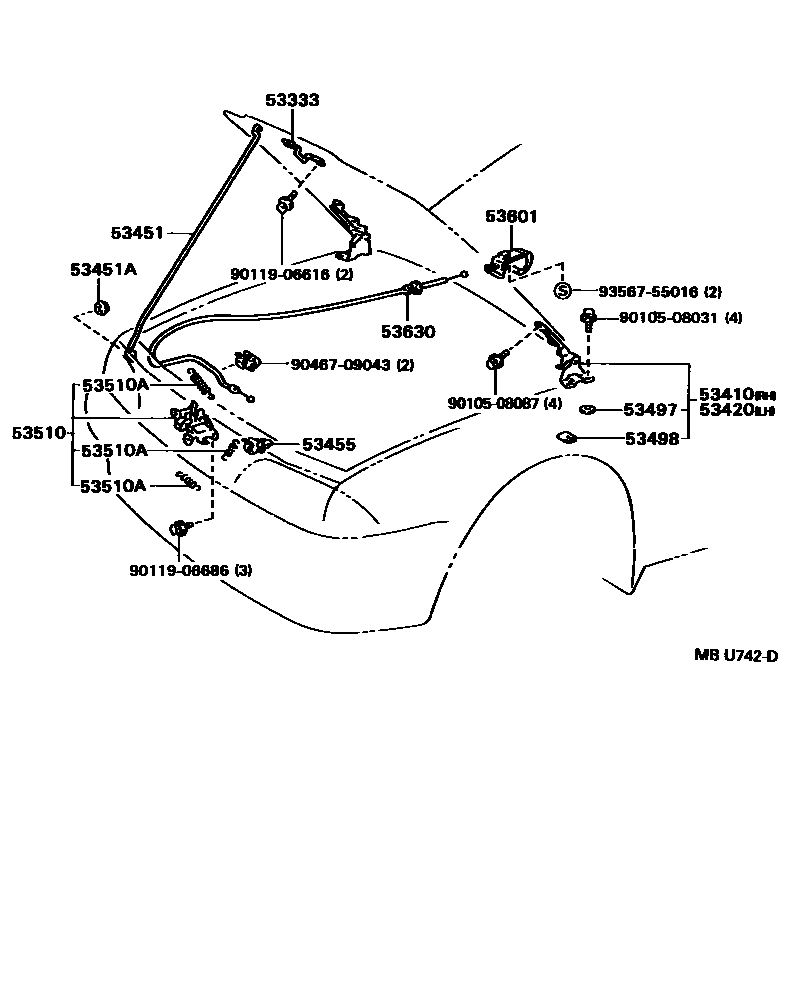

Toyota CAMRY 发动机盖锁和铰链 — Figure 5303
Toyota CAMRY EPC diagram 5303, 发动机盖锁和铰链, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53333 | engine cover latch | 53333-32010 |
| 53410 | Engine cover right hinge assembly | 53410-32050 · 53410-32051 |
| 53420 | Engine cover left hinge assembly | 53420-32050 · 53420-32051 |
| 53451 | Engine cover support rod | 53451-32050 |
| 53451A | Gasket (for engine cover support rod) | 90480-15024 |
| 53455 | Engine cover support rod clip | 53455-32010 |
| 53497 | No. 1 engine cover hinge gasket | 53497-32050 · 53497-32080 · 53497-32090 |
| 53498 | No. 2 engine cover hinge gasket | 53498-32010 · 53498-32030 · 53498-32040 |
| 53510 | Engine cover lock assembly | 53510-32090 · 53510-32100 · 53510-32110 · 53510-32120 · 53510-32130 · 53510-32140 |
| 53510A | Tension spring (for hood lock) | 90506-09039 · 90506-09044 · 90506-09052 · 90506-09055 · 90506-12065 · 90506-18067 · 90506-20062 · 90506-20063 |
| 53630 | Engine hood lock control cable assembly | 53630-32080 · 53630-32100 |
