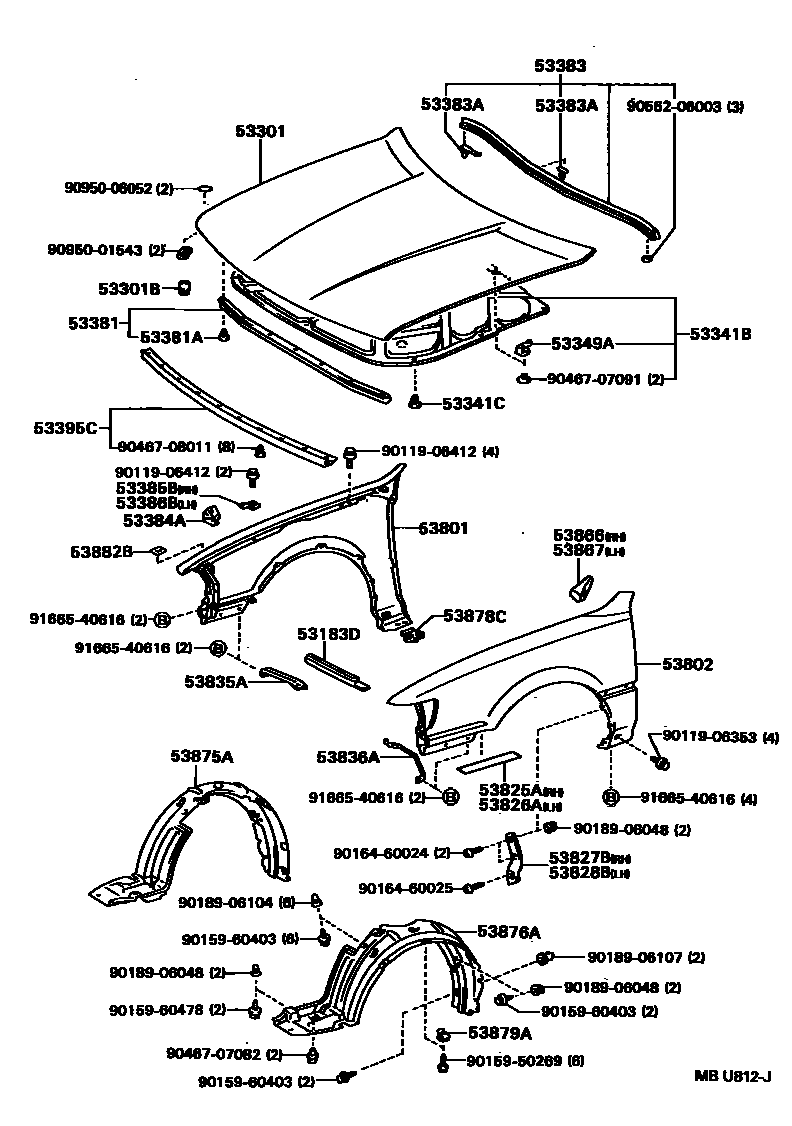

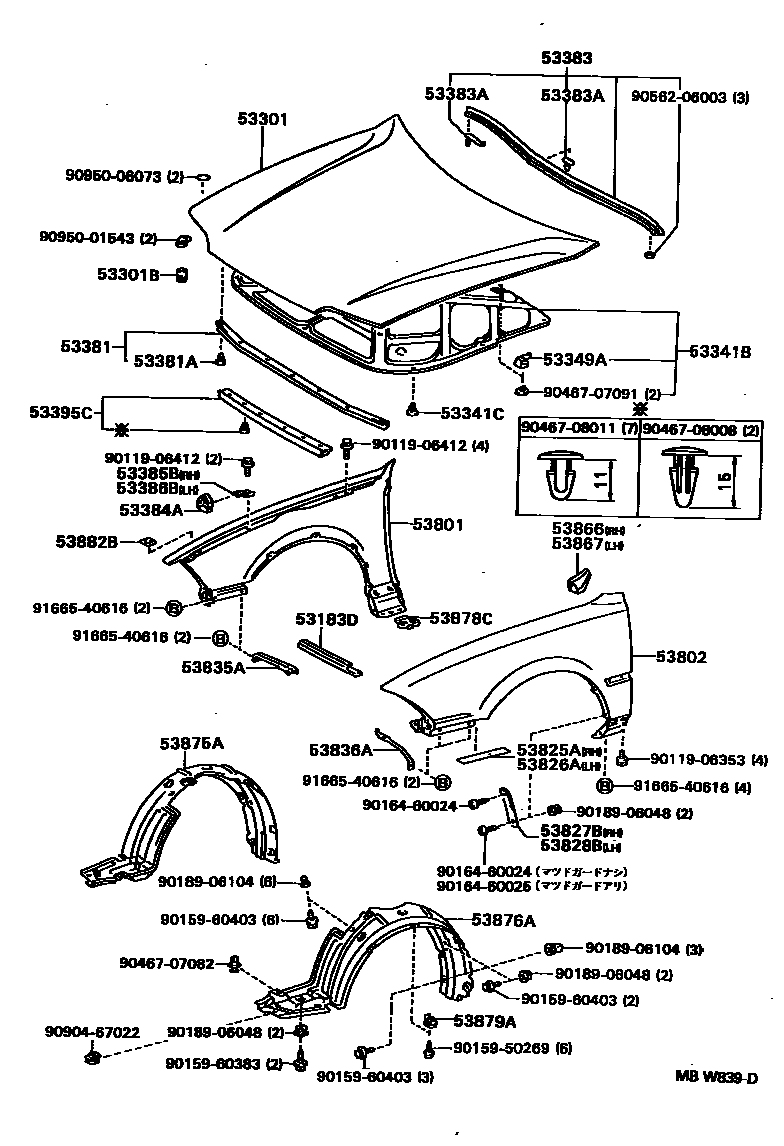

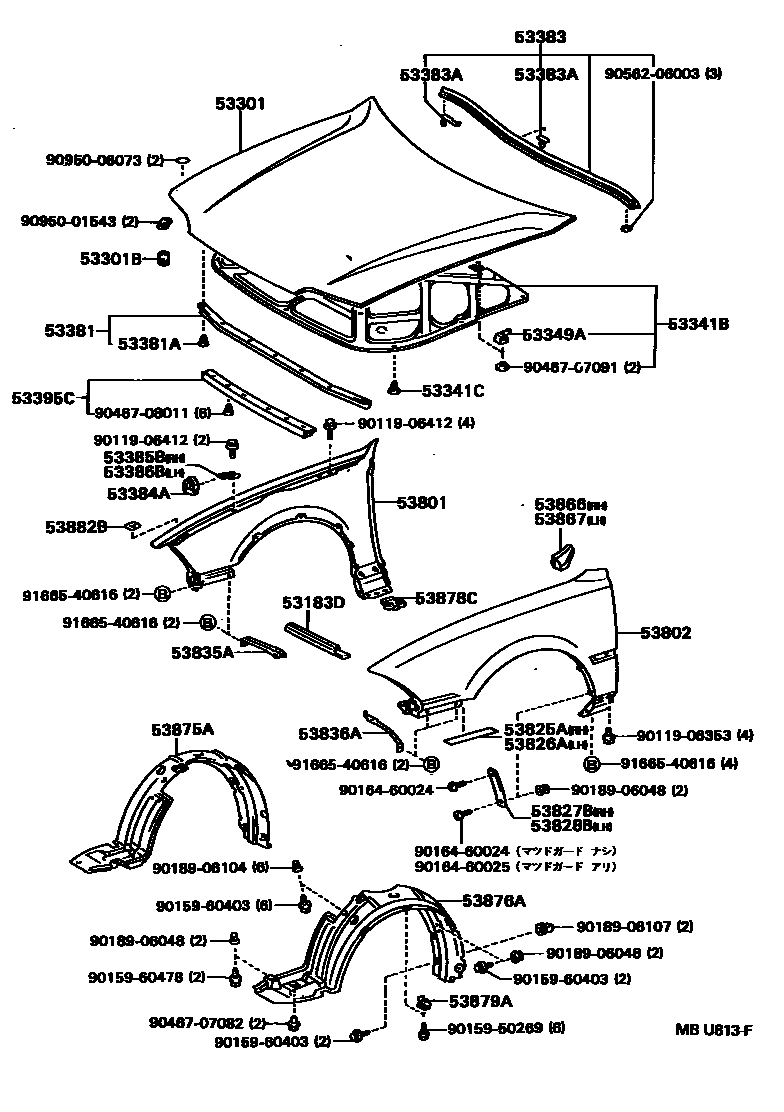

Toyota CAMRY 发动机盖和前翼子板 — Figure 5302
Toyota CAMRY EPC diagram 5302, 发动机盖和前翼子板, with 3 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53183D | Headlight cover to engine cover seal | 53183-32050 · 53183-32060 · 53183-32070 · 53184-32010 · 53184-32020 · 53184-32030 |
| 53301 | Engine cover sub-assembly | 53301-32110 · 53301-32120 · 53301-32130 · 53301-32140 |
| 53301B | engine cover cushion | 90541-15016 |
| 53341B | engine cover gasket | 53341-32060 |
| 53341C | Clip (for engine cover gasket) | 90467-09006 |
| 53349A | Engine cover gasket retainer | 53349-50010 |
| 53381 | Engine cover to radiator bracket seal | 53381-32030 · 53381-32040 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 |
| 53383 | Engine cover to cowl upper cover seal | 53383-32030 |
| 53383A | Clamp (for engine cover to cowl upper cover seal) | 90467-08108 · 90467-08141 |
| 53384A | fender to engine cover buffer block | 53384-32010 |
| 53385B | Right side bracket (fender to engine cover bumper) | 53385-20020 |
| 53386B | Left side bracket (fender to engine cover bumper) | 53386-20020 |
| 53395C | Engine cover to radiator grille seal | 53183-32040 · 53395-32020 · 53395-32031 · 53395-32040 |
| 53801 | Right front fender sub-assembly | 53801-32220 · 53801-32230 · 53801-32240 · 53801-32250 |
| 53802 | Left front fender sub-assembly | 53802-32210 · 53802-32220 · 53802-32230 · 53802-32240 |
| 53825A | Right front fender protection piece | 53825-32010 · 53825-32020 |
| 53826A | Protection piece on left front fender | 53826-32010 · 53826-32020 |
| 53827B | Front fender side panel protectors | 53827-32010 · 53827-32020 |
| 53828B | Left front fender side panel protector | 53828-32010 · 53828-32020 |
| 53835A | Right front fender to fender stay | 53851-32010 · 53851-32020 |
| 53836A | Left front fender to fender stay | 53852-32010 · 53852-32020 |
| 53866 | Right front fender to cowl side seal | 53866-32040 · 53866-32050 |
| 53867 | Left front fender to cowl side seal | 53867-32040 · 53867-32050 |
| 53875A | Right front fender lining | 53875-32030 · 53875-32040 · 53875-32050 |
| 53876A | Left front fender lining | 53876-32030 · 53876-32040 · 53876-32050 |
| 53878C | front fender spacer | 53878-20040 |
| 53879A | Front fender lining fixing parts | 53879-14010 |
| 53882B | Right front fender seal | 53882-16030 |
