VOCR EPC

Toyota CAMRY radiator grille — Figure 5301

Toyota CAMRY EPC diagram 5301, radiator grille, with 4 images and 4 PNC and OE references.

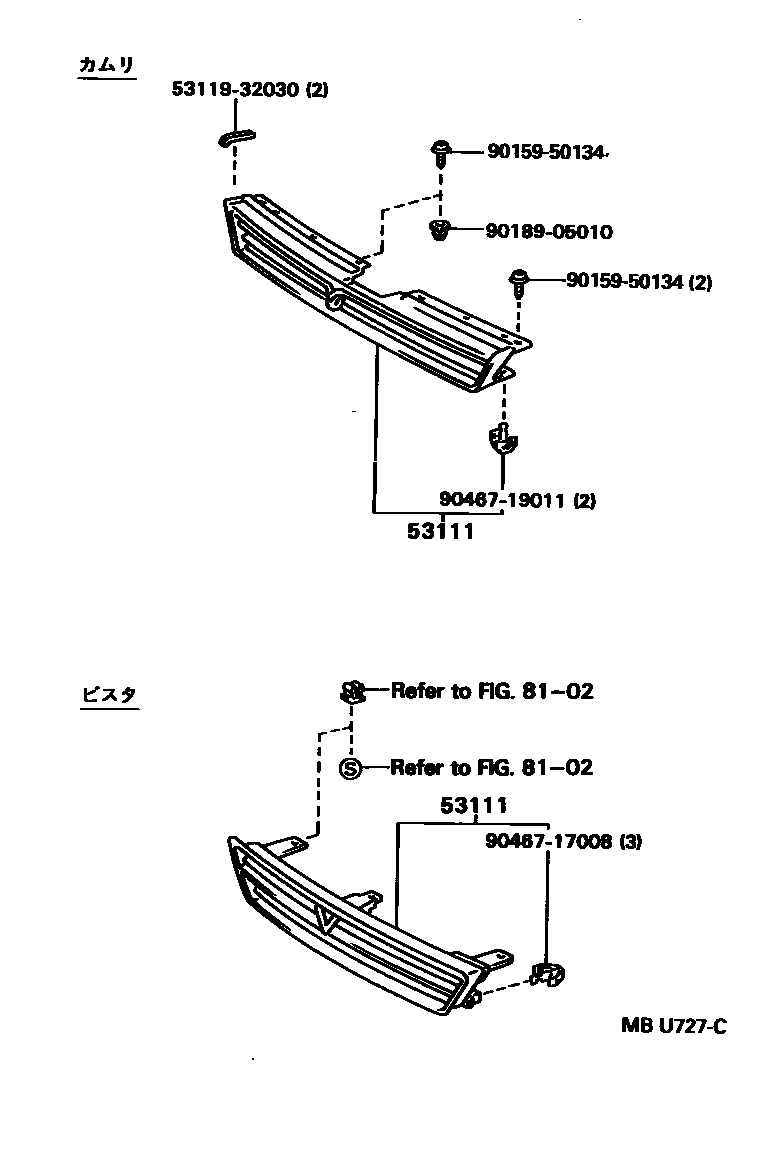

Toyota CAMRY radiator grille EPC diagram — MBU727C
radiator grille — MBU727C (199007 – 199206)

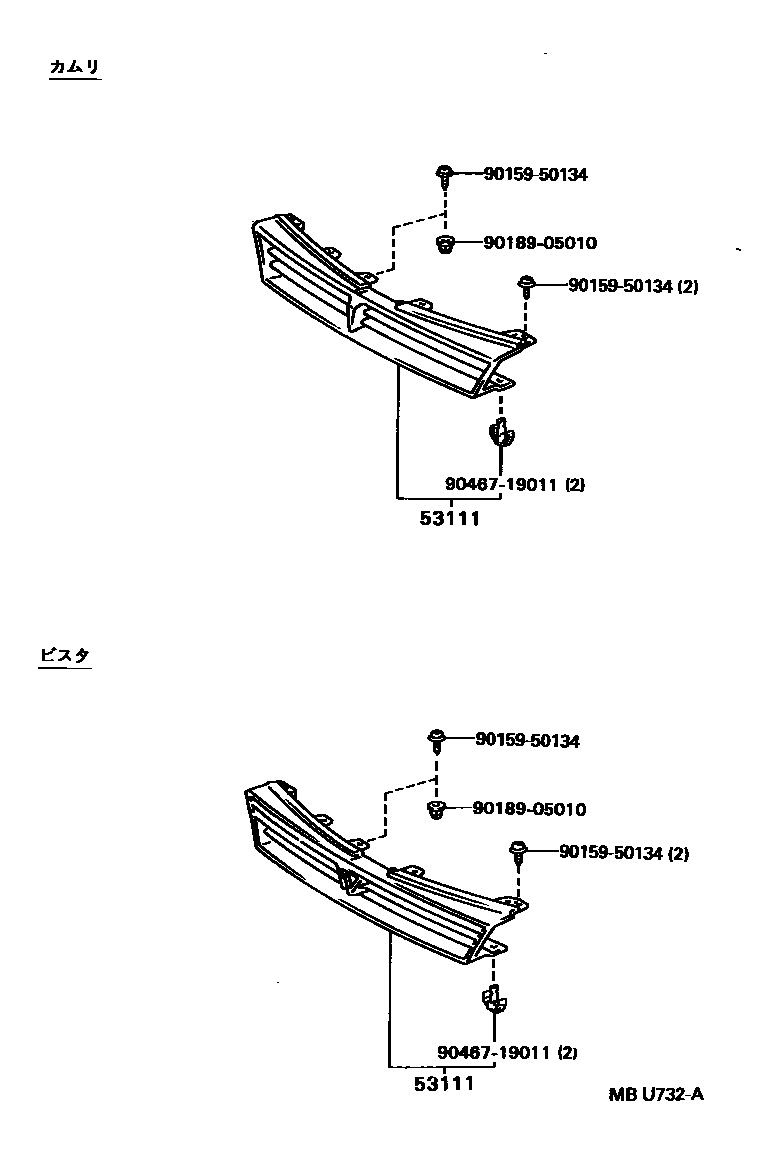

Toyota CAMRY radiator grille EPC diagram — MBU732A
radiator grille — MBU732A (199007 – 199206)

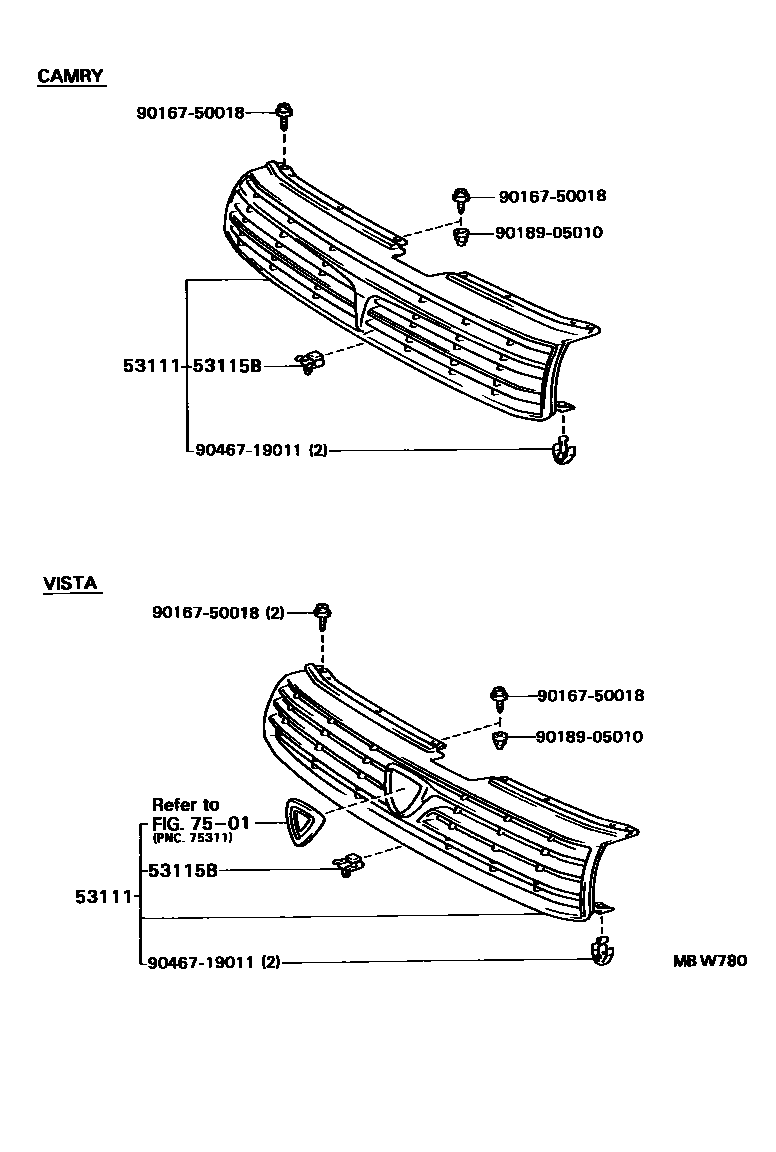

Toyota CAMRY radiator grille EPC diagram — MBW780
radiator grille — MBW780 (199206 – 999999)

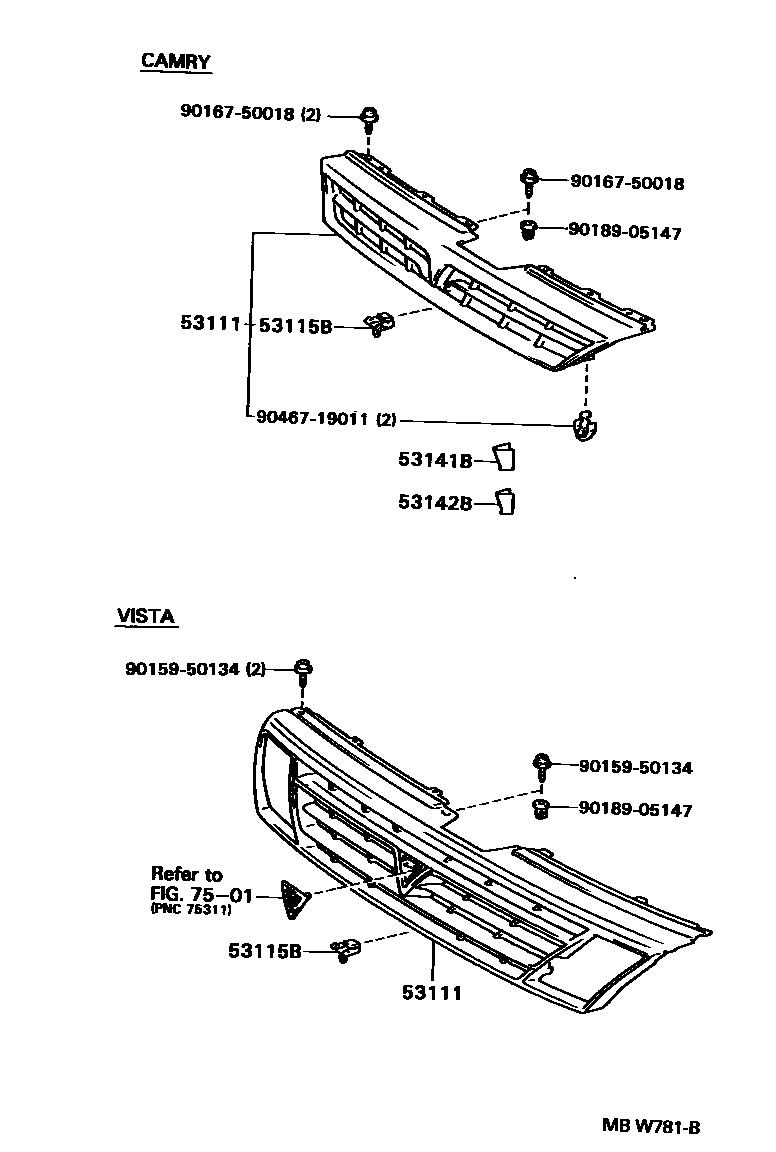

Toyota CAMRY radiator grille EPC diagram — MBW781B
radiator grille — MBW781B (199206 – 999999)

PNC and OE references

PNCPart nameOE numbers
53111radiator grille53101-32170 · 53101-32190 · 53101-32200 · 53101-32210 · 53101-32230 · 53111-32180 · 53111-32190 · 53111-32250
53115BRadiator grille bracket53115-16010
53141BRadiator grille trim part 153141-32010
53142BRadiator grille trim part 253142-32010
