Toyota CAMRY 后保险杠及附件 — Figure 5202

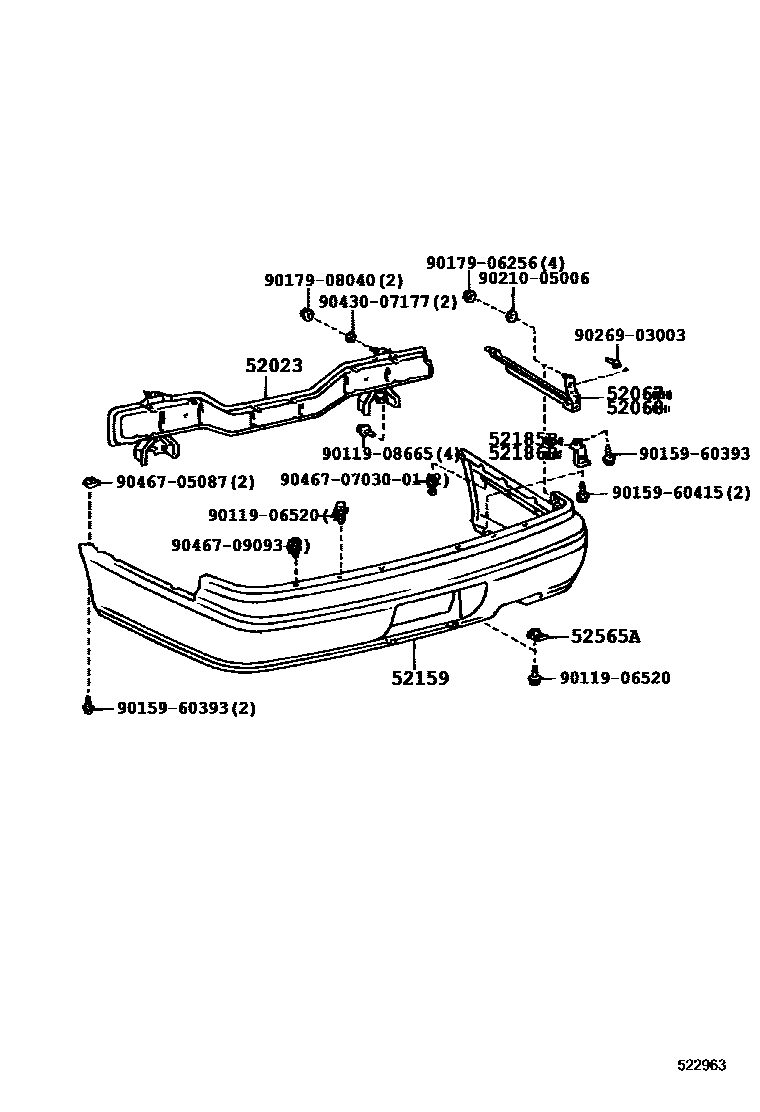

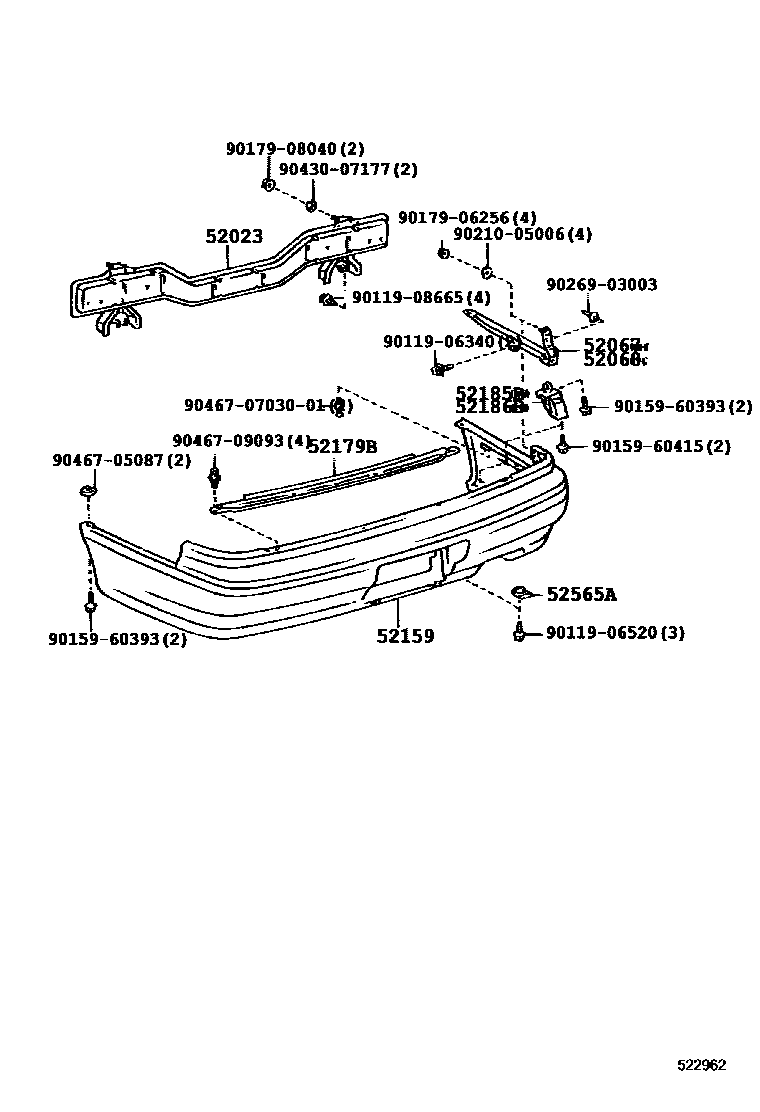

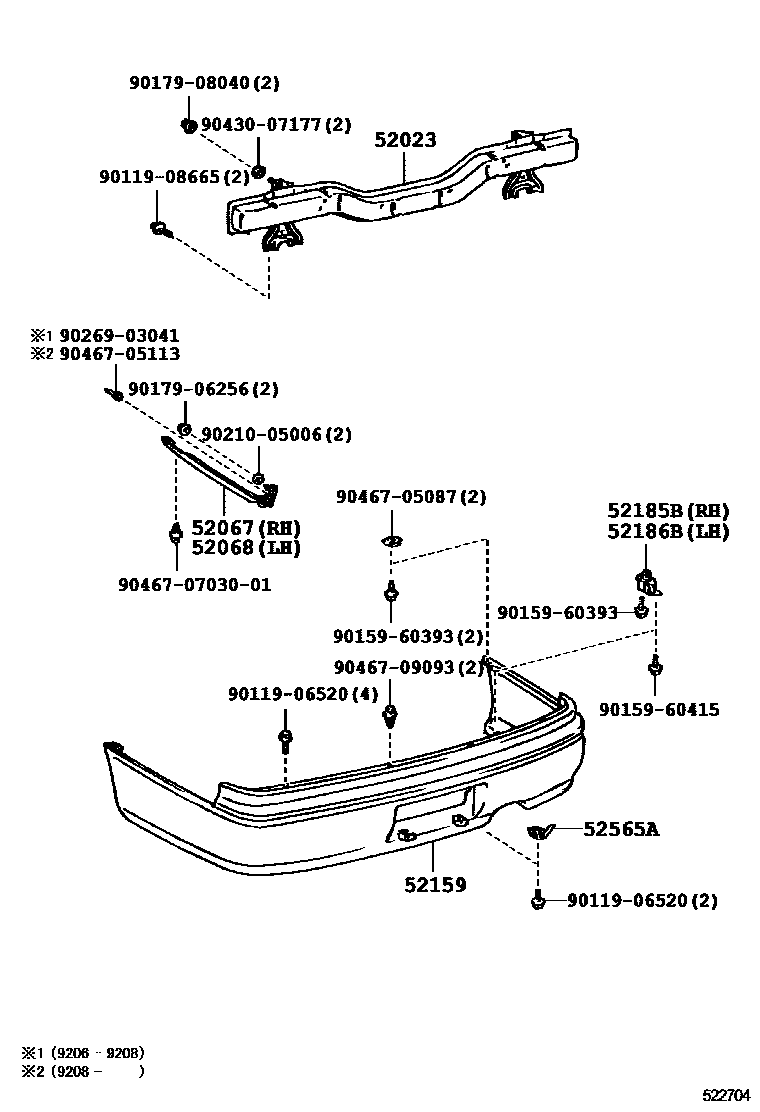

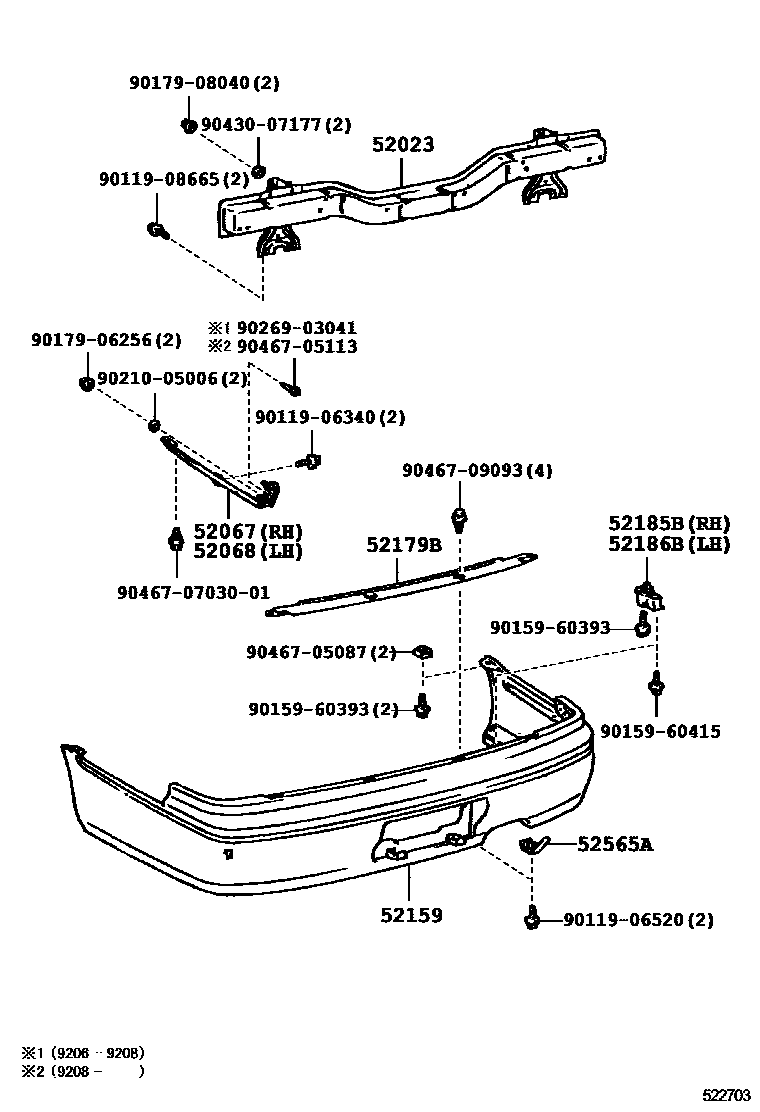

Toyota CAMRY EPC diagram 5202, 后保险杠及附件, with 4 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-32150 · 52023-32160 |
| 52067 | Rear bumper right side bracket sub-assembly | 52067-32050 · 52067-32060 |
| 52068 | Rear bumper left bracket sub-assembly | 52068-32050 · 52068-32060 |
| 52179B | rear bumper panel | 52179-32040 |
| 52185B | Installation support on the right side of the rear bumper | 52185-32020 · 52185-32030 |
| 52186B | Rear bumper left side mounting support | 52186-32020 · 52186-32030 |
| 52565A | Rear bumper lower fixing bracket | 52565-32050 |
