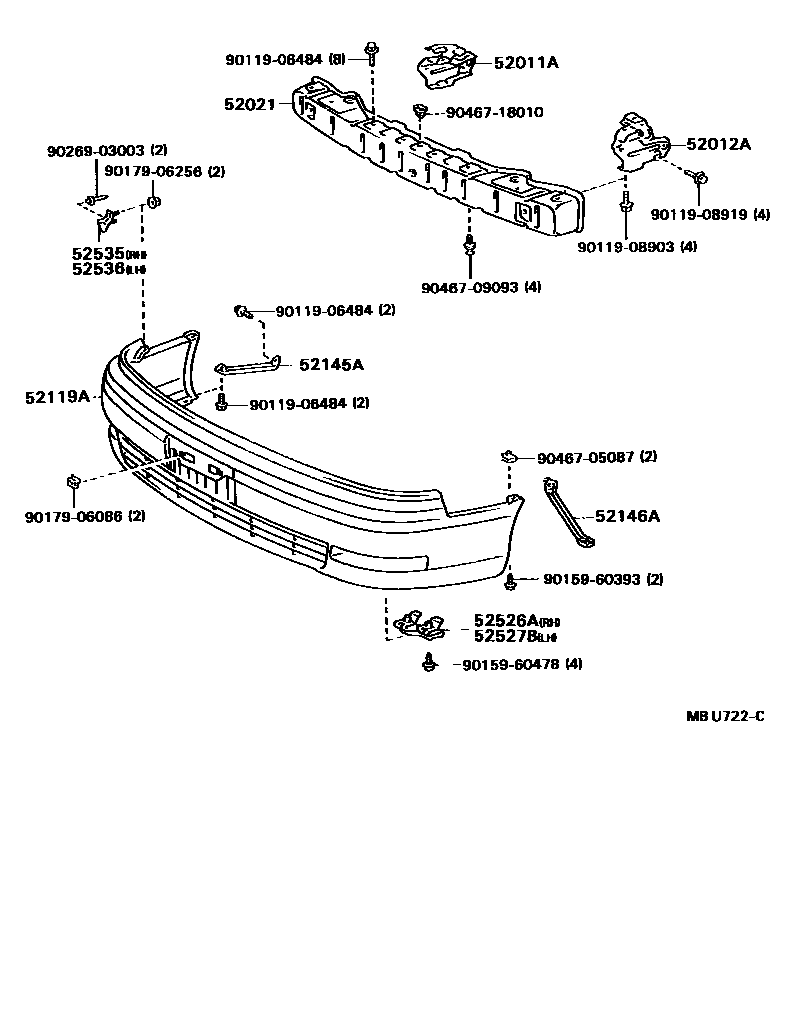

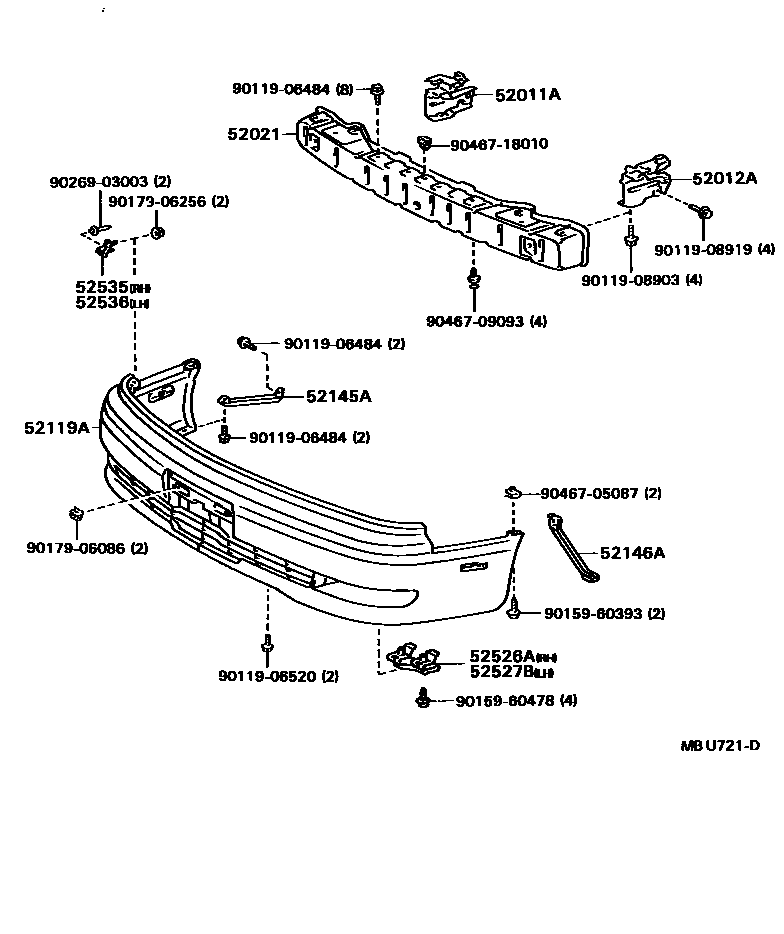

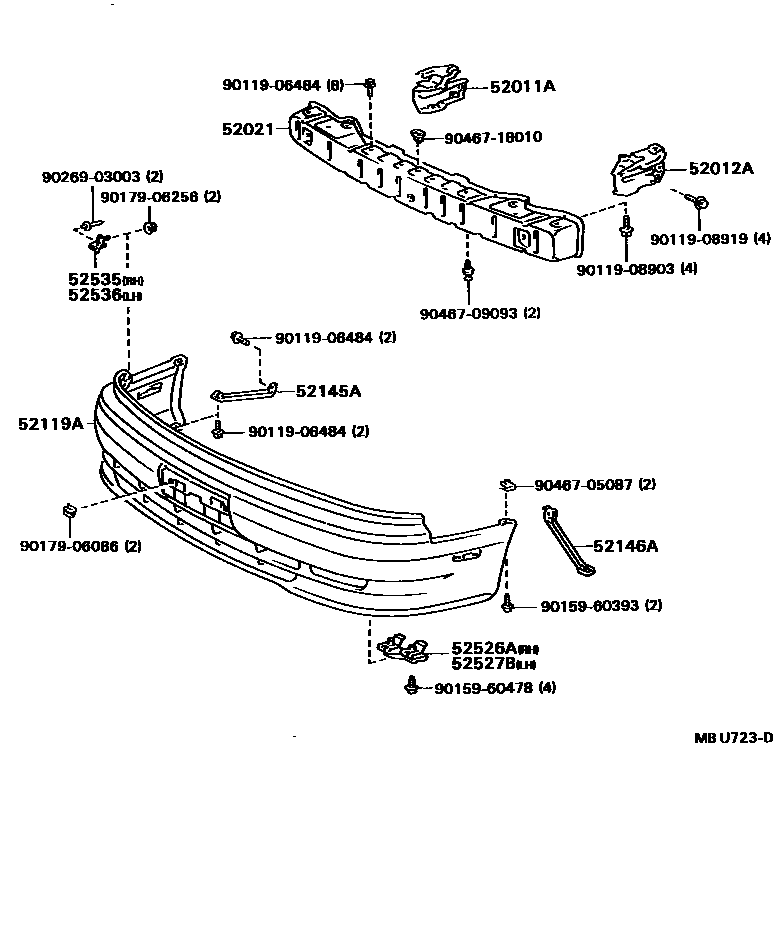

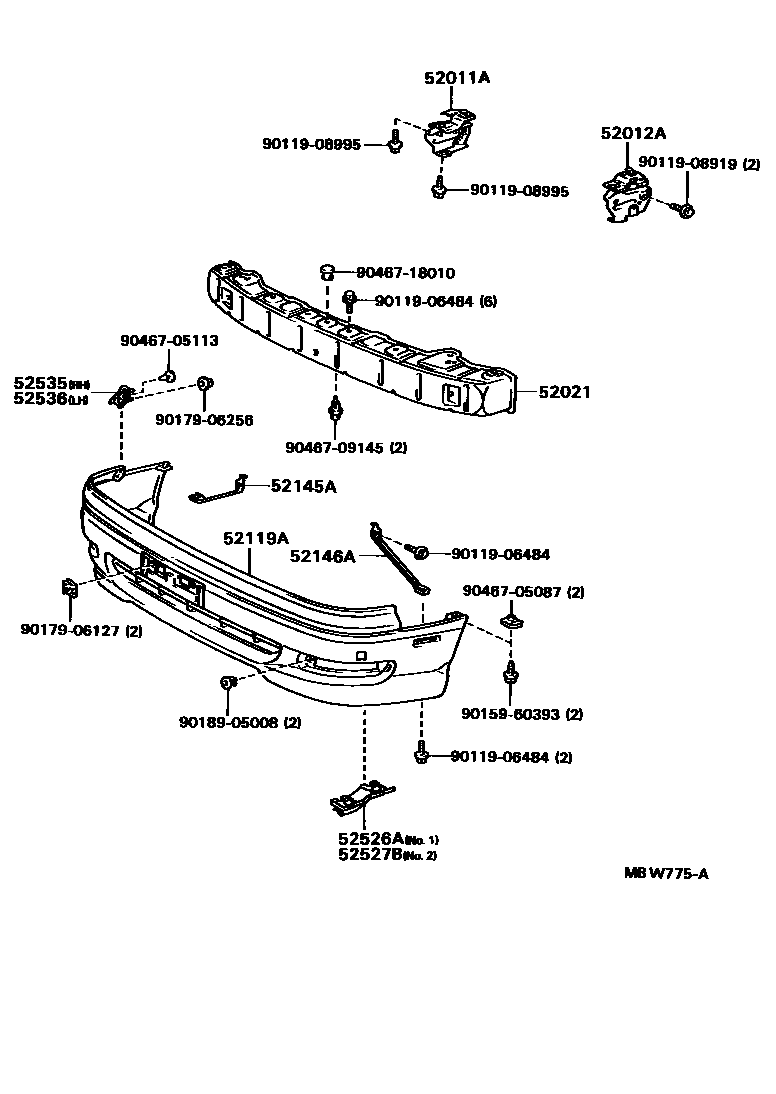

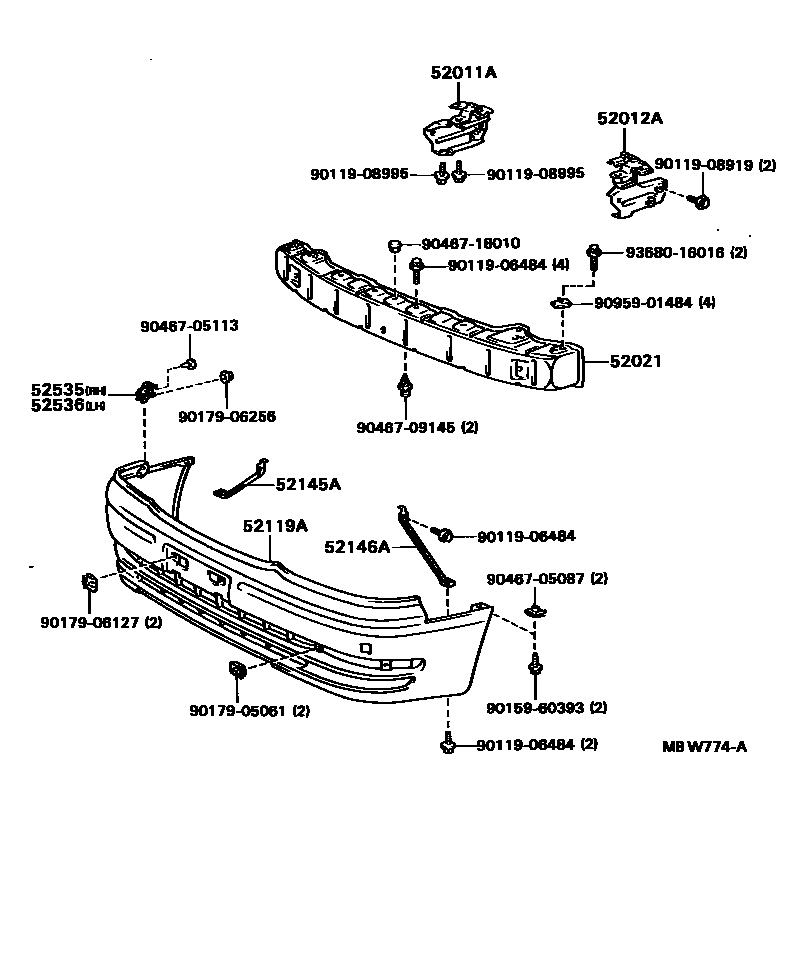

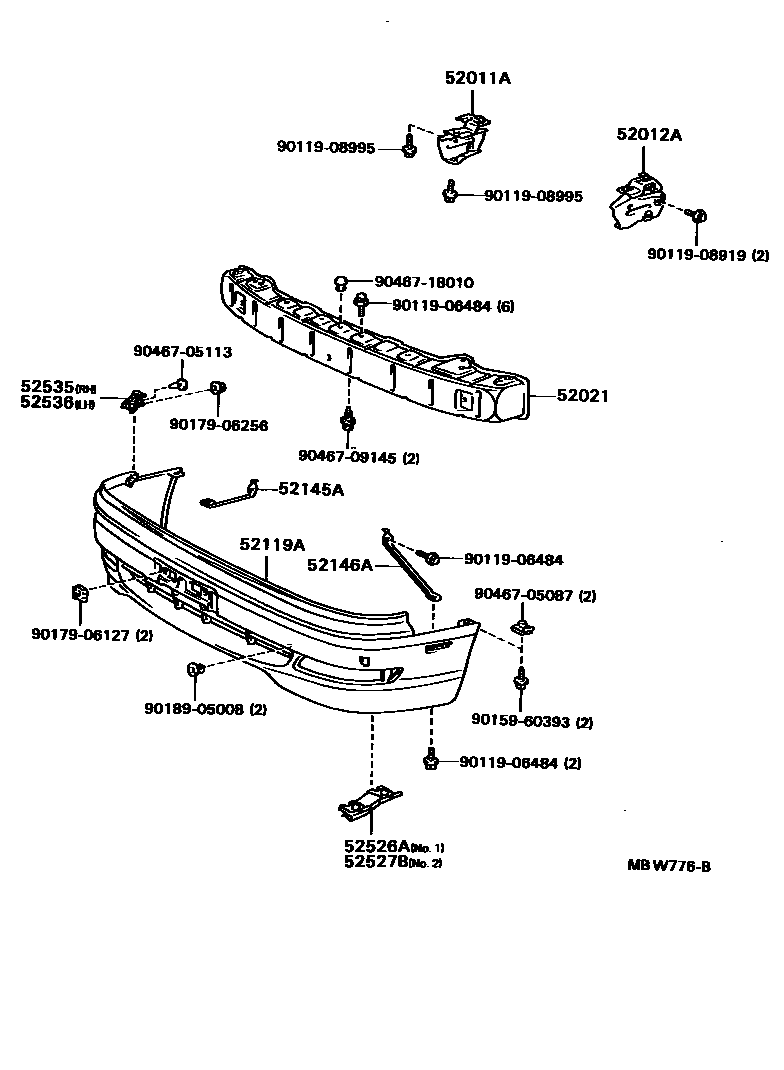

Toyota CAMRY 前保险杠及附件 — Figure 5201
Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 6 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52011A | Front bumper right arm sub-assembly | 52011-32090 · 52011-32100 · 52011-32110 · 52011-32130 |
| 52012A | Front bumper left arm sub-assembly | 52012-32070 · 52012-32080 · 52012-32090 · 52012-32110 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-32130 |
| 52145A | Front bumper No. 2 right side stay | 52145-32040 · 52145-32060 · 52145-32070 |
| 52146A | Front bumper No. 2 left side stay | 52146-32030 · 52146-32040 · 52146-32050 |
| 52526A | Front bumper No. 1 lower fixing bracket | 52526-32080 · 52526-32081 |
| 52527B | Front bumper No. 2 lower fixing bracket | 52527-32040 · 52527-32041 |
| 52535 | Front bumper right side fixing bracket | 52535-32050 · 52535-32060 · 52535-32070 · 52535-32080 |
| 52536 | Front bumper left fixed bracket | 52536-32040 · 52536-32050 · 52536-32060 · 52536-32070 |
