Toyota CAMRY Rear Spring & Shock Absorber — Figure 4804

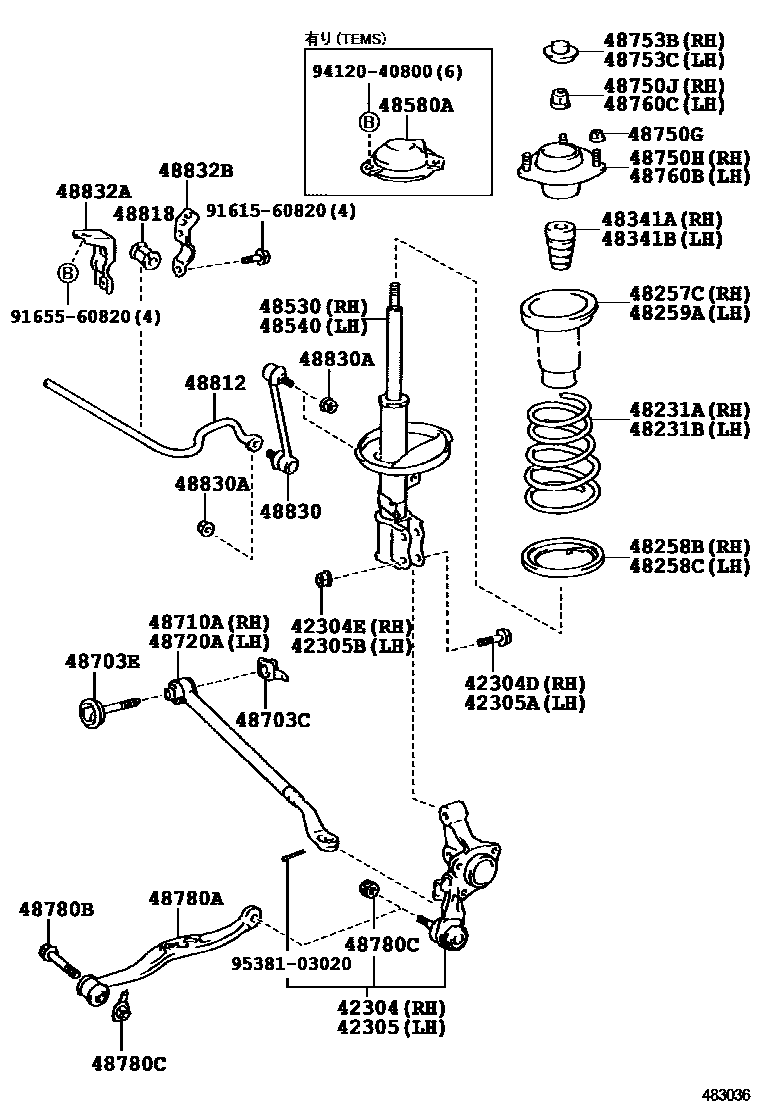

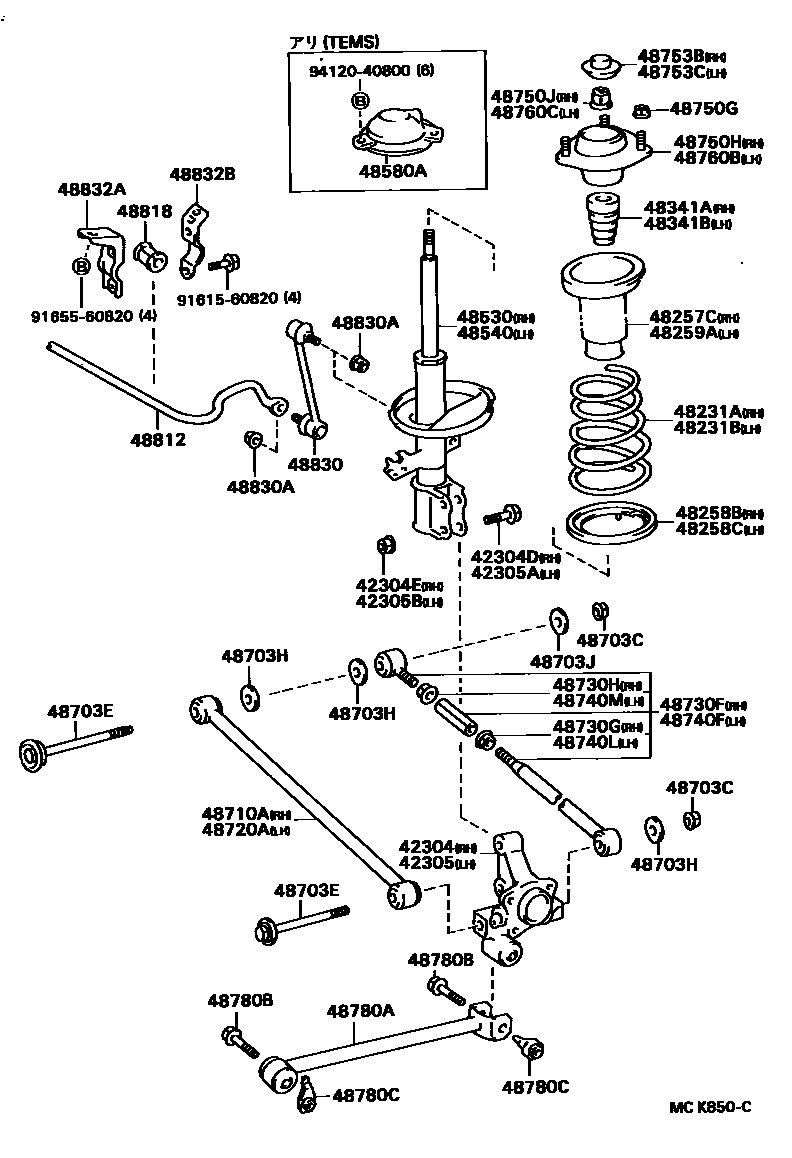

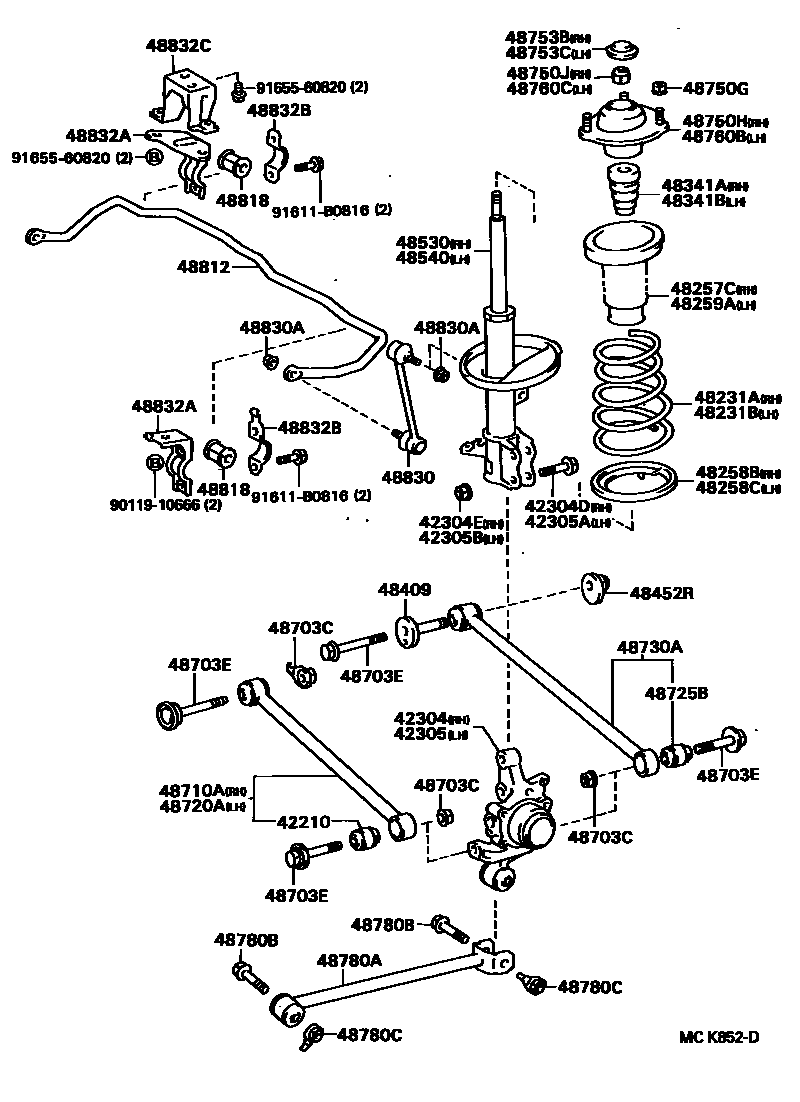

Toyota CAMRY EPC diagram 4804, Rear Spring & Shock Absorber, with 3 images and 51 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42210 | Lower steel ball bushing assembly | 42210-14010 |
| 42304 | Rear axle right bracket sub-assembly | 42304-20060 · 42304-20070 · 42304-20090 · 42304-29025 · 42304-29045 · 42304-32060 · 42304-32070 · 42304-32080 |
| 42304D | Bolt (for rear axle right bracket) | 90105-15001 |
| 42304E | Nut (for rear axle right bracket) | 90179-15001 |
| 42305 | Rear axle left bracket sub-assembly | 42305-20060 · 42305-20070 · 42305-20090 · 42305-29025 · 42305-29045 · 42305-32060 · 42305-32070 · 42305-32080 |
| 42305A | Bolt (for left rear axle bracket) | 90105-15001 |
| 42305B | Nut (for left rear axle bracket) | 90179-15001 |
| 48231A | Right rear coil spring | 48231-32700 · 48231-32710 · 48231-32820 · 48231-32860 · 48231-32870 · 48231-32890 · 48231-3H020 · 48231-3H040 · 48231-3H050 |
| 48231B | Left rear coil spring | 48231-32700 · 48231-32710 · 48231-32820 · 48231-32860 · 48231-32870 · 48231-32890 · 48231-3H020 · 48231-3H040 · 48231-3H050 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-32040 · 48257-32060 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-32020 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-32020 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48259-32010 · 48259-32020 |
| 48341A | No. 1 right rear spring buffer block | 48341-32050 · 48341-32051 · 48341-32052 · 48341-32070 · 48341-32071 |
| 48341B | No. 1 left rear spring buffer block | 48341-32050 · 48341-32051 · 48341-32052 · 48341-32070 · 48341-32071 |
| 48409 | Rear suspension toe adjustment cam sub-assembly | 48409-32030 |
| 48452R | No. 2 rear suspension toe adjustment piece | 48452-32030 |
| 48530 | Right rear shock absorber assembly | 48530-32220 · 48530-32230 · 48530-32240 · 48530-32250 · 48530-32260 · 48530-32270 · 48530-32280 · 48530-32290 · 48530-32300 |
| 48540 | Left rear shock absorber assembly | 48540-32220 · 48540-32230 · 48540-32240 · 48540-32250 · 48540-32260 · 48540-32270 · 48540-32280 · 48540-32290 · 48540-32300 |
| 48580A | Damper cover assembly | 48580-32020 · 48580-33020 |
| 48703C | Nut (for rear suspension arm) | 90179-12100 · 90179-14019 |
| 48703E | Bolts (for rear suspension arms) | 90119-12126 · 90901-09001 · 90901-19001 · 90901-19002 · 90901-19003 · 90901-19004 |
| 48703H | Washer No. 1 (for rear suspension arm) | 90201-14017 |
| 48703J | Washer No. 2 (for rear suspension arm) | 48715-32010 |
| 48710A | Right rear suspension No. 1 arm assembly | 48710-20270 · 48710-32031 · 48710-32040 · 48710-32050 · 48710-32060 |
| 48720A | Left rear suspension No. 1 arm assembly | 48710-20270 · 48710-32031 · 48710-32040 · 48710-32050 · 48710-32060 |
| 48725B | Rear suspension No. 1 arm bushing | 42210-14010 |
| 48730A | Rear suspension No. 2 arm assembly | 48730-20180 · 48730-32070 |
| 48730F | Right rear suspension No. 2 arm assembly | 48730-32051 · 48730-32060 |
| 48730G | Nut No. 1 (for right rear suspension arm No. 2) | 90179-16018 · 90179-16022 |
| 48730H | No. 2 nut (for right rear suspension No. 2 arm assembly) | 90179-16004 · 90179-16021 |
| 48740F | Left rear suspension No. 2 arm assembly | 48740-32011 · 48740-32020 |
| 48740L | Nut No. 1 (for left rear suspension arm No. 2) | 90179-16004 · 90179-16021 |
| 48740M | No. 2 nut (for left rear suspension No. 2 arm assembly) | 90179-16018 · 90179-16022 |
| 48750G | Nut (for rear suspension mount) | 90179-08122 |
| 48750H | Right rear suspension support assembly | 48750-32070 · 48750-32130 |
| 48750J | Nut (for rear mount to right rear shock absorber) | 94182-11400 |
| 48753B | Right rear suspension support cover No. 1 | 48753-32040 · 48753-32041 · 48753-32050 |
| 48753C | Left rear suspension support cover No. 1 | 48753-32040 · 48753-32041 · 48753-32050 |
| 48760B | Left rear suspension support assembly | 48760-32020 · 48760-32040 |
| 48760C | Nut (for rear mount to left rear shock absorber) | 94182-11400 |
| 48780A | Rear support rod assembly | 48780-12010 · 48780-20070 |
| 48780B | Bolts (for support rods) | 90119-12131 |
| 48780C | Nut (for support rod) | 90171-12008 · 90179-12062 · 90179-12063 · 90179-12091 |
| 48812 | rear stabilizer bar | 48812-32260 · 48812-32270 · 48812-32310 · 48812-32330 · 48812-32400 · 48812-32420 |
| 48818 | Rear stabilizer bar bushing | 48818-32050 · 48818-32070 · 48818-32080 |
| 48830 | Rear stabilizer link assembly | 48830-32030 · 48830-32040 |
| 48830A | Nut (for rear stabilizer link) | 90179-10054 |
| 48832A | Rear stabilizer bar No. 1 bracket | 48832-32030 · 48832-32050 · 48832-32070 |
| 48832B | Rear stabilizer bar bracket No. 2 | 48832-32040 · 48832-32060 · 48832-32080 |
| 48832C | Rear stabilizer bar No. 3 bracket | 48832-32090 |
