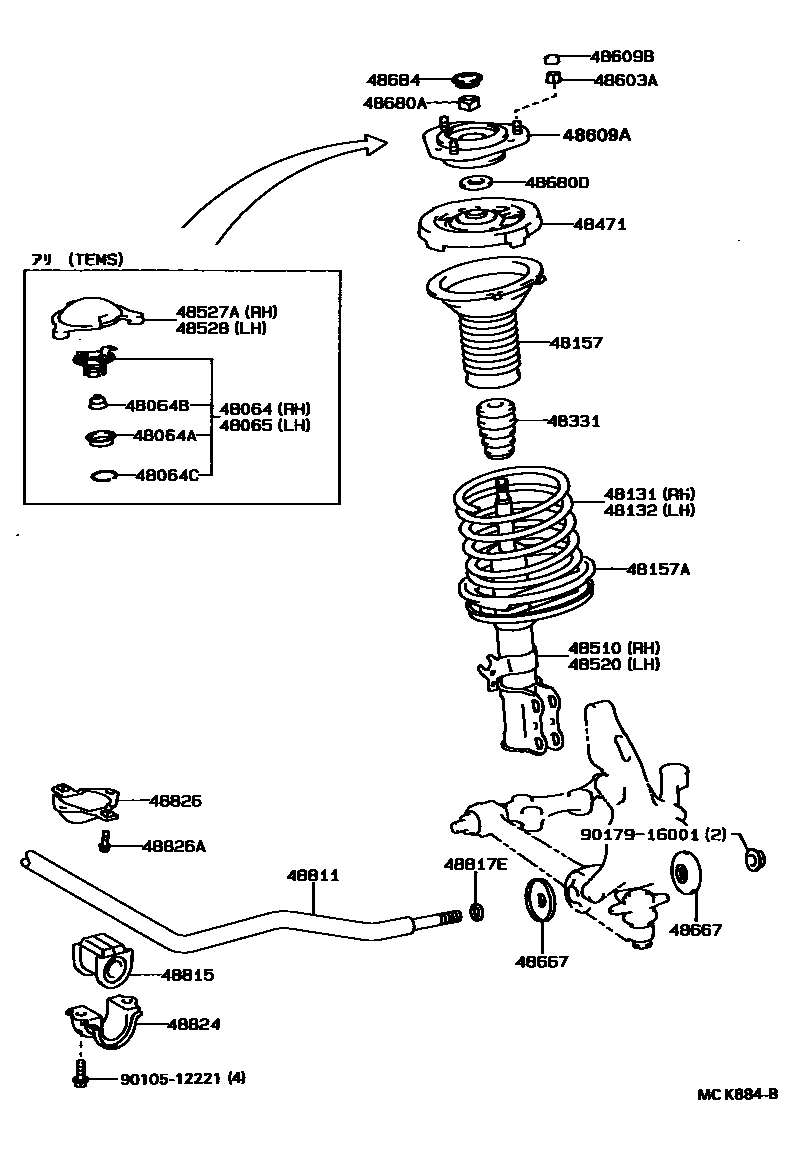

Toyota CAMRY Front Spring & Shock Absorber — Figure 4803
Toyota CAMRY EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48064 | Right front suspension support cover sub-assembly | 48064-16010 |
| 48064A | Dust seal (for front suspension mount cover) | 90304-26001 |
| 48064B | Seal (for front suspension mount cover) | 90480-13019 |
| 48064C | Retaining ring (for front suspension mount cover) | 90522-24001 |
| 48065 | Left front suspension support cover sub-assembly | 48065-16010 |
| 48131 | Right front coil spring | 48131-3H010 · 48131-3H040 · 48131-3H060 · 48131-3H070 · 48131-3H100 · 48131-3H110 · 48131-3H130 · 48131-3H160 · 48131-3H170 · 48131-3H200 · 48131-3H210 · 48131-3H240 · 48131-3H260 · 48131-3H270 · 48131-3H300 |
| 48132 | Left front coil spring | 48131-3H010 · 48131-3H040 · 48131-3H060 · 48131-3H070 · 48131-3H100 · 48131-3H110 · 48131-3H130 · 48131-3H160 · 48131-3H170 · 48131-3H200 · 48131-3H210 · 48131-3H240 · 48131-3H260 · 48131-3H270 · 48131-3H300 |
| 48157 | Front coil spring upper vibration isolation pad | 48157-32030 |
| 48157A | Front coil spring lower vibration isolation pad | 48158-32030 |
| 48331 | No. 1 front spring buffer block | 48331-32080 |
| 48471 | Front spring seat | 48044-32030 |
| 48510 | Right front shock absorber assembly | 48510-32160 · 48510-32170 · 48510-32190 · 48510-32200 · 48510-32210 · 48510-32220 · 48510-32230 · 48510-39215 |
| 48520 | Left front shock absorber assembly | 48520-32160 · 48520-32170 · 48520-32190 · 48520-32200 · 48520-32210 · 48520-32220 · 48520-32230 · 48520-39035 |
| 48527A | Right front shock absorber cover | 48527-32010 |
| 48528 | Left front shock absorber cover | 48528-32010 |
| 48603A | Nut (for front suspension mount) | 90179-10095 |
| 48609A | Front suspension support sub-assembly | 48609-32050 · 48609-32100 |
| 48609B | Cover (for front suspension mounts) | 90339-15002 |
| 48667 | Support rod retaining ring | 48667-32020 |
| 48680A | Nut (for front mount to front shock absorber) | 90179-14029 · 94182-11400 |
| 48680D | Dust seal (for front suspension mount) | 90303-22049 |
| 48684 | Bearing dust cover | 48684-32010 |
| 48811 | front stabilizer bar | 48811-32140 · 48811-32160 · 48811-32240 · 48811-32260 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-32080 · 48815-32090 |
| 48817E | Spacer (for stabilizer bar) | 90560-16005 |
| 48824 | front stabilizer bar bracket | 48824-32040 |
| 48826 | Front stabilizer bar protector | 48826-32010 |
| 48826A | Bolt (for front stabilizer bar guard) | 90119-08601 |
