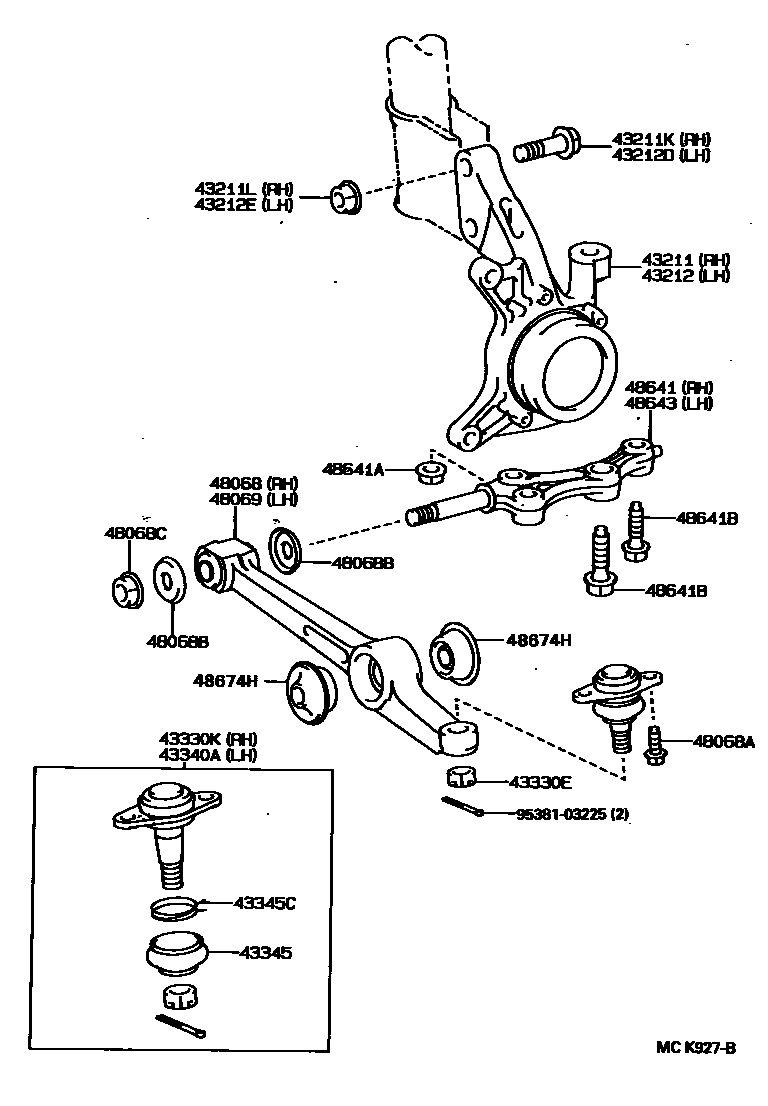

Toyota CAMRY 前桥控制臂和转向节 — Figure 4802
Toyota CAMRY EPC diagram 4802, 前桥控制臂和转向节, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43211 | Right steering knuckle | 43211-32080 · 43211-32090 · 43211-32100 · 43211-32110 |
| 43211K | Bolt (for right steering knuckle) | 90105-17001 |
| 43211L | Nut (for right steering knuckle) | 90179-17001 |
| 43212 | left steering knuckle | 43212-32080 · 43212-32090 · 43212-32100 · 43212-32110 |
| 43212D | Bolt (for left steering knuckle) | 90105-17001 |
| 43212E | Nut (for left steering knuckle) | 90179-17001 |
| 43330E | Castle nut (used to secure the front lower ball joint) | 90171-14002 |
| 43330K | Right front lower ball joint assembly | 43330-39275 |
| 43340A | Left front lower ball joint assembly | 43330-39275 |
| 43345 | Lower ball joint dust cover | 43345-32030 |
| 43345C | Wiring harness (for lower ball joint dust cover) | 90580-10002 |
| 48068 | Right front suspension No. 1 lower arm sub-assembly | 48068-32050 |
| 48068A | Bolt (for front suspension lower arm) | 90105-12142 |
| 48068B | Crash pad retainer (for front suspension lower arm) | 90948-02088 · 90948-02103 |
| 48068C | Nut (for front suspension lower arm) | 90179-16004 |
| 48069 | Left front suspension No. 1 lower arm sub-assembly | 48069-32050 |
| 48641 | Right lower arm shaft | 48641-32020 · 48641-32030 |
| 48641A | Nut (for suspension lower arm shaft) | 90179-14043 |
| 48641B | Bolt (for suspension lower arm shaft) | 90105-14076 · 90105-14079 |
| 48643 | left lower arm axis | 48643-32020 · 48643-32030 |
| 48674H | Support rod cushion | 48674-32120 |
