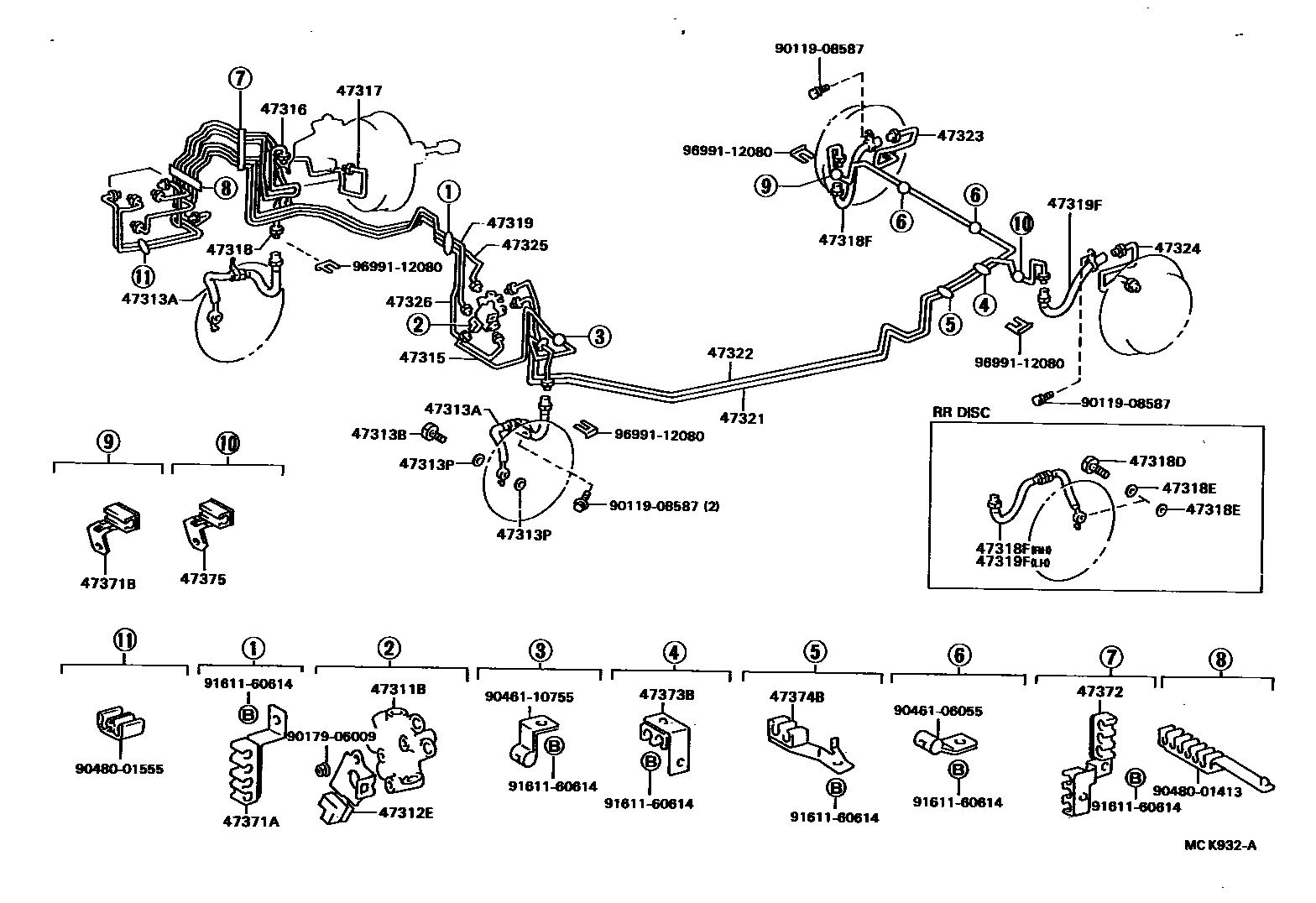

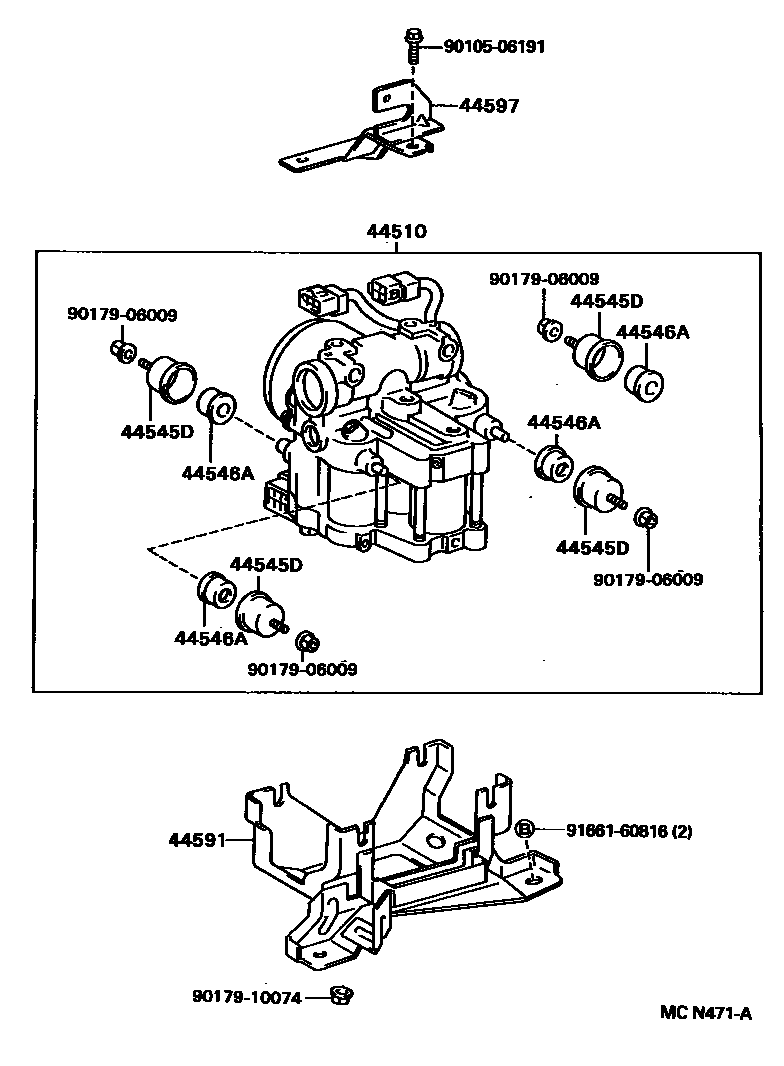

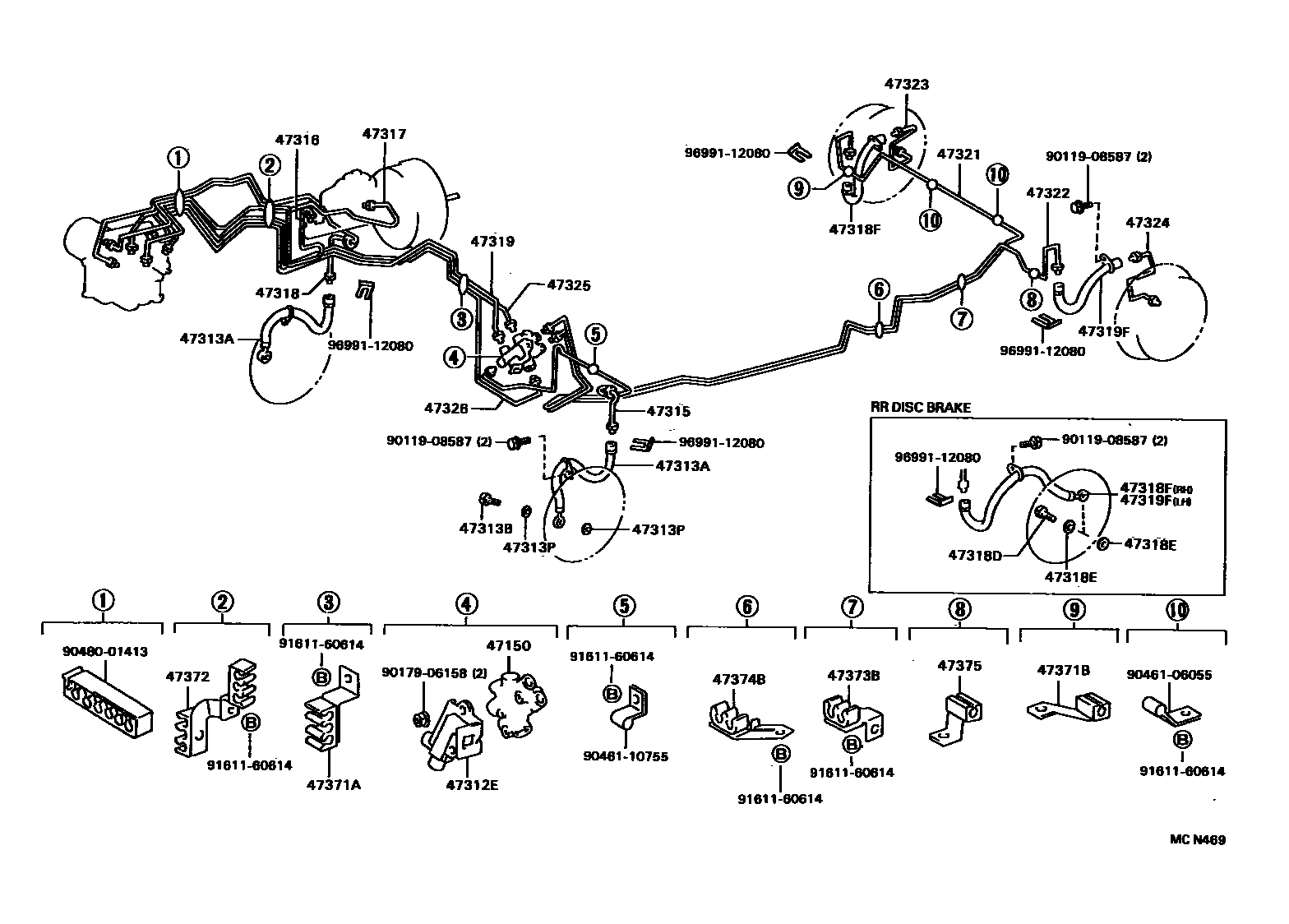

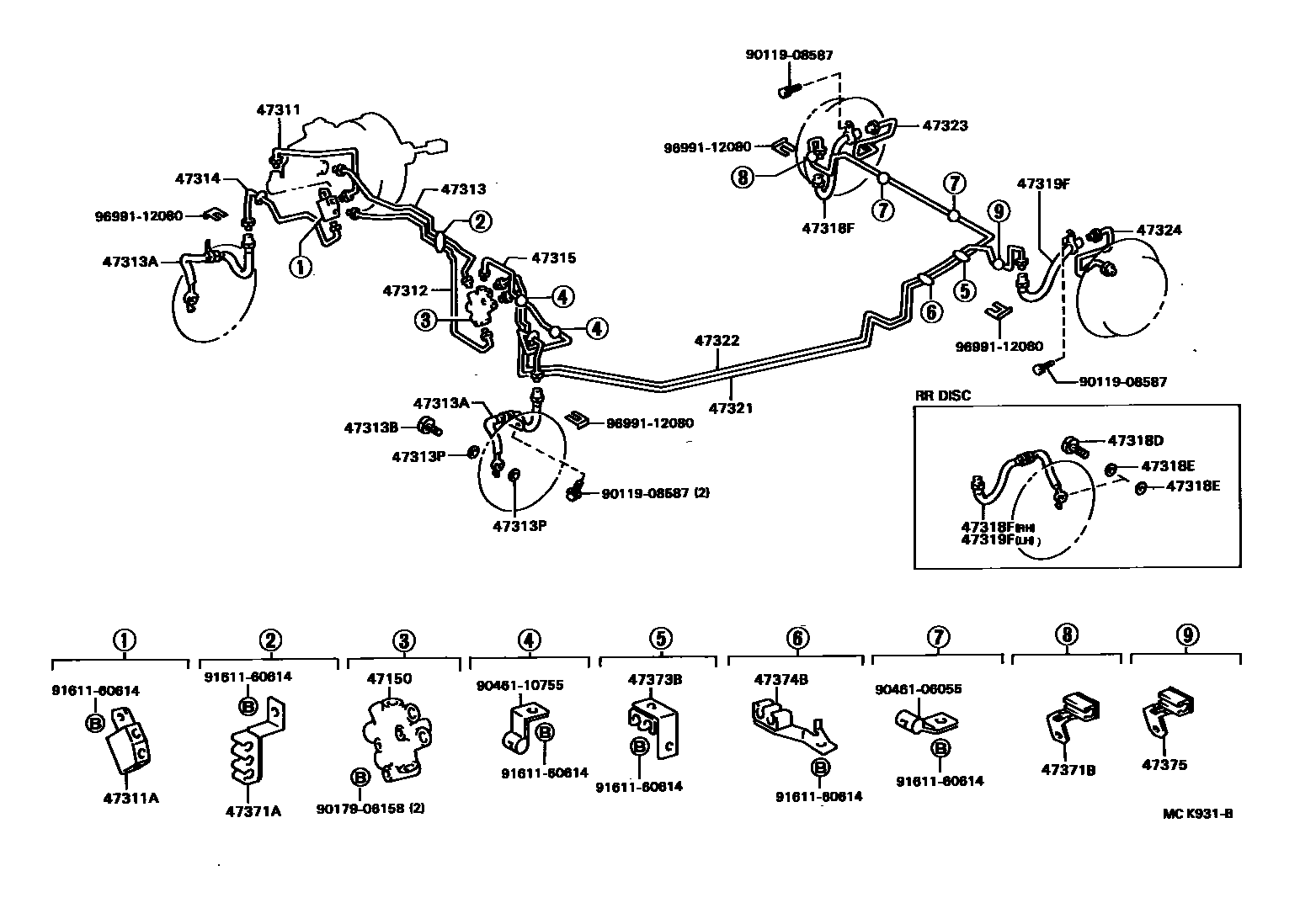

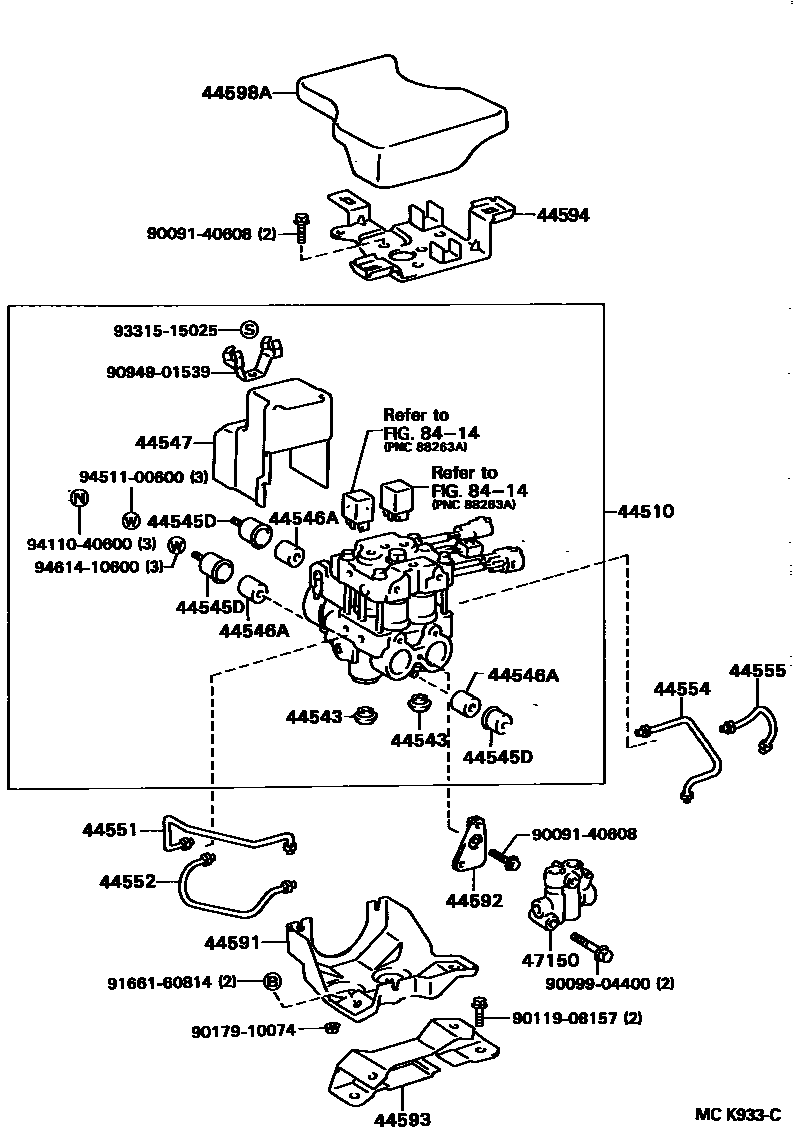

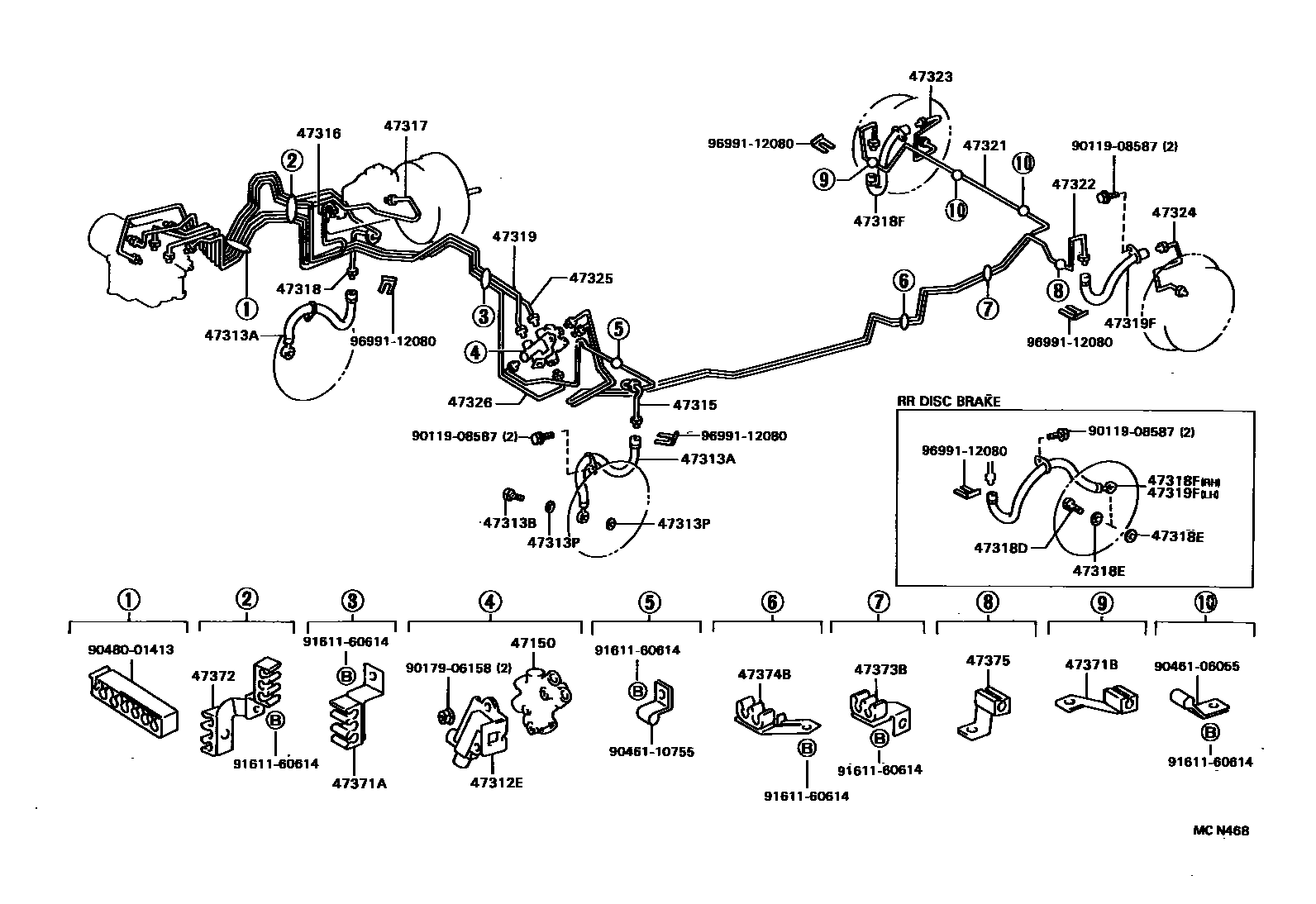

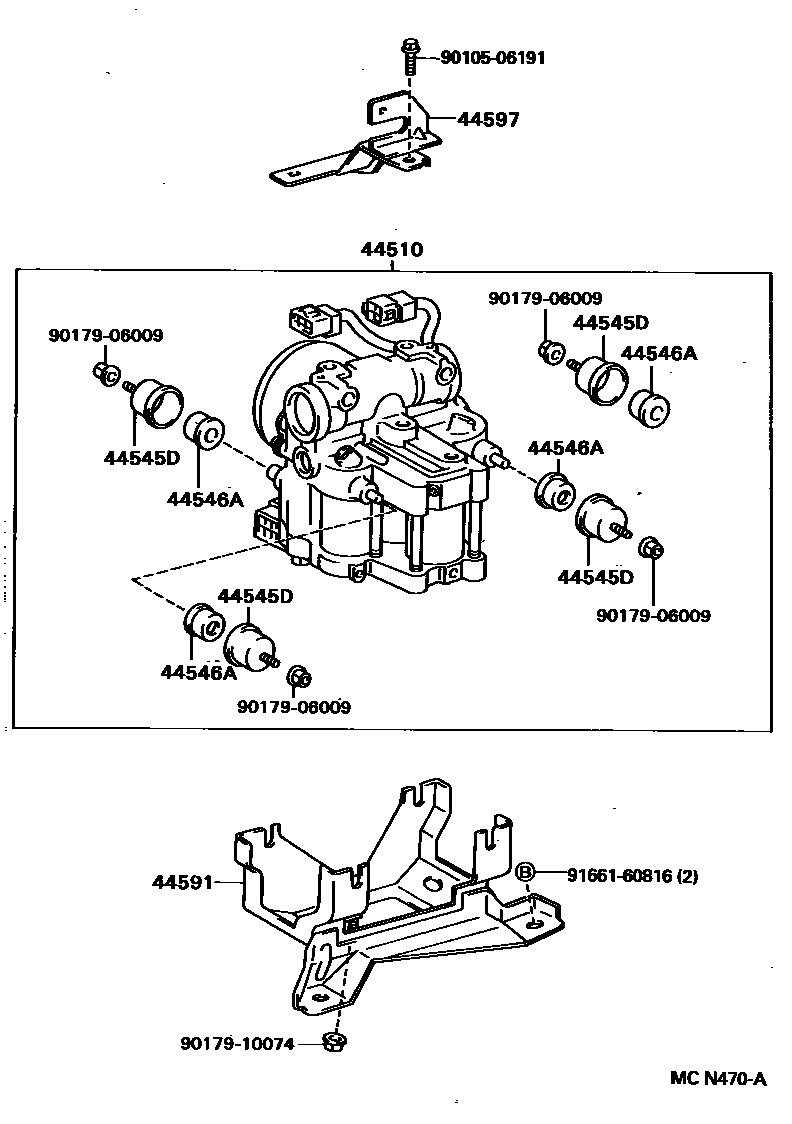

Toyota CAMRY 制动配管和卡箍 — Figure 4708
Toyota CAMRY EPC diagram 4708, 制动配管和卡箍, with 7 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44510-32030 · 44510-32040 · 44510-32050 · 44510-32060 |
| 44543 | rubber cap | 44543-14010 |
| 44545D | Brake actuator bolt mount | 44545-14010 · 44545-33010 |
| 44546A | Brake actuator bolt cushion | 44546-14010 · 44546-33010 |
| 44547 | Relay box (for brake actuator) | 44547-32030 · 44547-32040 |
| 44551 | No. 1 brake actuator pipe | 44551-32020 |
| 44552 | No. 2 brake actuator pipe | 44552-32030 |
| 44554 | No. 4 brake actuator tube | 44554-32020 |
| 44555 | No. 5 brake actuator tube | 44555-32040 |
| 44591 | No. 1 brake actuator bracket | 44590-32010 · 44590-32020 · 44591-32020 |
| 44592 | No. 2 brake actuator bracket | 44592-32020 |
| 44593 | No. 3 brake actuator bracket | 44593-32020 |
| 44594 | No. 4 brake actuator bracket | 44594-32010 |
| 44597 | No. 1 brake actuator connector clip | 44597-32010 |
| 44598A | brake actuator cover | 44598-32020 |
| 47150 | Proportional valve assembly | 47150-12070 · 47150-12090 · 47150-12110 · 47150-16050 · 47150-20160 · 47150-20230 · 47150-20240 · 47150-20270 · 47150-32070 · 47150-32090 · 47150-32100 · 47150-32110 |
| 47311 | No. 1 front brake pipe | 47311-32090 |
| 47311A | Pipe fitting (for front brake pipe) | 90413-10253 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10140 |
| 47312 | No. 2 front brake pipe | 47312-32140 · 47312-32150 · 47312-32160 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-10155 · 90412-10209 |
| 47313 | No. 3 front brake pipe | 47313-32130 · 47313-32140 · 47313-32150 |
| 47313A | No. 1 front flexible hose | 90947-02623 · 90947-02640 |
| 47313B | Connector bolt (for front flex hose) | 90401-10015 · 90401-10045 |
| 47313P | Gasket (for front flex hose) | 47389-30010 · 90430-10074 |
| 47314 | No. 4 front brake pipe | 47314-32120 · 47314-32130 · 47314-32140 |
| 47315 | No. 5 front brake pipe | 47315-32110 · 47315-32120 · 47315-32130 |
| 47316 | No. 6 front brake pipe | 47316-32030 · 47316-32040 · 47316-32050 |
| 47317 | No. 7 front brake pipe | 47317-32030 · 47317-32040 · 47317-32050 |
| 47318 | No. 8 front brake pipe | 47318-32020 · 47318-32030 · 47318-32040 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10015 |
| 47318E | Gasket (for rear flex hose) | 47389-30010 · 90430-10074 |
| 47318F | Right rear flexible hose | 90947-02625 · 90947-02626 · 90947-02628 · 90947-02650 · 90947-02699 · 90947-02701 · 90947-02703 · 90947-02705 |
| 47319 | No. 9 front brake pipe | 47319-32030 · 47319-32040 · 47319-32050 |
| 47319F | Left rear flexible hose | 90947-02627 · 90947-02641 · 90947-02642 · 90947-02651 · 90947-02700 · 90947-02702 · 90947-02704 · 90947-02706 |
| 47321 | No. 1 rear brake pipe | 47321-32120 · 47321-32130 · 47321-32140 |
| 47322 | No. 2 rear brake pipe | 47322-32110 · 47322-32120 · 47322-32130 |
| 47323 | No. 3 rear brake pipe | 47323-32020 |
| 47324 | No. 4 rear brake pipe | 47324-32080 |
| 47325 | No. 5 rear brake pipe | 47323-32080 · 47323-32090 · 47323-32100 |
| 47326 | No. 6 rear brake pipe | 47324-32090 · 47324-32100 · 47324-32110 |
| 47371A | No. 1 brake pipe clamp | 47371-32080 · 47371-32090 |
| 47371B | No. 6 brake pipe clamp | 47371-32130 |
| 47372 | No. 2 brake pipe clamp | 47371-32100 |
| 47373B | No. 3 brake pipe clamp | 47371-32110 |
| 47374B | No. 4 brake pipe clamp | 47371-32120 |
| 47375 | No. 5 brake pipe clamp | 47371-32140 |
