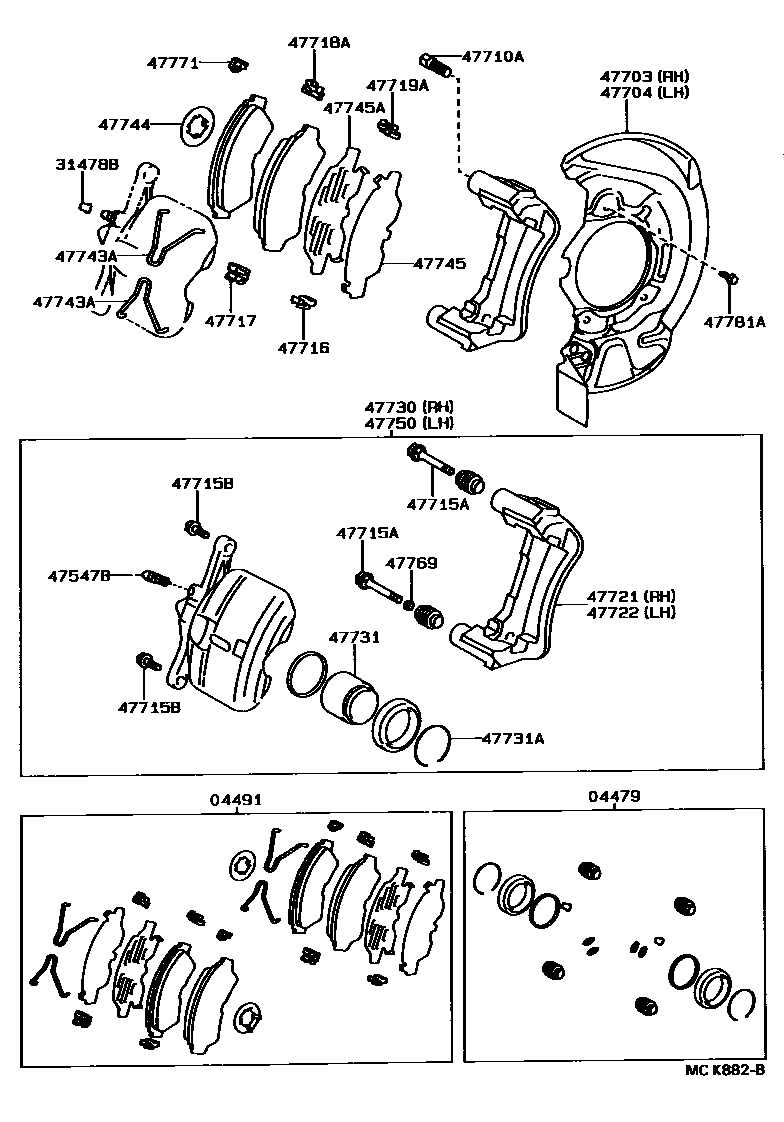

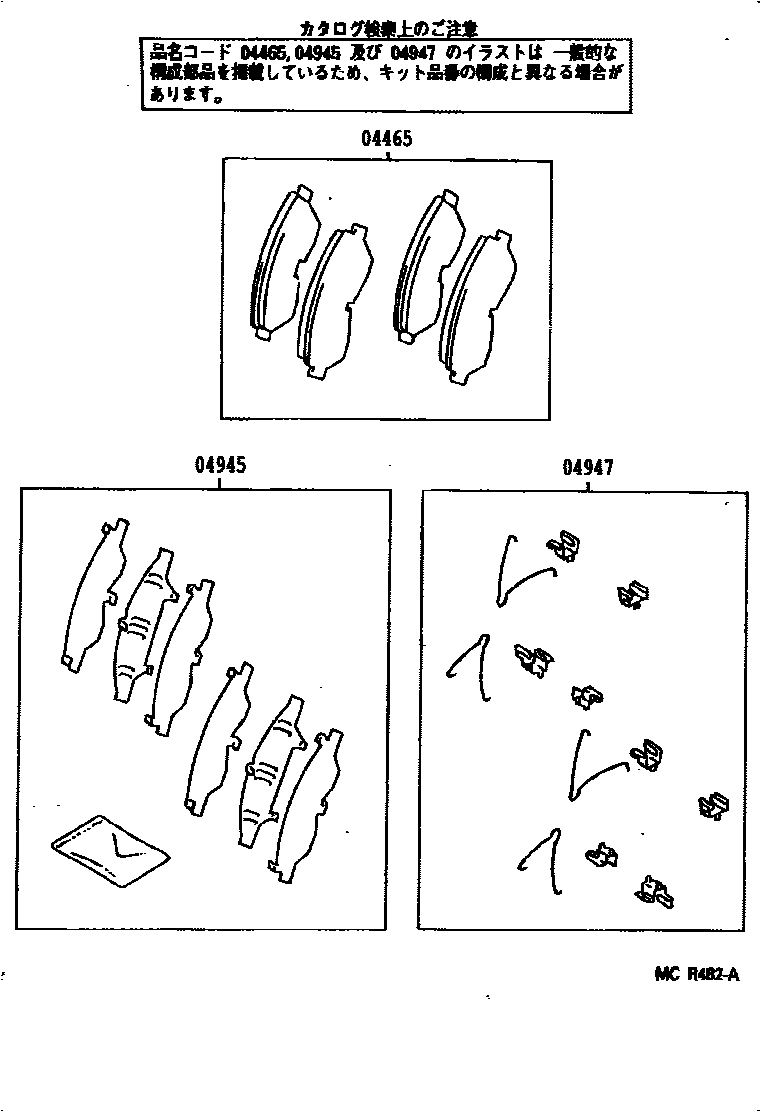

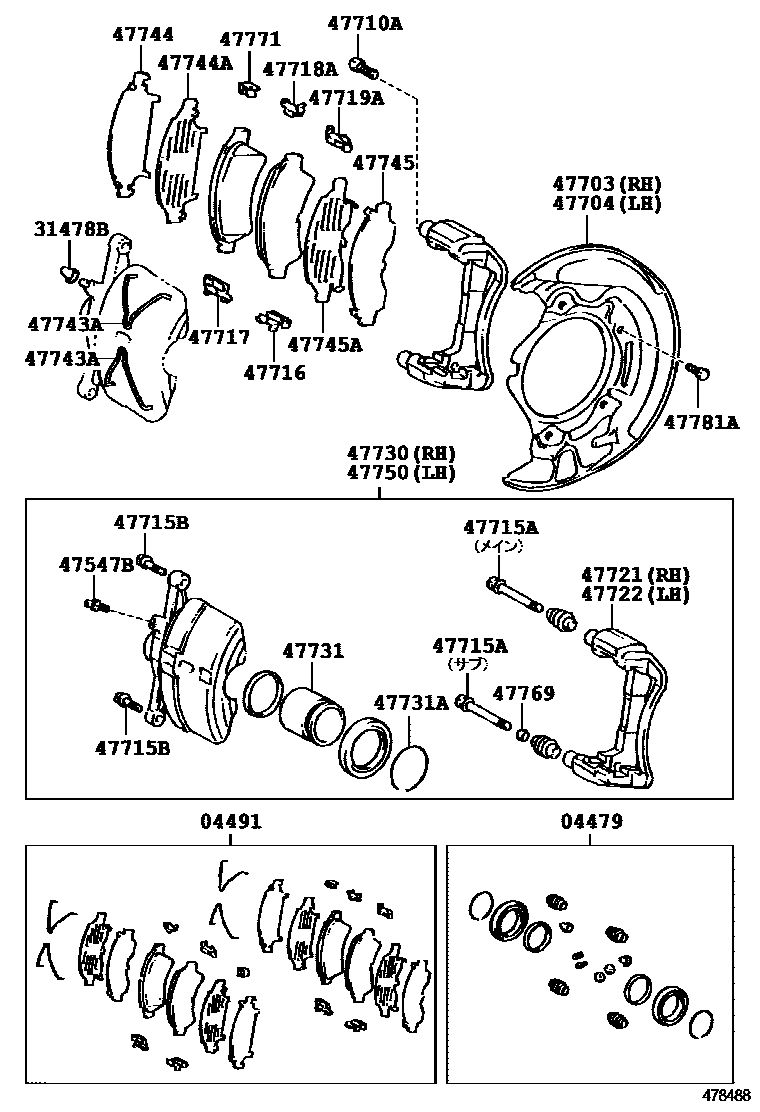

Toyota CAMRY 前盘式制动器卡钳和防尘罩 — Figure 4705
Toyota CAMRY EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 3 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-32080 · 04465-32120 |
| 04479 | Front disc brake cylinder assembly | 04479-32070 · 04479-32080 |
| 04491 | Front disc brake pad assembly | 04491-32360 · 04491-32361 · 04491-32371 · 04491-32411 |
| 04945 | Front silencer gasket assembly | 04945-32010 · 04945-32020 · 04945-32030 |
| 04947 | Front disc brake mounting kit | 04947-32150 · 04947-32160 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-30010 |
| 47547B | Bleed plug (for front disc brake) | 47547-20010 |
| 47703 | Right front disc brake dust cover sub-assembly | 47703-32070 · 47703-32080 · 47781-32070 · 47781-32080 |
| 47704 | Left front disc brake dust cover sub-assembly | 47704-32070 · 47704-32080 · 47782-32070 · 47782-32080 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90105-12208 |
| 47715A | Front disc brake cylinder sliding pin | 47715-22070 · 47715-22080 · 47715-32010 · 47715-50010 · 47715-50030 |
| 47715B | Slide bolt (for front disc brake cylinder) | 90105-08164 · 90105-08236 |
| 47716 | Pad support plate No. 1 (for front disc brake) | 47716-32070 · 47716-32090 |
| 47717 | Pad support plate No. 2 (for front disc brake) | 47716-32080 · 47716-32100 |
| 47718A | No. 3 pad support plate (for front disc brake) | 47717-32070 |
| 47719A | No. 4 pad support plate (for front disc brake) | 47717-32080 |
| 47721 | Right front disc brake cylinder retainer | 47721-32100 · 47721-32110 · 47721-32120 |
| 47722 | Left front disc brake cylinder retainer | 47722-32100 · 47722-32110 · 47722-32120 |
| 47730 | Right front disc brake cylinder assembly | 47730-32110 · 47730-32111 · 47730-32120 · 47730-32130 |
| 47731 | Front disc brake piston | 47731-32040 |
| 47731A | retaining ring (for front disc brake piston) | 90522-66001 |
| 47743A | Silencer spring (for front disc brake) | 47743-32020 · 47743-32030 |
| 47744 | No. 1 silencer gasket (for front disc brake) | 47744-32050 · 47745-32080 |
| 47744A | No. 3 silencer gasket (for front disc brake) | 47742-32080 |
| 47745 | No. 2 silencer gasket (for front disc brake) | 47745-32070 · 47745-32080 |
| 47745A | No. 4 silencer gasket (for front disc brake) | 47742-32070 · 47742-32080 |
| 47750 | Left disc brake cylinder assembly | 47750-32110 · 47750-32111 · 47750-32120 · 47750-32130 |
| 47769 | No. 1 brake cylinder sliding sleeve (for front disc brake) | 47769-32030 · 47769-50010 |
| 47771 | No. 1 pad wear indicator plate | 47771-32020 · 47771-50010 |
| 47781A | Bolt (used to secure dust cover to knuckle arm) | 90119-06227 |
